主要尺寸與性能資料
| H | 70 mm | 高度 |
| B | 138 mm | 寬度 |
| L3 | 300 | standard length 3 1 |
| ≈m | 13.2 kg | 重量 |

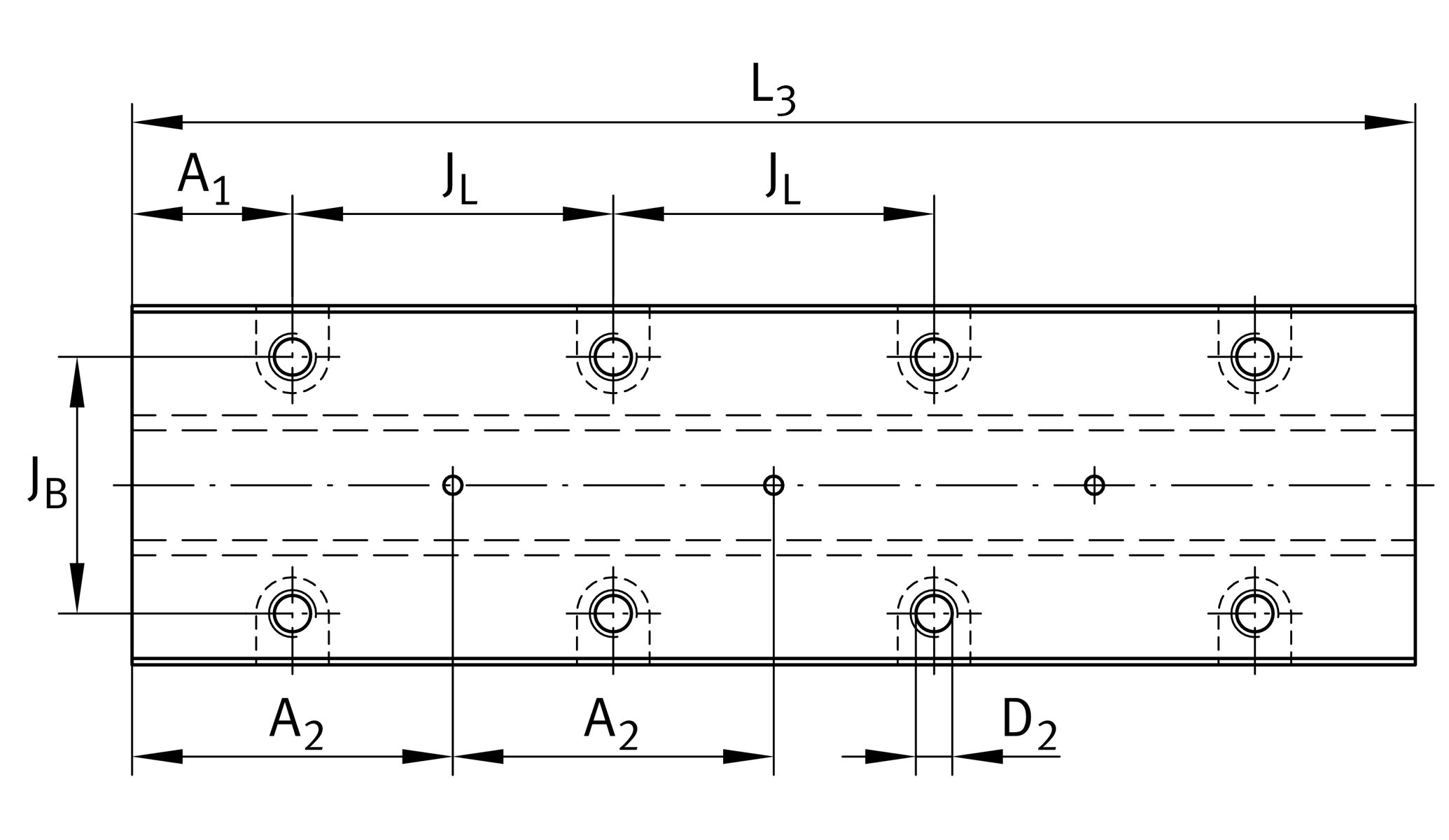

安裝尺寸
| H1 | 11 mm | |
| T5 | 18 mm | |
| H3 | 31 mm | |
| JB | 116 mm | |
| A1 | 37.5 mm | |
| A2 | 75 mm | |
| JL | 75 mm | |
| G2 | M14 | fixing screws 2 |
| G2 MA | 229 Nm | tightening torque 3 |
| K3 | M12 | fixing screws 4 |
| K3 MA | 144 Nm | tightening torque 3 |
| n | 8 | number of fixing threads |
| D2 | 12.5 mm |
Related products
RUE55-E, RUE55-E-L, RUE55-F, RUE55-F-L | suitable linear guidances |
您目前的產品型號
| Size code | 55 | |
| Length | 300 | standardlength 3 |
| Suffix | D |
