INA
RUDS55X225-D-H
Damping carriage for linear recirculationg roller bearing and guideway assembly RUDS55X225-D-H
加入詢價
主要尺寸與性能資料
H
80 mm
高度
B
98 mm
寬度
L2
225
standard length 2 1
≈m
8.7 kg
重量

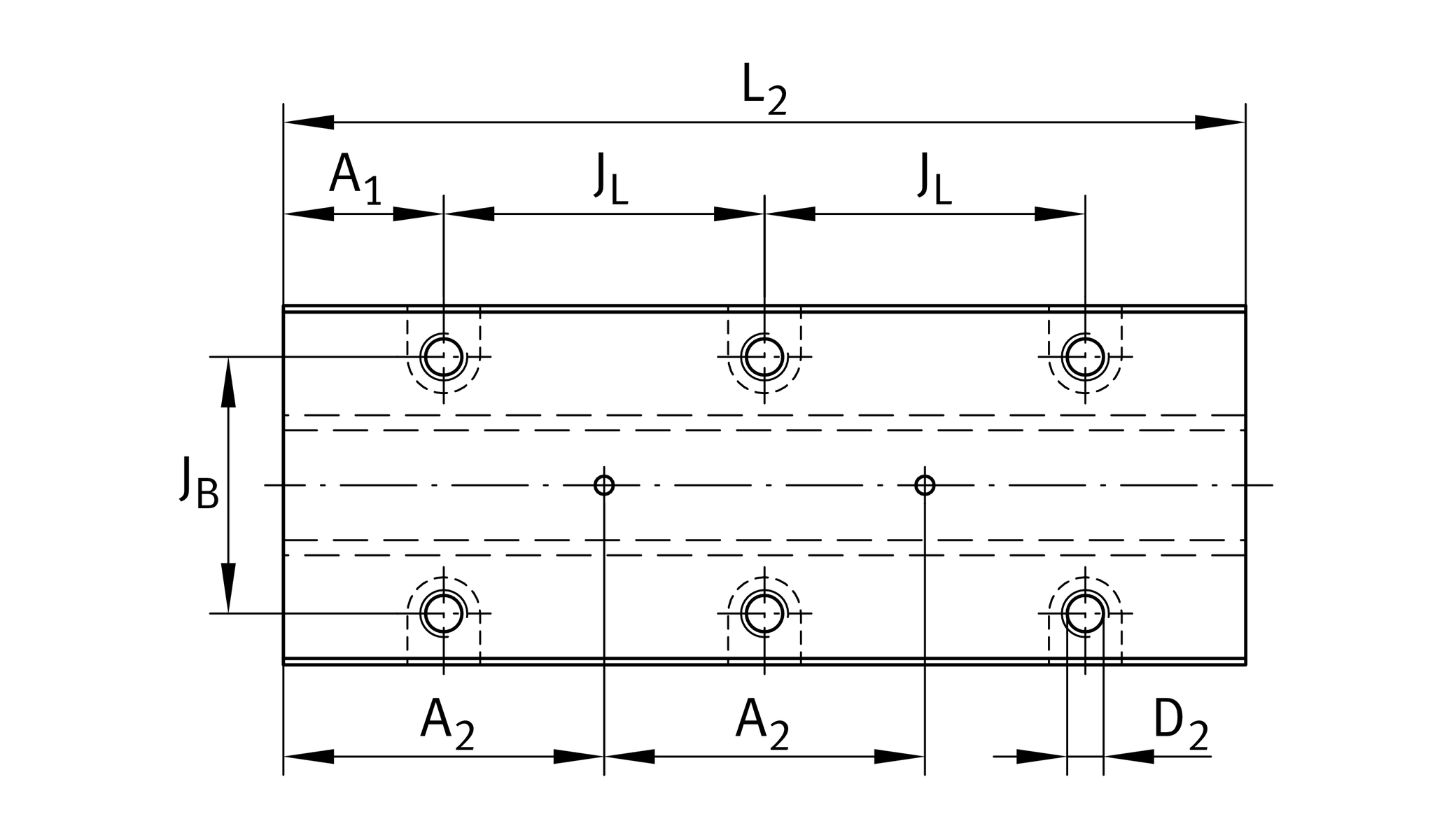

安裝尺寸
H1
13 mm
T5
18 mm
H3
61 mm
JB
75 mm
A1
37.5 mm
A2
75 mm
JL
75 mm
G2
M12
fixing screws 2
G2 MA
144 Nm
tightening torque 3
n
6
number of fixing threads

Related products
RUE55-E-H, RUE55-E-HL, RUE55-F-H, RUE55-F-HL
suitable linear guidances

您目前的產品型號
Size code55
Length225standardlength 2
SuffixD
VersionHhigh version
