主要尺寸與性能資料
| H | 60 mm | 高度 |
| B | 118 mm | 寬度 |
| L3 | 300 | standard length 3 1 |
| ≈m | 9.396 kg | 重量 |

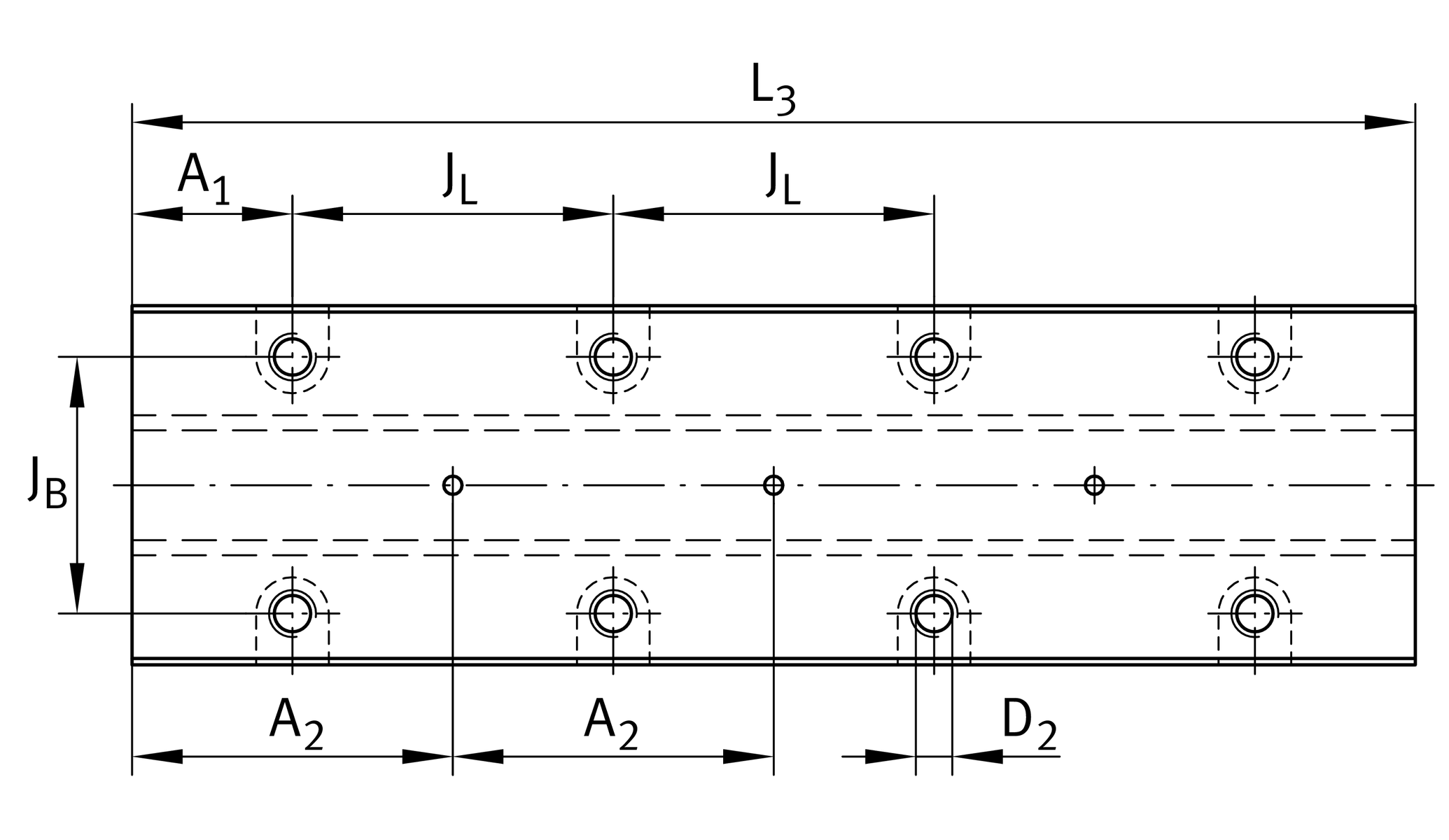

安裝尺寸
| H1 | 8.7 mm | |
| T5 | 15 mm | |
| H3 | 26 mm | |
| JB | 100 mm | |
| A1 | 37.5 mm | |
| A2 | 75 mm | |
| JL | 75 mm | |
| G2 | M12 | fixing screws 2 |
| G2 MA | 144 Nm | tightening torque 3 |
| K3 | M10 | fixing screws 4 |
| K3 MA | 83 Nm | tightening torque 3 |
| n | 8 | number of fixing threads |
| D2 | 10.6 mm |
Related products
RUE45-E, RUE45-E-L, RUE45-F, RUE45-F-L | suitable linear guidances |
您目前的產品型號
| Size code | 45 | |
| Length | 300 | standardlength 3 |
| Suffix | D |
