RUDS25X150-D-H
Damping carriage for linear recirculationg roller bearing and guideway assembly RUDS25X150-D-H
加入詢價
主要尺寸與性能資料
H
40 mm
高度
B
47 mm
寬度
L1
150
standard length 1 1
≈m
1.35 kg
重量

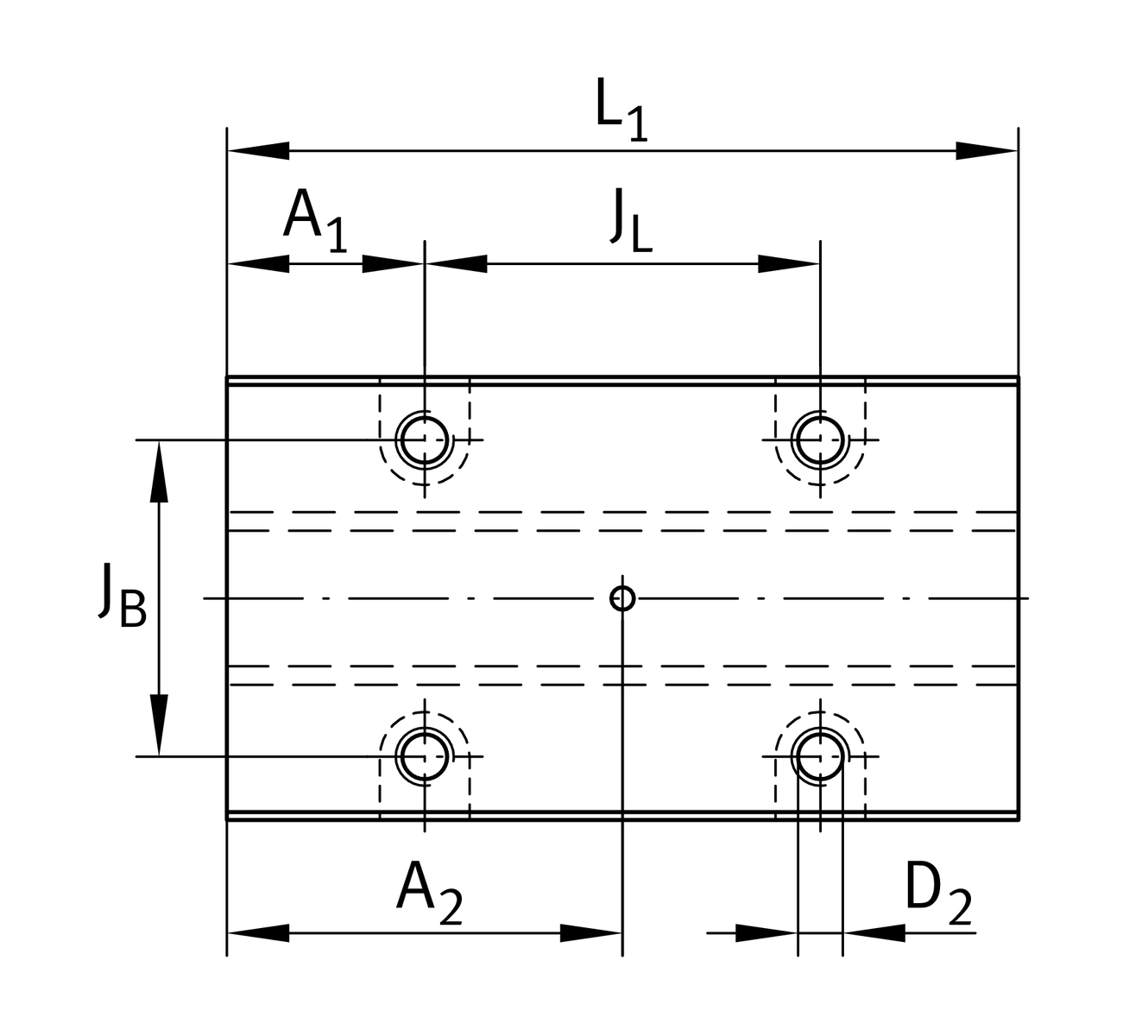

安裝尺寸
H1
7.2 mm
T5
9 mm
H3
29.5 mm
JB
35 mm
A1
37.5 mm
A2
75 mm
JL
75 mm
G2
M6
fixing screws 2
G2 MA
17.4 Nm
tightening torque 3
n
4
number of fixing threads

Related products
RUE25-E-H, RUE25-E-HL, RUE25-F-H, RUE25-F-HL
suitable linear guidances

您目前的產品型號
Size code25
Length150standardlength 1
SuffixD
VersionHhigh version
