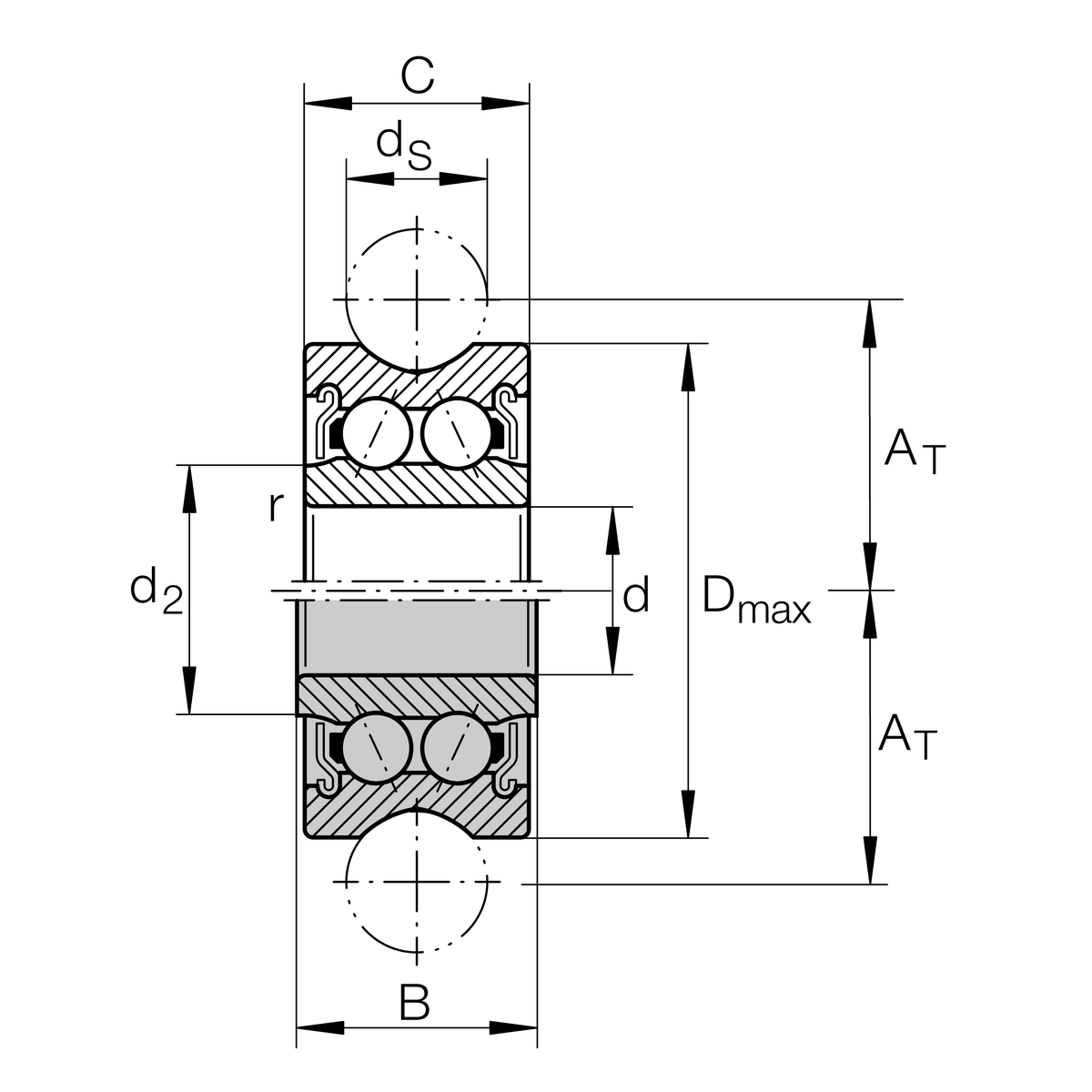

主要尺寸與性能資料
| d | 40 mm | |
| Dmax | 98 mm | |
| B | 38 mm | |
| ≈m | 1.06 kg | 重量 |
安裝尺寸
| AT | 62.5 mm | |
| C | 36 mm | |
| Da | 90.36 mm | Diameter of rolling |
| ds | 40 mm | |
| rmin | 1.1 mm |
Main dimensions
| Cr w | 38,500 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 29,000 N | Effective static load rating as track roller (radial) |
| Cur w | 1,480 N | Limit of fatigue load |
| Fr per | 51,000 N | Permissible dynamic limit load |
| F0r per | 58,000 N | Permissible static limit load |
附加資訊
| LFE/LFZ | siehe Katalog: LF1 | Possible roller-pin combination |
您目前的產品型號
| Size code | 5208 | |
| Seal | 2RS | double-sided sliding seal |
| Coating | RB | rustproof design |
