主要尺寸與性能資料
| H1 | 38.1 mm | |
| B | 116 mm | |
| L | 150 mm | |
| ≈m | 1 kg | 重量 |

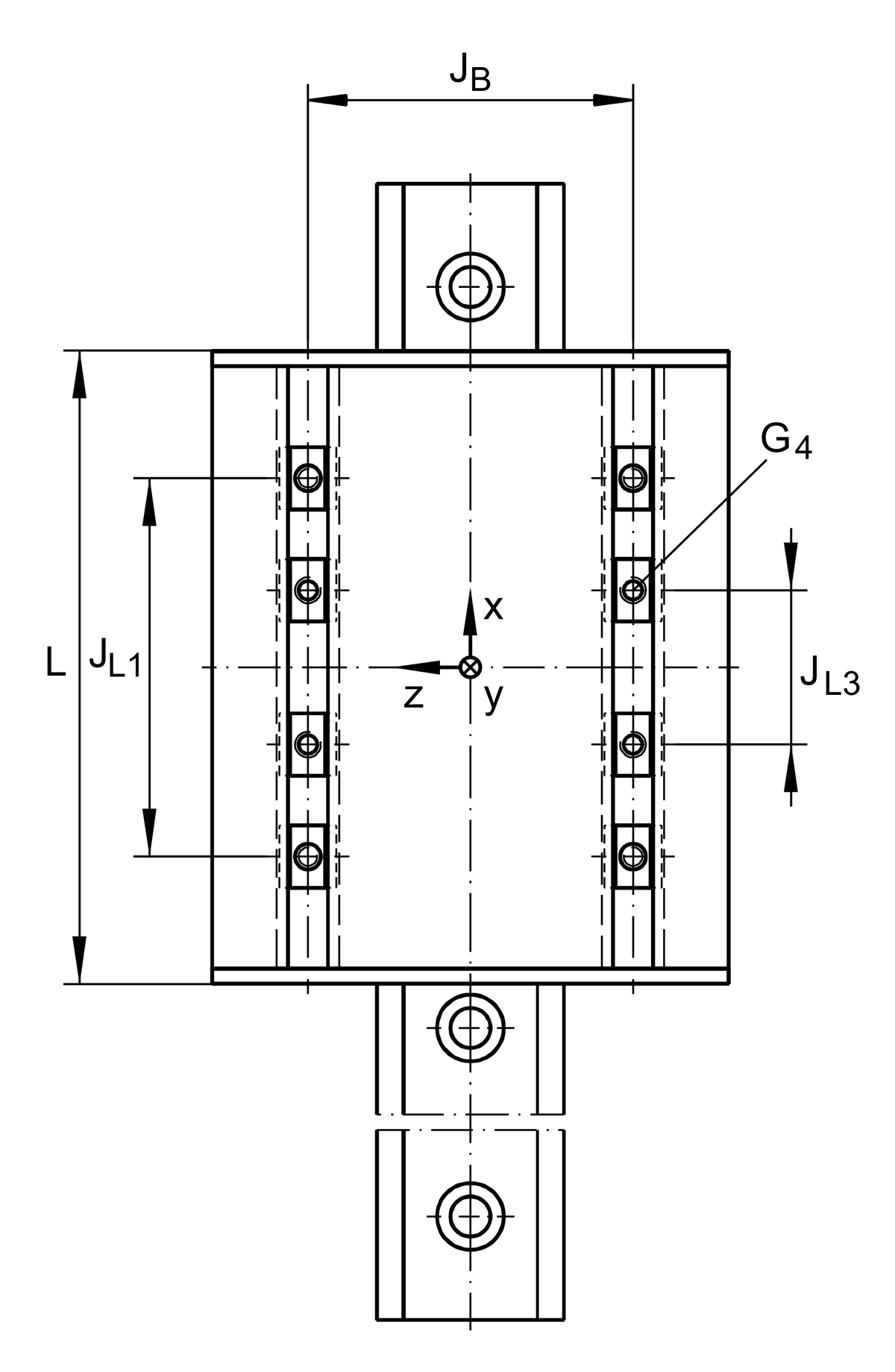

安裝尺寸
| G4 | M8x12mm | |

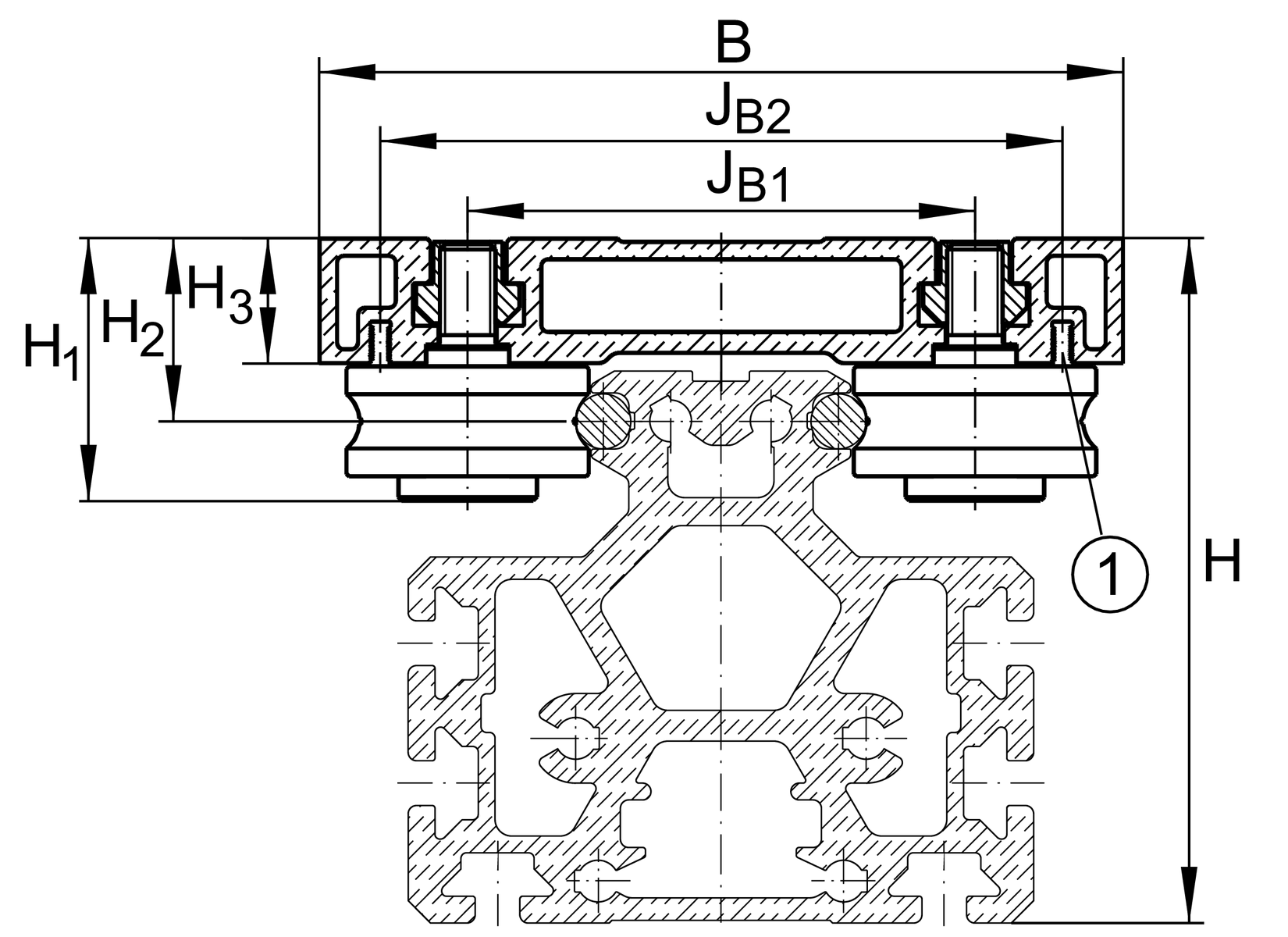

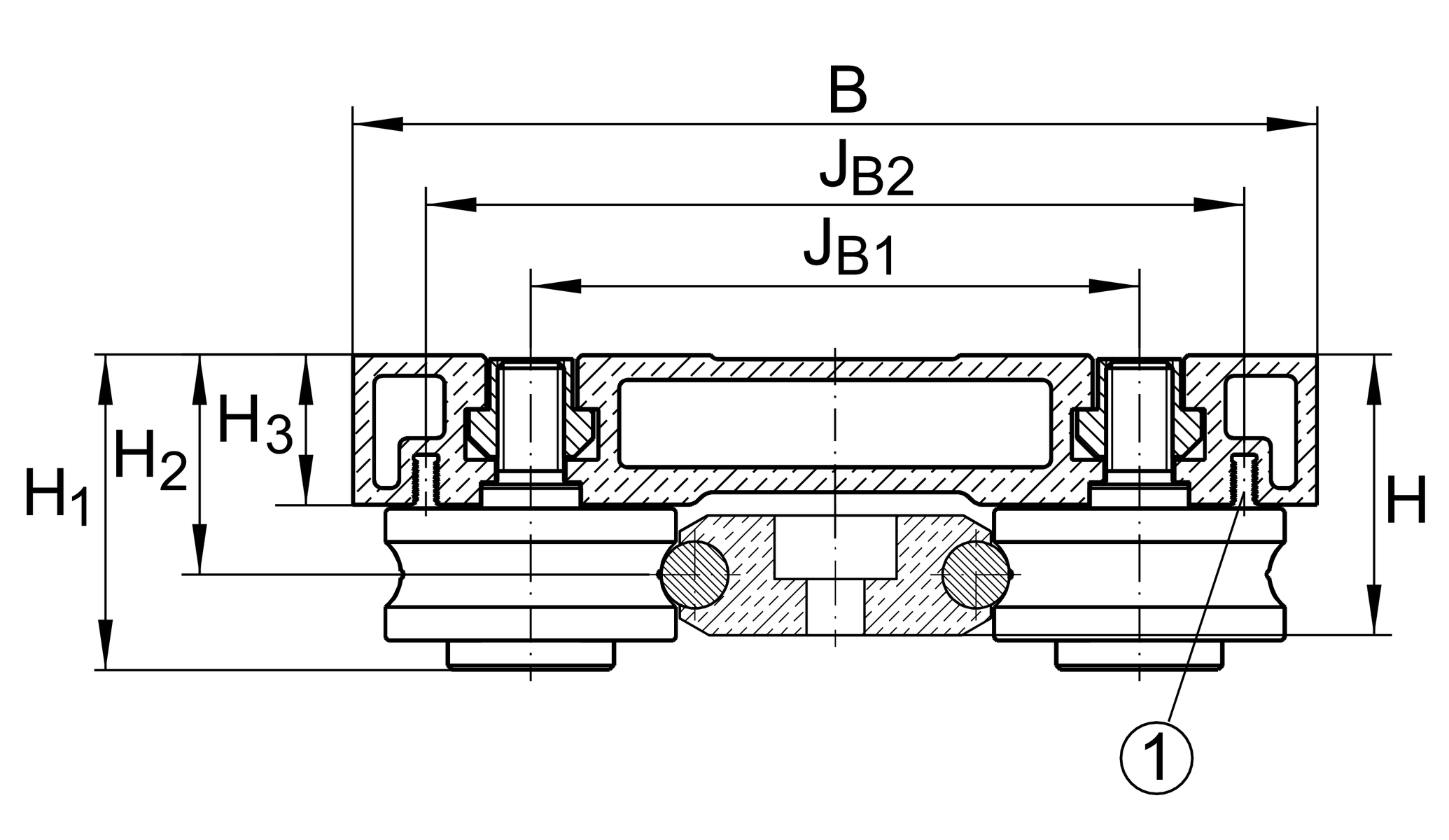

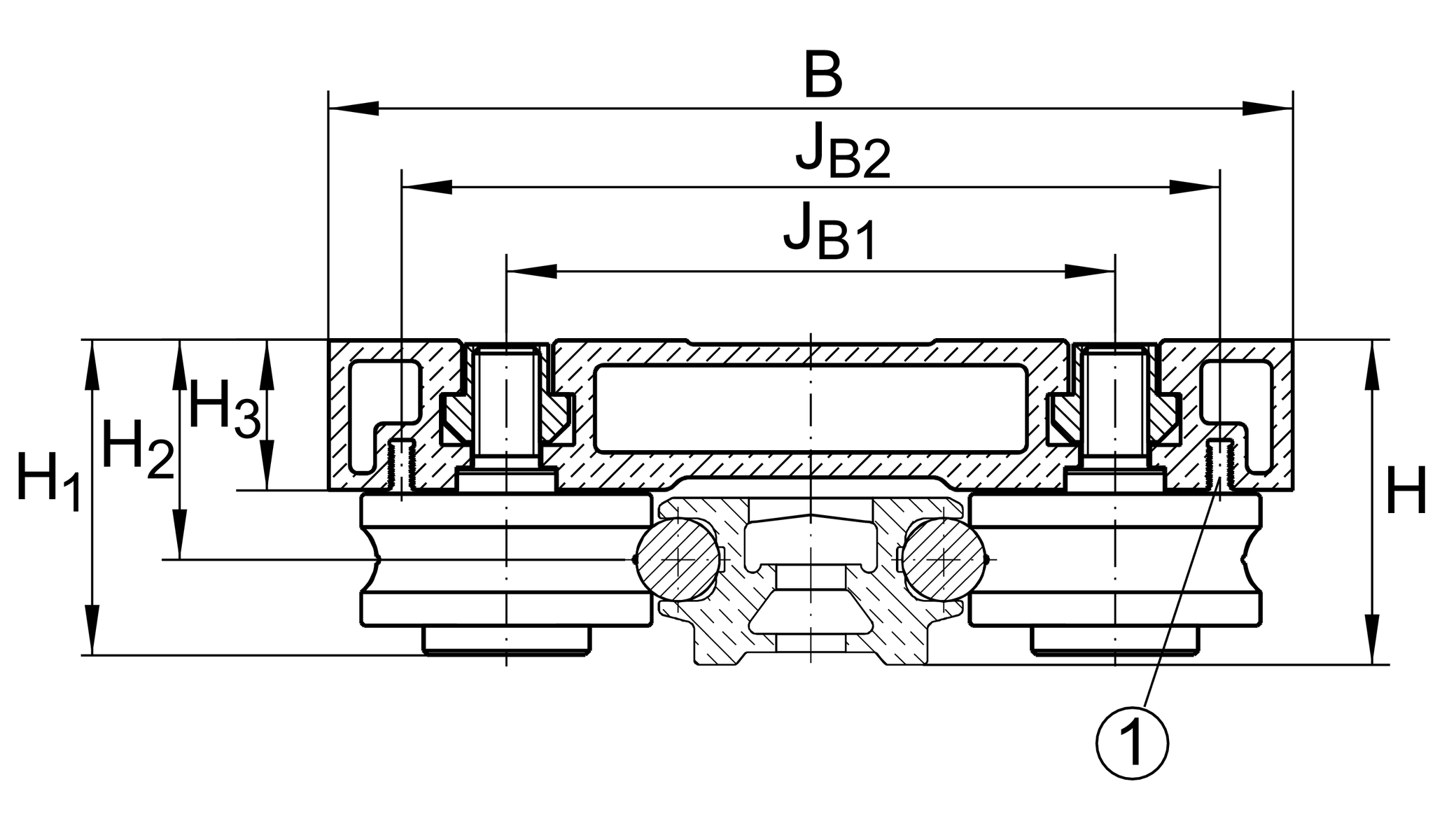

| H | 39 mm | Total height of carriage and rail at LFS, -C, -CE, -CEE, -E, -EE, -N, -NZZ |
| H | 33.9 mm | Total height of carriage and rail at LFS..-M |
| H2 | 26.4 mm | |
| H2 Tol | 0.3 | |
| H2 Tol | 0 | |
| H3 | 18 mm | |
| JB | 73 mm | |
| JB1 | 73 mm | |
| JB2 | 98.5 mm | |
| JL1 | 85 mm | |
| JL3 max | 55 mm | |
| JL3 min | 15 mm |
Main dimensions

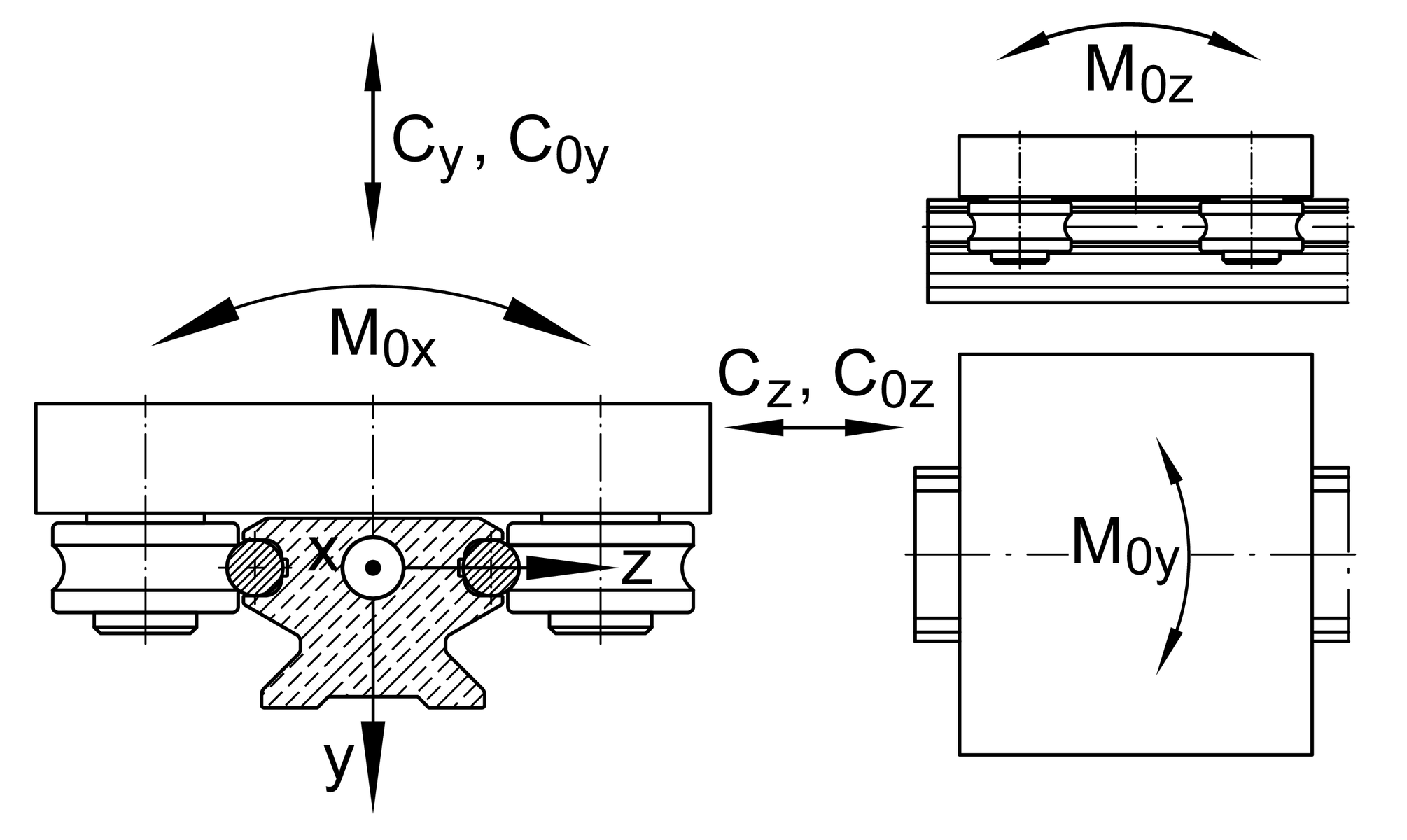

| Cy | 10,200 N | 基本額定動載重 in y-direction |
| C0y | 5,480 N | 基本額定靜載重 in y-direction 1 |
| Cz | 16,900 N | 基本額定動載重 in z-direction 1 |
| C0z | 10,000 N | 基本額定靜載重 in z-direction 1 |
| M0x | 85 Nm | static moment about X-axis |
| M0y | 425 Nm | static moment about Y-axis |
| M0z | 230 Nm | static moment about Z-axis |
Related products
| LFR | LFR5201-10-2Z | used track roller 2 |
| LFS | LFS42 | Guide rail 3 |
您目前的產品型號
| Size code | 42 |
