主要尺寸與性能資料
| H1 | 30.5 mm | |
| B | 80 mm | |
| L | 110 mm | |
| ≈m | 0.45 kg | 重量 |

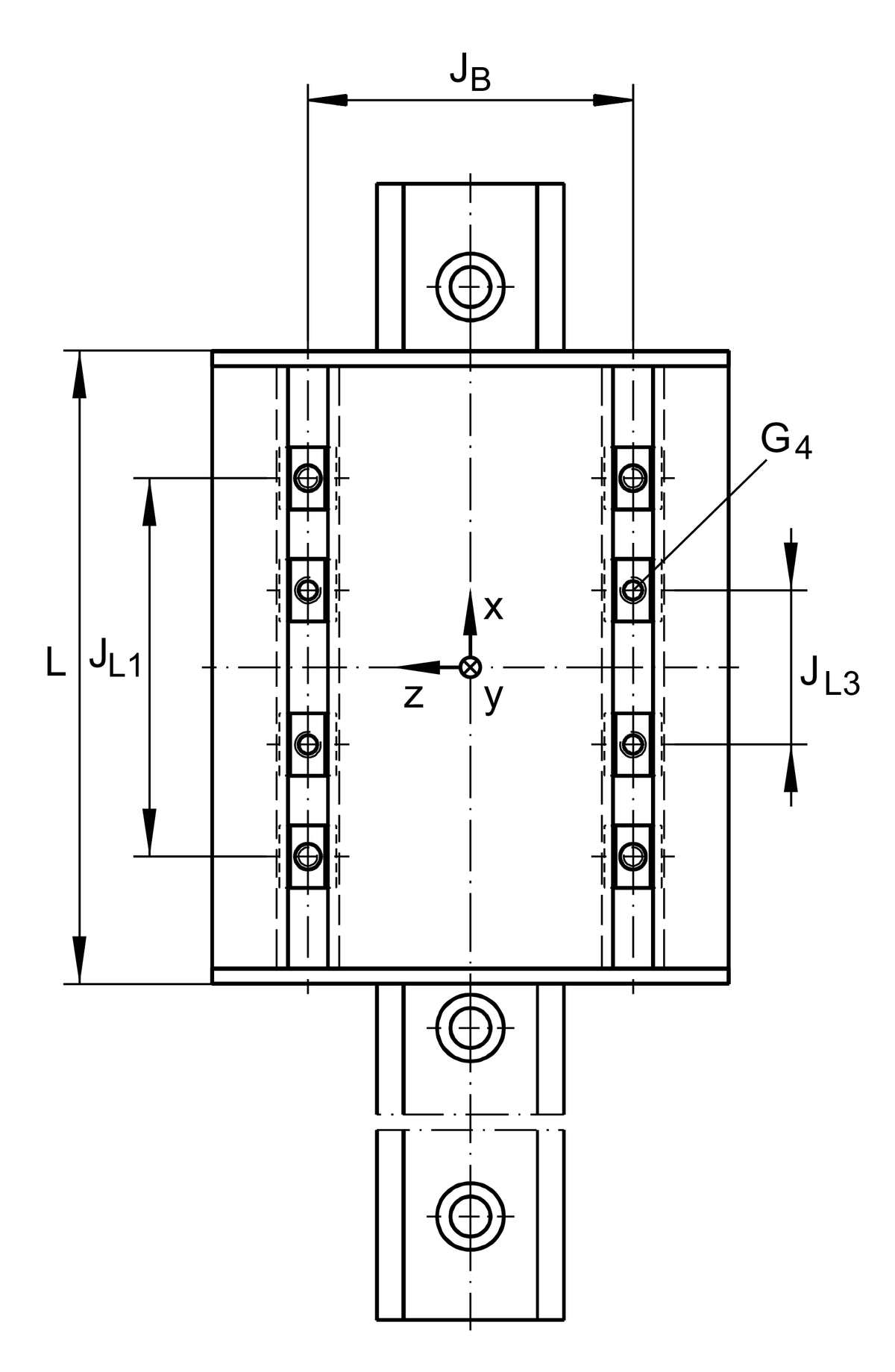

安裝尺寸
| G4 | M6x10 | |

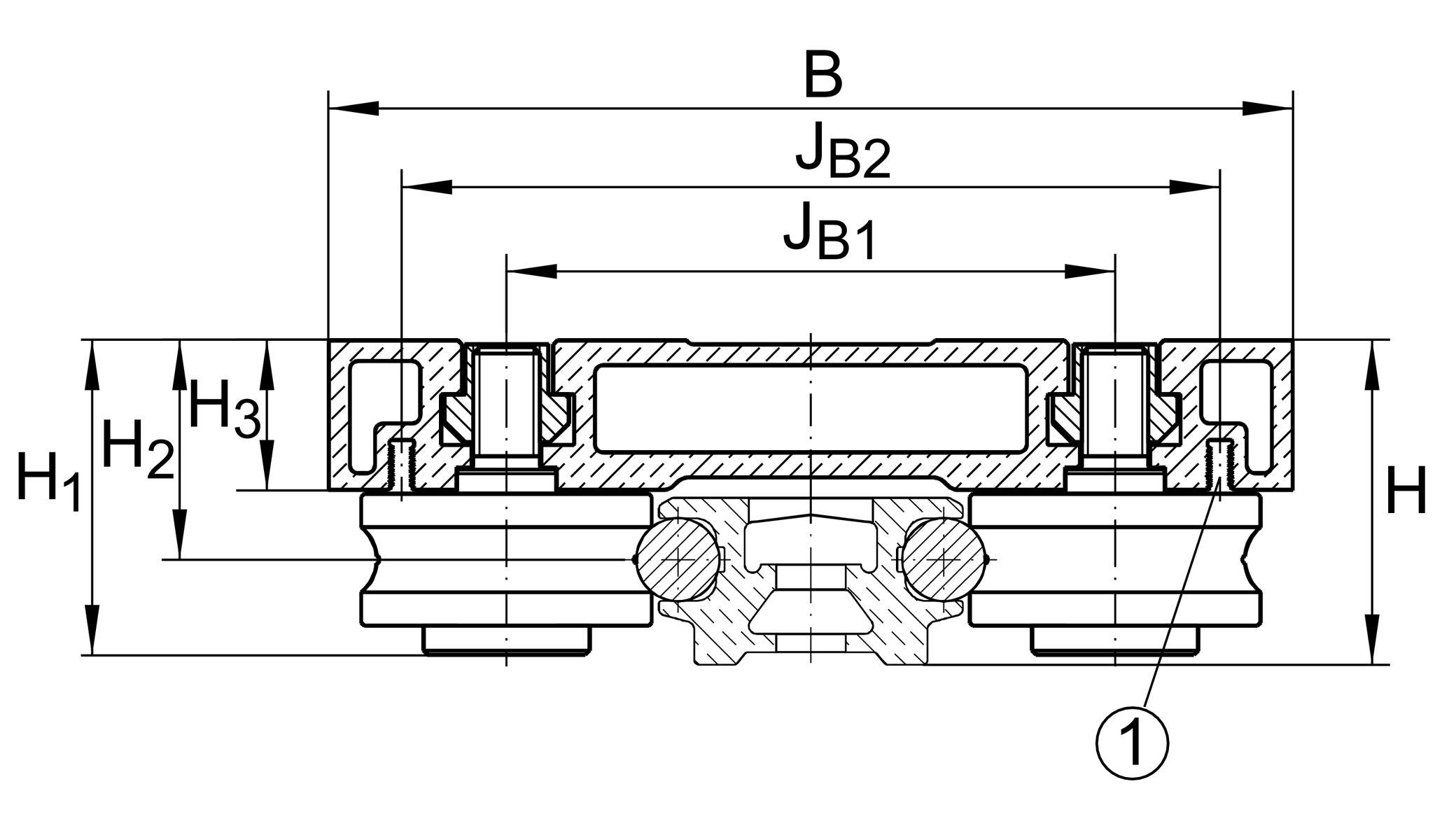

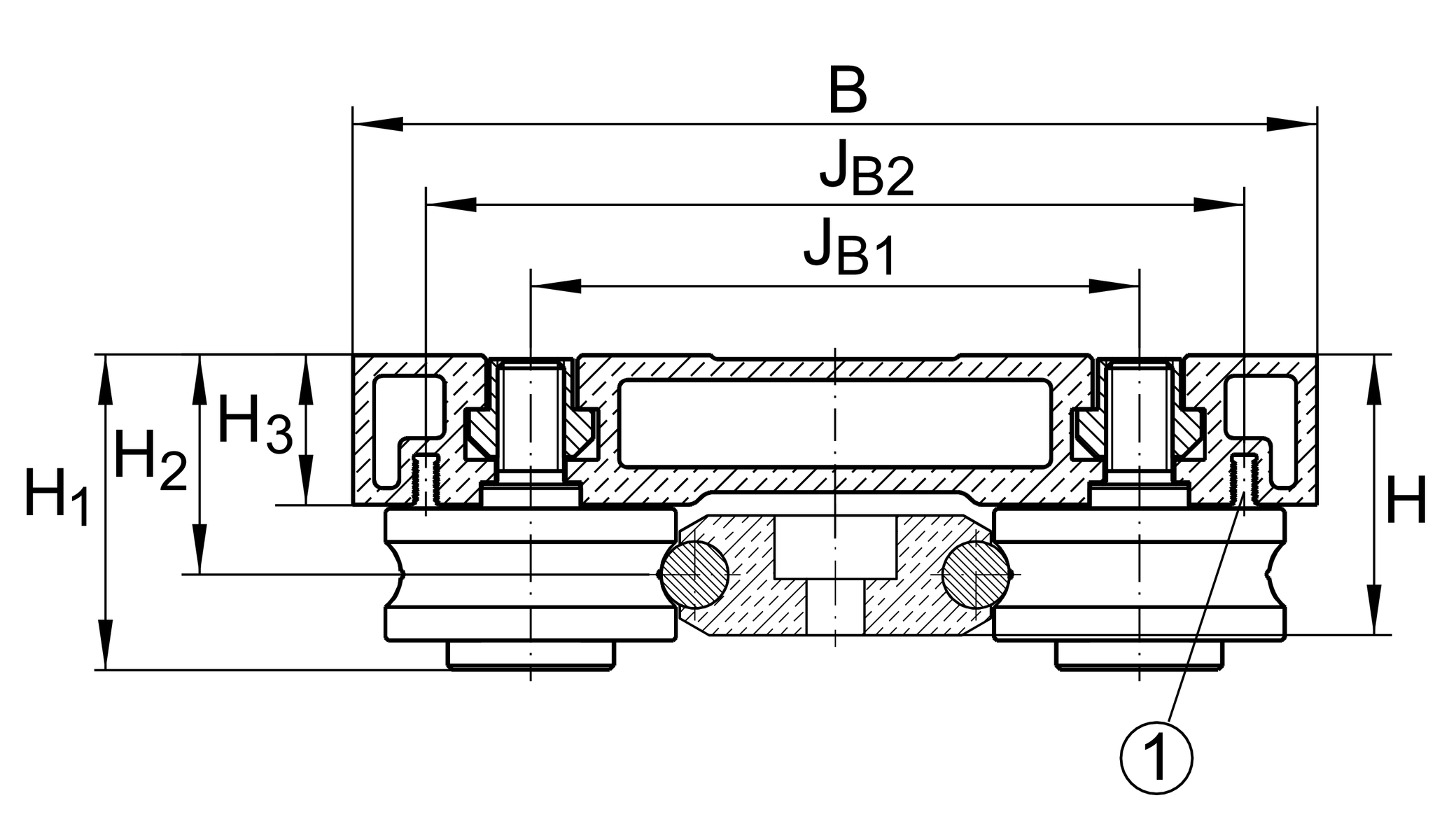

| H | 32.1 mm | Total height of carriage and rail at LFS, -C, -CE, -CEE, -E, -EE, -N, -NZZ |

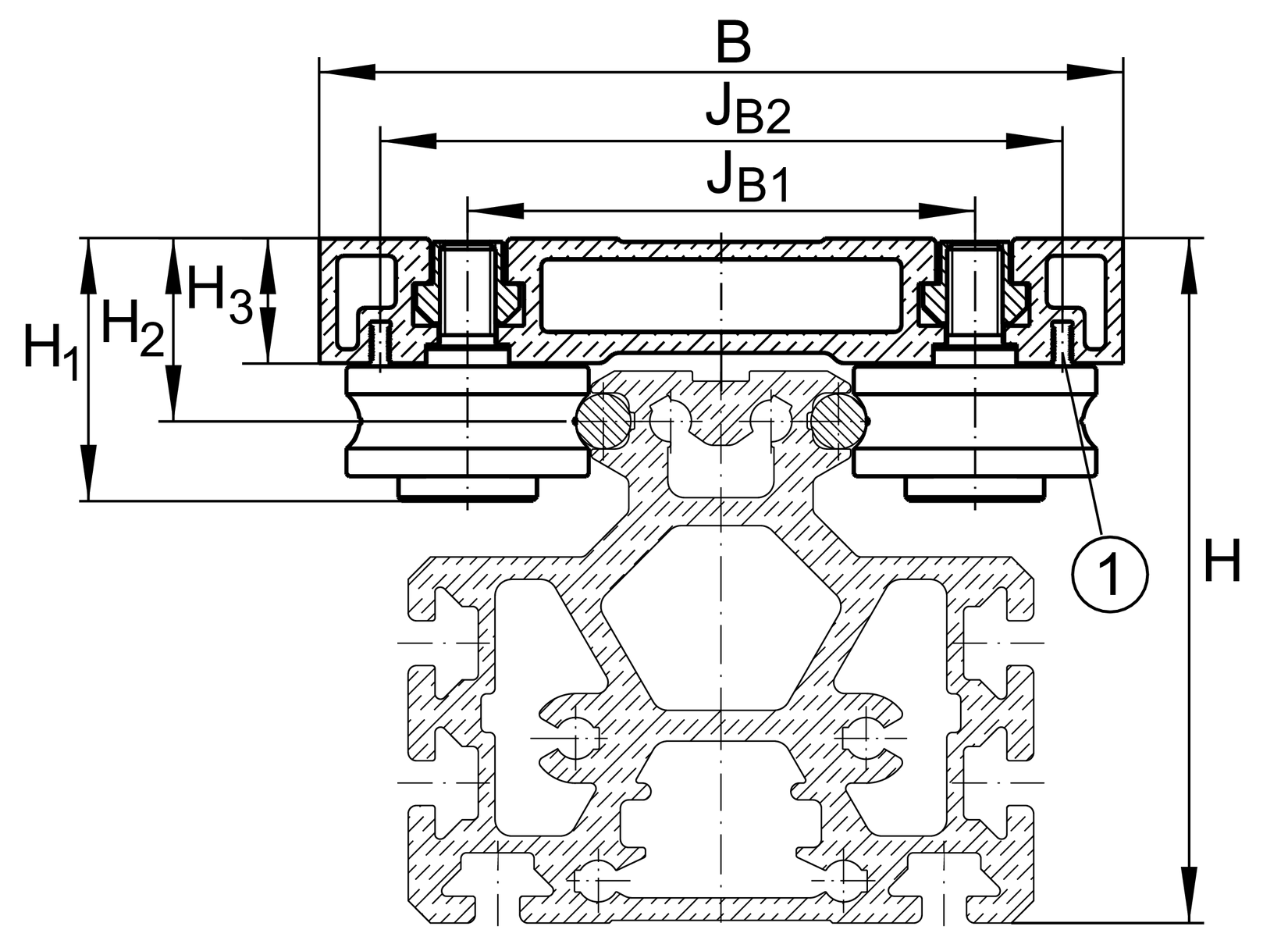

| H | 63.1 mm | Total height of carriage and rail at LFS..-M |
| H2 | 21.5 mm | |
| H2 Tol | 0.3 | |
| H2 Tol | 0 | |
| H3 | 15.4 mm | |
| JB | 47 mm | |
| JB1 | 47 mm | |
| JB2 | 69 mm | |
| JL1 | 58 mm | |
| JL3 max | 32 mm | |
| JL3 min | 13 mm |

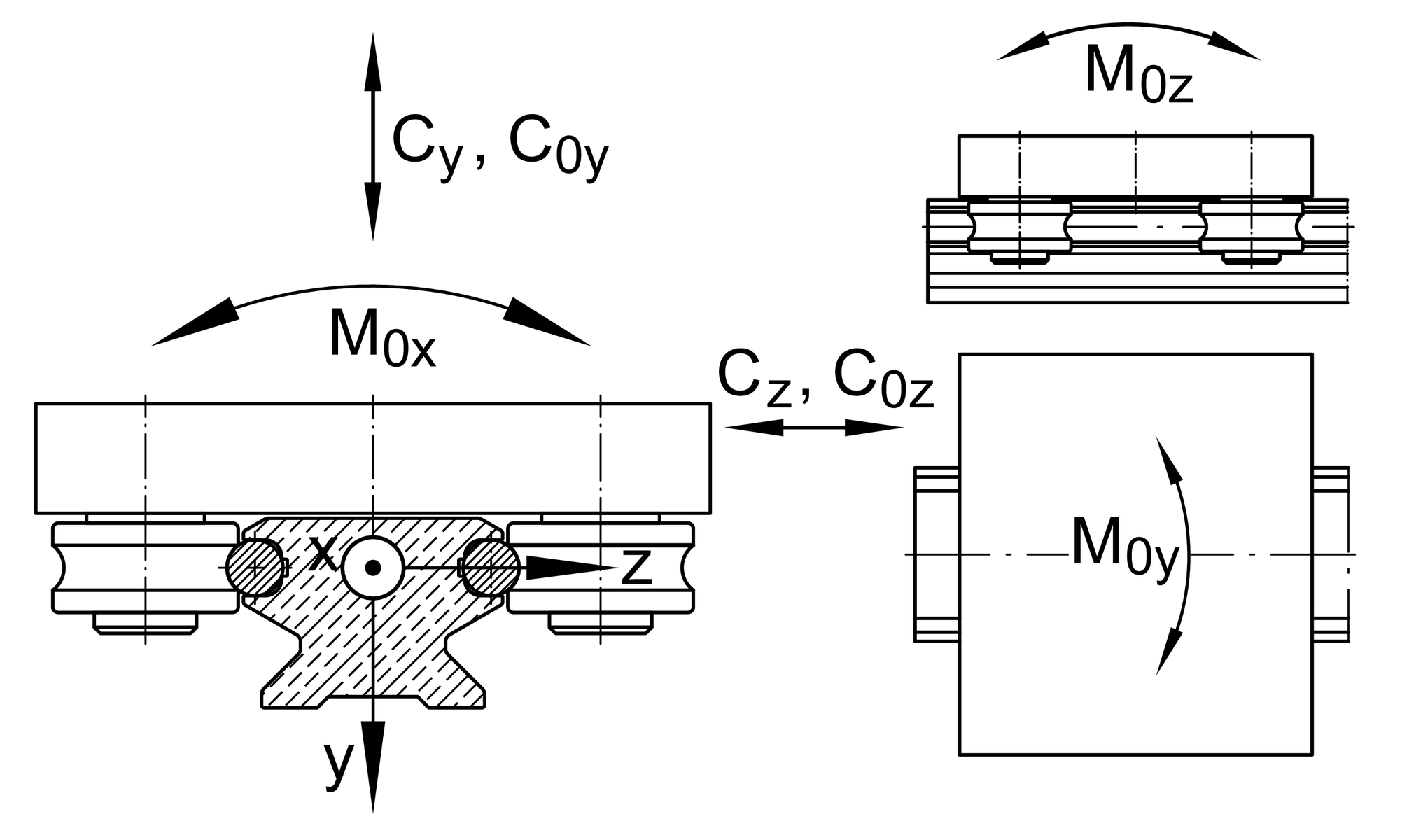

Main dimensions
| Cy | 4,600 N | 基本額定動載重 in y-direction |
| C0y | 2,400 N | 基本額定靜載重 in y-direction 1 |
| Cz | 7,320 N | 基本額定動載重 in z-direction 1 |
| C0z | 4,500 N | 基本額定靜載重 in z-direction 1 |
| M0x | 25 Nm | static moment about X-axis |
| M0y | 120 Nm | static moment about Y-axis |
| M0z | 65 Nm | static moment about Z-axis |
Related products
| LFR | LFR50/8-6-2Z | used track roller 2 |
| LFS | LFS25 | Guide rail 3 |
您目前的產品型號
| Size code | 25 |
