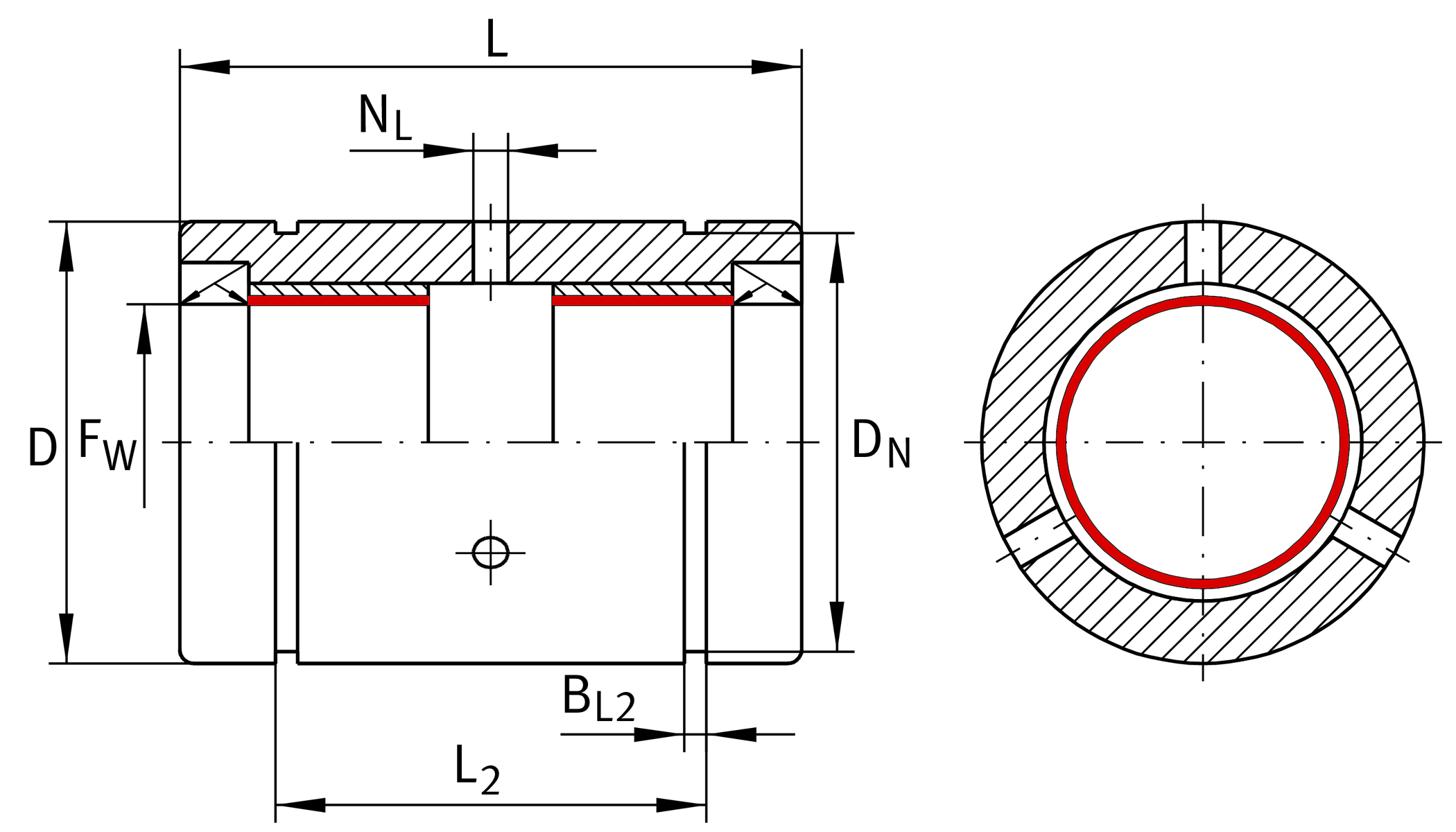

主要尺寸與性能資料
| FW | 30 mm | Diameter of ball complement |
| D | 47 mm | 外徑 |
| L | 68 mm | 長度 |
| Tol L | h12 | Tolerance |
| C0 | 375,000 N | load capacity stat. C0 1 |
| ≈m | 0.143 kg | 重量 |

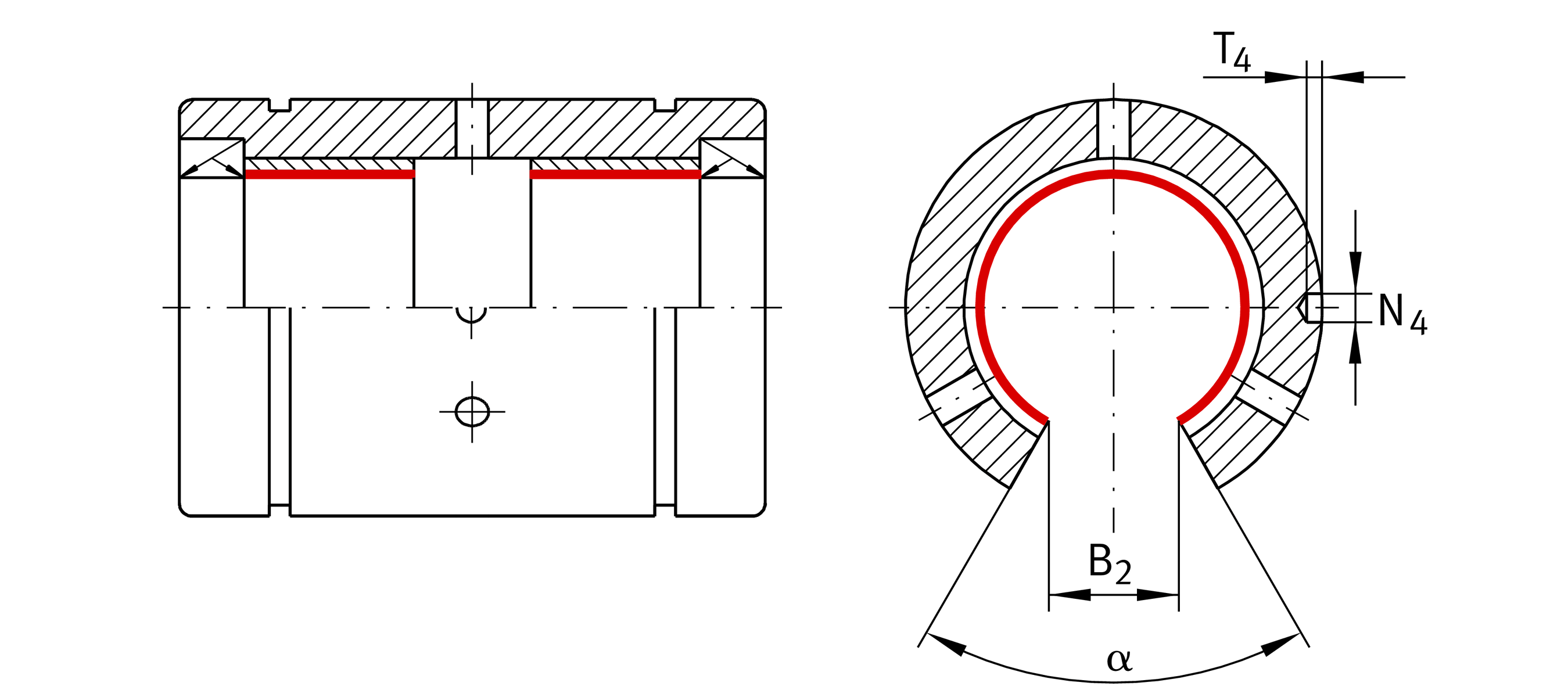

安裝尺寸
| L2 | 51.7 mm | Mounting Dimension 2 |
| Tol L2 | H13 | Tolerance |
| BL2 | 1.85 mm | 3 |
| Tol BL2 | H13 | Tolerance |
| DN | 44.5 mm | |
| B2 | 13.6 mm | 4 |
| T4 | 1.5 mm | |
| N4 | 3 mm | |
| NL | 3 mm | |
| Tol NL | H13 | Tolerance |
| a | 54 ° | Angle |
您目前的產品型號
| Size code | 30 | |
| Seal | PP | |
| Relubrication feature | AS |
