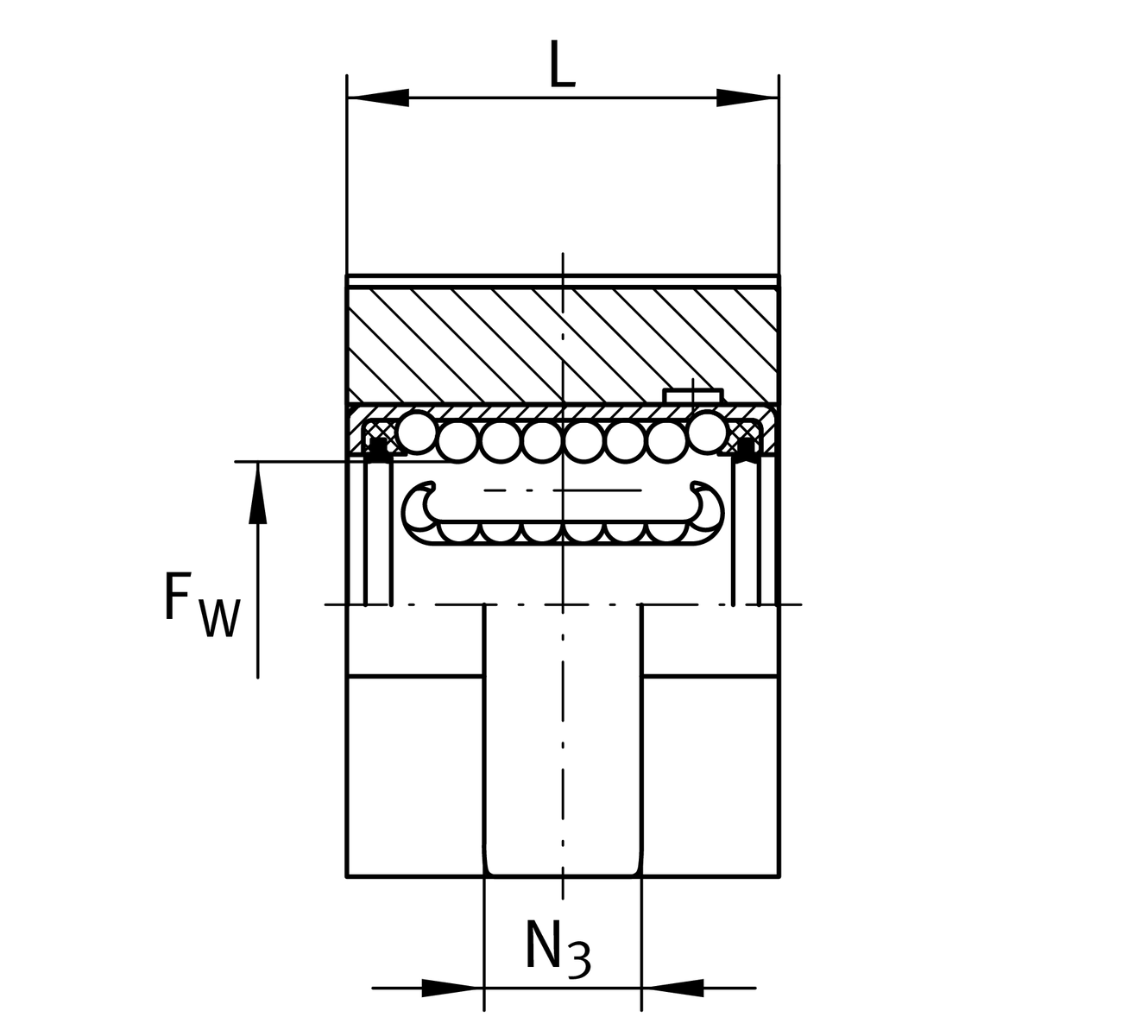

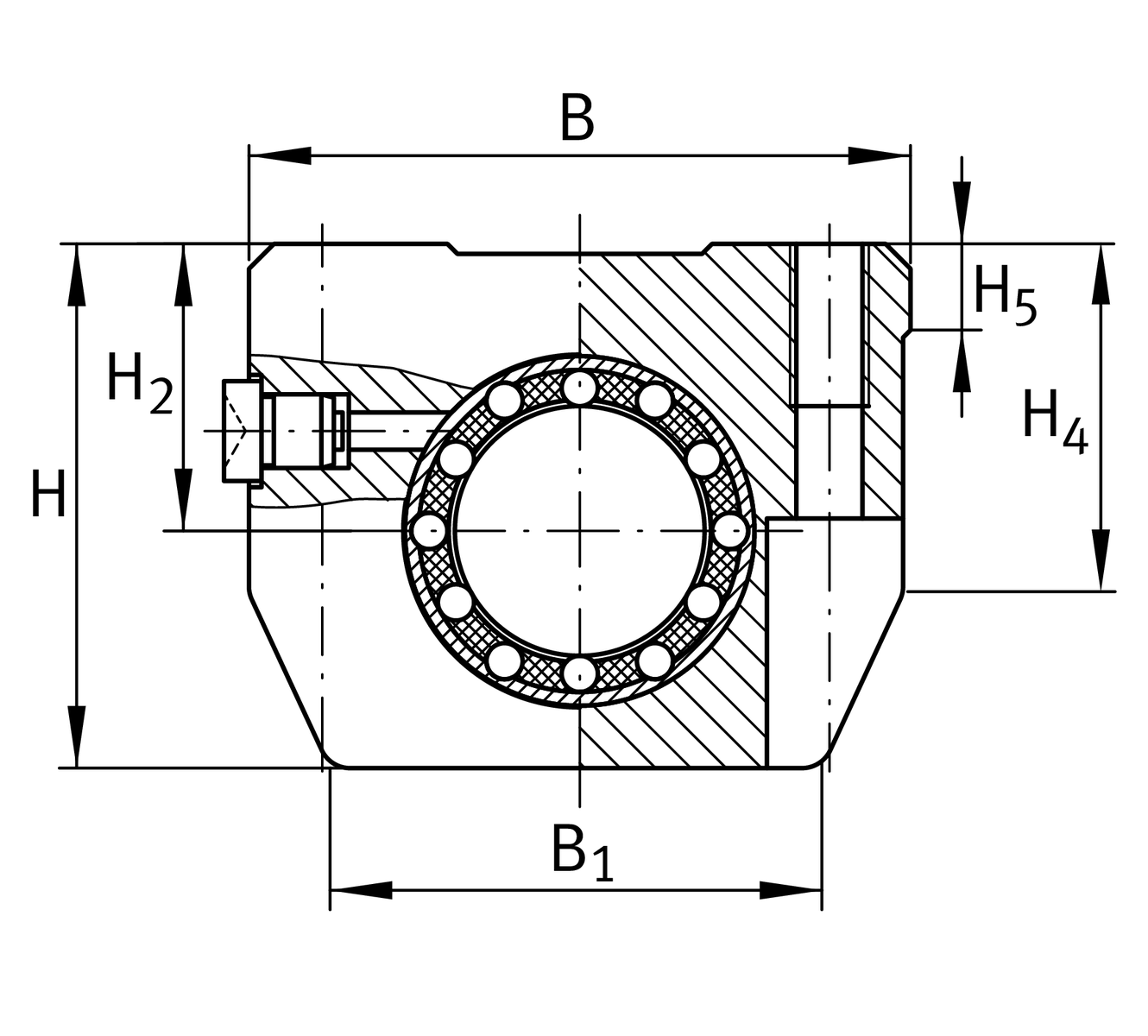

主要尺寸與性能資料
| FW | 40 mm | Diameter of ball complement |
| H | 73.5 mm | 高度 |
| L | 60.2 mm | 長度 |
| B | 87 mm | 寬度 |
| C | 5,300 N | Load capacity dyn. C 1 |
| C0 | 4,450 N | Load capacity stat. C0 1 |
| ≈m | 0.759 kg | 重量 |

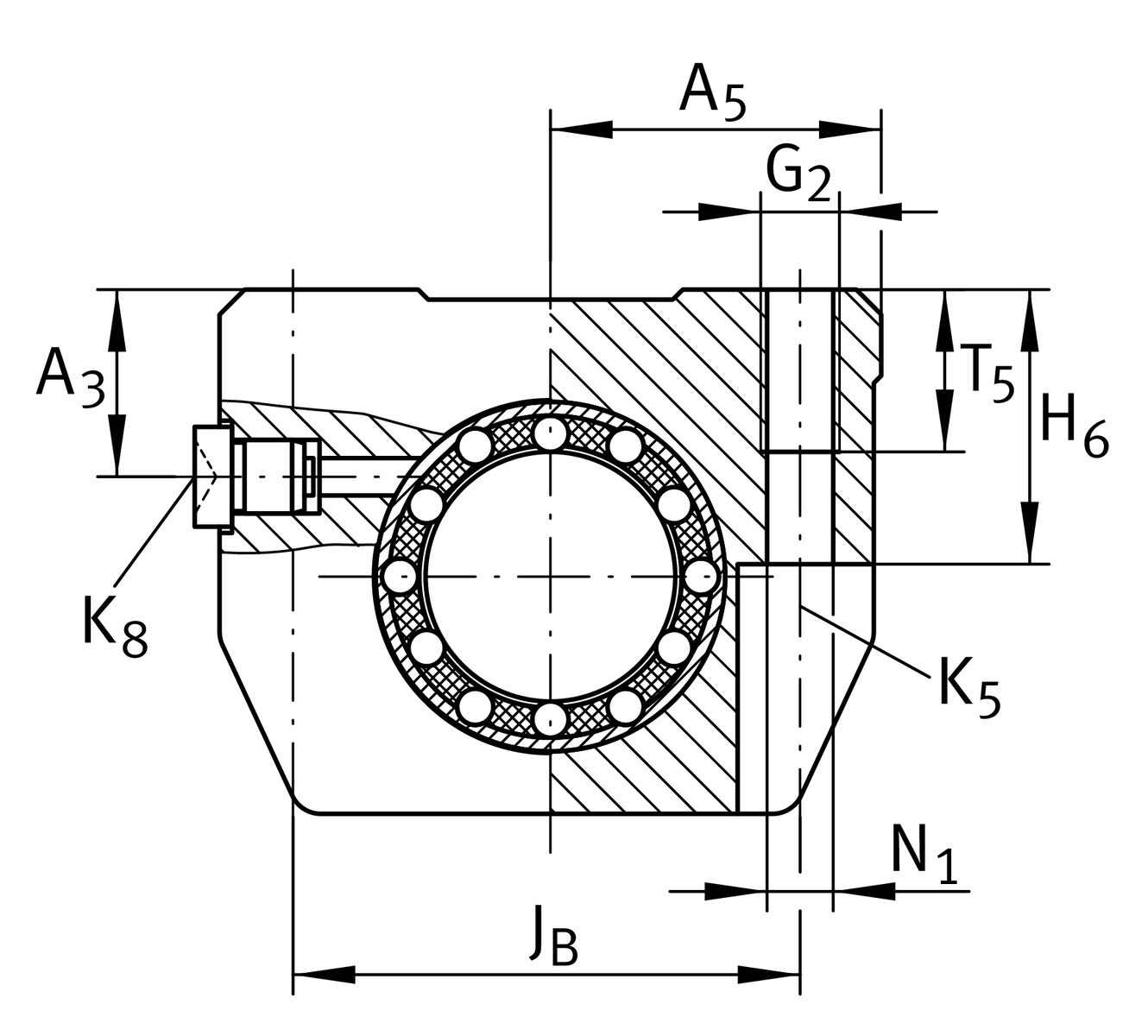

安裝尺寸
| JB | 69 mm | |
| Tol JB | +0,15 | 公差上限 |
| Tol JB | -0,15 | 較低的公差 |
| B1 | 63 mm | |
| A5 | 43.5 mm | |
| H2 | 39 mm | Center height |
| Tol H2 | +0,010 | 公差上限 |
| Tol H2 | -0,014 | 較低的公差 |
| H4 | 49.7 mm | |
| H5 | 12.8 mm | |
| T5 | 22 mm | |
| H6 | 38 mm | |
| A3 | 23 mm | |
| G2 | M10 | |
| N1 | 8.4 mm | |
| N3 | 18 mm | |
| K5 | M8 | 2 |
| K8 | NIPA2 | Lubrication nipple |
您目前的產品型號
| Size code | 40 | |
| Version | B | |
| Seal | PP | |
| Relubrication feature | AS |
