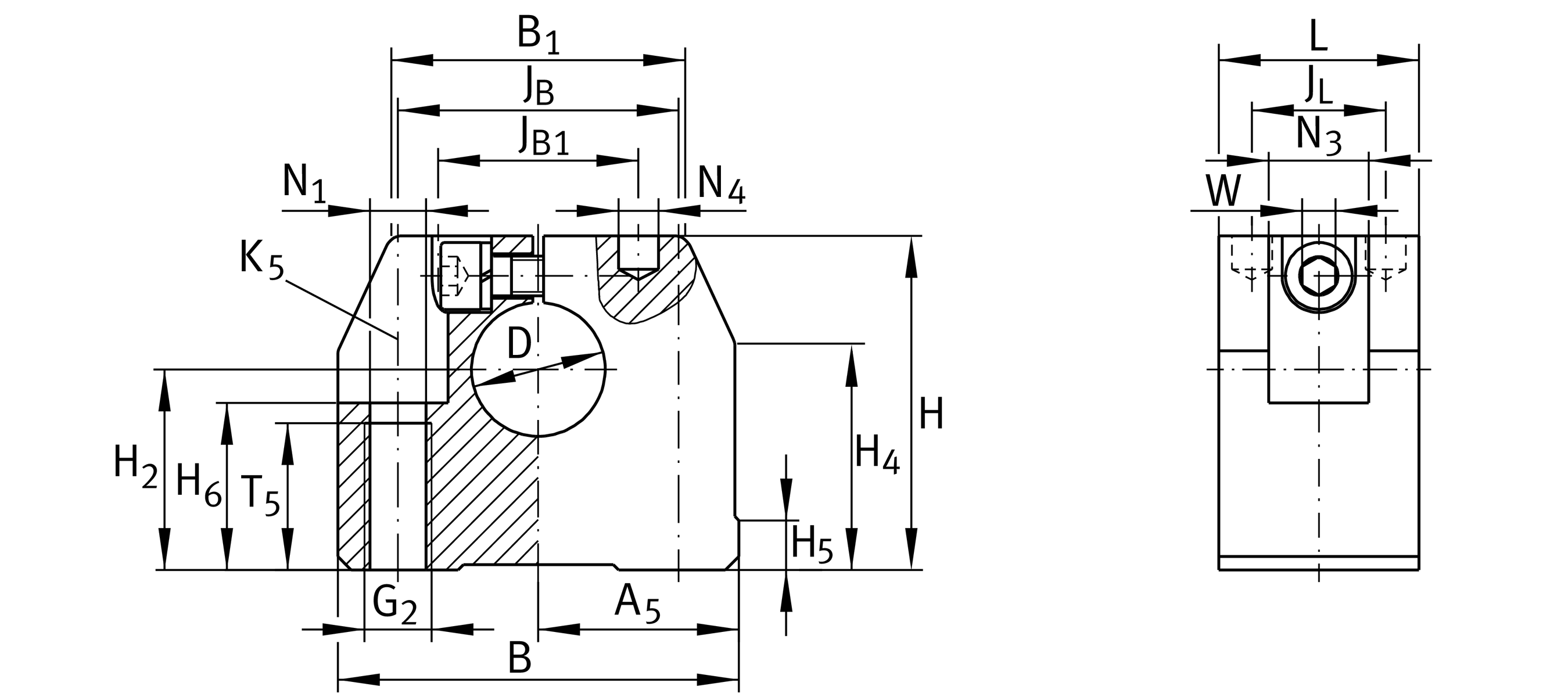

主要尺寸與性能資料
| D | 16 mm | Diameter |
| Tol D | H8 | Tolerance |
| B | 53 mm | 寬度 |
| L | 24 mm | 長度 |
| H | 42 mm | 高度 |
| ≈m | 0.105 kg | 重量 |
安裝尺寸
| JB | 38 mm | Mounting Dimension |
| Tol JB | ±0,15 | Tolerance |
| JB1 | 26 mm | Mounting Dimension |
| B1 | 40 mm | Mounting Dimension |
| A5 | 26.5 mm | Mounting Dimension |
| Tol A5 | +0,01 | 公差上限 |
| JL | 16 mm | Mounting Dimension |
| H2 | 25 mm | Mounting Dimension |
| Tol H2 | +0,01 | 公差上限 |
| Tol H2 | -0,01 | 較低的公差 |
| H4 | 26.6 mm | Mounting Dimension |
| H5 | 5.4 mm | Mounting Dimension |
| Tol A5 | -0,01 | 較低的公差 |
| T5 | 18 mm | Mounting Dimension |
| H6 | 21 mm | Mounting Dimension |
| G2 | M8 | Mounting thread below |
| N1 | 6.6 mm | Mounting Dimension 1 |
| N3 | 11 mm | Mounting Dimension |
| N4 | 5 mm | Mounting Dimension |
| K5 | M6 | Size thread fixing screws above 2 |
| W | 4 mm | 平面寬度 |
您目前的產品型號
| Size code | 16 | |
| Version | B |
