主要尺寸與性能資料
| i | 100 | Gear reduction ratio |
| TR | 36 Nm | Maximum torque |
| TA | 14 Nm | Average torque |
| TN | 10 Nm | Rated torque |
| TM | 70 Nm | Collision torque |
| nmax | 8,500 1/min | Maximum input drive speed |
| nav max | 1,000 1/min | Average input drive speed |
| φTA | < 1.5 arcmin | Transmission accuracy |
| φR | <± 0.1 arcmin | Repeat accuracy |
| φH | < 1 arcmin | Hysteresis loss |
| J | 0.08 10⁻⁴ kg*m² | Mass moment of interia |
| K1 | 4,700 Nm/rad | Torsional rigidity |
| K2 | 6,100 Nm/rad | Torsional rigidity |
| K3 | 7,100 Nm/rad | Torsional rigidity |
| TNLST | 69 mNm | No load starting torque at +20°C |
| TNLRT | 100 mNm | No load running torque at +20°C and 2000 min-1 |
| TBT | 7.26 Nm | Back driving torque at +20°C |
| ≈m | 0.6 kg | 重量 |

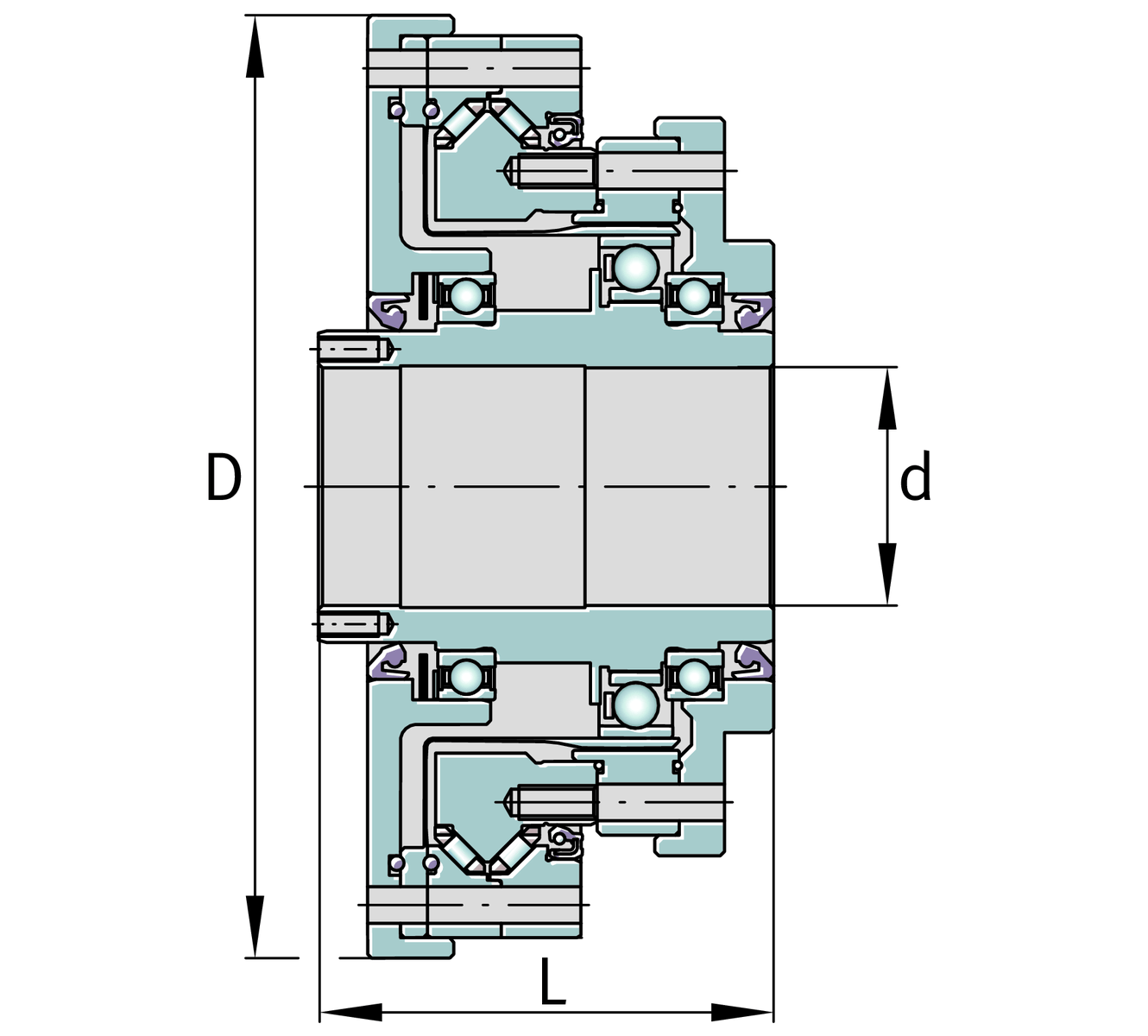

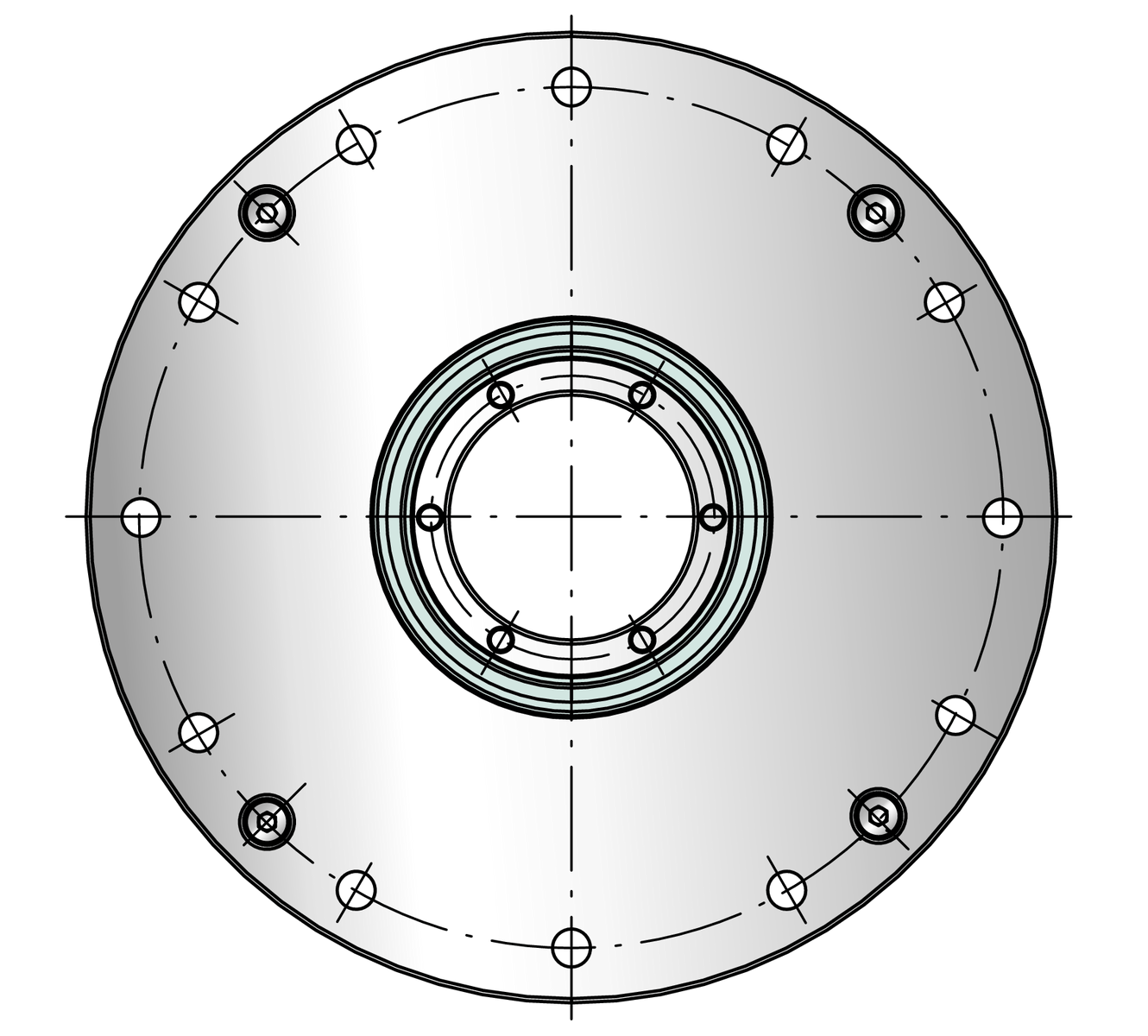

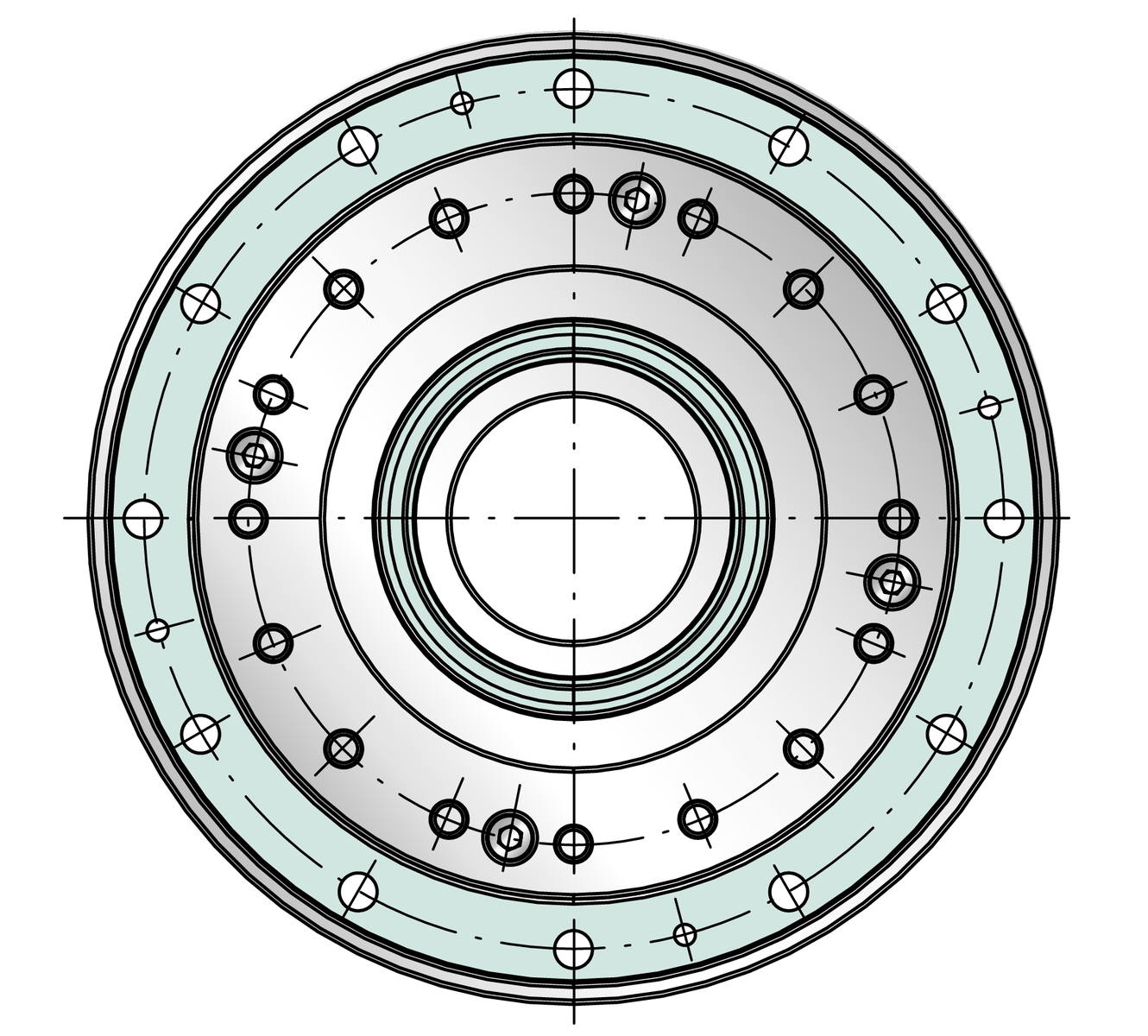

尺寸
| D | 74 mm | Diameter |
| L | 52.5 mm | 長度 |
| d | 14 mm | Hollowshaft diameter |
Output resolution
| CL | 438 mm | Cable lenght |
| TolCL | +8,1 | 公差上限 |
| TolCL | -8,1 | 較低的公差 |
Operating conditions
| PS | 5 Vdc | Power supply |
| TolPS | +0,5 | 公差上限 |
| TolPS | -0,5 | 較低的公差 |
| PS | 500 mA | Current consumption |
| TRmin | 0 °C | Operating 溫度範圍 min. |
| TRmax | 80 °C | Operating 溫度範圍 max. |
您目前的產品型號
| Design | UHS | Unit Hollow Shaft |
| Size code | 14 | |
| 優化設計 | H | Variant HAT |
| Product type | RT1 | Precision strain wave gear high torque |
