PR14061-PP
Linear recirculating roller bearing unit PR14061-PP
加入詢價
主要尺寸與性能資料

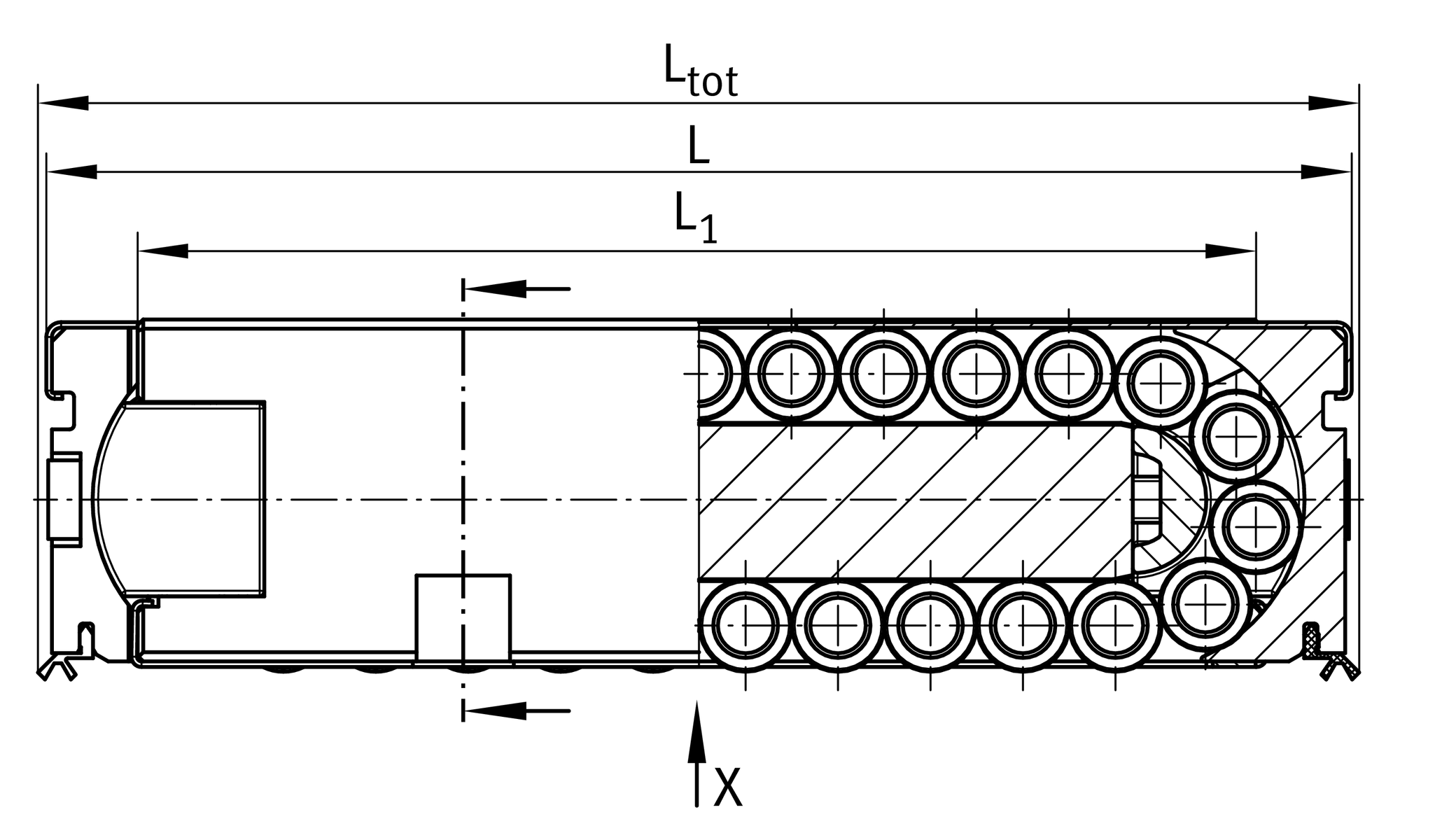

Ltot
98.1 mm
Length total

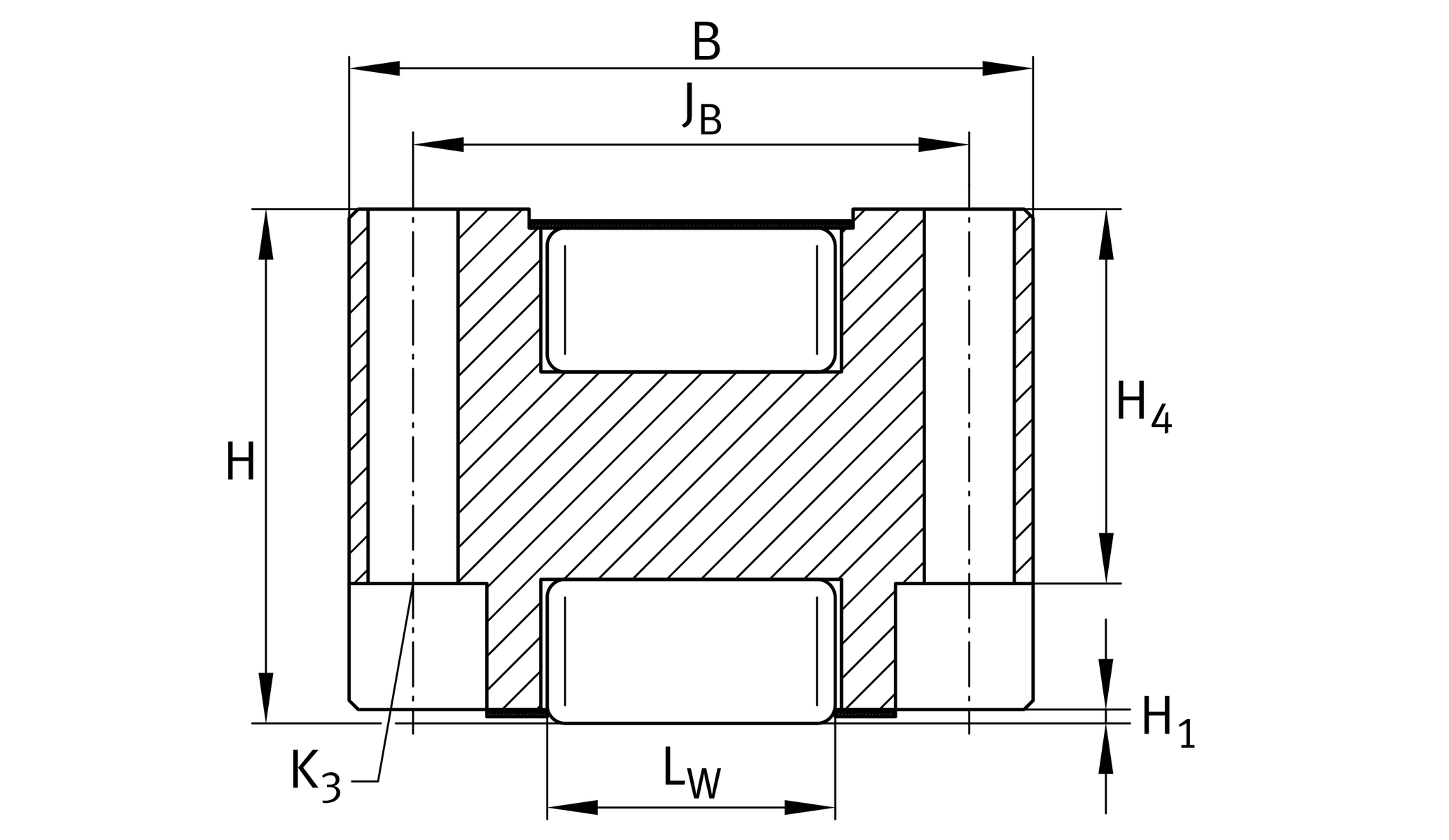

B
38.1 mm
寬度
H
28.6 mm
高度
C
107,000 N
Load capacity Dynamic
C0
175,000 N
Load capacity static
≈m
0.645 kg
重量

安裝尺寸
L1
77.5 mm
JB
31 mm
Mounting Dimension
Tol JB
±0,1
Tolerance
JL
38 mm
Mounting Dimension
Tol JL
±0,1
Tolerance
H1
0.1 mm

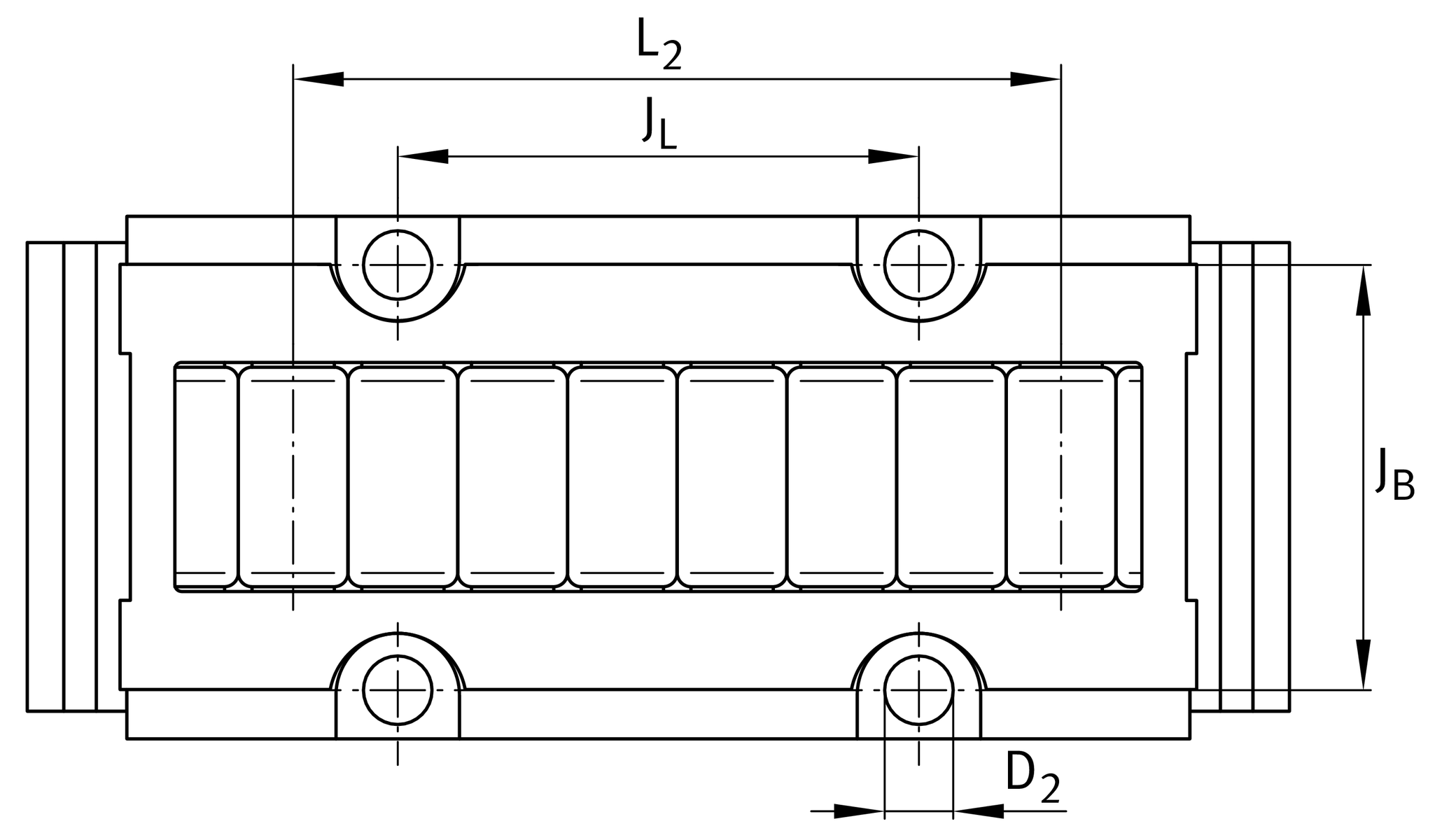

L2
58.5 mm
LW
16 mm
H4
20.8 mm
K3
M4
Size thread K3 1
K3 MA
5 Nm
Tightening Torque fixing screws
D2
5 mm

Related products
VUSZ18059-A
Adjustment gib
UG9741, UGN9741-A, UZ9741, UZN9741-A, UFK4710, UFB6412
suitable Guide Rail

您目前的產品型號
SuffixPPwith end face wiper
Size code14061
