ARCALUB-X.PINION-MD1,5-Z24-B15-SL-W
Lubrication gear ARCALUB-X.PINION-MD1,5-Z24-B15-SL-W
加入詢價
科技數據
Relubrication of tooth sets
Usage
left hand helical teeth
Design
radial
Lubricant feed
open cell PU foam
Material
top
-30 °C ... +140 °C
Operating temperature
5 m/s
Max. permissible circumferential speed at 外徑
Oil, greases up to NLGI 2
Lubricant

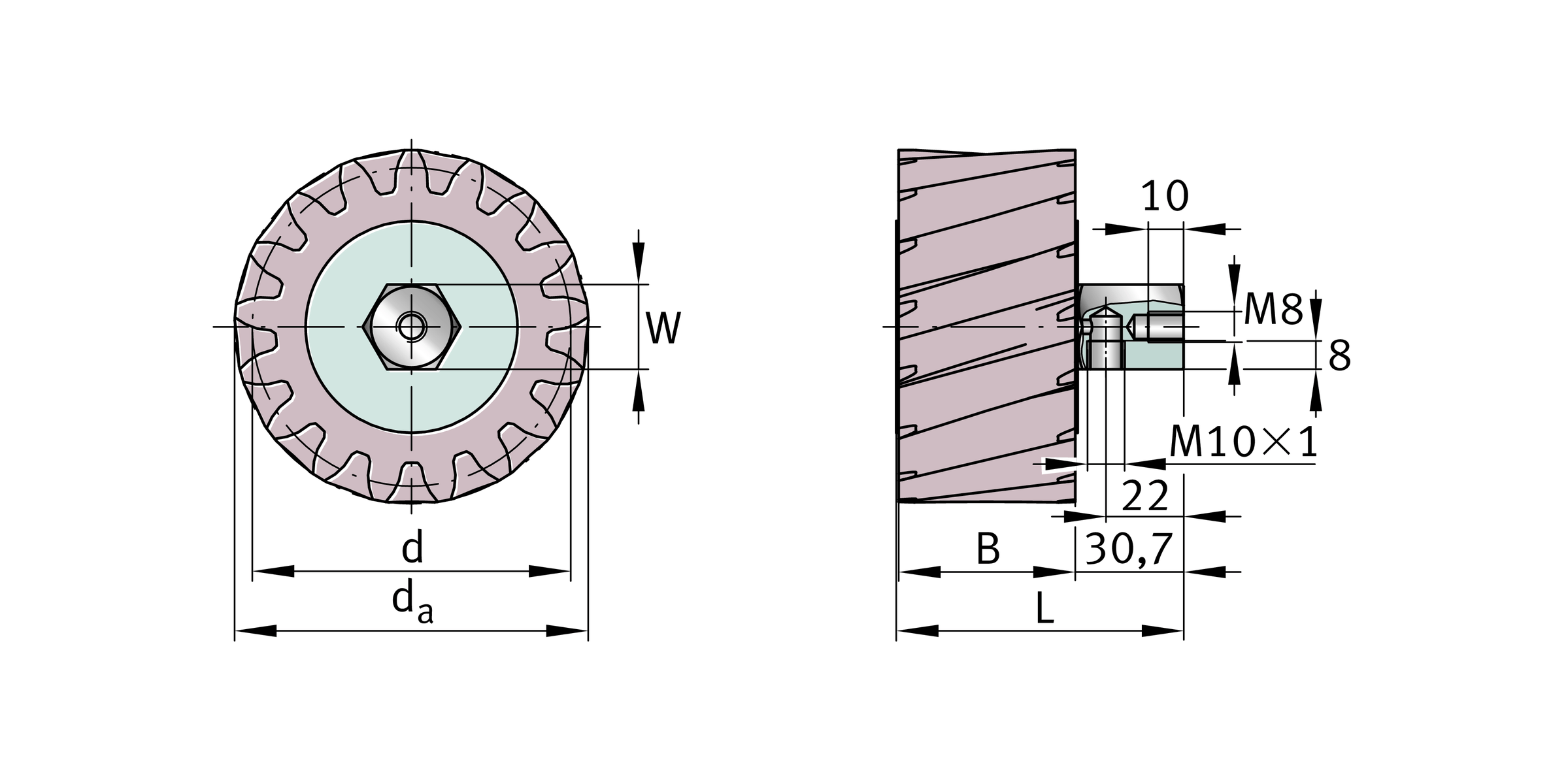

m
1.5 mm
Modulus
z
24
Teeth number
d
38.2 mm
Pitch circle diameter
da
41.2 mm
B
15 mm
L
46.4 mm
β
19.53 °
Helix angle
≈m
0.5 kg
重量

您目前的產品型號
VersionSLLubrication gears, left hand helical teeth
