ARCALUB-X.PINION-MD1,5-Z24-B15-SL-G

Lubrication gear ARCALUB-X.PINION-MD1,5-Z24-B15-SL-G

加入詢價

科技數據

	Relubrication of tooth sets	Usage
	left hand helical teeth	Design
	axial	Lubricant feed
	open cell PU foam	Material
t_op	-30 °C ... +140 °C	Operating temperature
	5 m/s	Max. permissible circumferential speed at 外徑
	Oil, greases up to NLGI 2	Lubricant

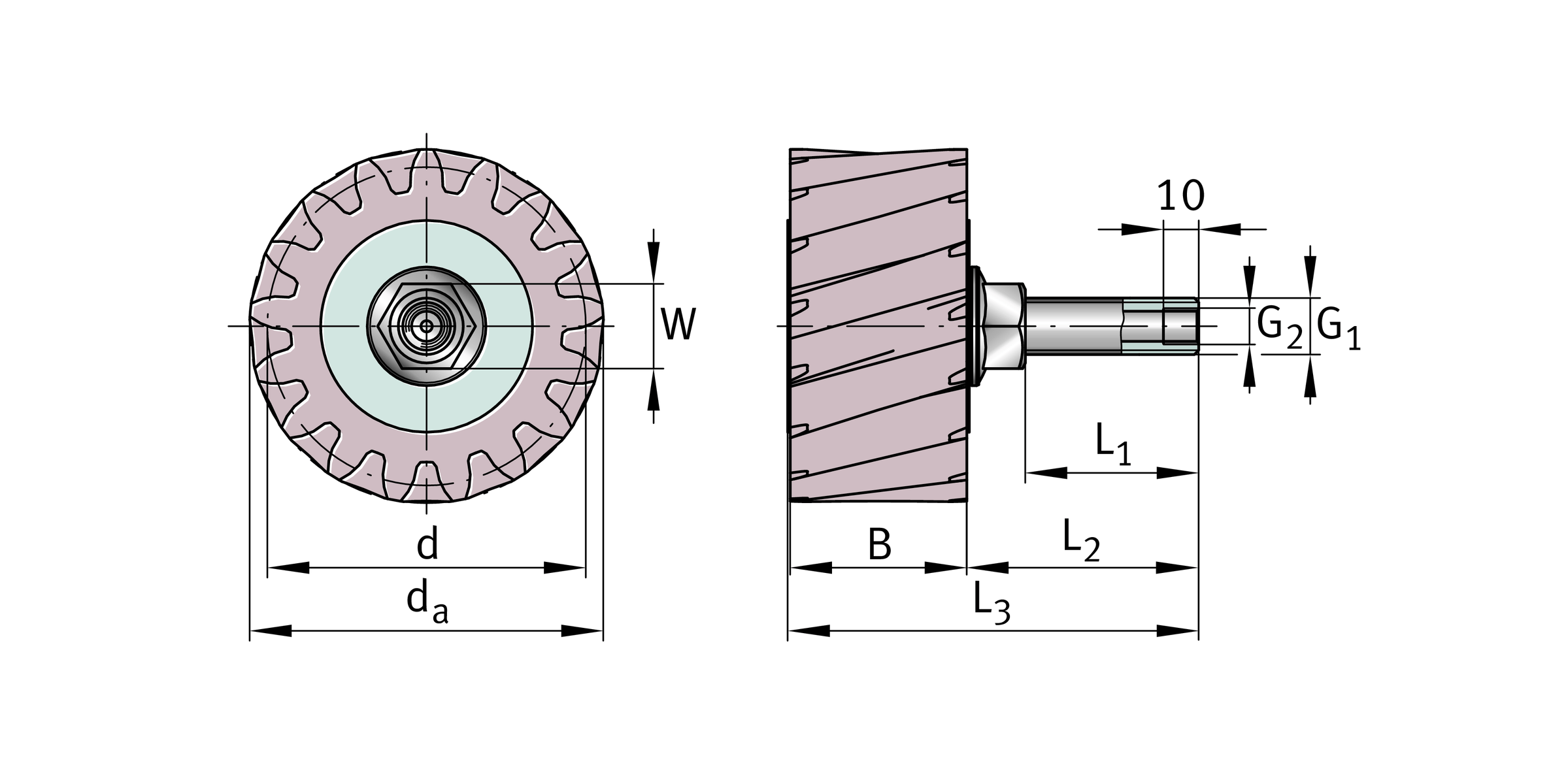

m	1.5 mm	Modulus
z	24	Teeth number
d	38.2 mm	Pitch circle diameter
d_a	41.2 mm
B	15 mm
L₁	34 mm
L₂	44.7 mm
L₃	60.4 mm
G₁	M10	線
G₂	M6	線
W	15 mm	平面寬度s
β	19.53 °	Helix angle
≈m	0.5 kg	重量

您目前的產品型號

Version	SL	Lubrication gears, left hand helical teeth
