MHA325-2-2-3-4-N-1302-01,0M-8-1-A

sensing head MHA325-2-2-3-4-N-1302-01,0M-8-1-A

加入詢價

Digital Output

	Drive CLiQ (DQ)	Electronic interface
≈m	69.45 g	重量

主要尺寸與性能資料

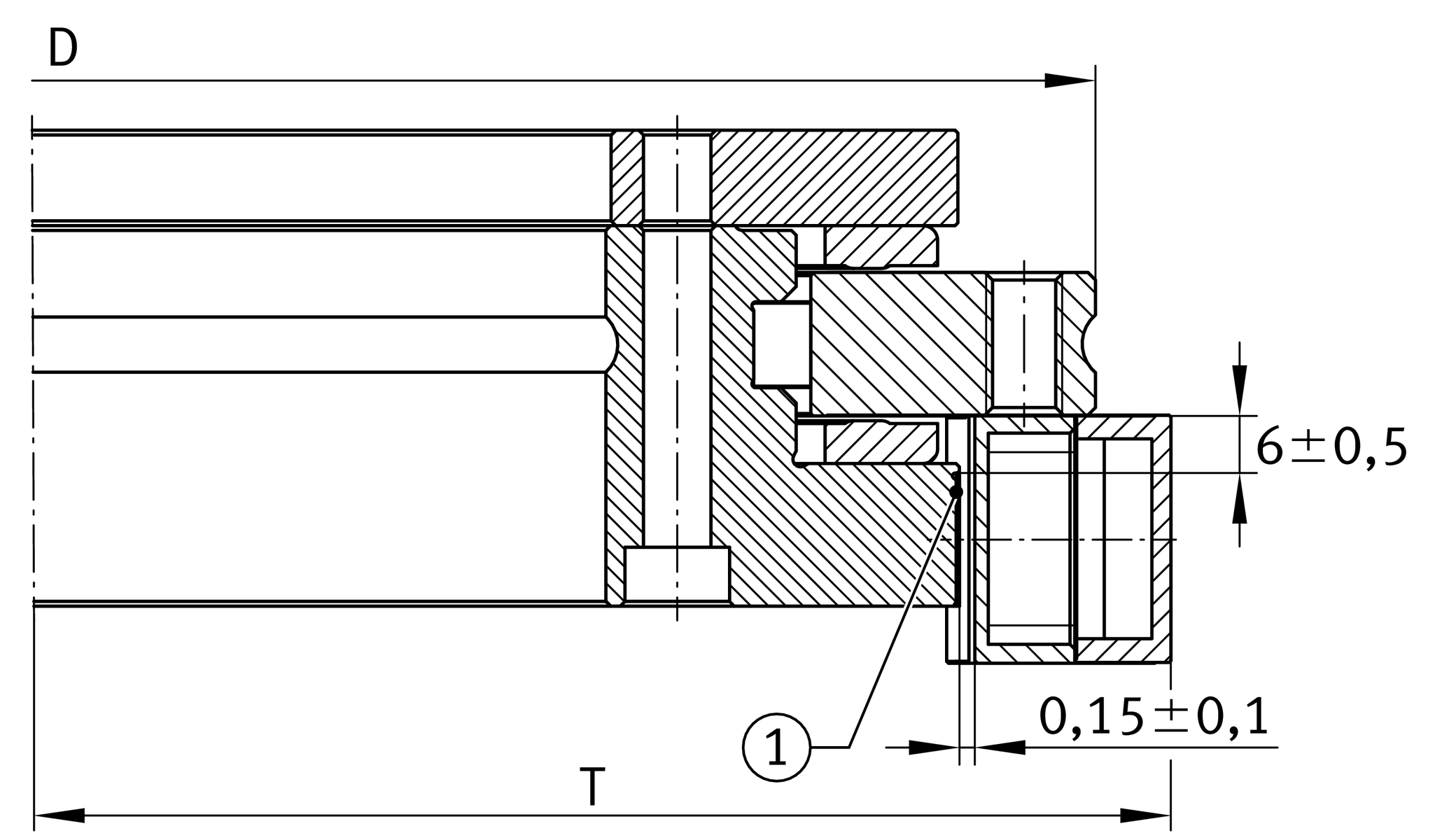

D	450 mm	Diameter bearing outer ring

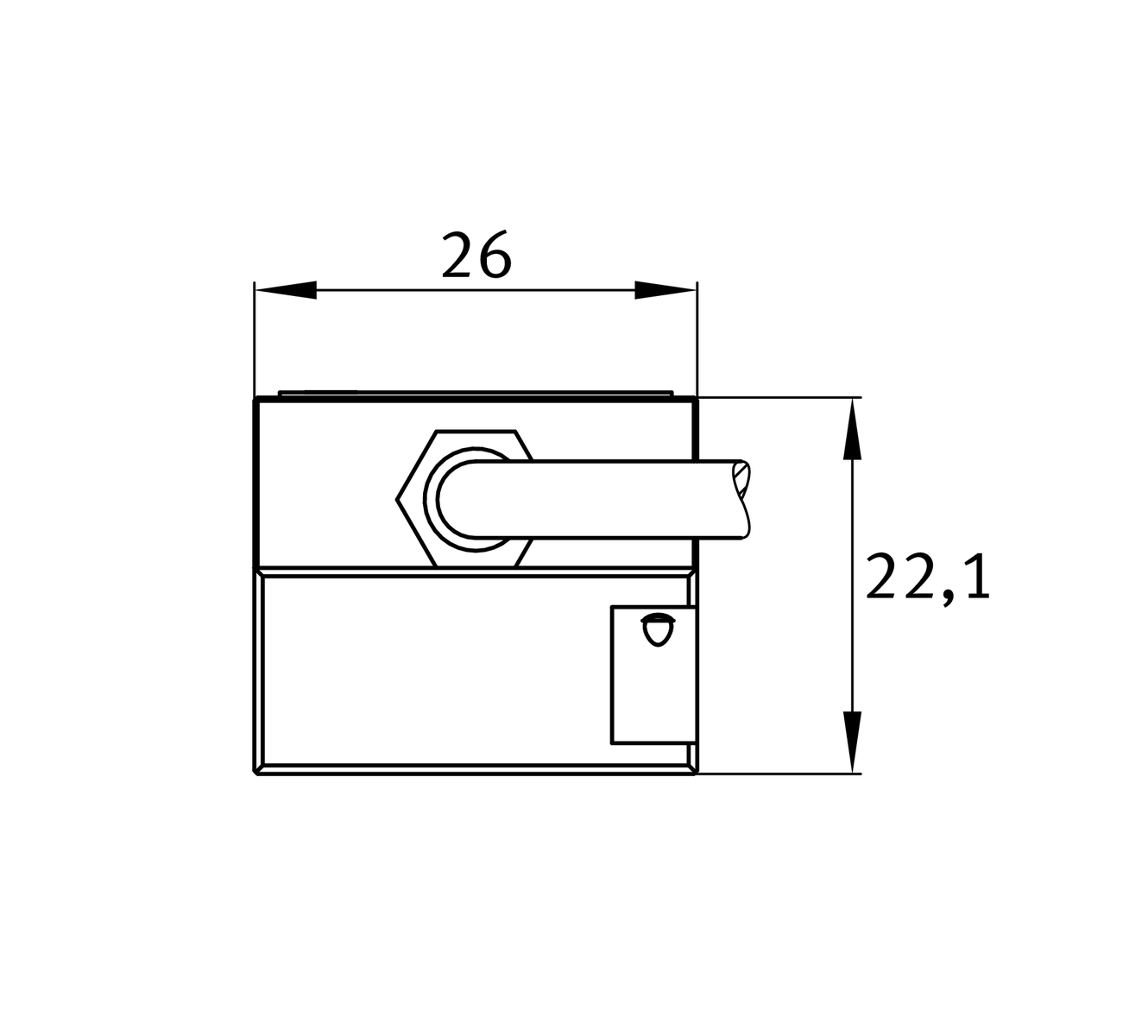

H_M	26 mm	高度

安裝尺寸

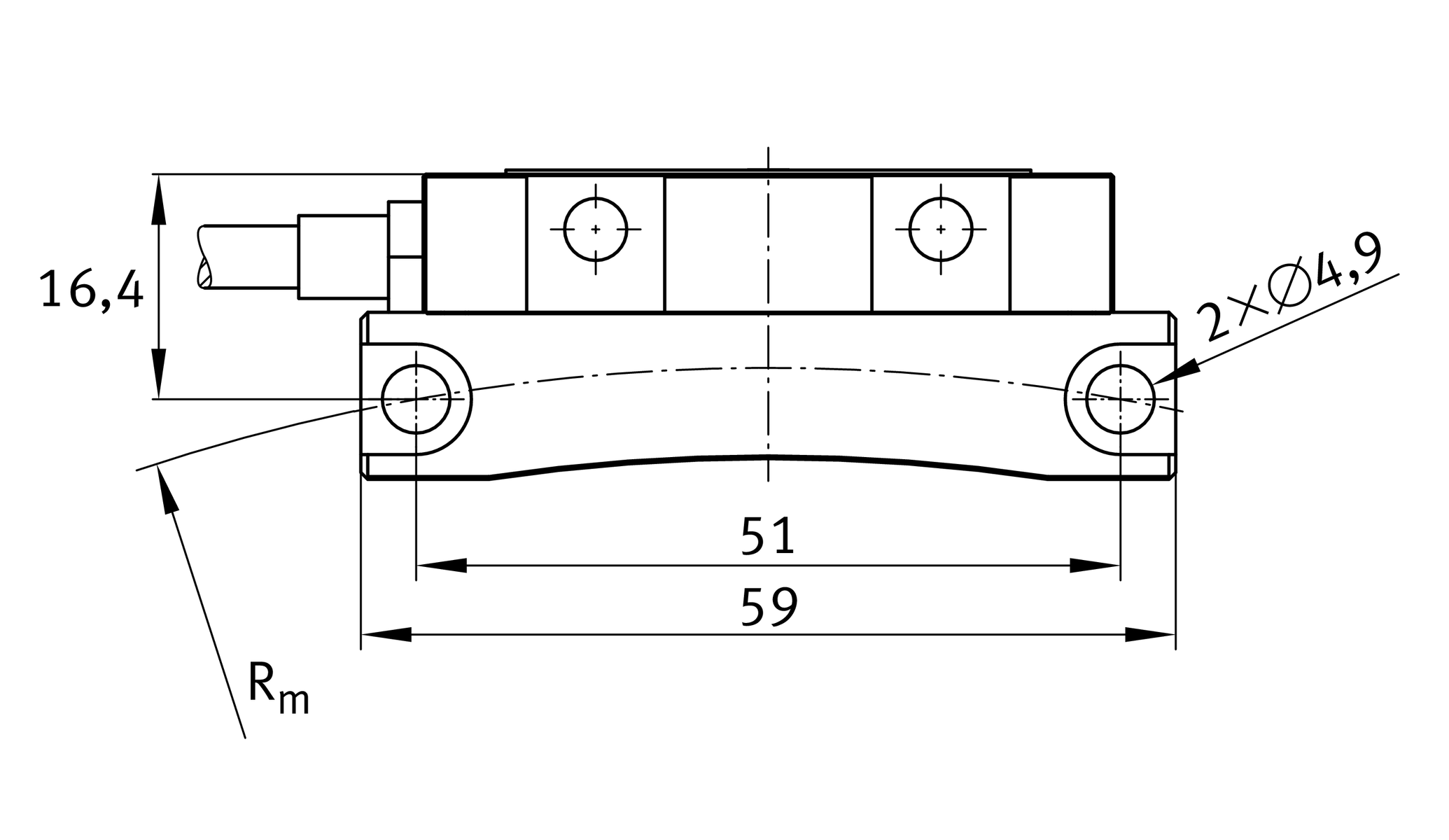

J_M	51 mm	Bore distance
R_m	214 mm	Pitch circle radius bores
T	228.9 mm	Distance bearing center measuring head

附加資訊

	2 Nm	Tightening torque
	0.2 Nm	Tightening torque 公差上限
	-0.2 Nm	Tightening torque 較低的公差
	2x ISO4762-M4x35-8.8	Cylinder head screws

Cable

	M12x1	Thread plug connector
	8	Pins plug connector

您目前的產品型號

Cable length	1 m
