科技數據
| U | 400 V | Operating voltage |
| f | 50 - 60 Hz | Power frequency |
| P | 40 kVA | Power consumption |
| I | 100 A | Current rating |
| HR | < 2 A/cm | Residual magnetism |
| ≈m | 650 kg | 重量 |

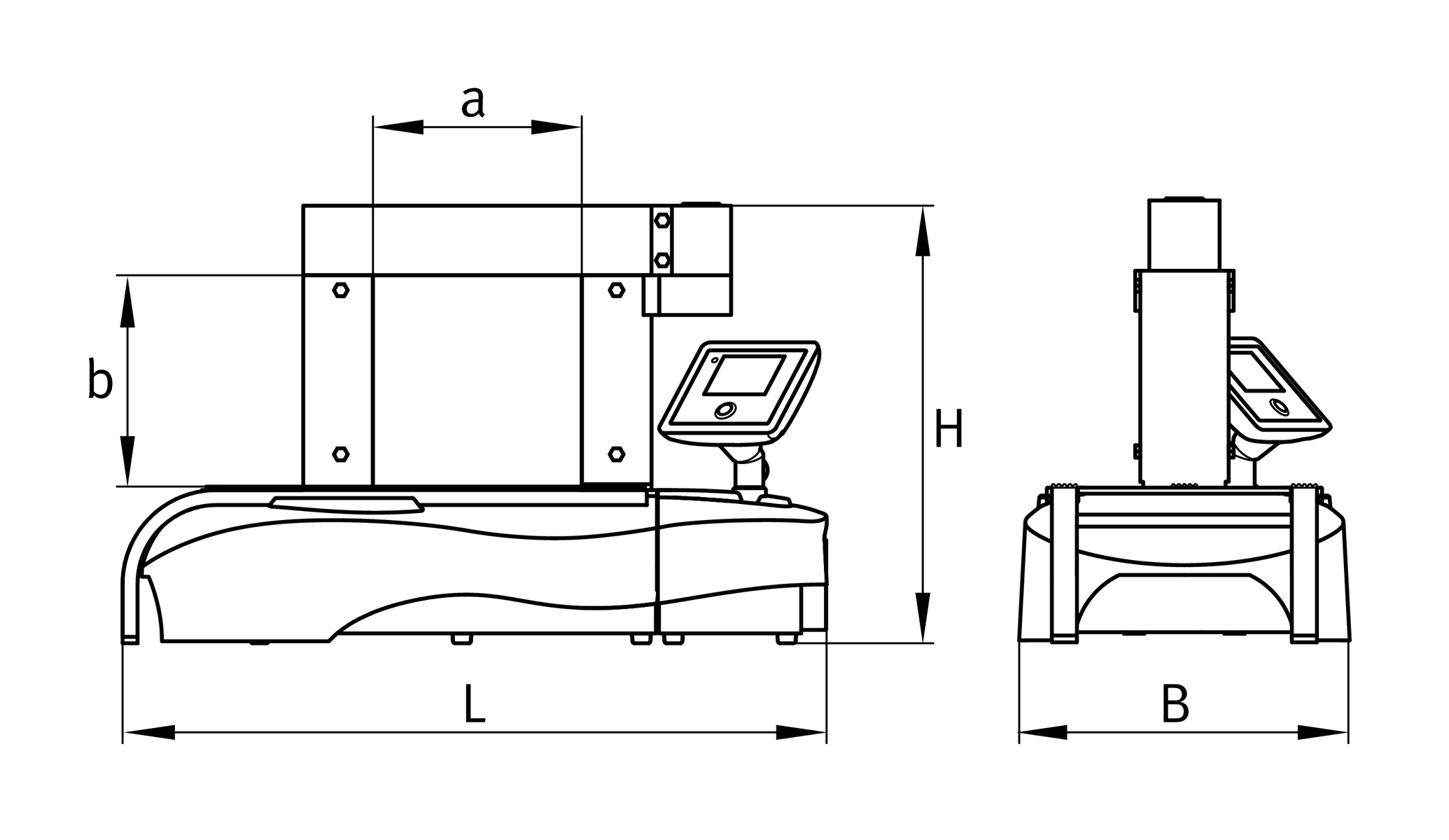

尺寸
1,500 mm | Length HEATER | |
800 mm | Width HEATER | |
1,600 mm | Height HEATER | |
| a | 690 mm | |
| b | 700 mm |
Workpiece to be heated
220 mm | Min. 內徑 workpiece (by using the ledge in 供貨範圍) | |
| ØAmax | 2,000 mm | Max. 外徑 workpiece |
| mb max | 1,600 kg | Max. workpiece weight |
| mc | 1,200 kg | Max. workpiece weight: other component |
