科技數據
| U | 230 V | Operating voltage |
| f | 50 - 60 Hz | Power frequency |
| P | 2.3 kVA | Power consumption |
| I | 10 A | Current rating |
| HR | < 2 A/cm | Residual magnetism |
| ≈m | 20 kg | 重量 |

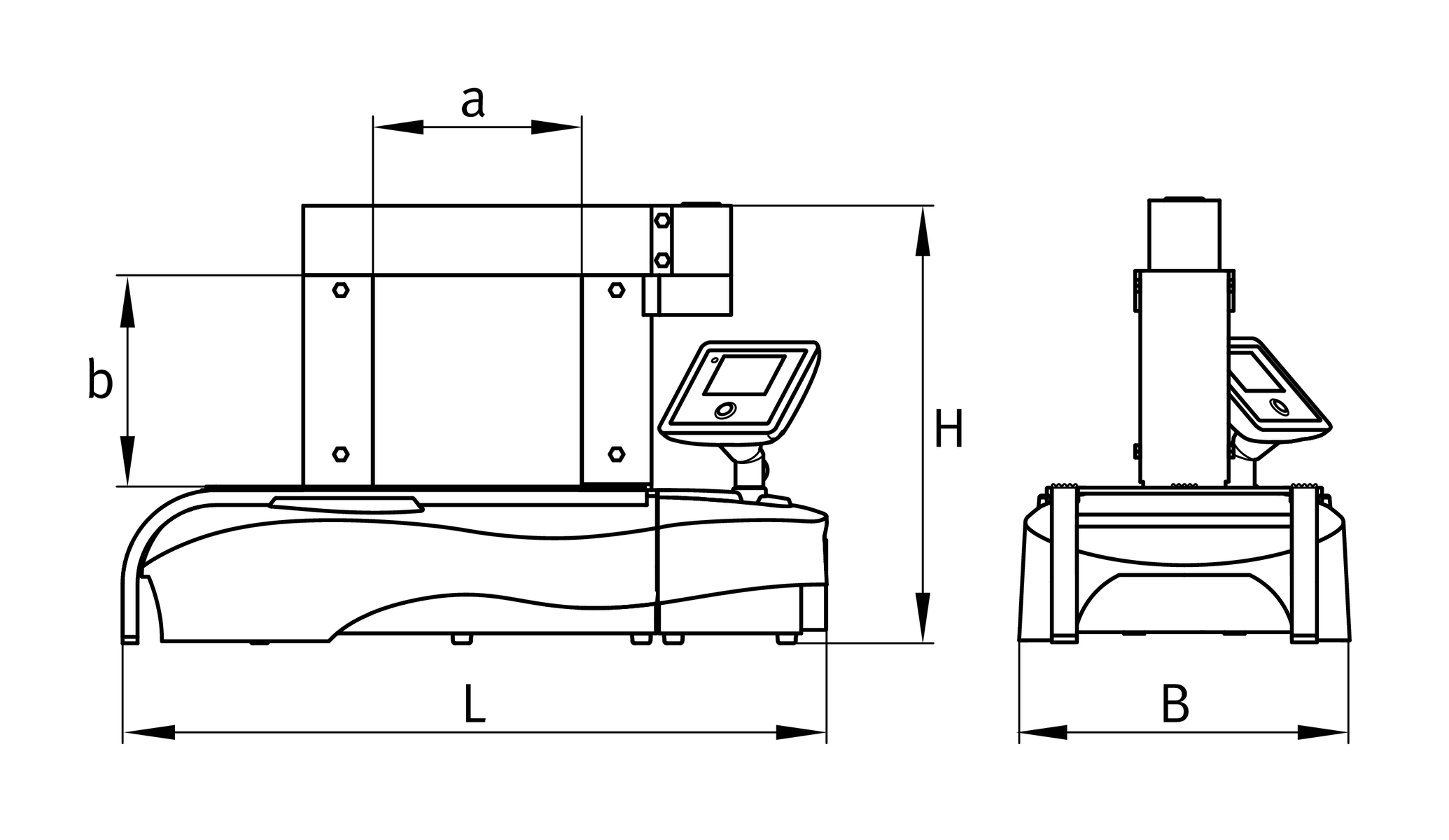

尺寸
465 mm | Length HEATER | |
220 mm | Width HEATER | |
275 mm | Height HEATER | |
| a | 140 mm | |
| b | 140 mm |
Workpiece to be heated
55 mm | Min. 內徑 workpiece (by using the ledge in 供貨範圍) | |
| ØAmax | 400 mm | Max. 外徑 workpiece |
| mb max | 25 kg | Max. workpiece weight |
| mc | 20 kg | Max. workpiece weight: other component |
