Piston pump | Functional principle | |
| VLub | 60 / 125 cm³ | Lubricant volume |
≈ 0,5 cm³ | Metering volume per lubrication interval | |
0,17 – 8,3 cm³ | Metering volume per day | |
| pop | 10 bar | Operating pressure, max. |
≤ NLGI 2 (suitability test required) | Lubricant | |
| nout | 1 | Number of outlets |
1 | Number of lubrication points: direct | |
| Uop | 6-V alkaline battery | Operating voltage |
OPTIME | Controller (integrated) | |
via OPTIME | Monitoring: fill level | |
1 up to 12 months | Dispensing time cartridge | |
Empty level, back pressure, internal error: via OPTIME | Error message | |
NFC | Commissioning | |
2.4 GHz | Wirepas Mesh (ISM band) | |
100 m | Line of sight range | |
IP68 | Protection class | |
Polyethylenterephthalat (PET) | 軸承座 material | |
| tmin | -10 °C | Operating temperature, min. |
| tmax | 55 °C | Operating temperature, max. |
arbitrary | Mounting position | |
G¼ | Connection thread | |

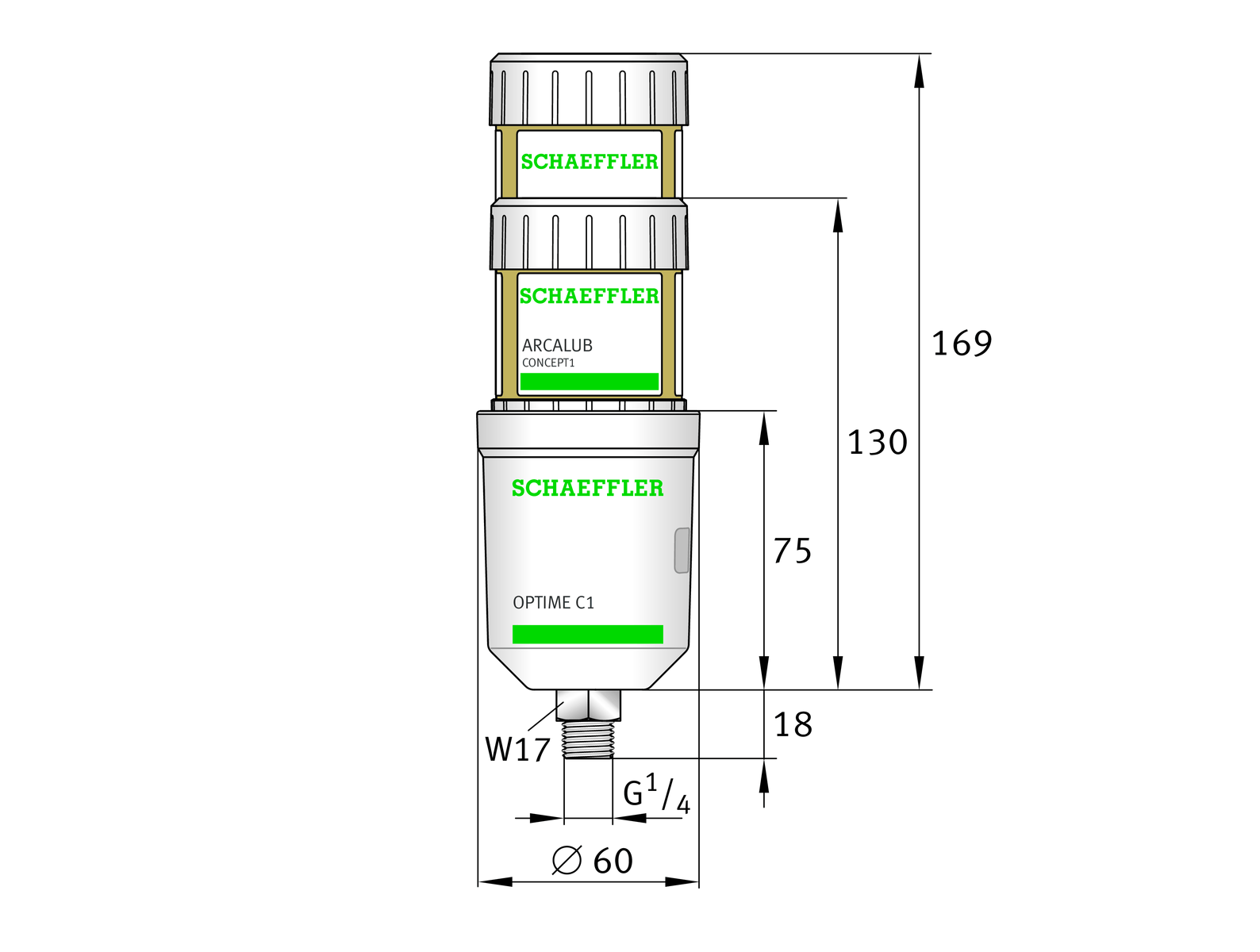

60 x 60 x 93 | Dimensions (mm) | |
| ≈m | 0.26 kg | 重量 |
附加資訊
10x OPTIME C1, 10x battery pack, 1x OPTIME C1 prefill nipple; lubricant cartridge CONCEPT1 not included | 供貨範圍 per package | |
EU-Members, Israel, Republic of Macedonia, Norway, Saudi Arabia, Switzerland, Turkey, UK, Australia, India, Indonesia, Japan, Malaysia, New Zealand, Philippines, Singapore, Thailand, Vietnam, Canada, Colombia, Peru, USA | Country approvals |
