主要尺寸與性能資料

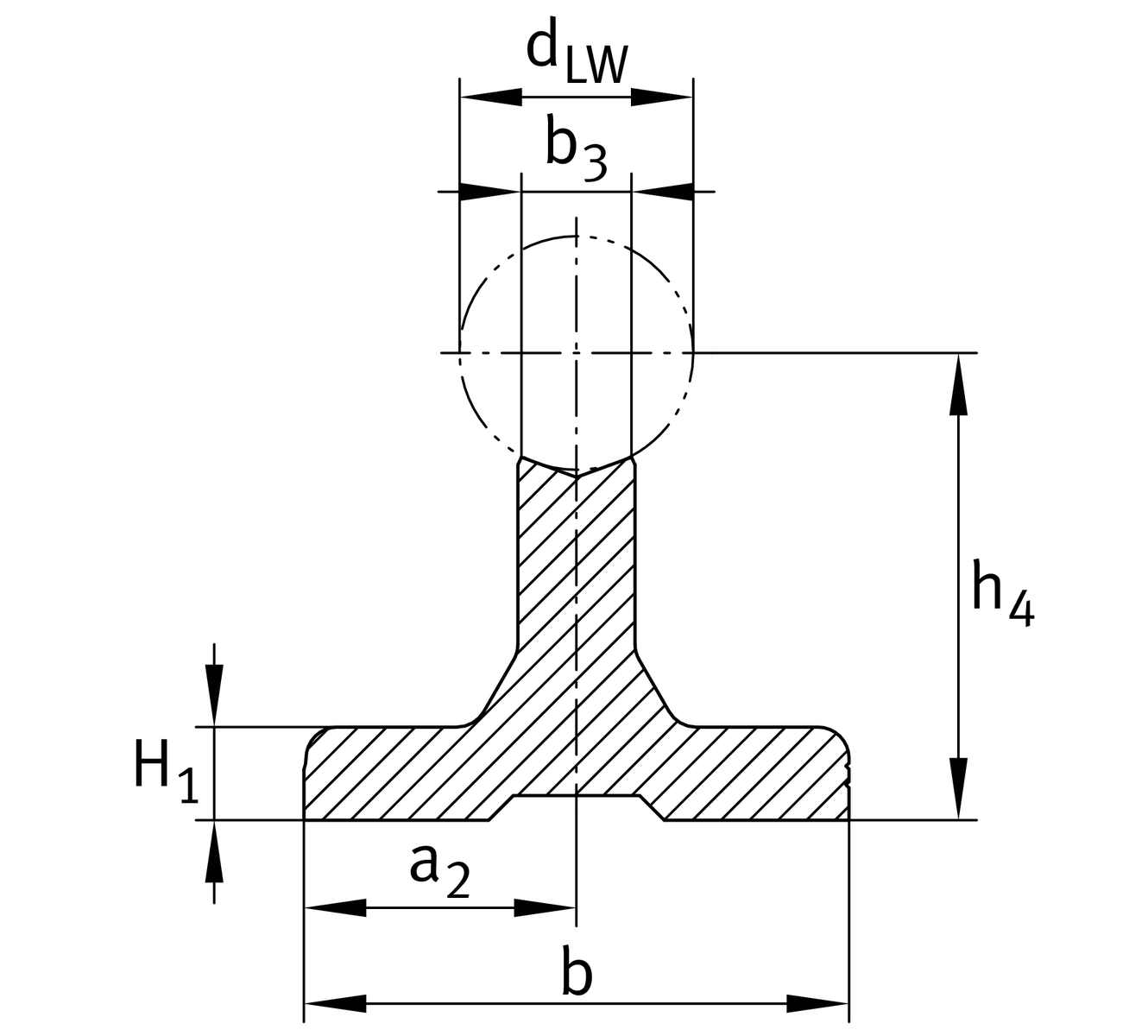

| BGR | 24 | Dimension support body |
| h4 | 63.5 mm | Height dimension 1 |
| Tol h4 | 0.051 mm | Height dimension TOL high |
| Tol h4 | -0.051 mm | Height dimension TOL low |
| b | 76.2 mm | Support rail width bottom |

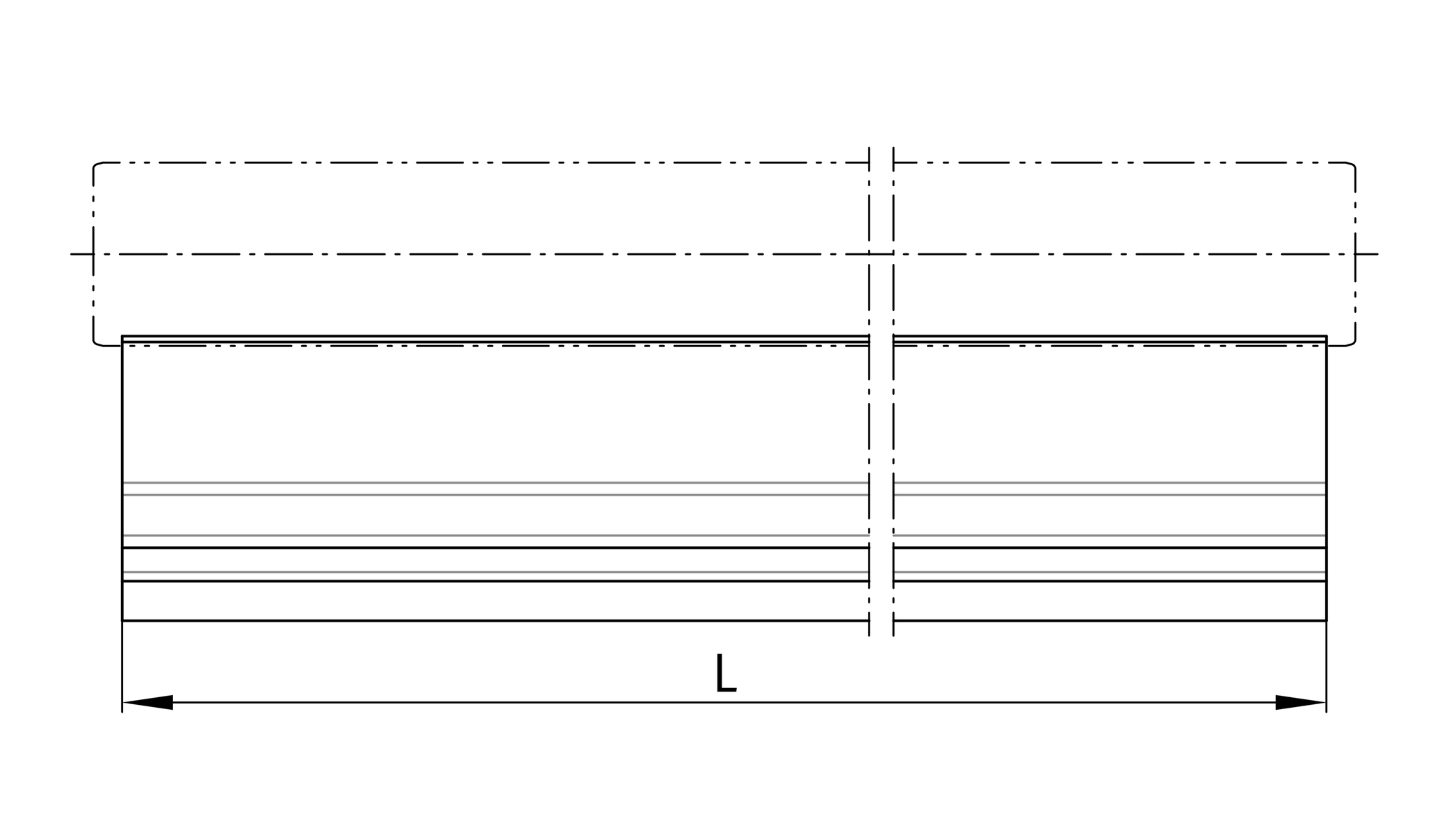

| Lmax | 1,219.2 mm | Support rail length |
| ≈m | 5.5 kg | 重量 |
安裝尺寸
| b3 | 17.526 mm | Support rail width prism |
| a2 | 38.1 mm | Support rail Width END |
| Tol a2 | 0.051 mm | Height dimension TOL high |
| Tol a2 | -0.051 mm | Height dimension TOL low |
| H1 | 9.525 mm | Support rail height END |
| m | 3.03 lbs/ft | Support rail weight |
您目前的產品型號
| Diameter shaft | 1-1/2" | dLW |
