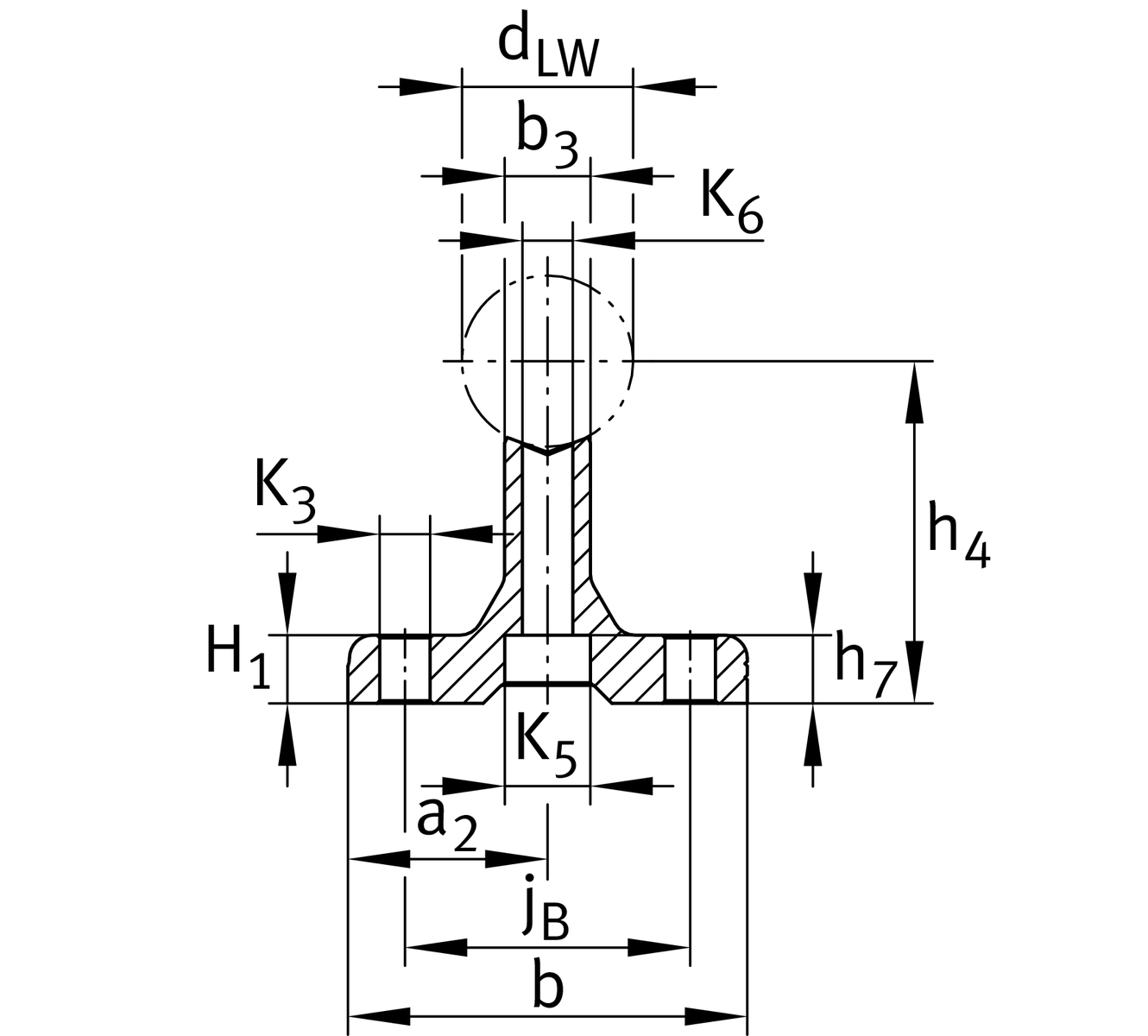

主要尺寸與性能資料
| BGR | 20 | Dimension support body |
| h4 | 53.975 mm | Height dimension 1 |
| Tol h4 | 0.051 mm | Height dimension TOL high |
| Tol h4 | -0.051 mm | Height dimension TOL low |
| b | 63.5 mm | Support rail width bottom |
| Lmax | 1,219.2 mm | Support rail length |
| ≈m | 3.59 kg | 重量 |

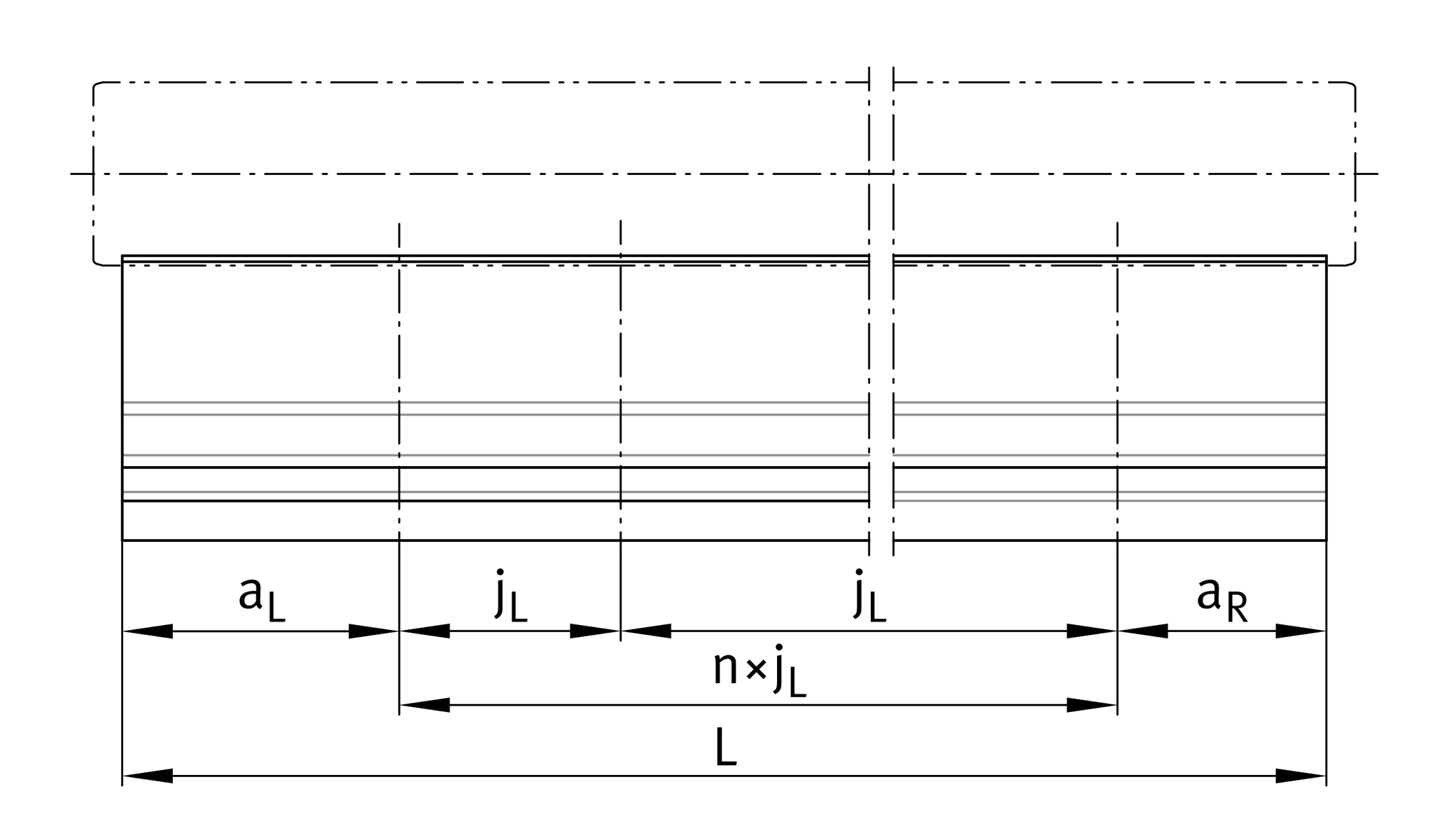

安裝尺寸
| jB | 47.752 mm | distance bore |
| b3 | 14.224 mm | Support rail width prism |
| a2 | 31.75 mm | Support rail Width END |
| Tol a2 | 0.051 mm | Height dimension TOL high |
| Tol a2 | -0.051 mm | Height dimension TOL low |
| jL | 152.4 mm | distance radial thread |
| aL min | 15.24 mm | distance radial thread aL (min) 2 |
| aL max | 139.7 mm | distance radial thread aL (max) 2 |
| aR min | 15.24 mm | distance radial thread right aR (min) 2 |
| aR max | 139.7 mm | distance radial thread right aR (max) 2 |
| H1 | 7.95 mm | Support rail height END |
| K3 | 8.712 mm | diameter adjacent construction bore |
| K5 | 13.487 mm | diameter counterbore |
| h7 | 8.255 mm | Depth counterbore |
| K6 | 8.712 mm | diameter connecting design bore |
| m | 1.98 lbs/ft | Support rail weight |
您目前的產品型號
| Diameter shaft | 1-1/4" | dLW |
