主要尺寸與性能資料
| d | M20X1 | 線 |
| D | 38 mm | 外徑 |
| h | 18 mm | 高度 |
| FaB | 145,000 N | Breaking load, axial |
| ML | 45 Nm | Breakawag |
| MAL | 18 Nm | Mounting torque reference |
| Mm | 0.23 kg*cm2 | 質量慣性矩 |
| ≈m | 88.38 g | 重量 |
安裝尺寸
| Mm | 5 Nm | Mounting torque set screw |

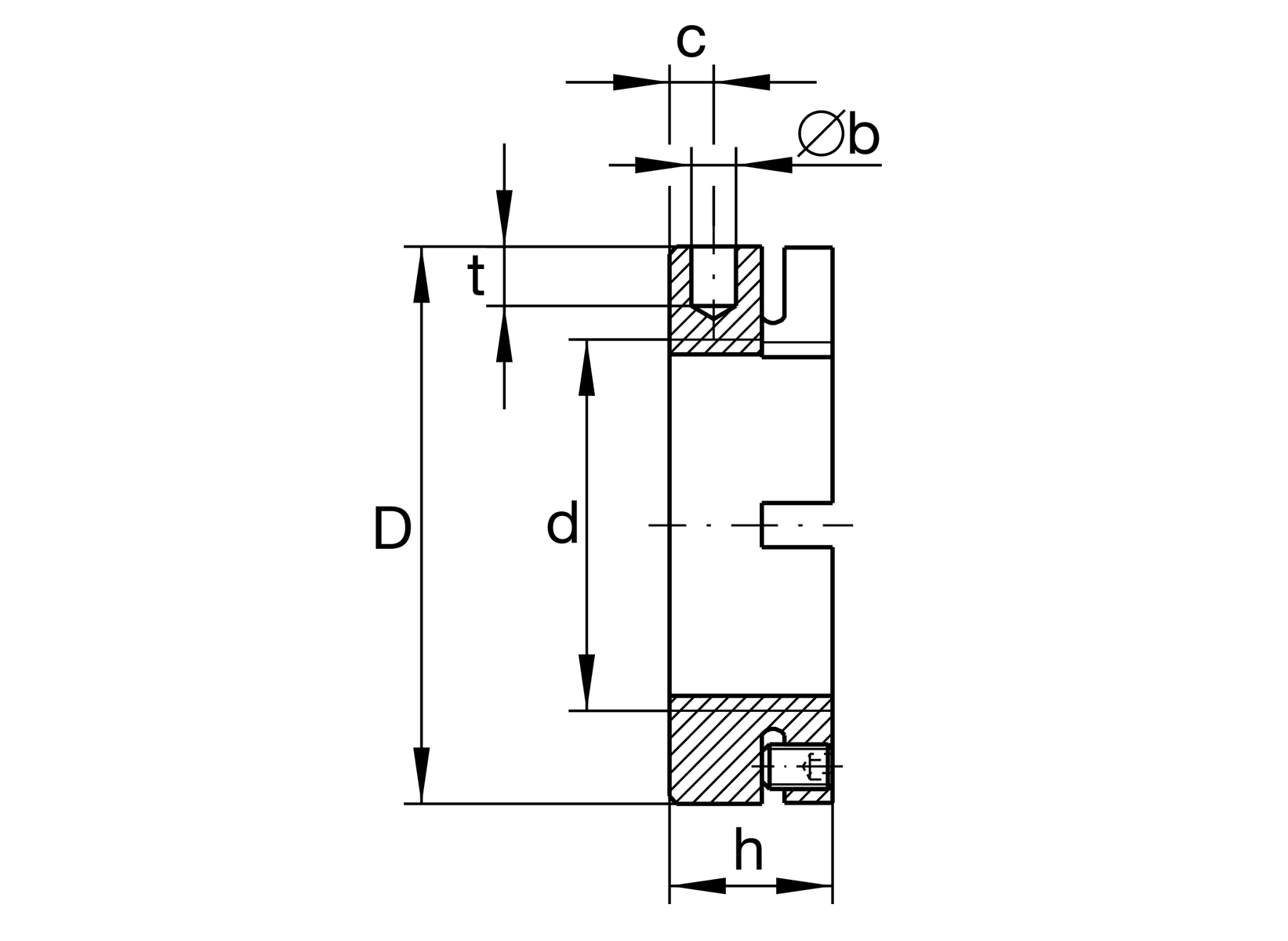

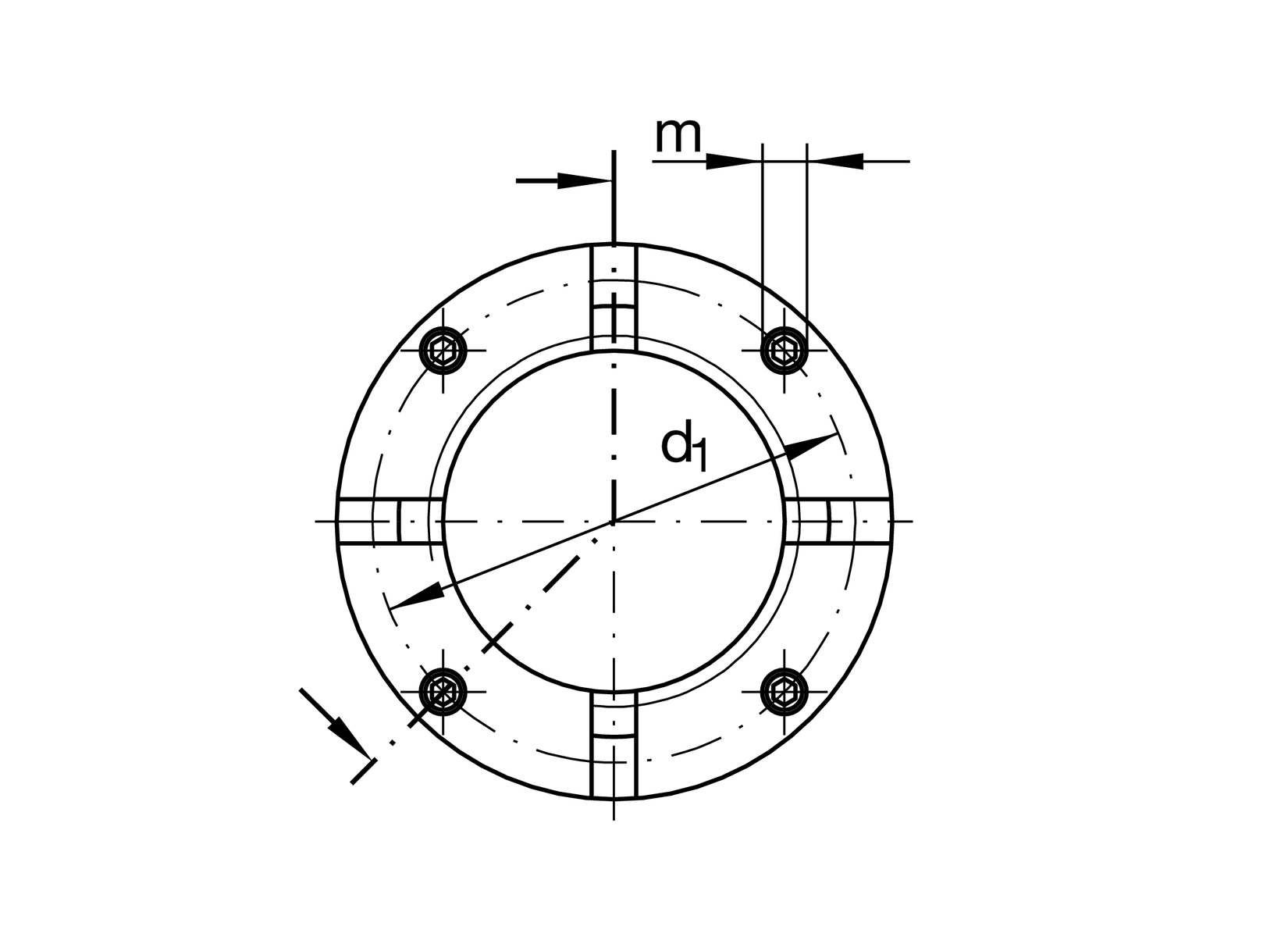

尺寸
| b | 4 mm | 內徑 blind hole |
| t | 6 mm | Depth blind hole |
| d1 | 31 mm | Pitch circle diameter 1 (holes) |
| c | 5 mm | Distance bore |
| m | M6 | Threaded - threaded pin |
H11 | 內徑 blind hole 軸承座 fit |
