KUVE25-WL
Ball monorail guidance system KUVE25-WL
Add item
Main dimensions
lmax
5,860 mm
Max length single piece guideway 1
H
35 mm
height system
B
120 mm
width carriage
L
107.5 mm
overall length carriage

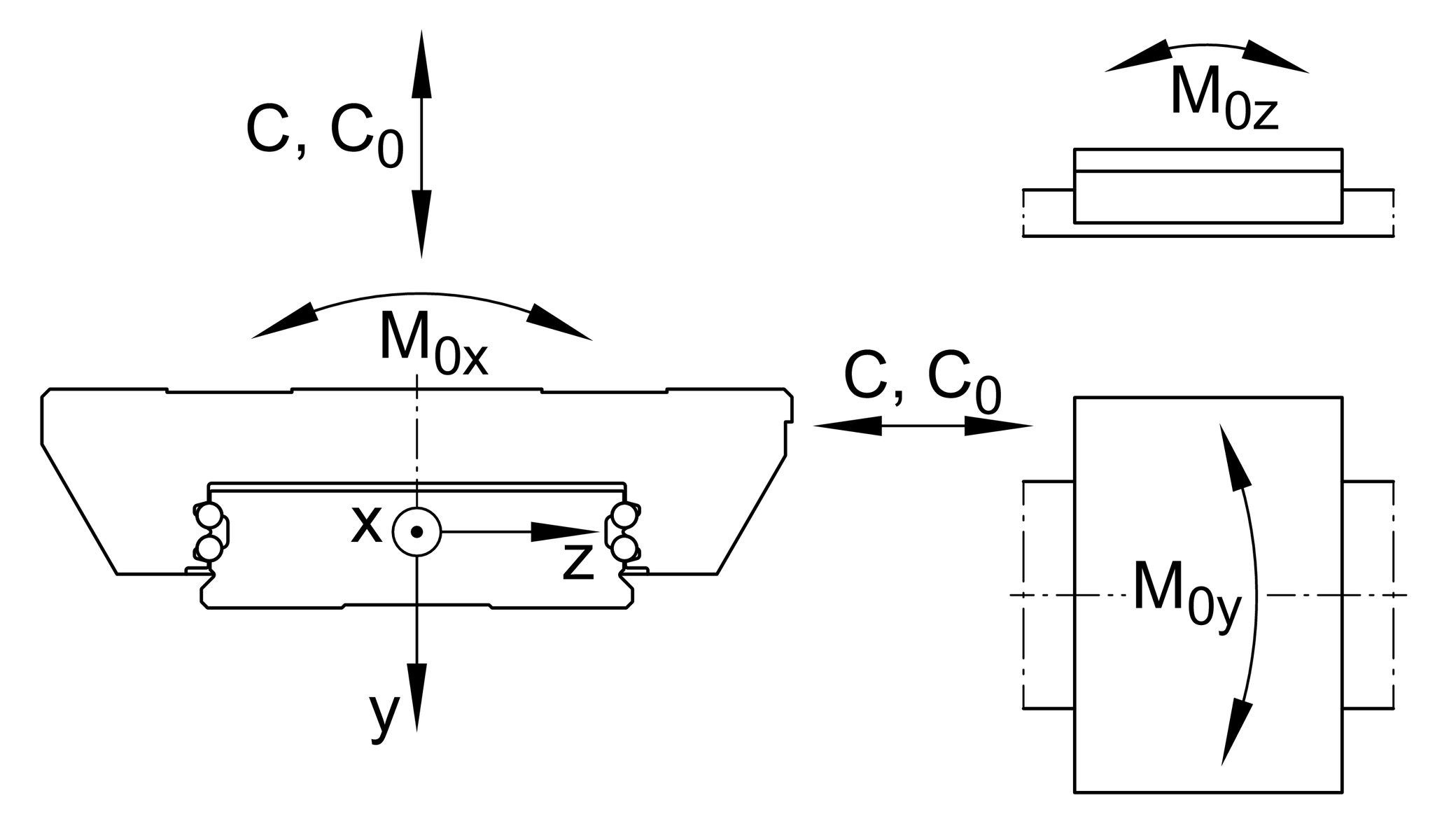

Technical data
C
23,400 N
dynamic load rating 2
C0
54,000 N
static load rating 2
M0x
2,225 Nm
static moment rating about X axis
M0y
825 Nm
static moment rating about Y axis
M0z
825 Nm
static moment rating about Z axis

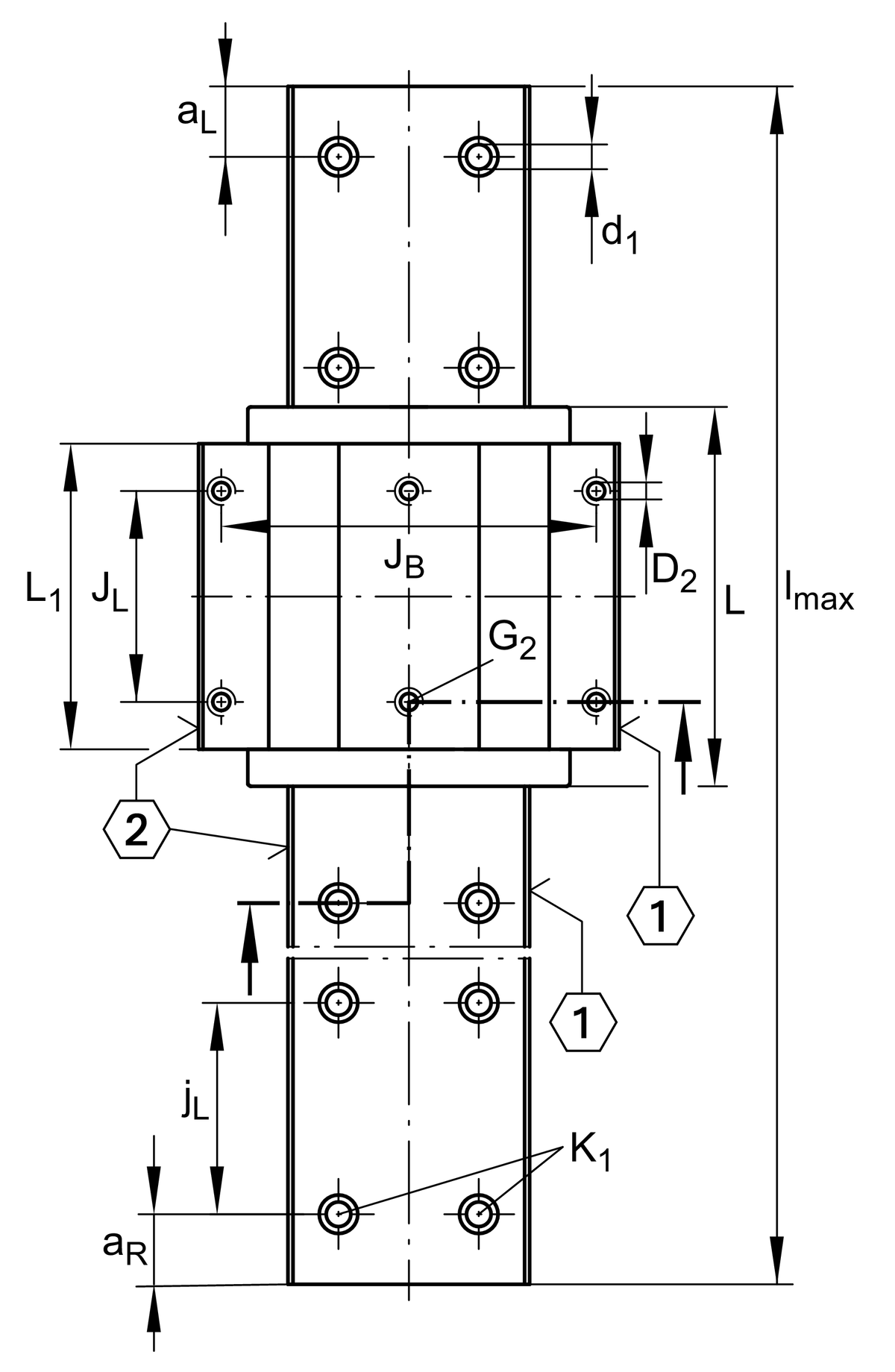

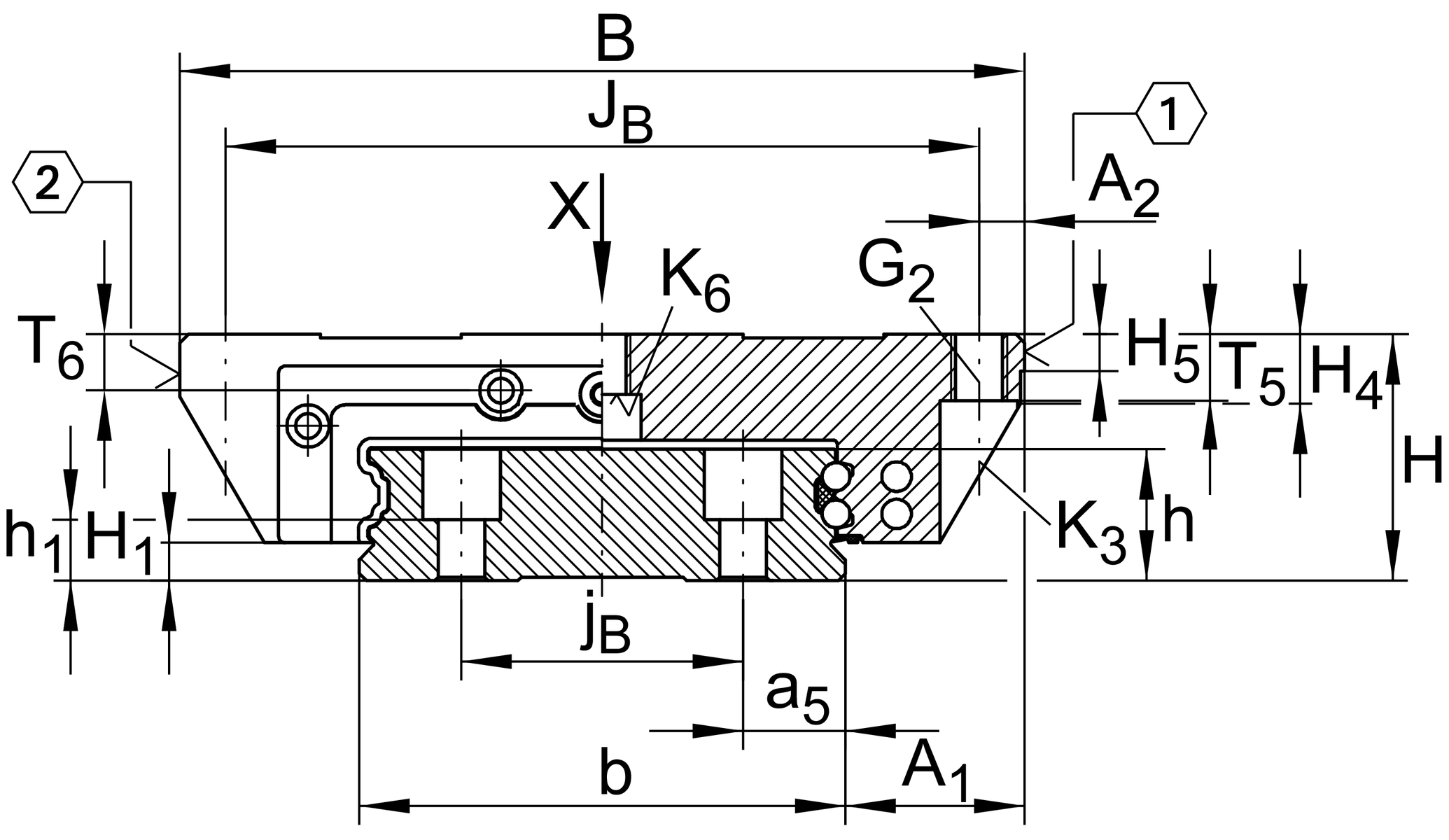

Mounting dimensions
A1
25.5 mm
JB
107 mm
jB
40 mm
b
69 mm
width rail
a5
14.5 mm
A2
6.5 mm
L1
86.5 mm
JL
60 mm
jL
80 mm
aL min
20 mm
 3
aL max
71 mm
 3
aR min
20 mm
 3
aR max
71 mm
 3
H1
5.2 mm
H4
9.9 mm
H5
5 mm
T5
10 mm
T6
10 mm
h
18.7 mm
h1
8.2 mm
G2
M8
fixing screws
G2 MA
41 Nm
maximum tightening torque 4
K1
M6
fixing screws
K1 MA
17 Nm
maximum tightening torque 4
K3
M6
fixing screws
K3 MA
17 Nm
maximum tightening torque 4
K6
M6
fixing screws
K6 MA
17 Nm
maximum tightening torque 4
d1
6.8 mm
D2
6.7 mm

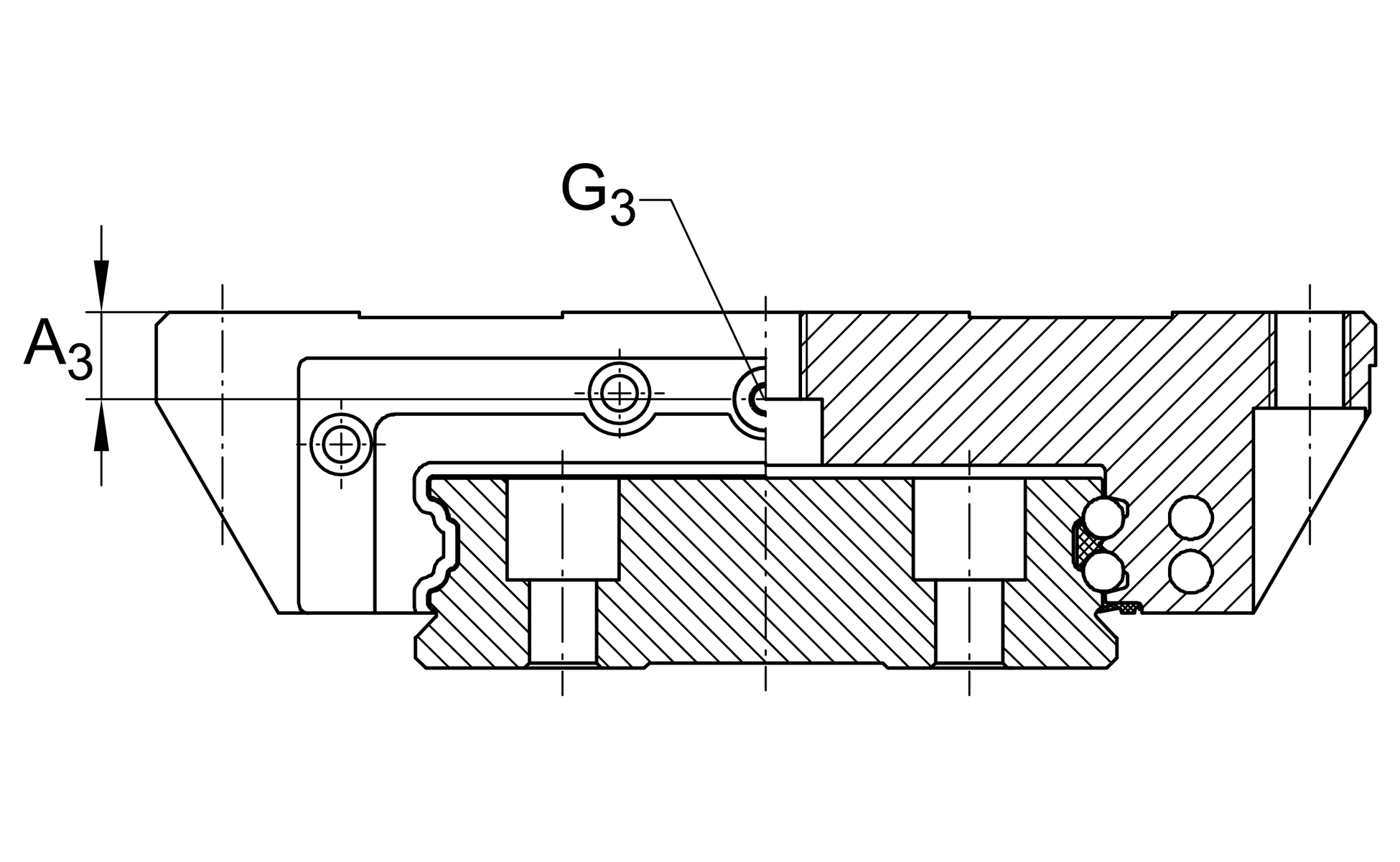

A3
10 mm
G3
M6
t G3
6 mm
 5
