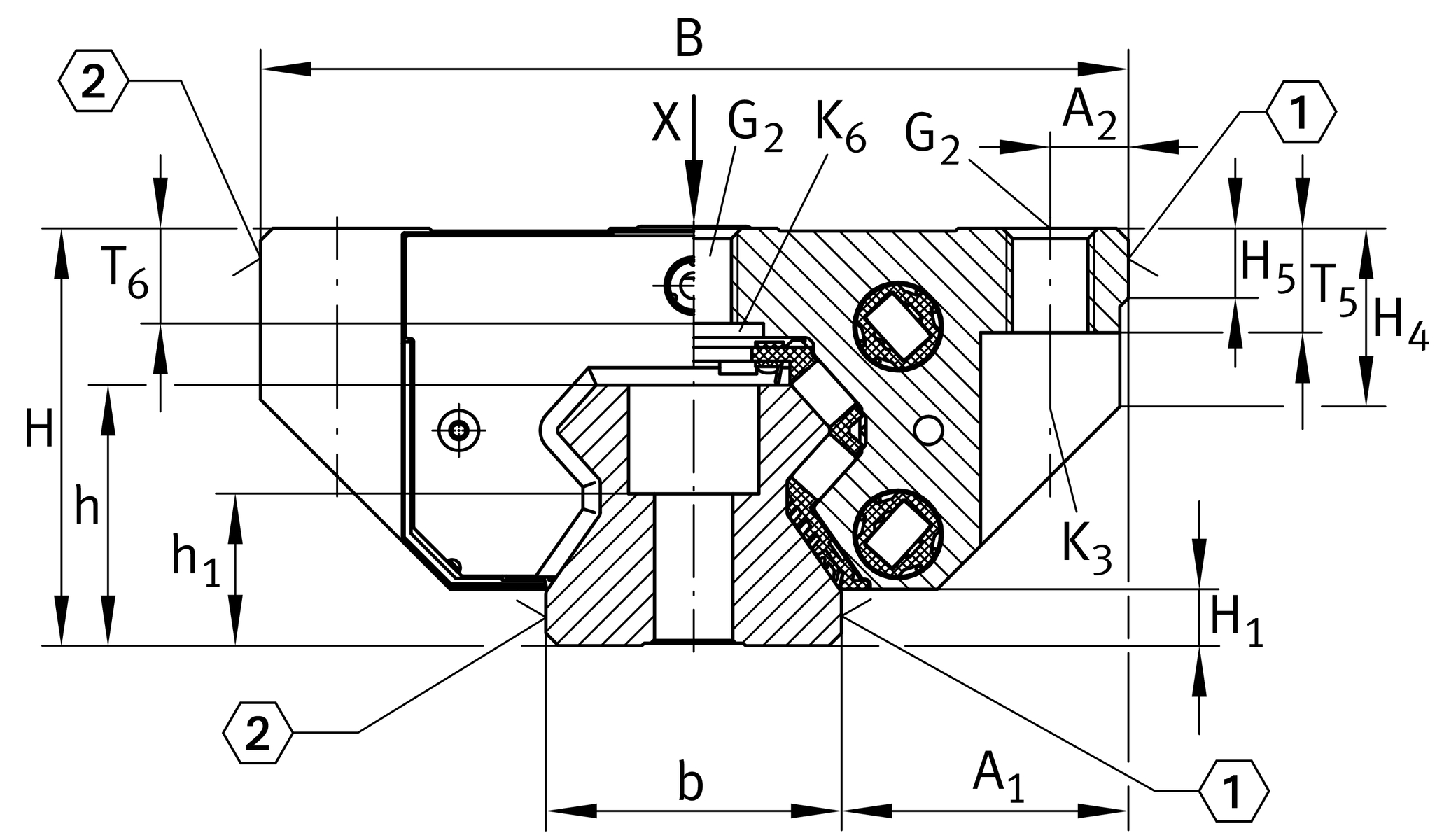

Main Dimensions & Performance Data
| H | 90 mm | height system |
| B | 170 mm | width carriage |
| L | 195.5 mm | overall length carriage 1 |
| C | 200,000 N | dynamic load rating 2 |
| C0 | 440,000 N | dynamic load rating 2 |
| M0x | 5,450 Nm | static moment rating about X axis |
| M0y | 12,100 Nm | static moment rating about Y axis |
| M0Z | 10,900 Nm | static moment rating about Z axis |
| ≈m | 9.32 kg | Weight |

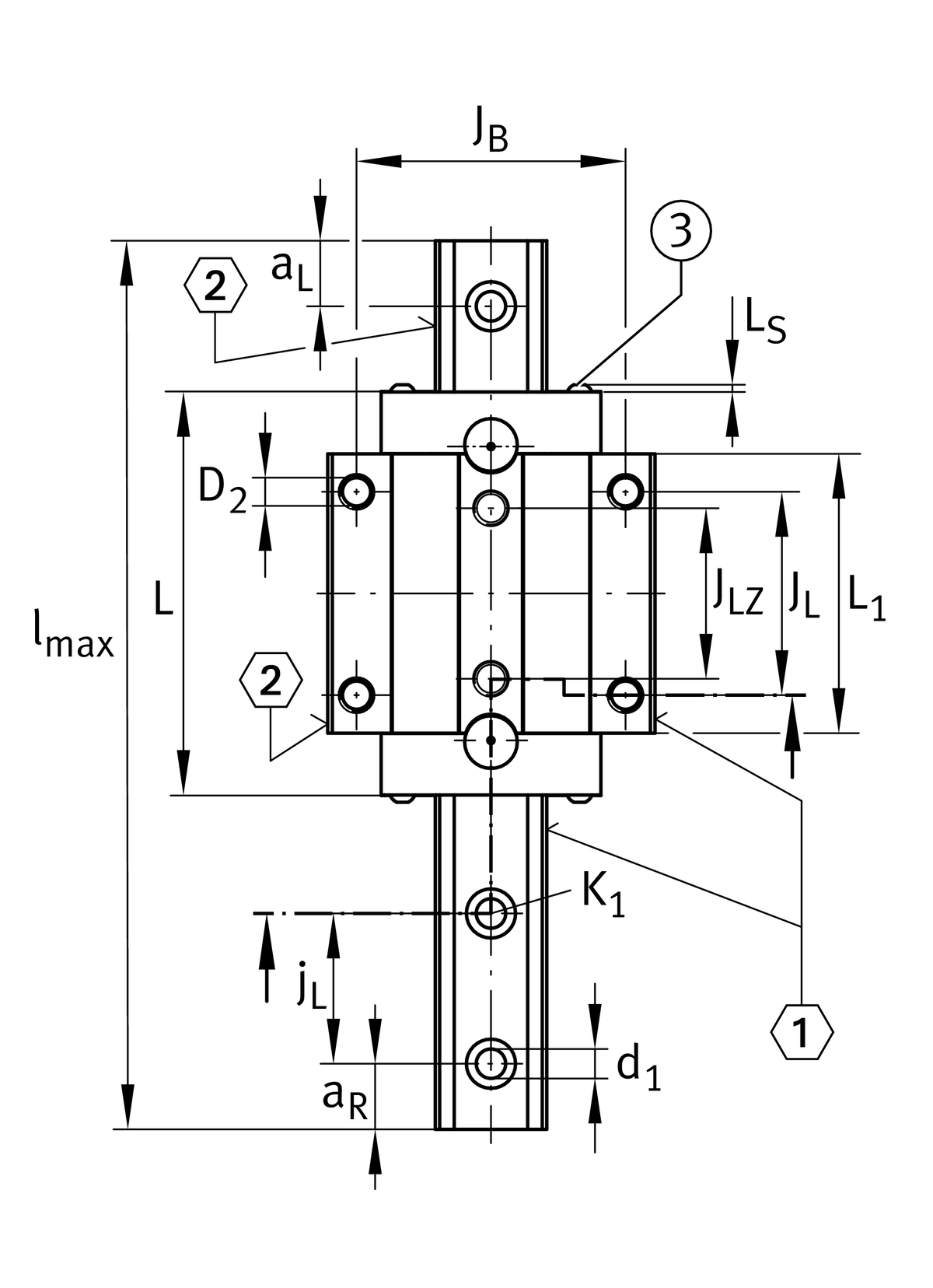

Mounting dimensions
| A1 | 53.5 mm | |
| JB | 142 mm | |
| b | 63 mm | width rail |
| A2 | 14 mm | |
| L1 | 141.2 mm | |
| LS | 2.75 mm | |
| JL | 110 mm | |
| JLZ | 82 mm | |
| H1 | 11.5 mm | |
| H4 | 39.2 mm | |
| H5 | 15 mm | |
| T5 | 23.3 mm | |
| T6 | 23.3 mm | |
| G2 | M16 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 220 Nm | maximum tightening torque 3 |
| K3 | M14 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 220 Nm | maximum tightening torque 3 |
| K6 | M14 | fixing screws below (DIN 7984-8.8) |
| K6 MA | 130 Nm | maximum tightening torque 3 |
| D2 | 14.5 mm | bore diameter |

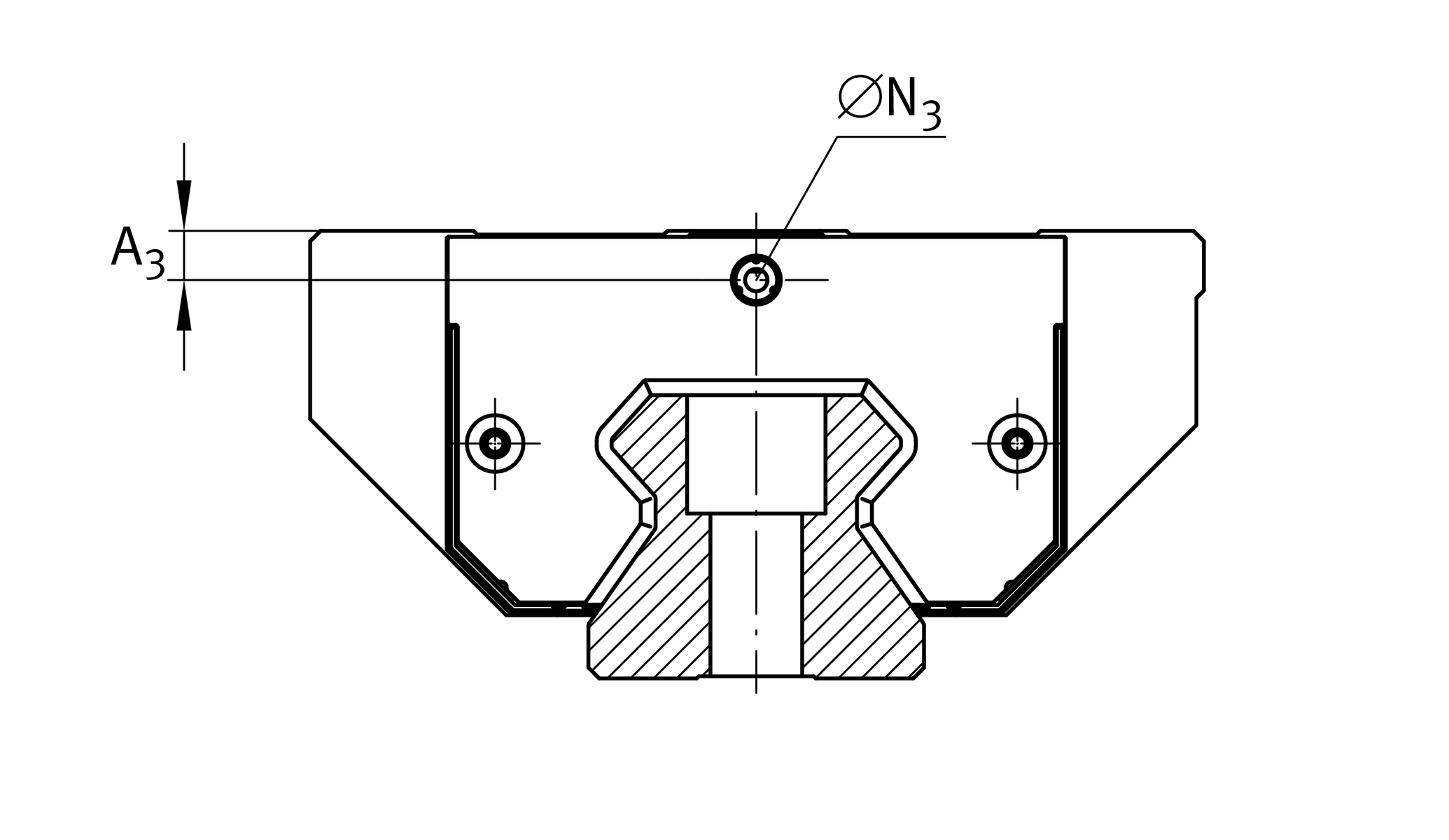

| A3 | 19.6 mm | position lubrication connector |
| N3 | M6 | lubrication connector |
| t N3 | 6 mm | maximum permissible screw depth for lubrication connectors |

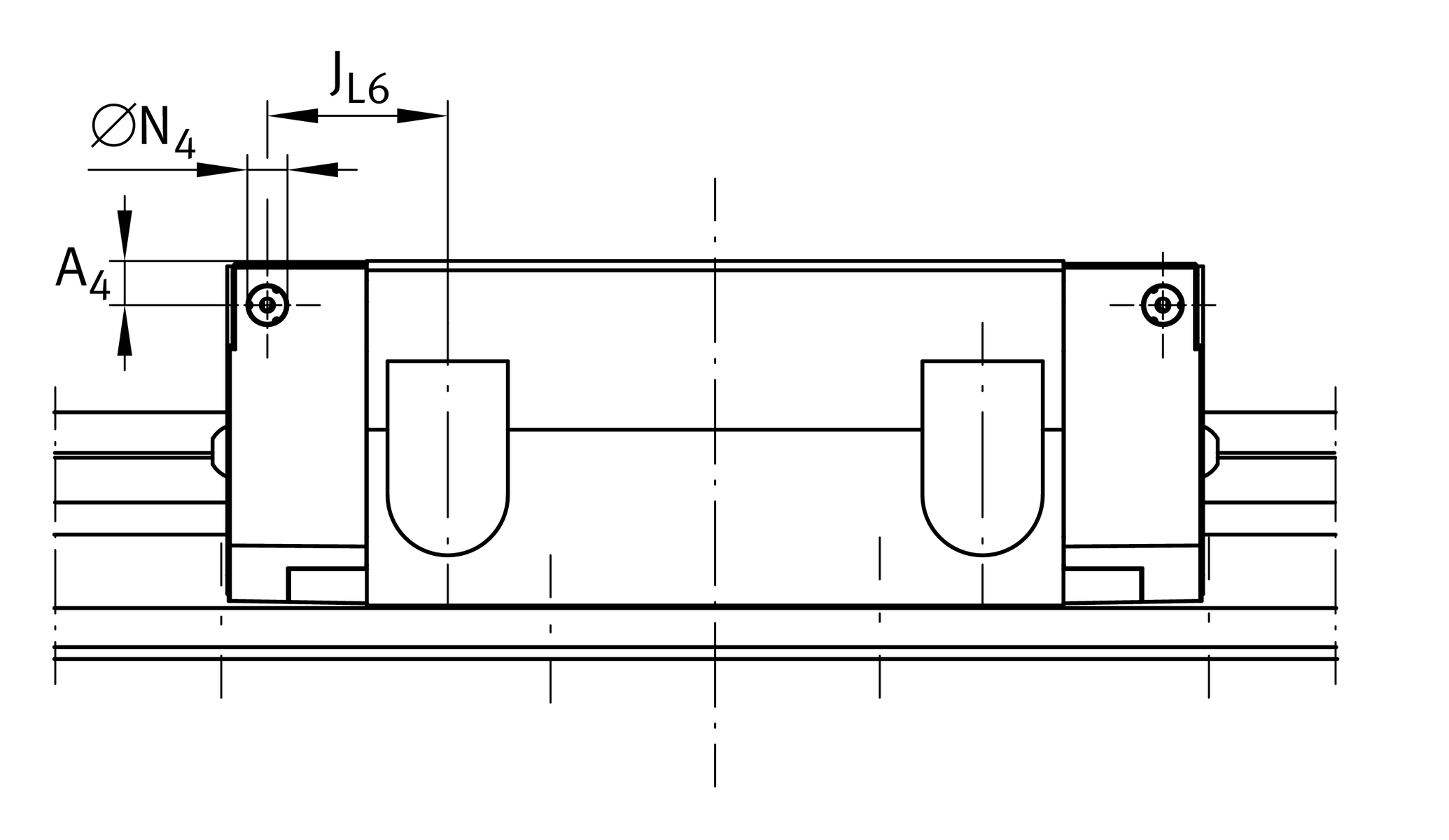

| A4 | 19.6 mm | position lubrication connector |
| N4 | 6 mm | lubrication connector |
| t N4 | 6 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 34.8 mm | position lubrication connector |
| N2 | 6 mm | max. diameter of lubrication hole in adjacent construction 4 |

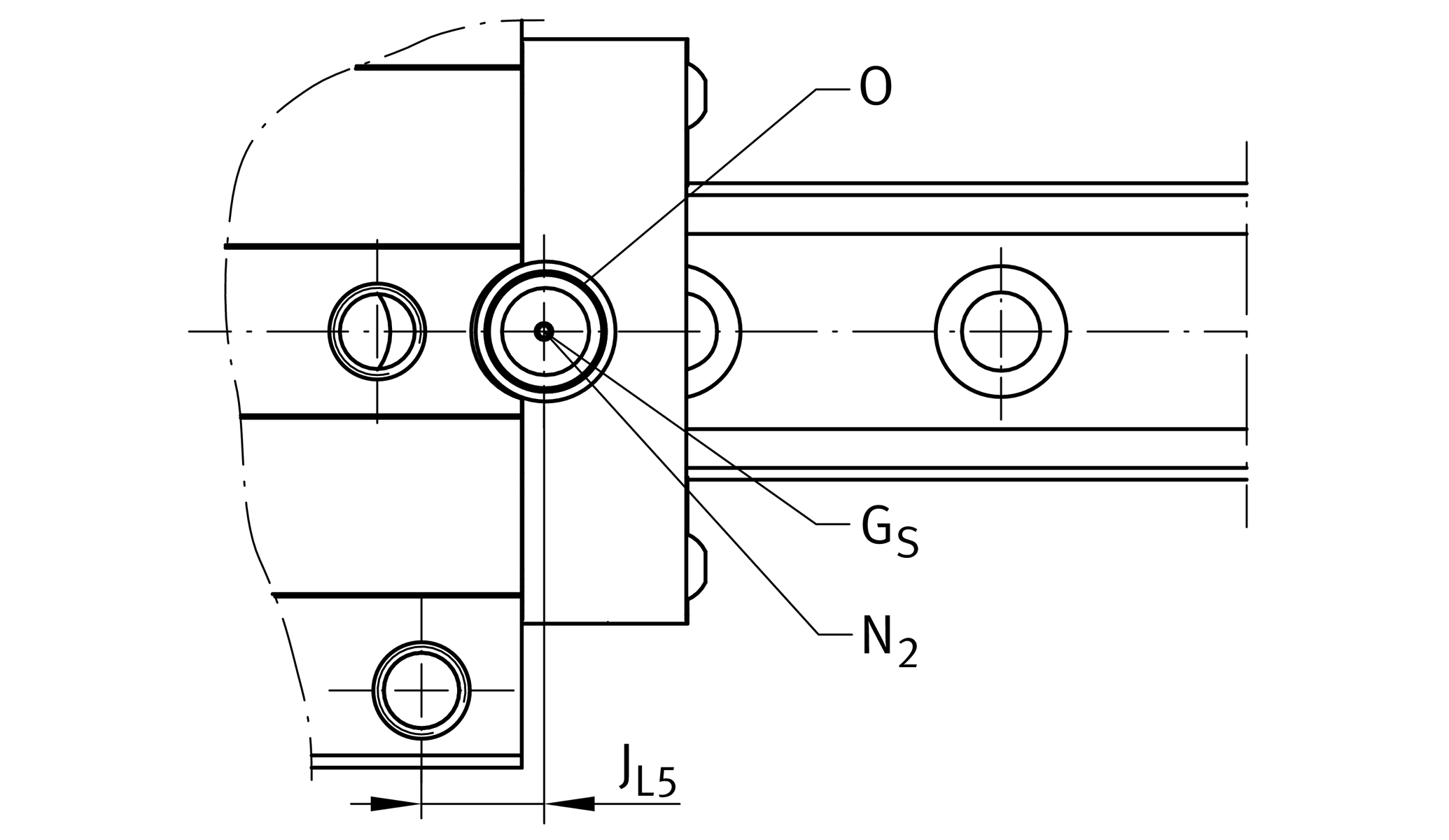

| JL5 | 15.6 mm | position lubrication connector 5 |
| GS | M4x4 | |
| O | 18x1,5 | O-Ring DIN 3771 |
Your current product variant
| Size code | 65 | |
| Version | F | version |
| Carriage design | / | Standard carriage |
