RUSV60134-KS
Linear recirculating roller bearing unit RUSV60134-KS
Add item
Main Dimensions & Performance Data
L
143 mm
Length total
B
52 mm
Width
H
60 mm
Height
C
179,000 N
Basic dynamic load capacity
C0
275,000 N
Basic static load capacity
≈m
2.48 kg
Weight

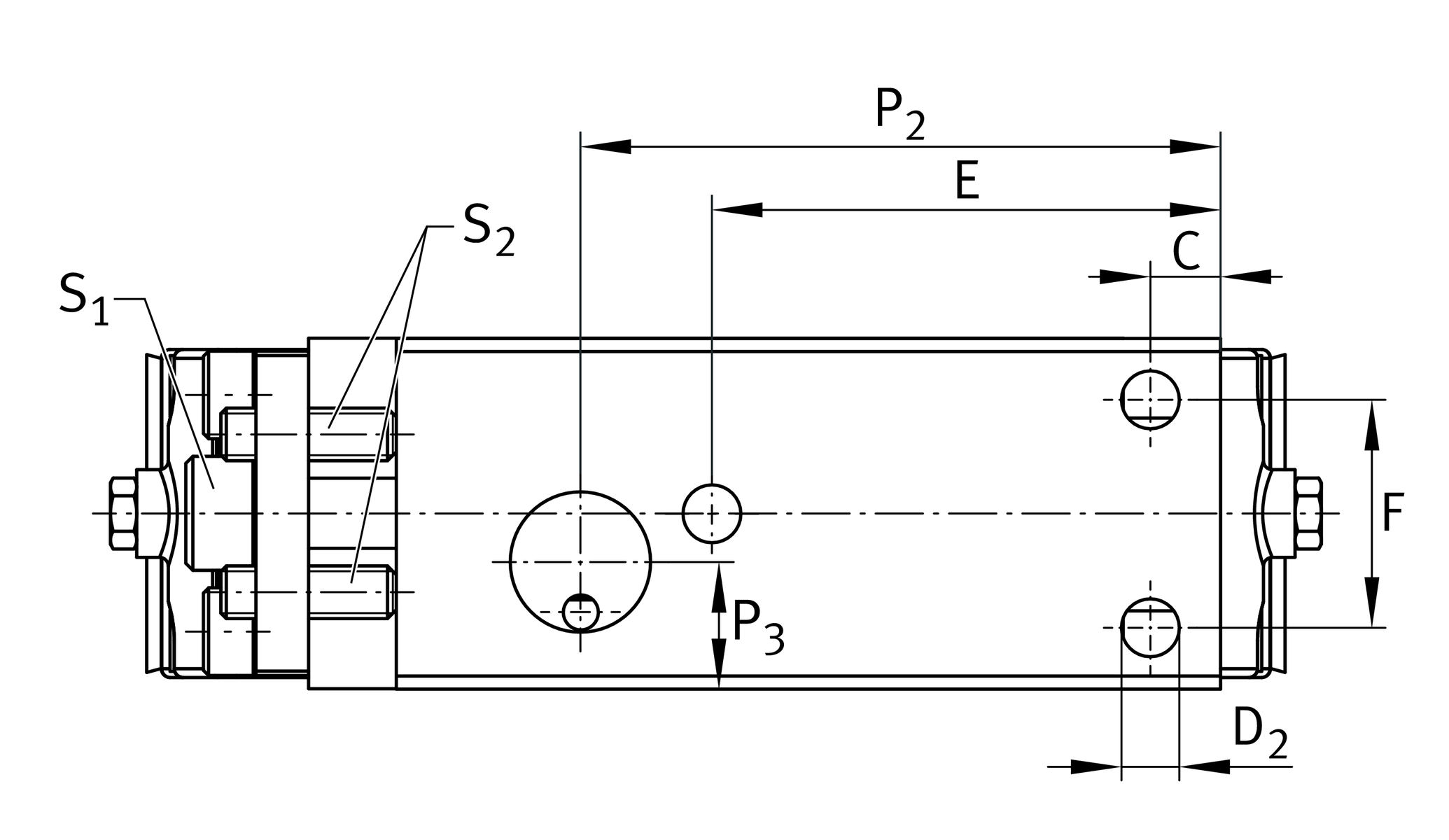

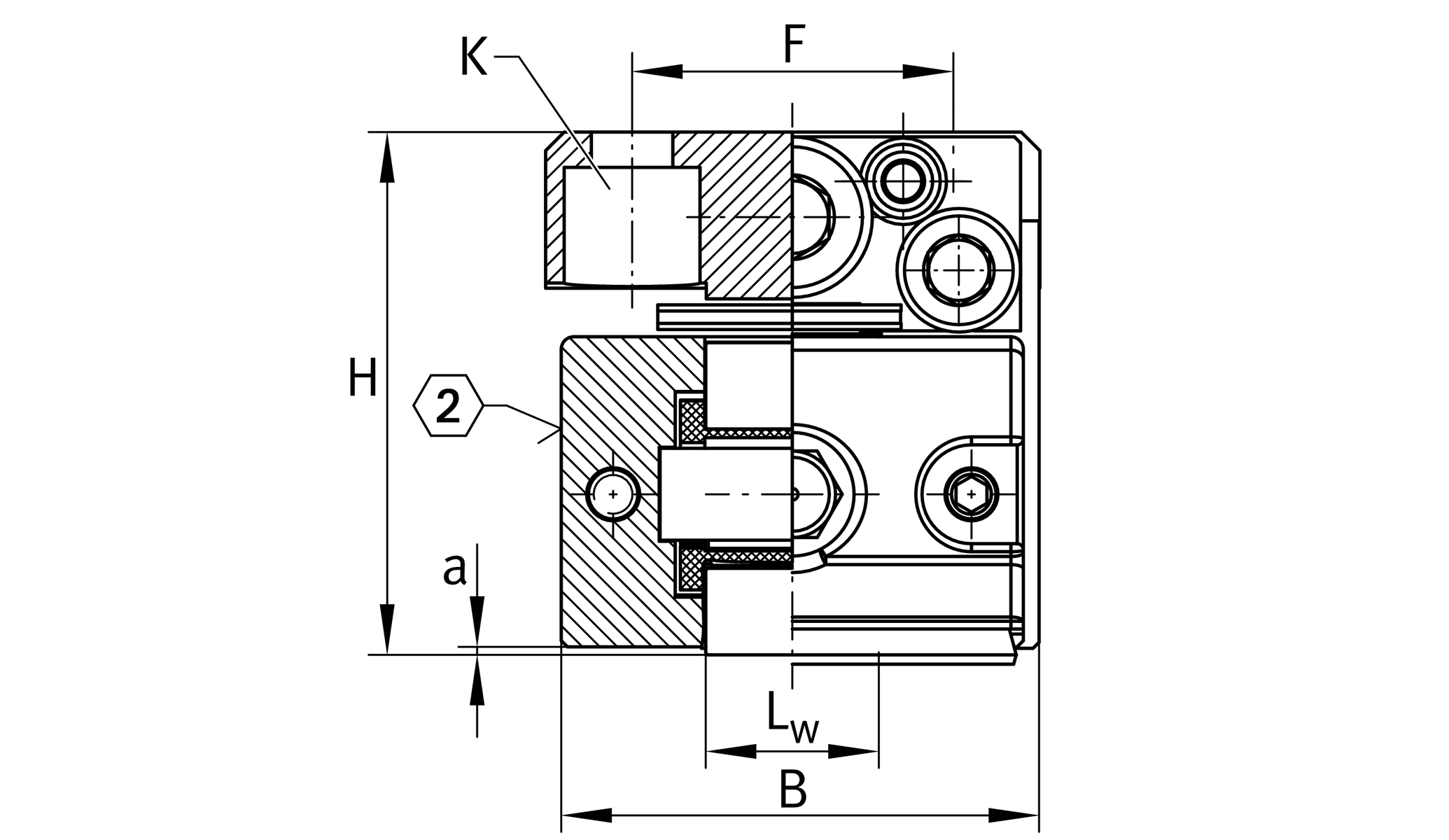

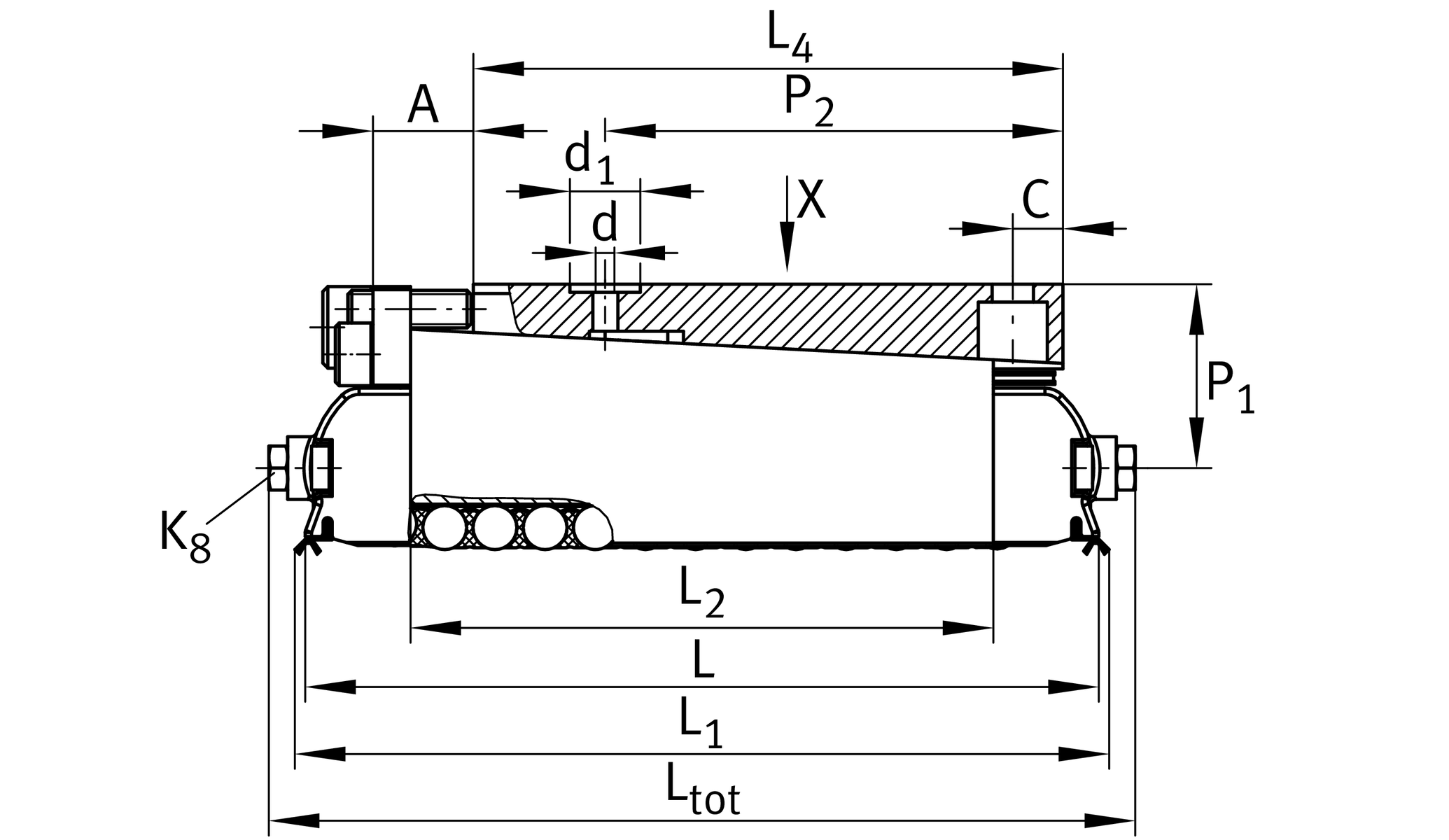

Mounting dimensions
L
134 mm
L1
133 mm
L3
85 mm
L4
86 mm
a
0.3 mm
LW
20 mm
C
10 mm
E
45 mm
Mounting dimension
F
35 mm

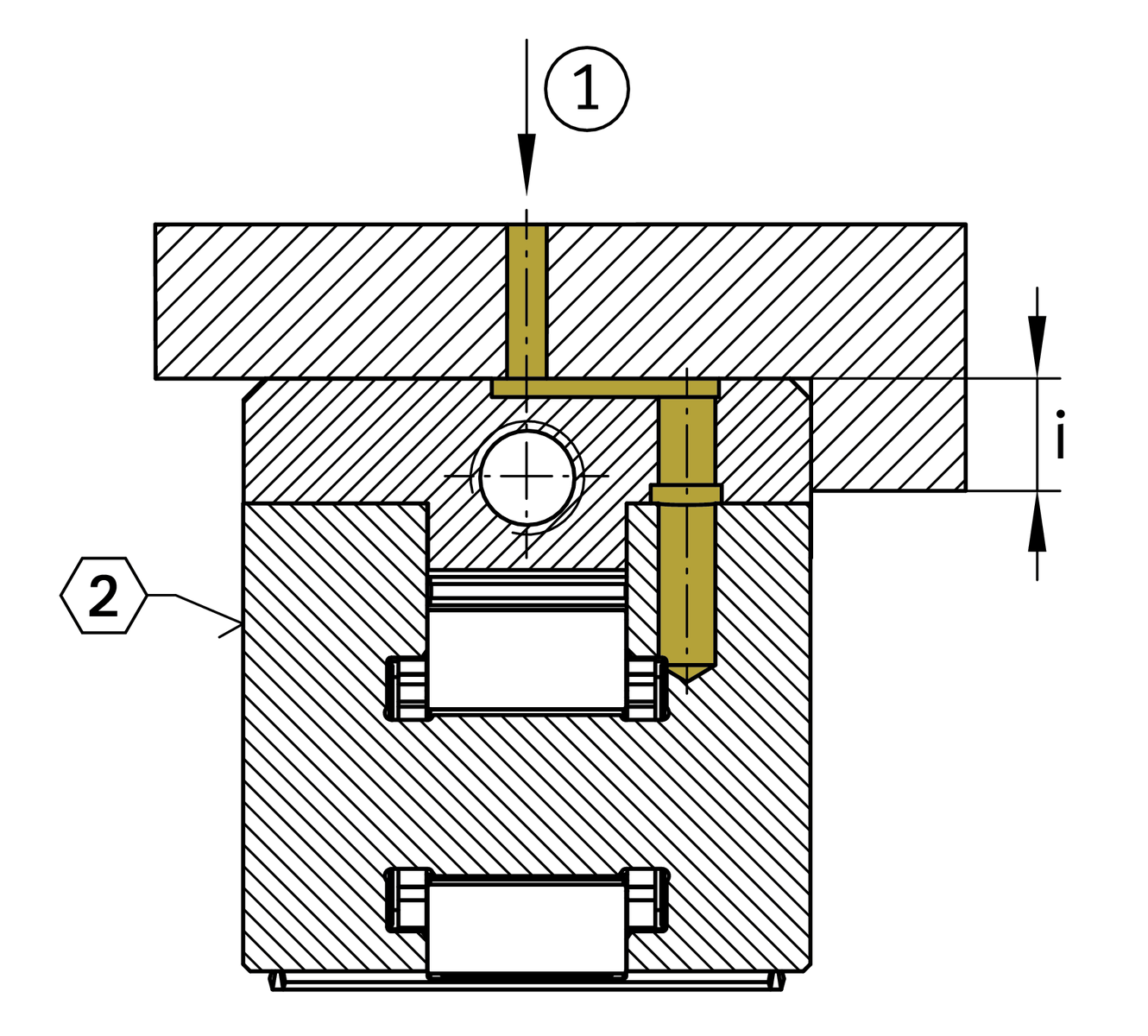

i
8 mm
Mounting dimension
P1
41.5 mm
d1
22 mm
P2
65 mm
P3
18 mm
d
4 mm
K
M6
Lubrication connector DIN3405-A
S1
8 mm
Hexagon socket adjusting screw 1
S2
4 mm
Hexagon socket counter forcing screw 1
K
M6
Size thread k DIN
K MA
41 Nm
Tightening torque fixing screws 2
D2
8.6 mm
Amax
15 mm
Screw stroke A
Delta hmax
0.78 mm
Adjustment maximum
0.062 mm
Adjustment screw revolution

Related products
UG12553, UGN12553-A, UZ12553, UZN12553-A, UFK6412, UFB7812
suitable Guide Rails

Your current product variant
Size code60134
SuffixKSwith end face lubrication connectors
