Main Dimensions & Performance Data
| L | 114 mm | Length total |
| B | 40 mm | Width |
| H | 42 mm | Height |
| C | 95,000 N | Basic dynamic load capacity |
| C0 | 151,000 N | Basic static load capacity |
| ≈m | 1.04 kg | Weight |

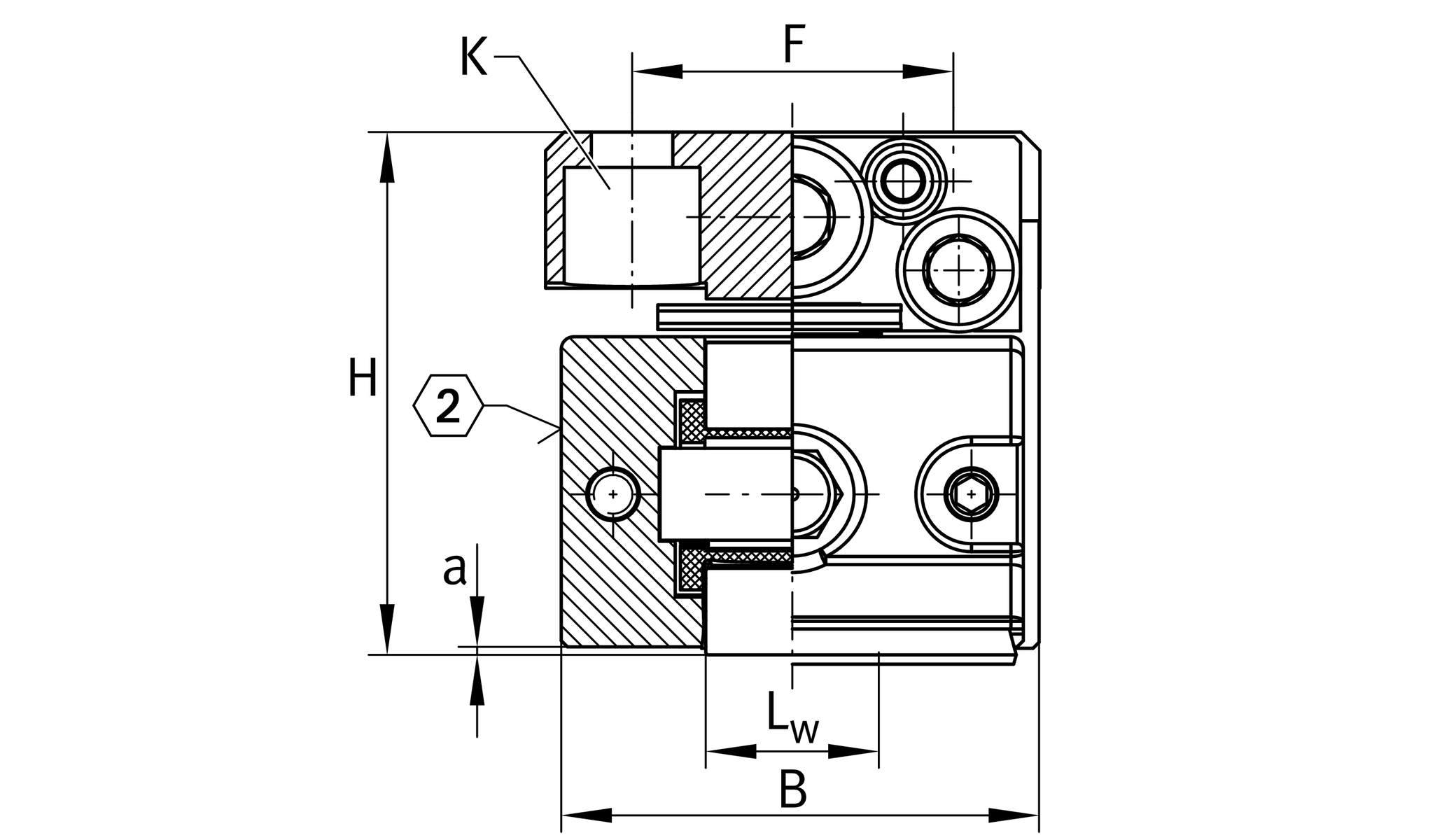

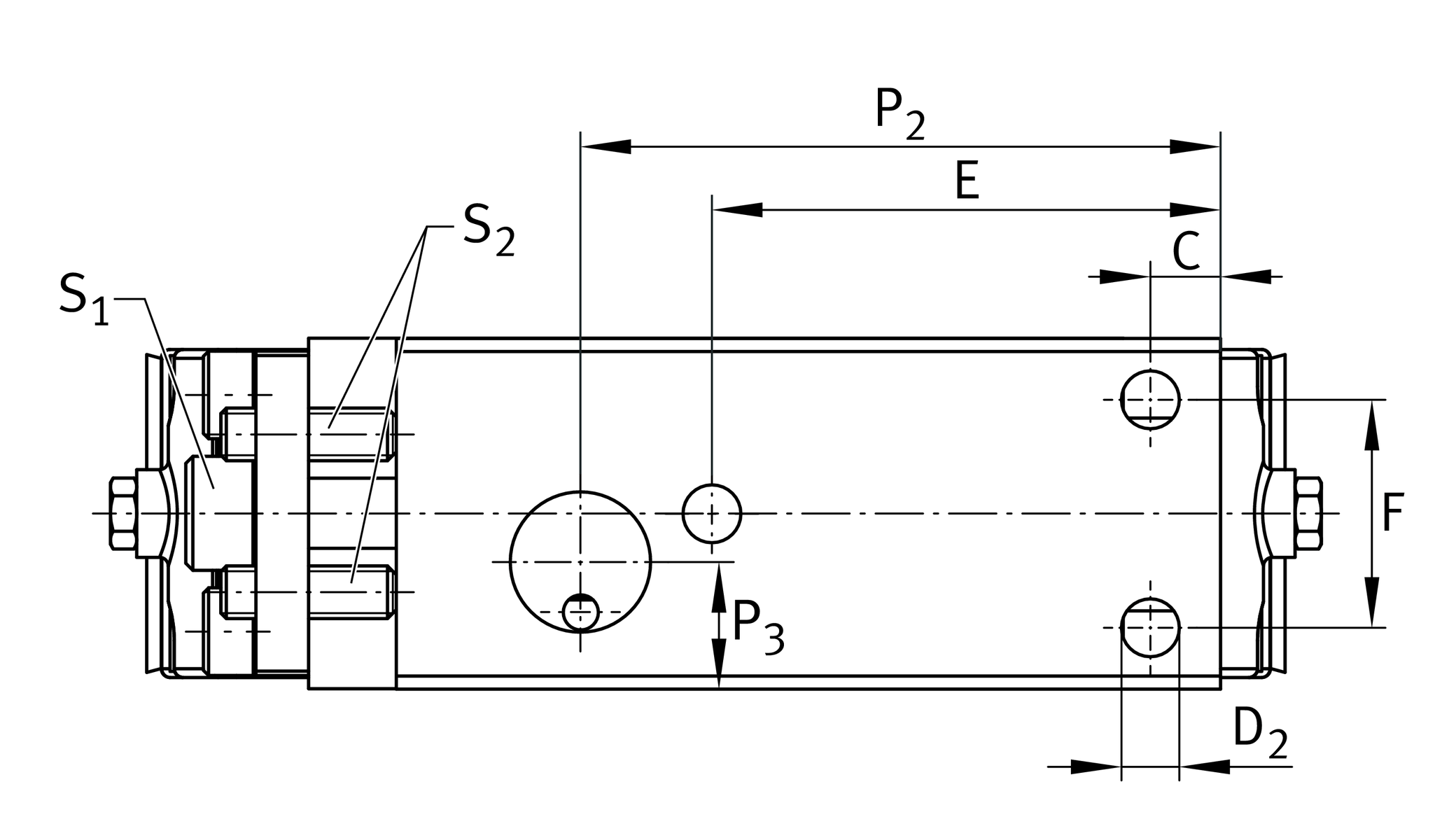

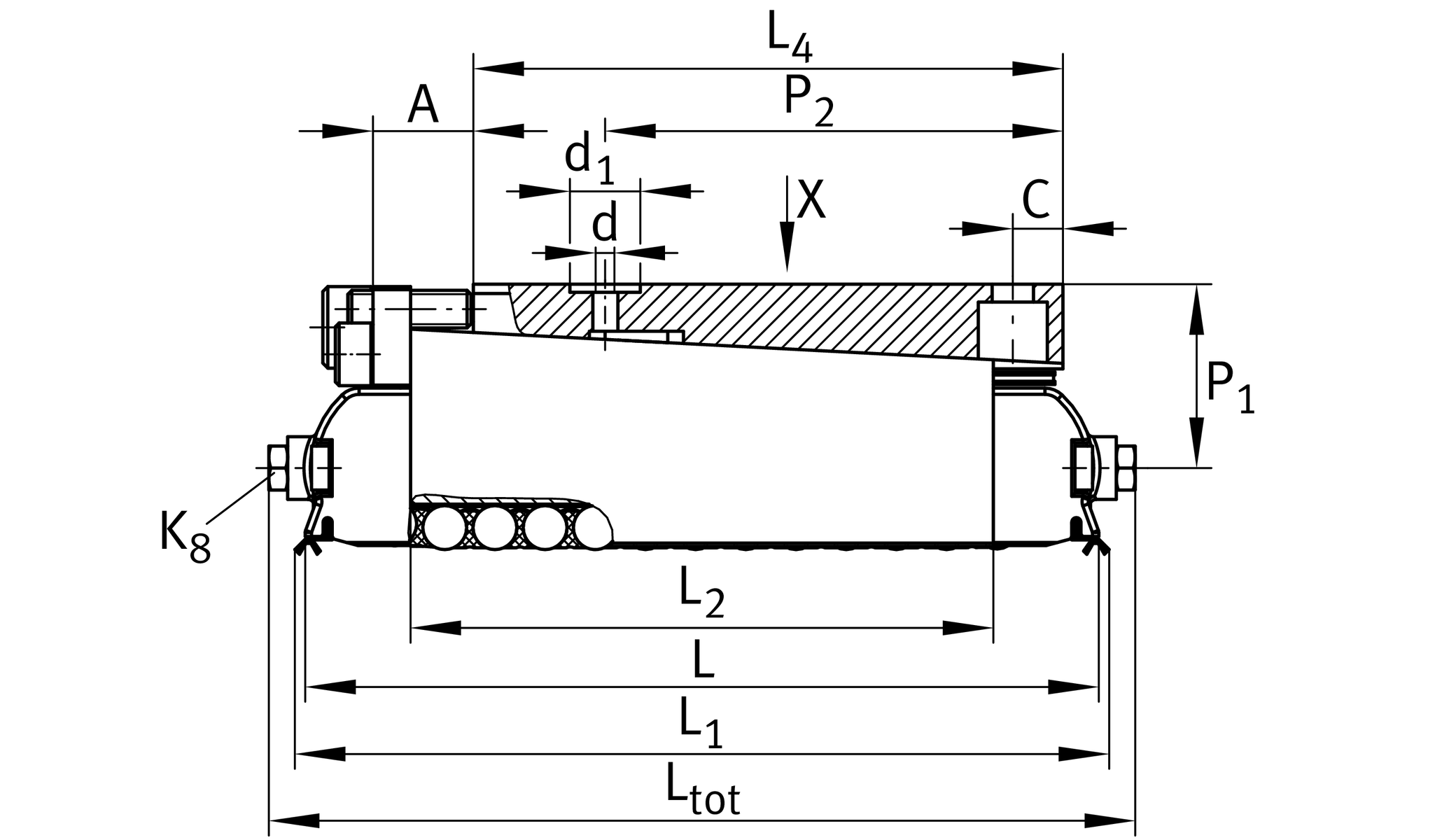

Mounting dimensions
| L | 102 mm | |
| L1 | 108 mm | |
| L3 | 68.4 mm | |
| L4 | 70 mm | |
| a | 0.3 mm | |
| LW | 14 mm | |
| C | 8 mm | |
| E | 38 mm | Mounting dimension |
| F | 26 mm | |
| i | 6 mm | Mounting dimension |
| P1 | 29.5 mm | |
| d1 | 16 mm | |
| P2 | 53 mm | |
| P3 | 14.5 mm | |
| d | 3 mm | |
| K | M6 | Lubrication connector DIN3405-A |
| S1 | 6 mm | Hexagon socket adjusting screw 1 |
| S2 | 3 mm | Hexagon socket counter forcing screw 1 |
| K | M6 | Size thread k DIN |
| K MA | 17 Nm | Tightening torque fixing screws 2 |
| D2 | 6.6 mm | |
| Amax | 10 mm | Screw stroke A |
| Delta hmax | 0.52 mm | Adjustment maximum |
0.05 mm | Adjustment screw revolution |
Related products
UG9741, UGN9741-A, UZ9741, UZN9741-A, UFK4710, UFB6412 | suitable Guide Rails |
Your current product variant
| Size code | 42102 | |
| Suffix | KS | with end face lubrication connectors |
