PRODUCTS

FAG INA Schaeffler
INA
RUDS65X300-D-H
Damping carriage for linear recirculationg roller bearing and guideway assembly RUDS65X300-D-H
Add item
Main Dimensions & Performance Data
H
100 mm
height
B
124 mm
width
L3
300
standard length 3 1
≈m
11.4 kg
Weight

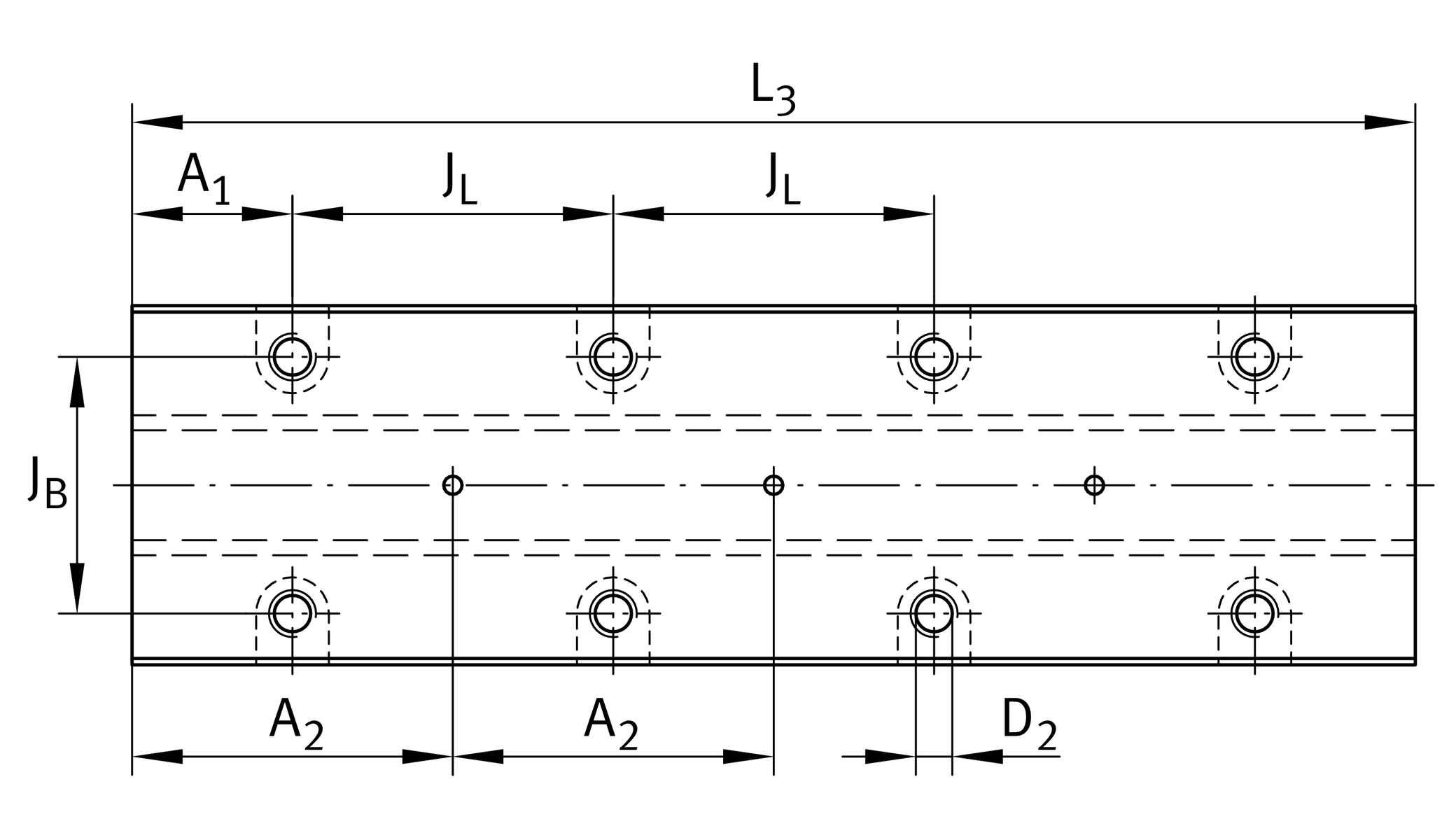

Mounting dimensions
H1
11.5 mm
T5
23 mm
H3
71 mm
JB
76 mm
A1
37.5 mm
A2
75 mm
JL
75 mm
G2
M14
fixing screws 2
G2 MA
229 Nm
tightening torque 3
n
8
number of fixing threads

Related products
RUE65-E-H, RUE65-E-HL, RUE65-F-H, RUE65-F-HL
suitable linear guidances

Your current product variant
Size code65
Length300standardlength 3
SuffixD
VersionHhigh version
