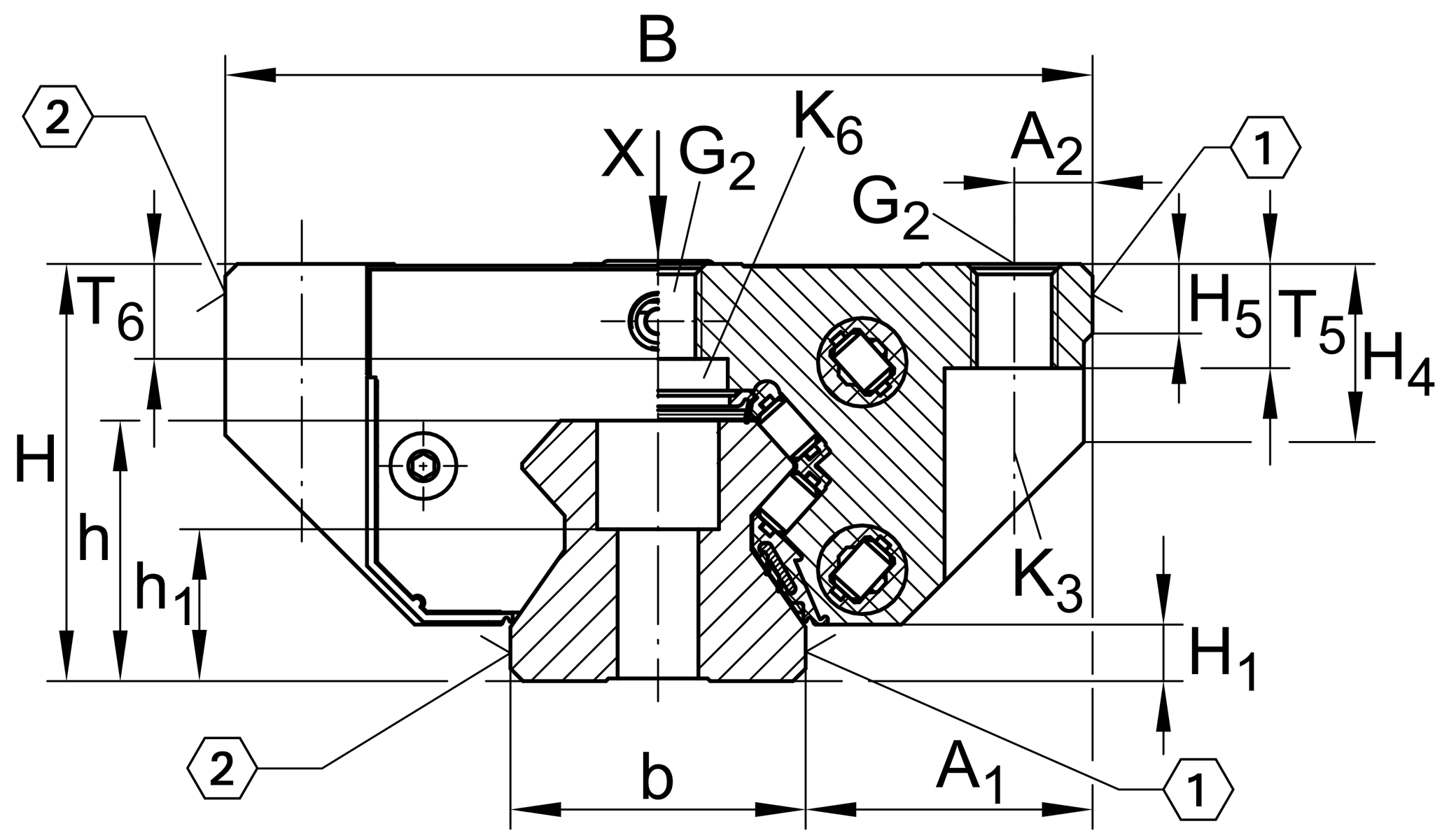

Mounting dimensions
| A1 | 75 mm | |
| JB | 200 mm | |
| b | 100 mm | width rail |
| Tolb | -0.005 mm | Upper tolerance |
| Tolb | -0.035 mm | Lower tolerance |
| A2 | 25 mm | |

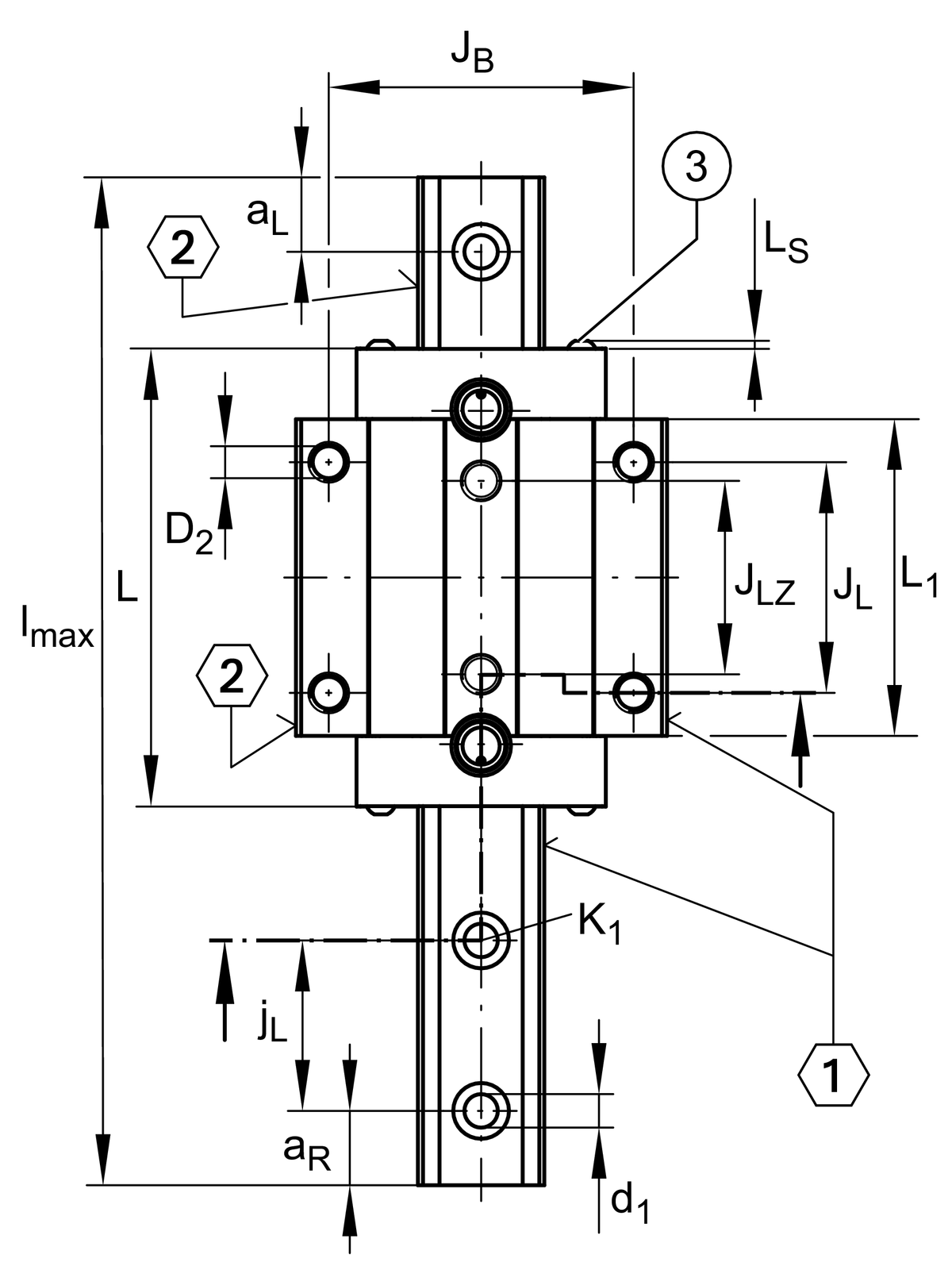

| L1 | 306.5 mm | |
| JL | 230 mm | |
| jL | 105 mm | |
| aL min | 30 mm | 1 |
| aL max | 83 mm | 1 |
| aR min | 30 mm | Distance 1 |
| aR max | 83 mm | 1 |
| H1 | 15 mm | |
| H4 | 52.5 mm | |
| H5 | 25 mm | |
| T5 | 29 mm | |
| T6 | 26.6 mm | |
| h | 80 mm | |
| h1 | 48 mm | |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
| G2 | M20 | fixing screws |
| G2 MA | 470 Nm | maximum tightening torque 2 |
| K1 MA | 1,100 Nm | maximum tightening torque 2 |
| K3 | M16 | fixing screws |
| K3 MA | 340 Nm | maximum tightening torque 2 |
| K6 | M16 | fixing screws |
| K6 MA | 220 Nm | maximum tightening torque 2 |
| d1 | 17.5 mm | |
| D2 | 17.5 mm | |

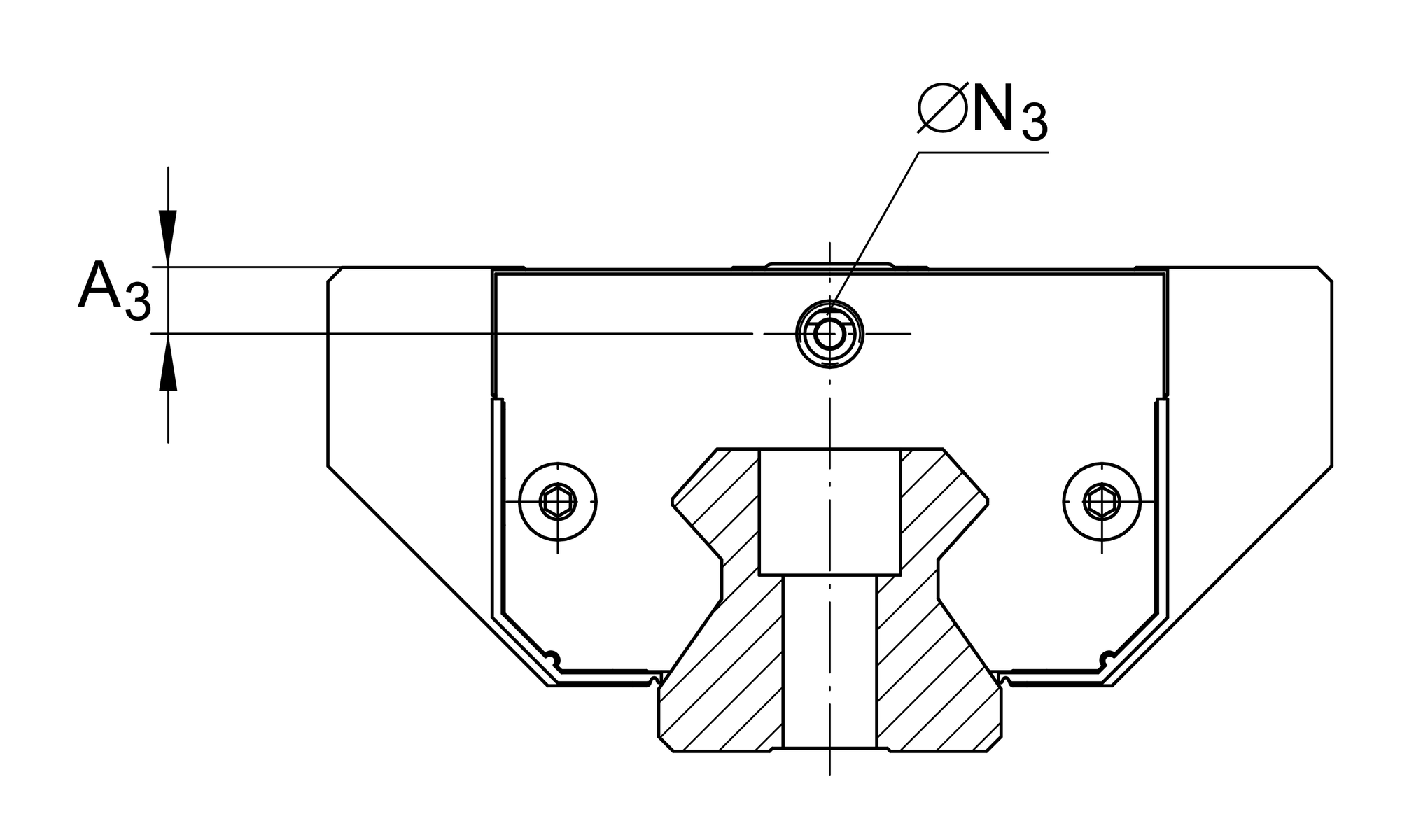

| A3 | 10.6 mm | position lubrication adapter |
| N3 | M6 | lubrication connector 3 |

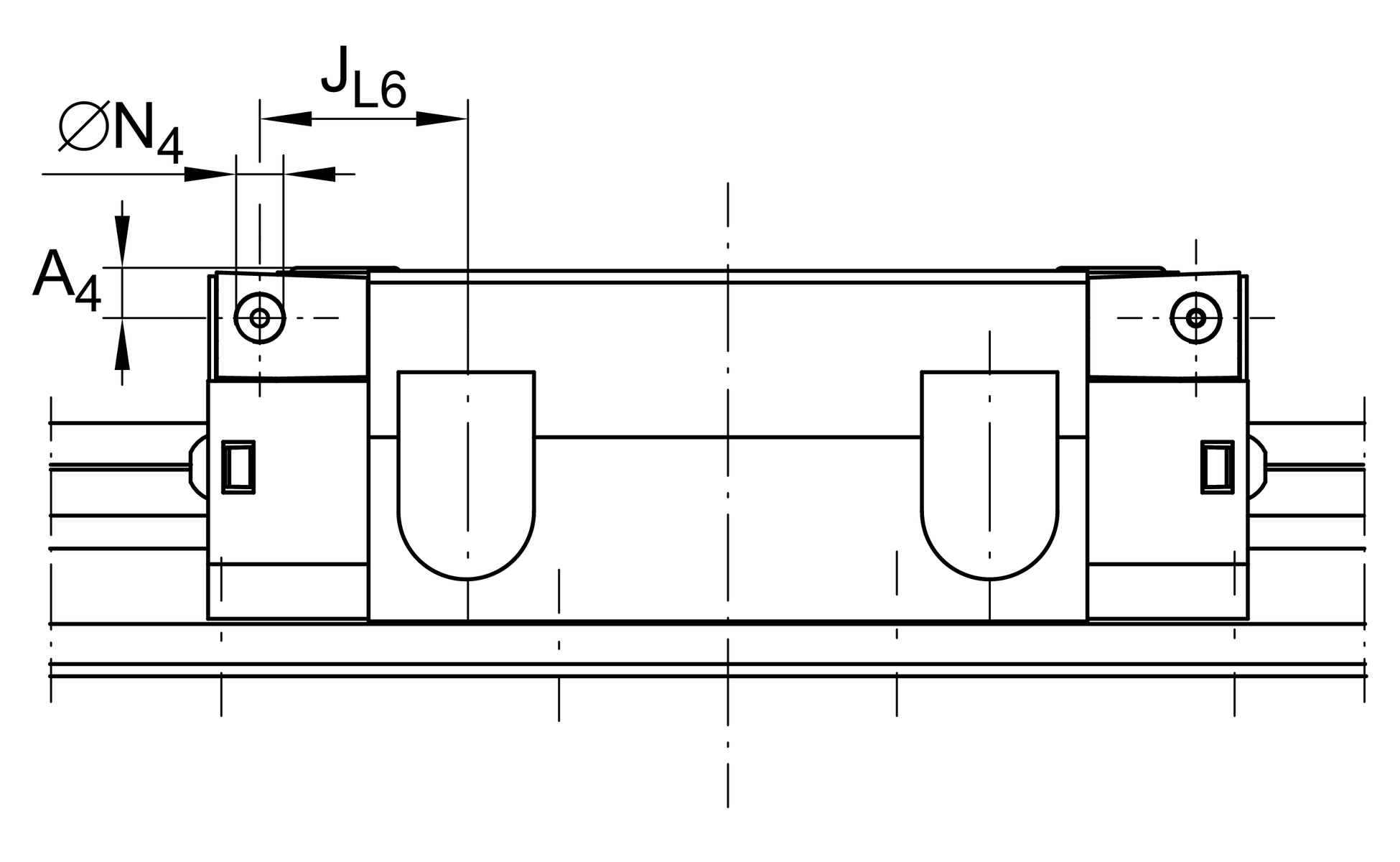

| JL6 | 65.1 mm | position lubrication connector |

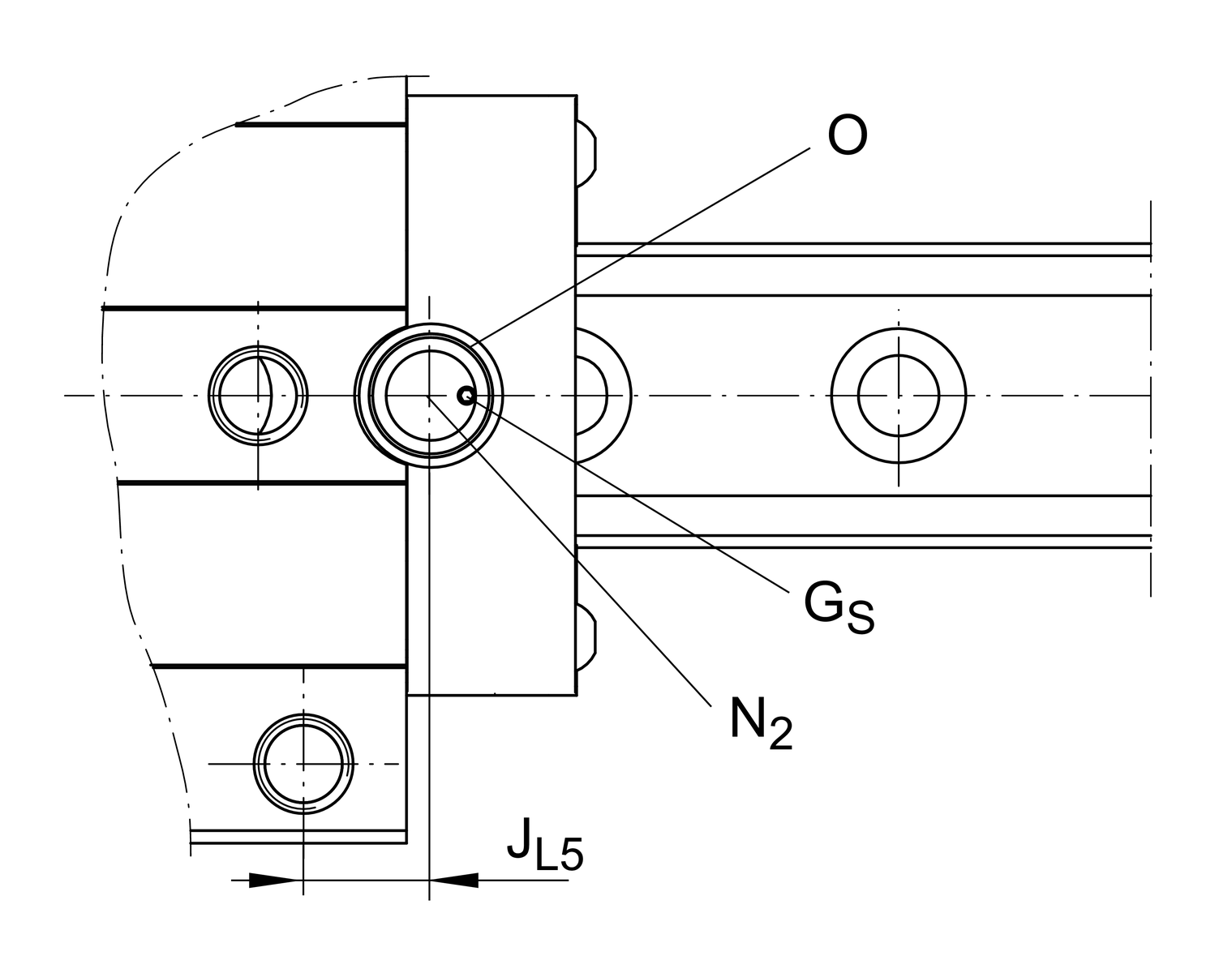

| N2 max | 6 mm | 4 |
| JL5 | 47.15 mm | 5 |
| GS | M4x4 | |
| O | 10x1,5 | O-Ring DIN 3771 |
Main dimensions
| lmax | 2,730 mm | Max length single piece guideway 6 |
| H | 120 mm | height system |
| B | 250 mm | width carriage |

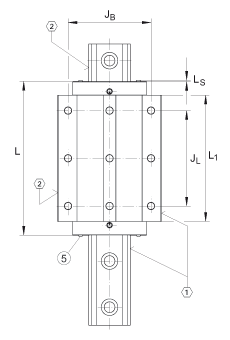

| L | 372.2 mm | overall length carriage 7 |
Technical data
| C | 630,000 N | dynamic load rating 8 |
| C0 | 1,490,000 N | static load rating 8 |
| M0x | 33,780 Nm | static moment rating about X axis |
| M0y | 80,250 Nm | static moment rating about Y axis |
| M0z | 72,280 Nm | static moment rating about Z axis |
Related products
RWU100-E-L | Carriage | |
TSX100-E | Guideway |
Your current product variant
| Size code | 100 | |
| Carriage design | L | Long carriage |
