RUS38206-KS
Linear recirculating roller bearing unit RUS38206-KS
Add item
Main Dimensions & Performance Data

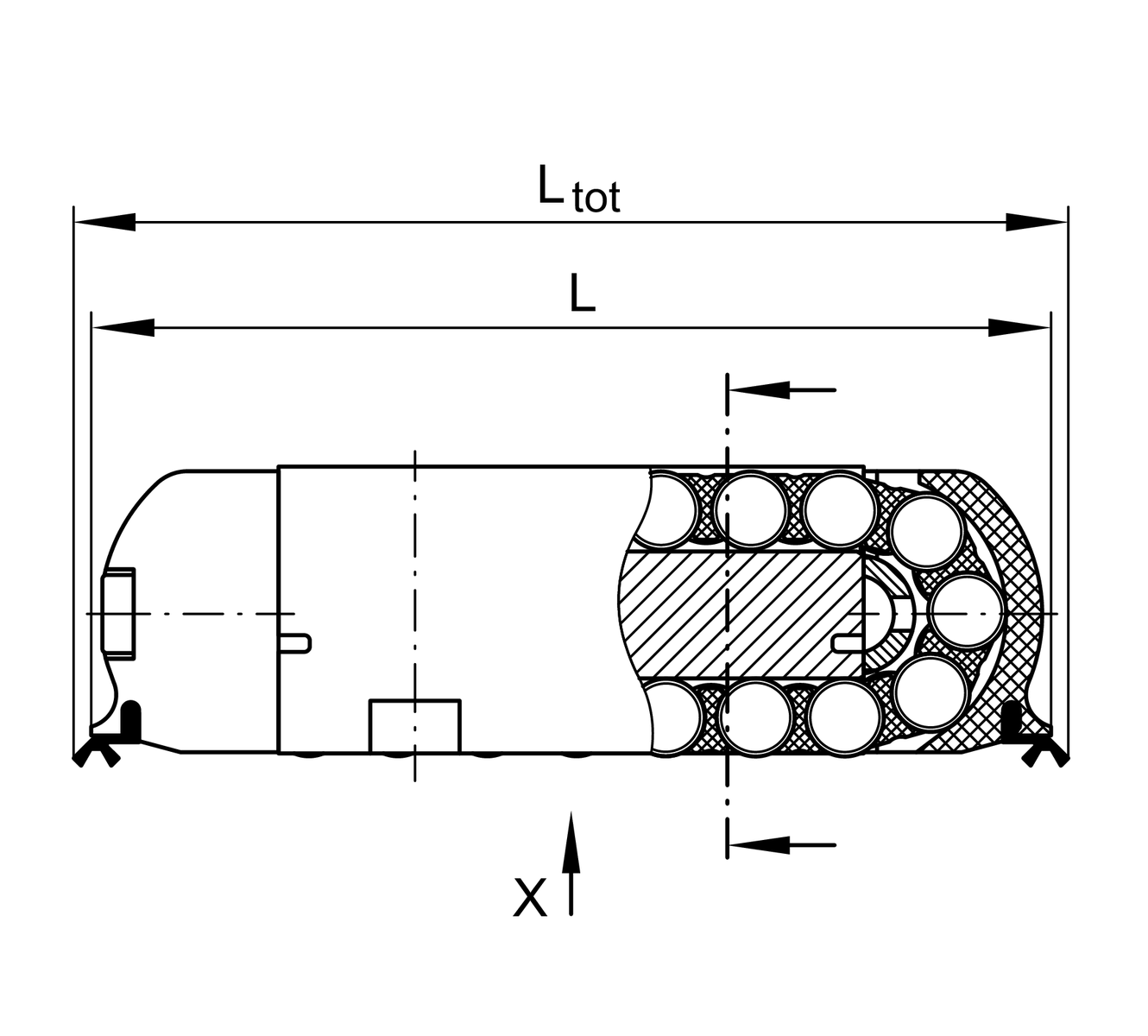

Ltot
216.1 mm
total length

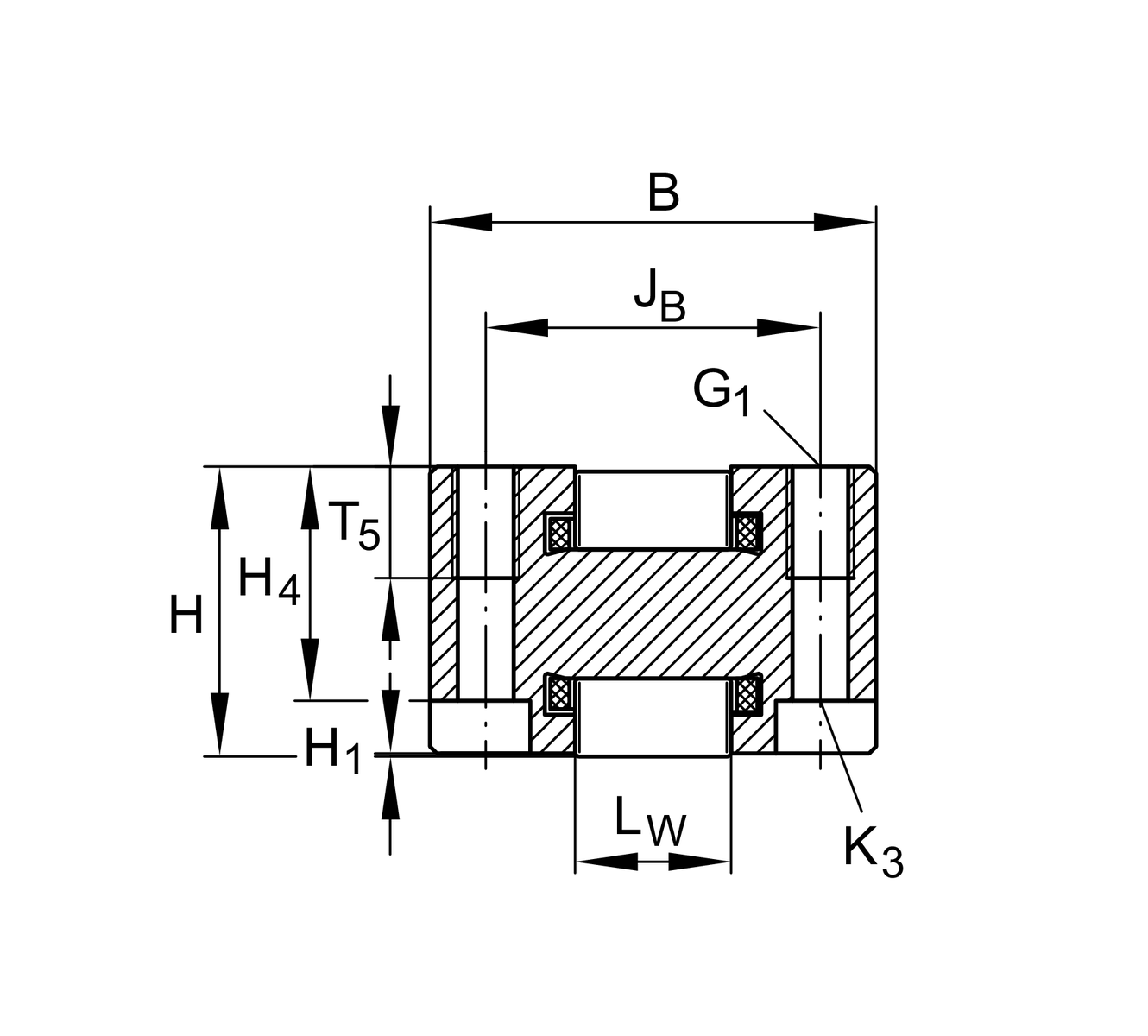

B
52 mm
Width
H
38 mm
Height
C
305,000 N
Basic dynamic load rating
C0
550,000 N
Basic static load rating
≈m
2.61 kg
Weight

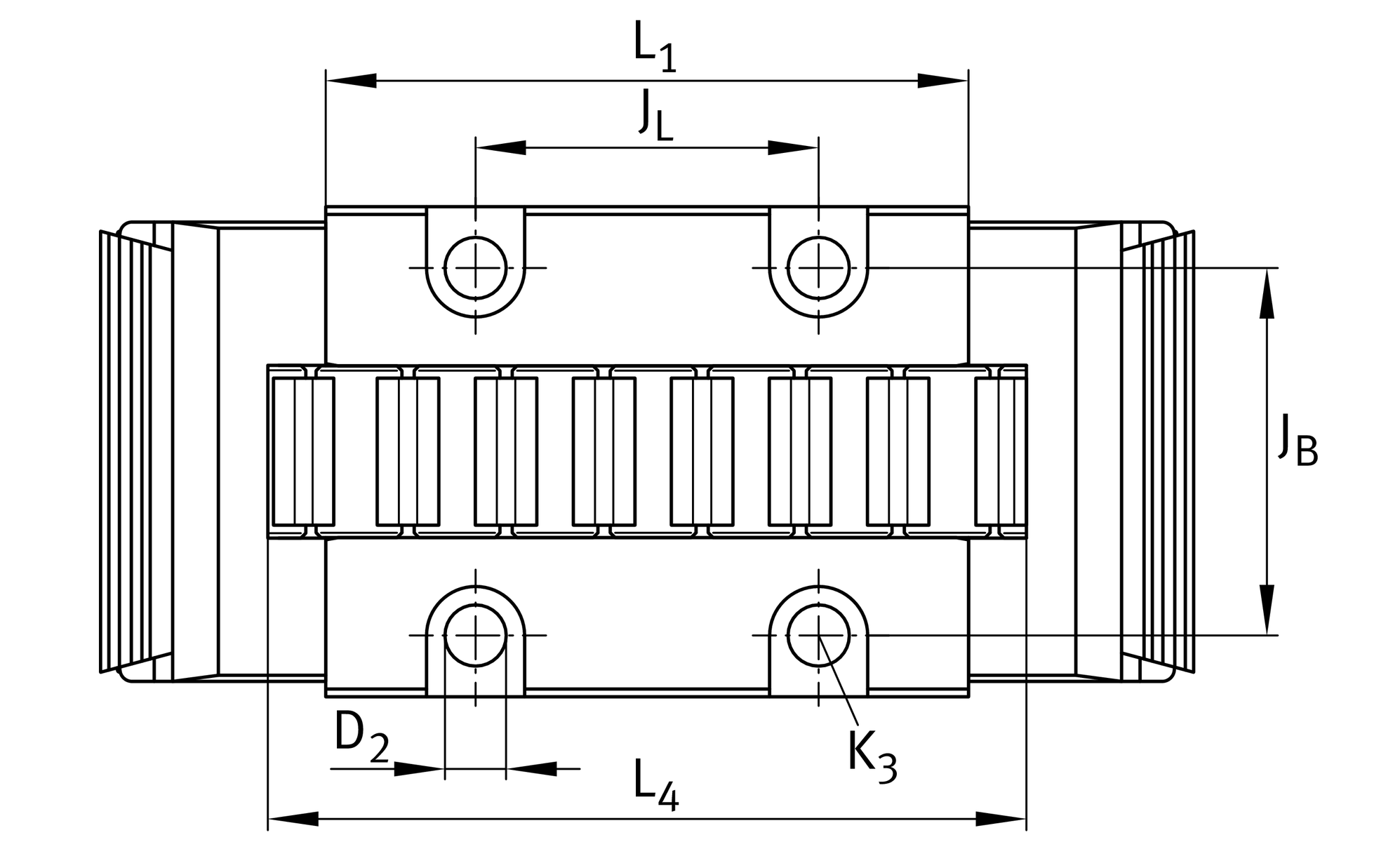

Mounting dimensions
L1
158.8 mm
Mounting dimension
JB
41 mm
Mounting dimension
JL
102 mm
H1
0.2 mm
L4
172 mm
minimum support length 1
LW
20 mm
H4
31 mm
T5
14.2 mm
G1
M8
fixing screws top (DIN ISO 4762-12.9)
G1 MA
41 Nm
Tightening torrque fixing screws
K3
M6
fixing screws below (DIN ISO 4762-12.9)
K3 MA max
17 Nm
Tightening torque fixing screws 2
D2
6.9 mm

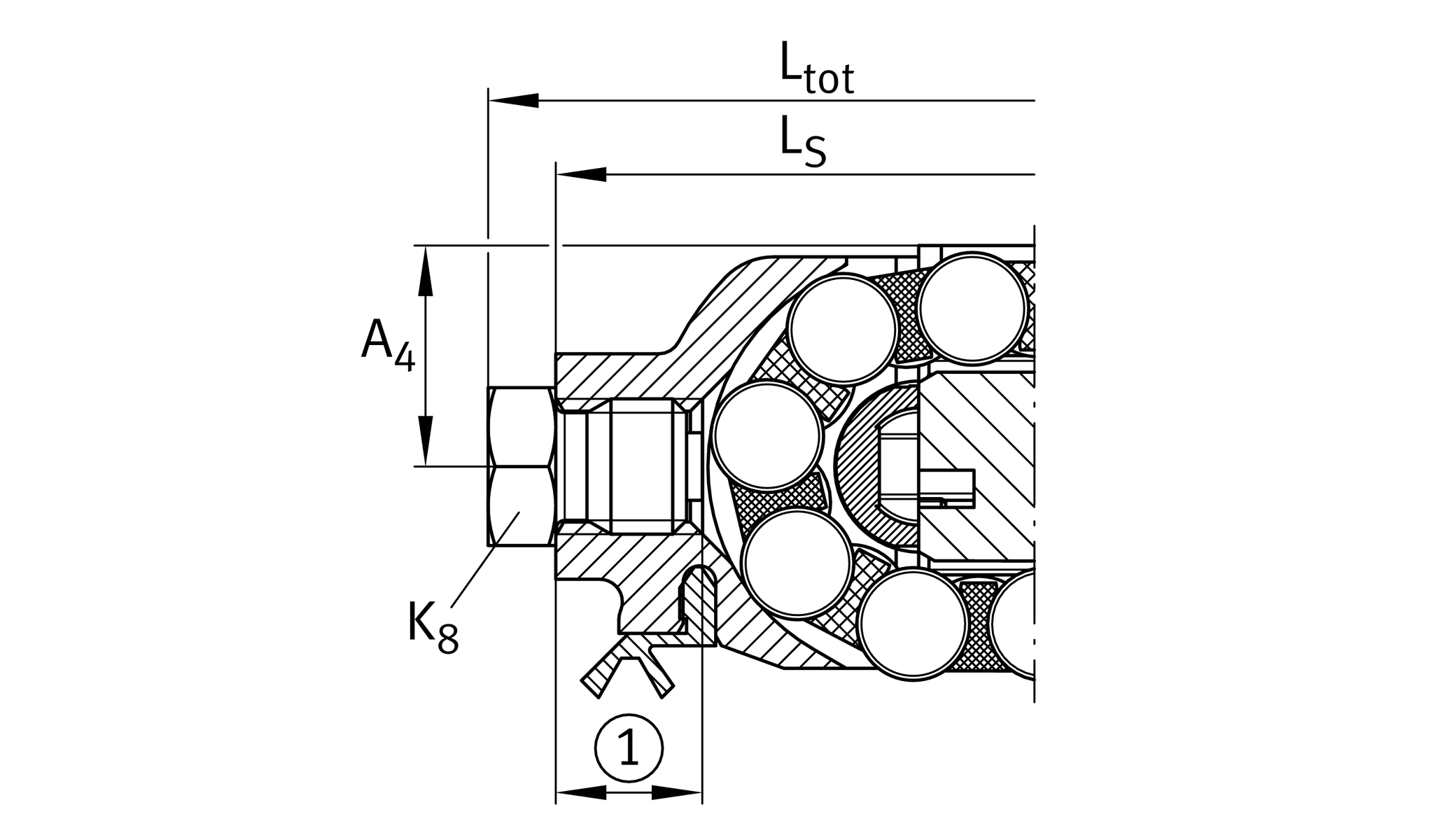

LS
210.1 mm
A4
19.3 mm
M6
Lubrication connection DIN3405-A
6 mm

Related products
VUS38206-A
Adjustment gib
UG12553, UGN12553-A, UZ12553, UZN12553-A, UFK6412, UFB7812
suitable Guide rail

Your current product variant
SuffixKSwith end face lubrication connectors
Size code38206
