RUS26102-KS
Linear recirculating roller bearing unit RUS26102-KS
Add item

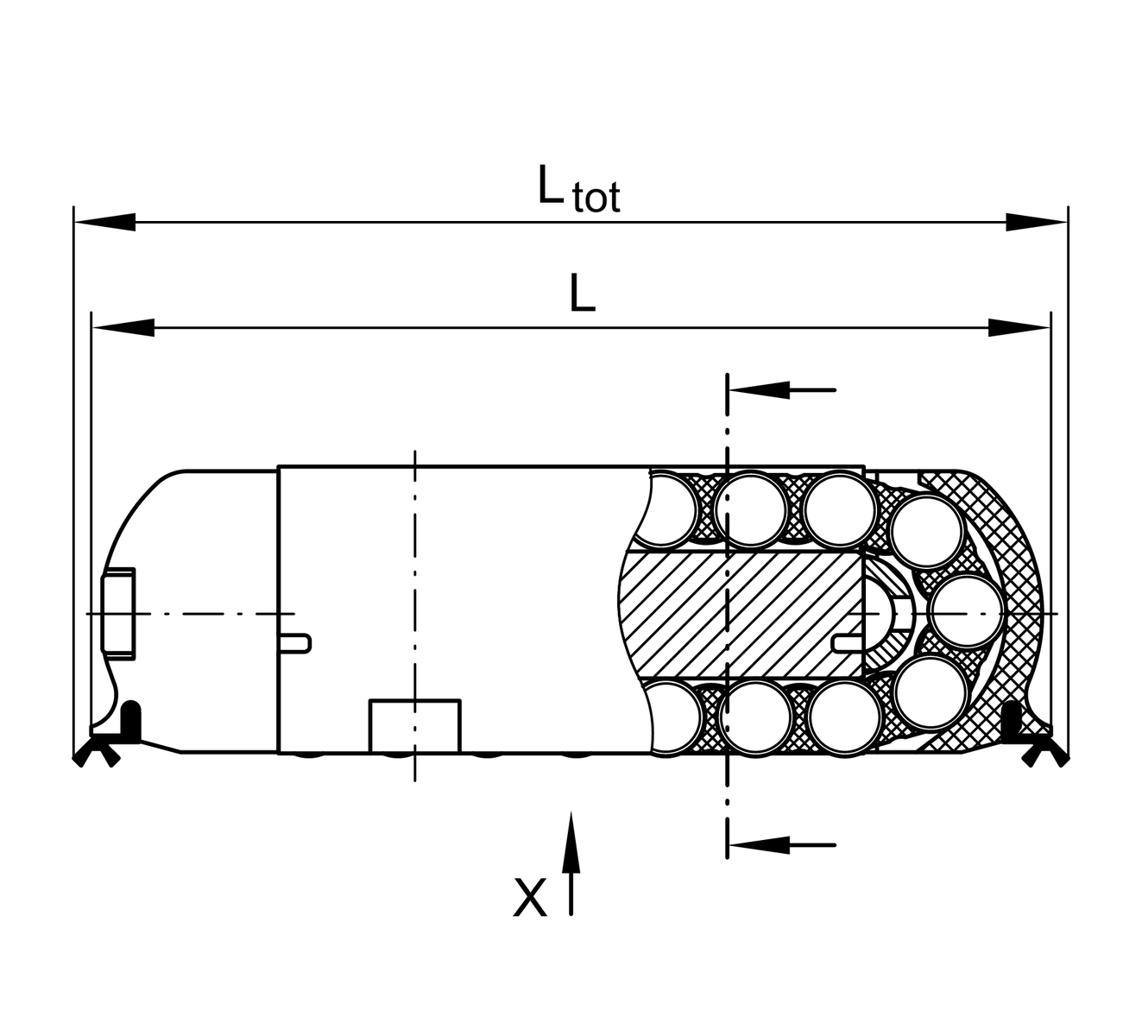

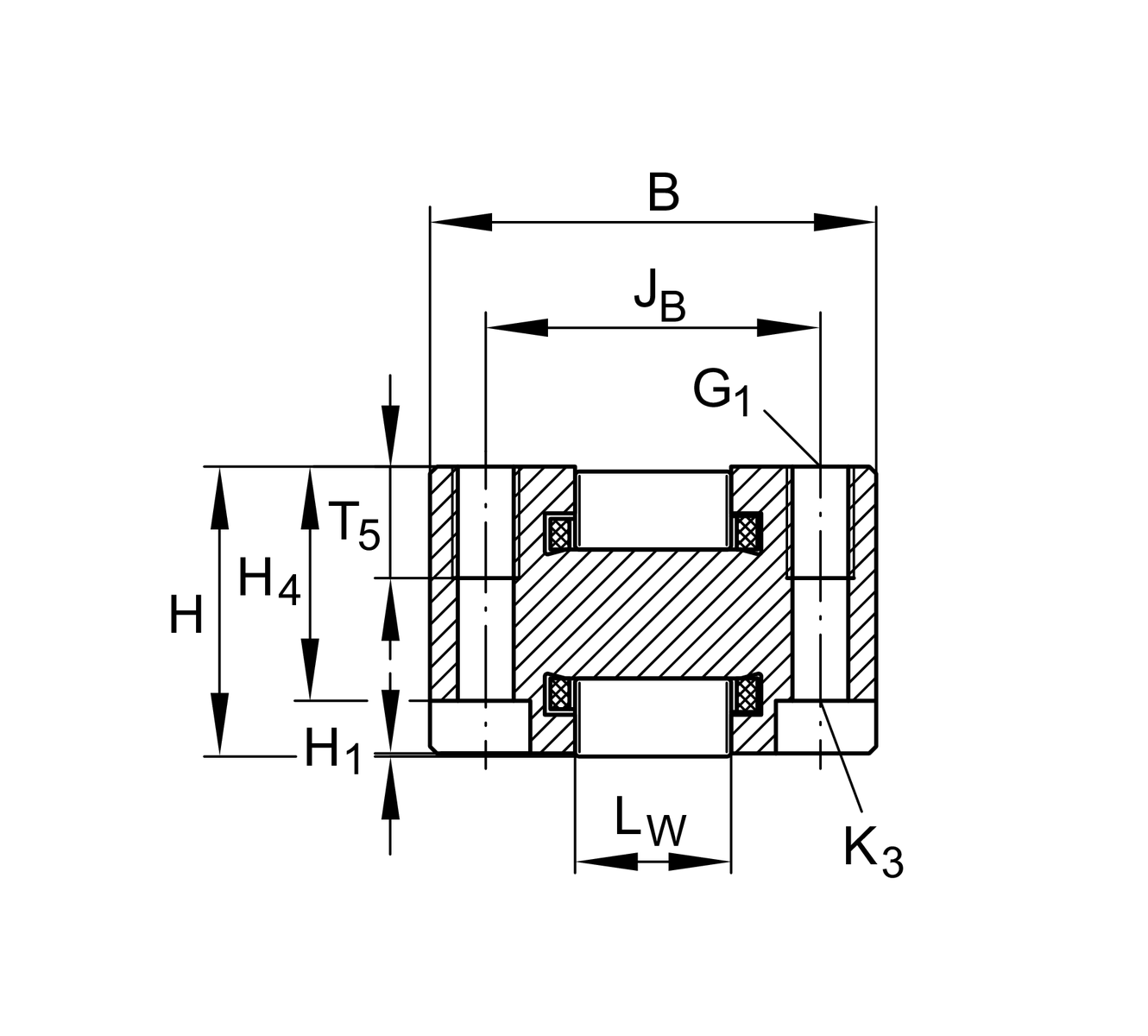

Main Dimensions & Performance Data
Ltot
114 mm
total length
B
40 mm
Width
H
26 mm
Height
C
95,000 N
Basic dynamic load rating
C0
151,000 N
Basic static load rating
≈m
0.62 kg
Weight

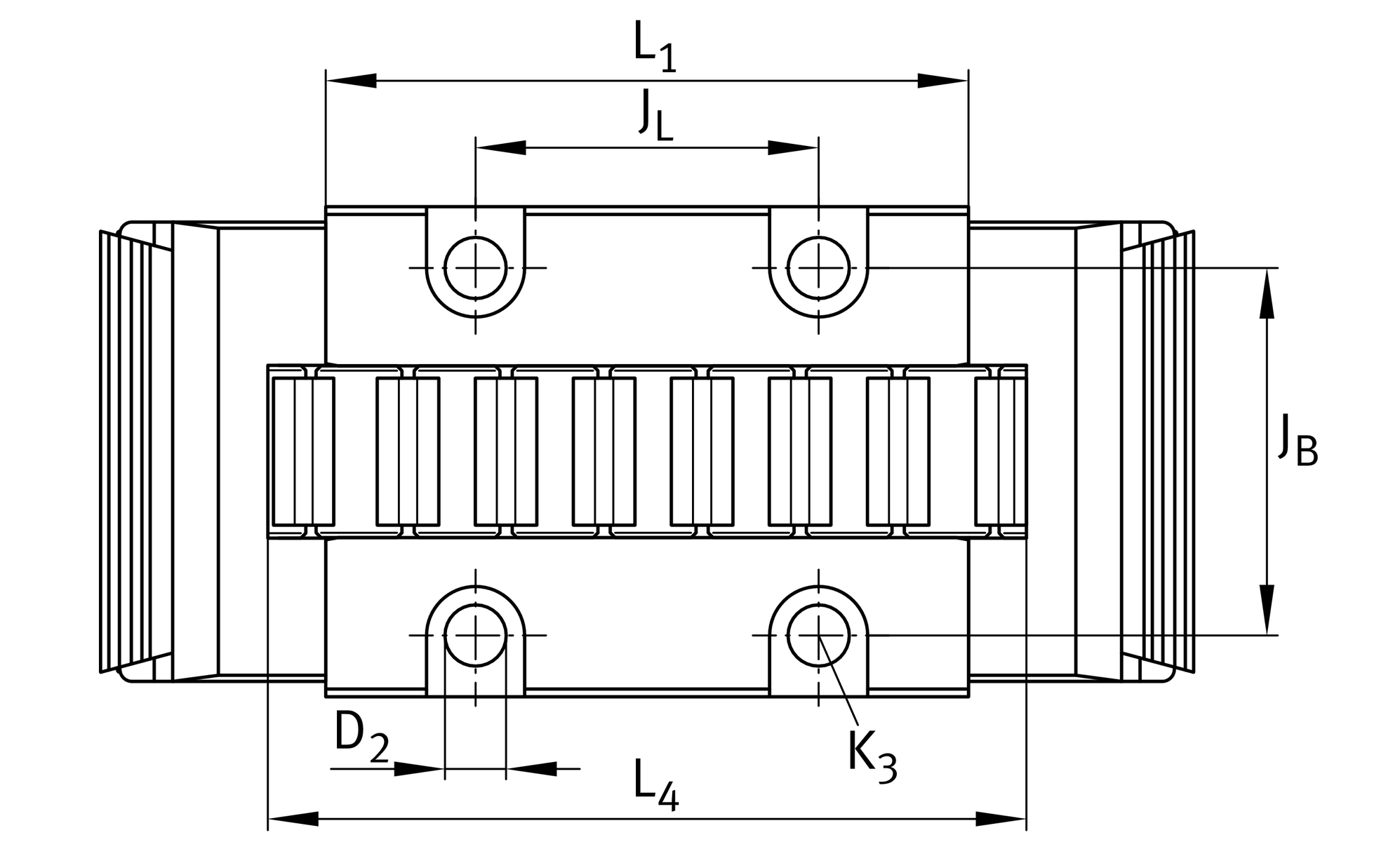

Mounting dimensions
L1
68.9 mm
Mounting dimension
JB
30 mm
Mounting dimension
JL
44 mm
H1
0.2 mm
L4
79 mm
minimum support length 1
LW
14 mm
H4
21 mm
T5
10.2 mm
G1
M6
fixing screws top (DIN ISO 4762-12.9)
G1 MA
17 Nm
Tightening torrque fixing screws
K3
M4
fixing screws below (DIN ISO 4762-12.9)
K3 MA max
5 Nm
Tightening torque fixing screws 2
D2
4.9 mm

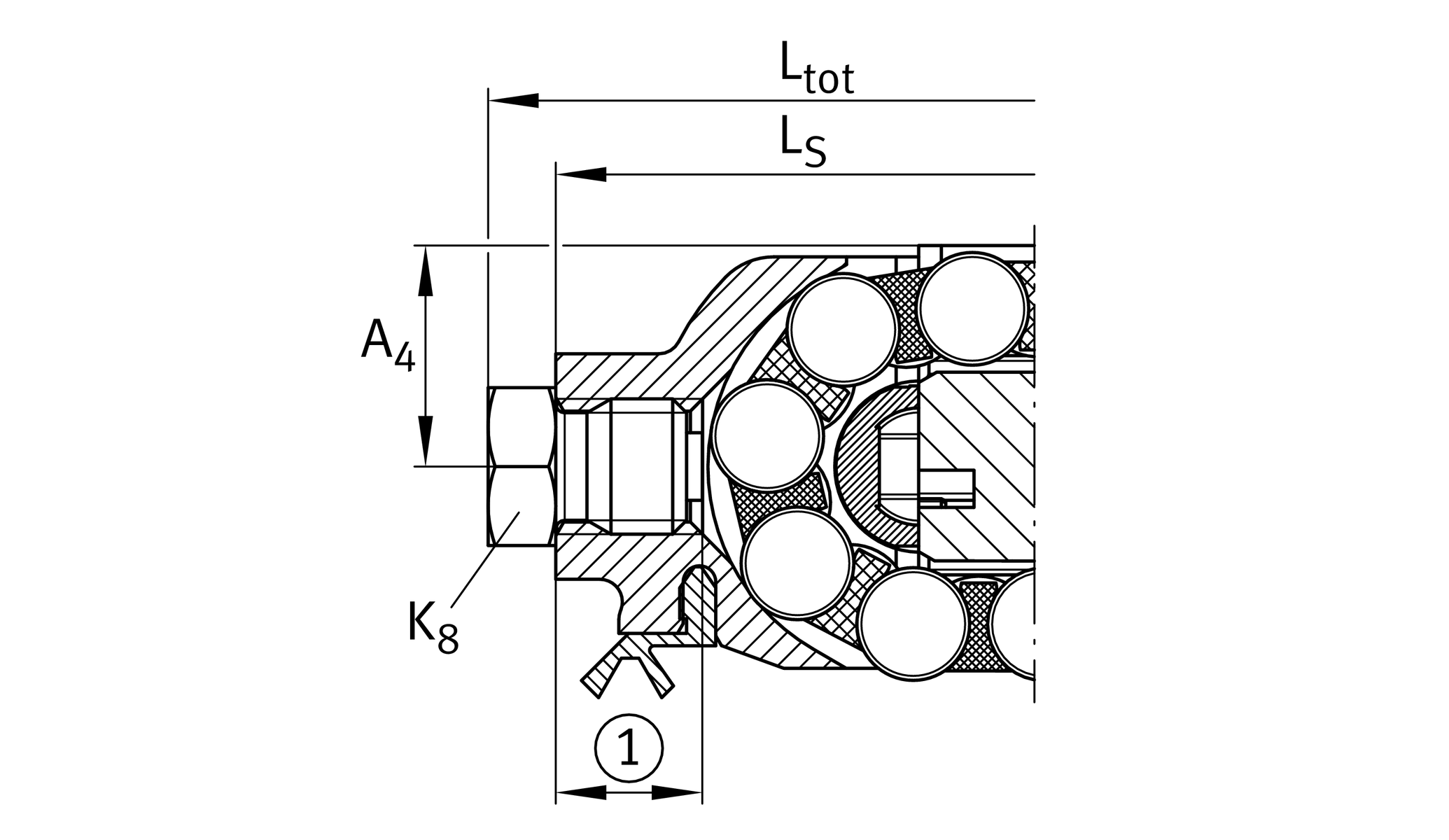

LS
108 mm
A4
13.5 mm
M6
Lubrication connection DIN3405-A
6 mm

Related products
VUS26102-A
Adjustment gib
UG9741, UGN9741-A, UZ9741, UZN9741-A, UFK4710, UFB6412
suitable Guide rail

Your current product variant
SuffixKSwith end face lubrication connectors
Size code26102
