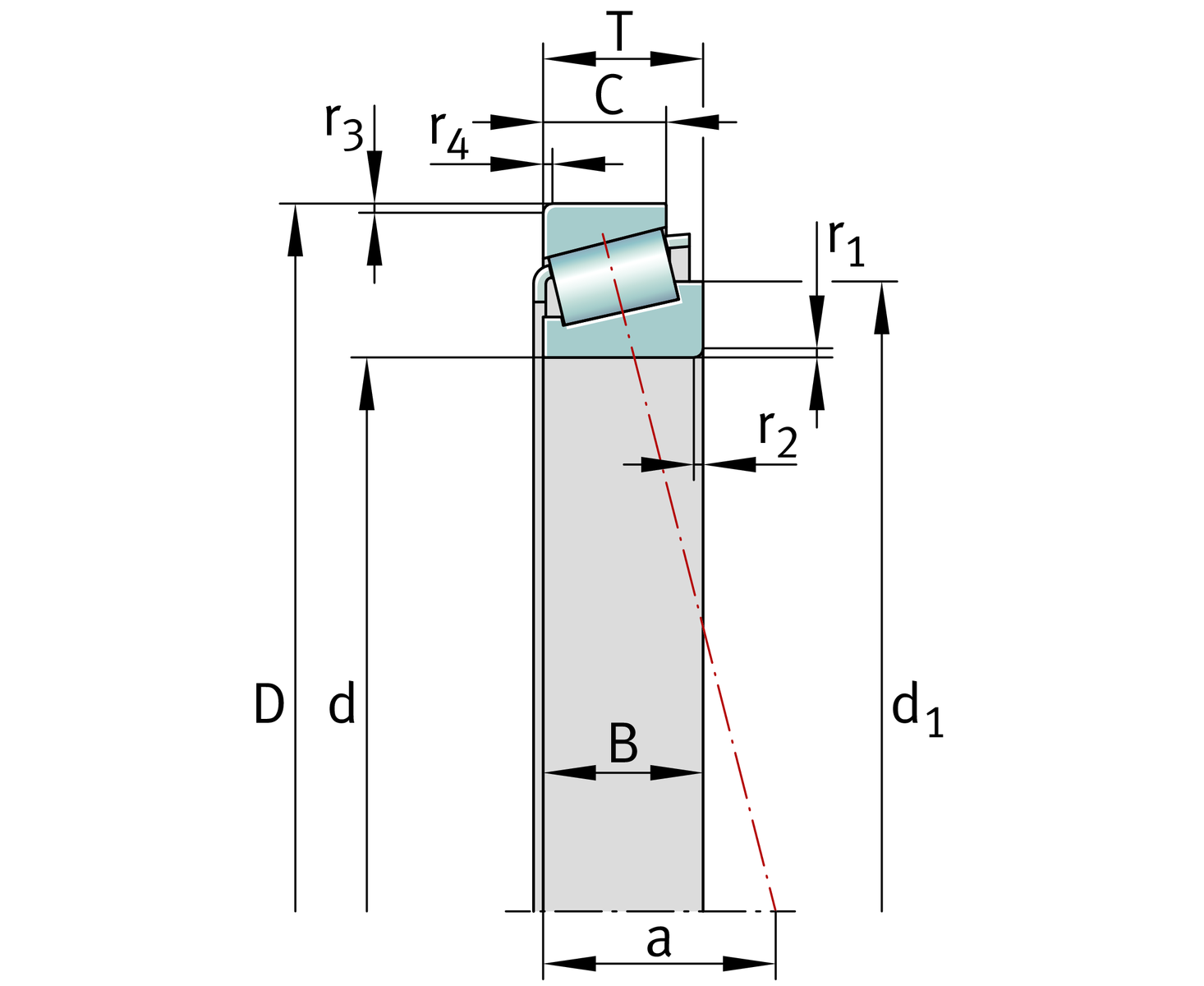

Main Dimensions & Performance Data
| d | 630 mm | Bore diameter |
| D | 850 mm | Outside diameter |
| B | 100 mm | Width, inner ring |
| C | 78 mm | Width, outer ring |
| T | 108 mm | Width, total |
| Cr | 2,600,000 N | Basic dynamic load rating, radial |
| C0r | 5,800,000 N | Basic static load rating, radial |
| Cur | 470,000 N | Fatigue load limit, radial |
| nG | 630 1/min | Limiting speed |
| ≈m | 154 kg | Weight |
Dimensions
| a | 145 mm | Distance between the apexes of the pressure cones |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.4 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y | 1.5 | Dynamic axial load factor |
| Y0 | 0.83 | Static axial load factor |
Your current product variant
| Tolerance class | PN | Normal (ISO 492:2014) |
| Cage | Standard | Sheet steel cage, window cage, roller-guided |
| Internal design | Standard | |
| Quality level | 0 | |
| Number of rolling element rows | 1 | Single-row design |
