Main Dimensions & Performance Data
| d | 460 mm | Bore diameter |
| D | 620 mm | Outside diameter |
| B | 100 mm | Width, inner ring |
| C | 75 mm | Width, outer ring |
| T | 100 mm | Width, total |
| Cr | 1,760,000 N | Basic dynamic load rating, radial |
| C0r | 4,150,000 N | Basic static load rating, radial |
| Cur | 380,000 N | Fatigue load limit, radial |
| nG | 880 1/min | Limiting speed |
| ≈m | 83.1 kg | Weight |

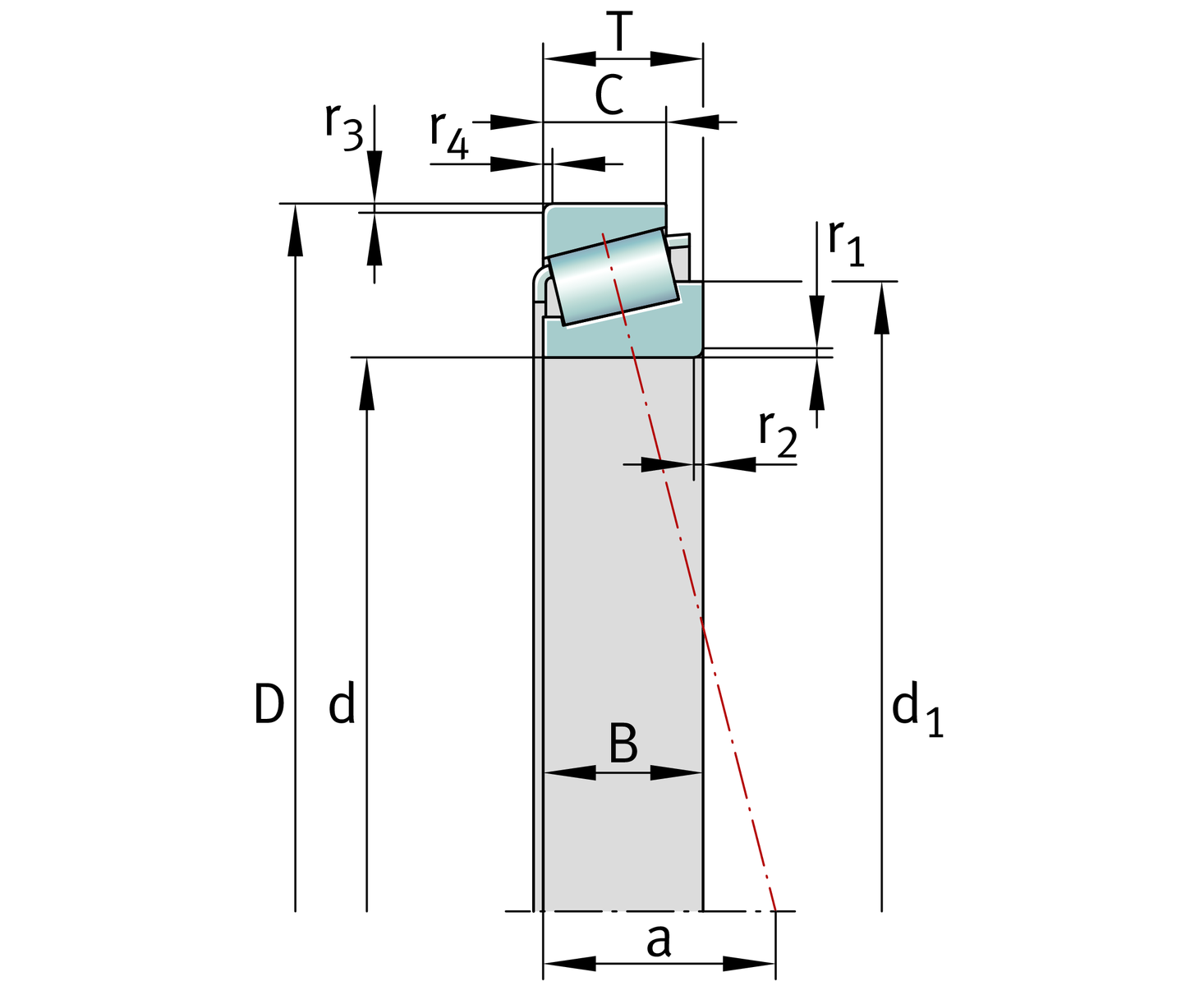

Dimensions
| a | 120 mm | Distance between the apexes of the pressure cones |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.43 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y | 1.41 | Dynamic axial load factor |
| Y0 | 0.77 | Static axial load factor |
Your current product variant
| Tolerance class | PN | Normal (ISO 492:2014) |
| Cage | Standard | Sheet steel cage, window cage, roller-guided |
| Quality level | 0 | |
| Number of rolling element rows | 1 | Single-row design |
