Main Dimensions & Performance Data
| d | 7 mm | Bore diameter |
| D | 19 mm | Outside diameter |
| B | 6 mm | Width |
| Cr | 2,340 N | Basic dynamic load rating, radial |
| C0r | 889 N | Basic static load rating, radial |
| Cur | 30.5 N | Fatigue load limit, radial |
| nG | 45,500 1/min | Limiting speed |
| nϑr | 37,000 1/min | Reference speed |
| ≈m | 9.37 g | Weight |

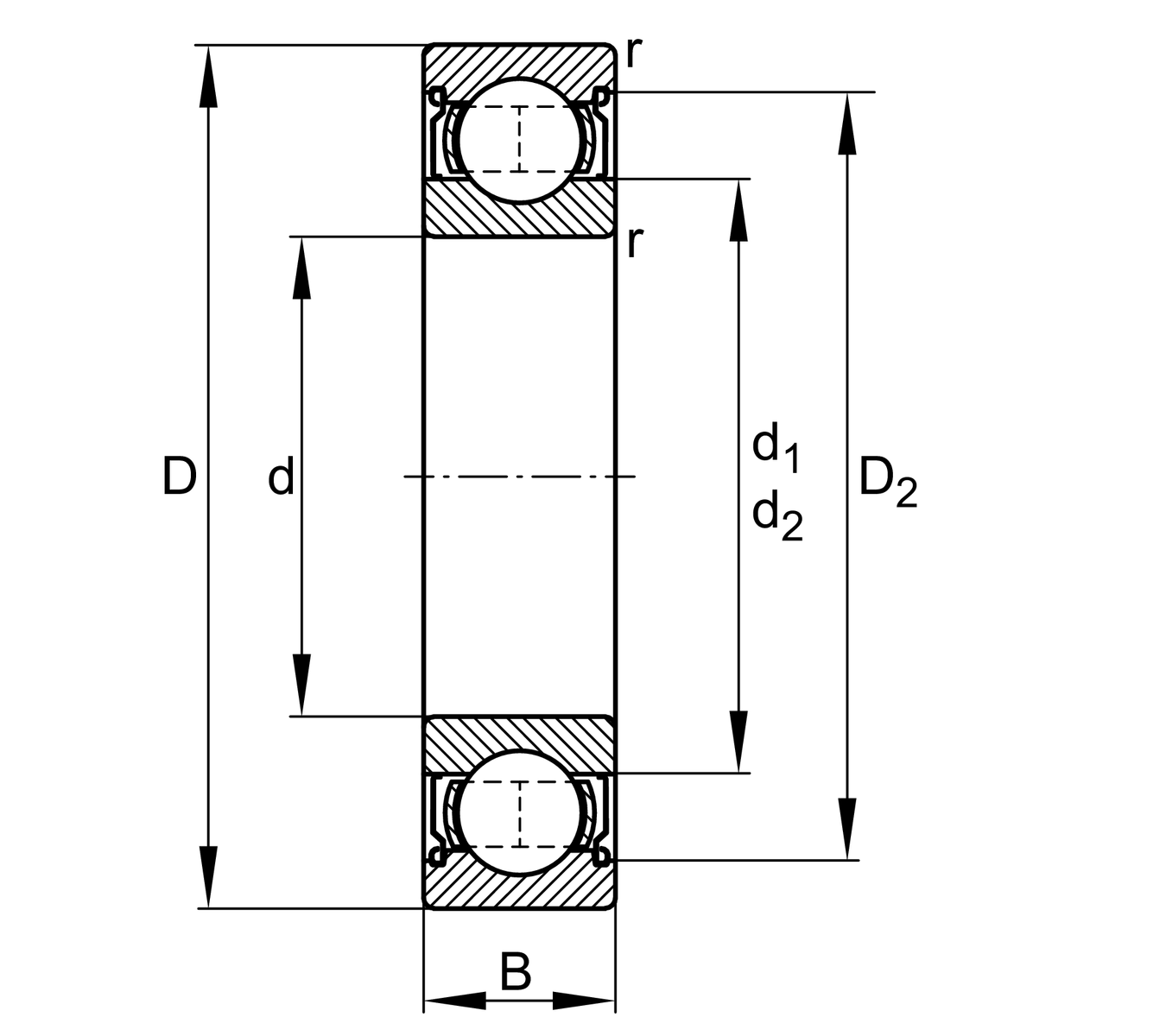

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| D1 | 15.02 mm | Shoulder diameter outer ring |
| D2 | 16.5 mm | Caliber diameter outer ring |
| d1 | 10.12 mm | Shoulder diameter inner ring |
| d2 | 9 mm | Caliber diameter inner ring |
| Bf | 1.5 mm | Width flange |
| Df | 22 mm | Outer diameter flange |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| f0 | 12.1 | Calculation factor |
Your current product variant
| Logistical code | HLC | - |
| Design, bearing outer ring | F | Flange |
| Sealing | 2Z | Non-contact shield on both sides |
| Cage | JN | steel sheet metal |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | L138 | Grease (L138/customer specific) |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
