Main Dimensions & Performance Data
| d | 4 mm | Bore diameter |
| D | 12 mm | Outside diameter |
| B | 4 mm | Width |
| Cr | 959 N | Basic dynamic load rating, radial |
| C0r | 347 N | Basic static load rating, radial |
| Cur | 9.3 N | Fatigue load limit, radial |
| nG | 69,000 1/min | Limiting speed |
| nϑr | 55,000 1/min | Reference speed |
| ≈m | 2.57 g | Weight |

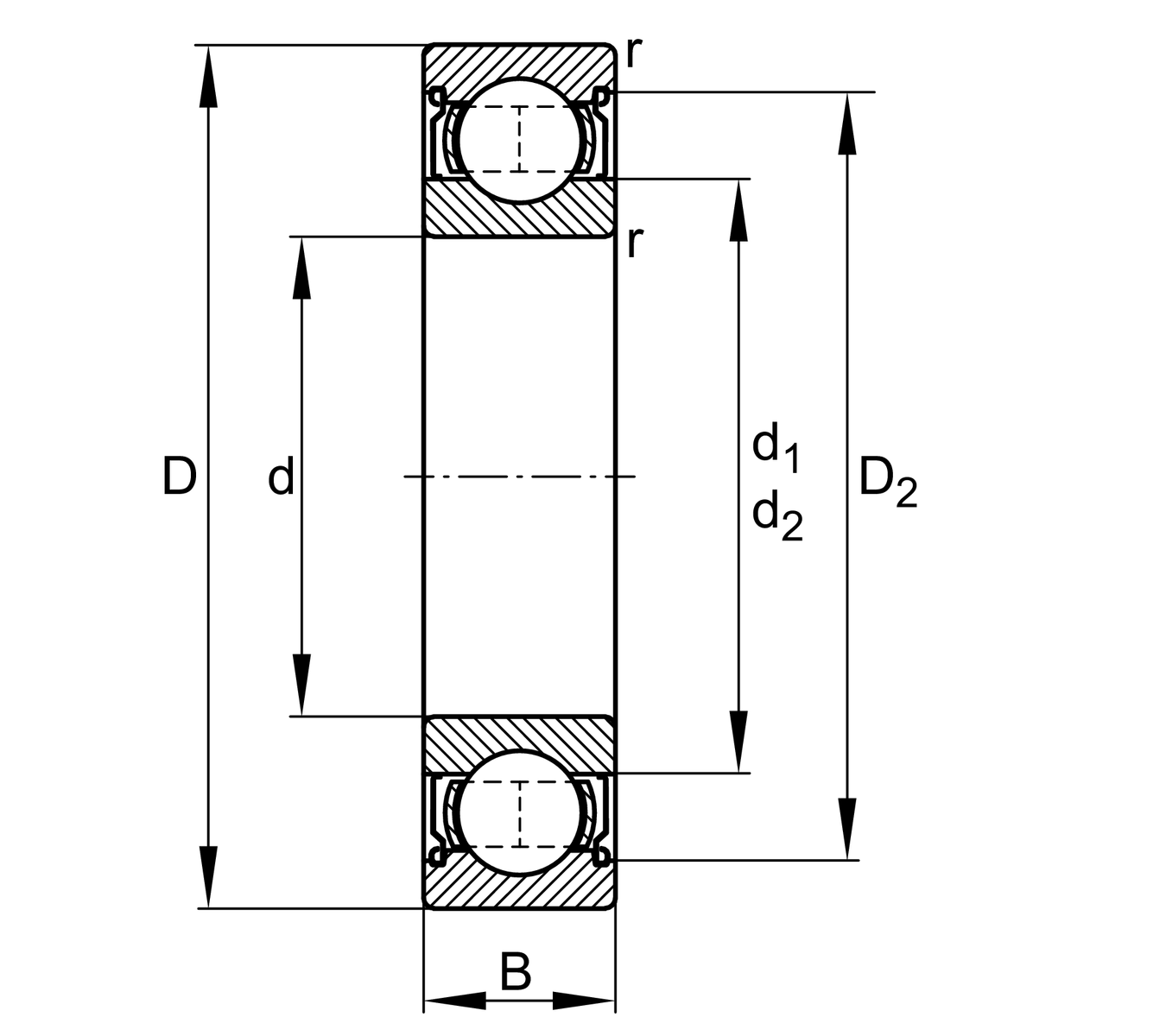

Dimensions
| rmin | 0.2 mm | Minimum chamfer dimension |
| D1 | 8.95 mm | Shoulder diameter outer ring |
| D2 | 9.85 mm | Caliber diameter outer ring |
| d1 | 6.15 mm | Shoulder diameter inner ring |
| d2 | 5.6 mm | Caliber diameter inner ring |
| Bf | 1 mm | Width flange |
| Df | 13.5 mm | Outer diameter flange |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| f0 | 12.4 | Calculation factor |
Your current product variant
| Logistical code | HLC | - |
| Design, bearing outer ring | F | Flange |
| Sealing | 2Z | Non-contact shield on both sides |
| Cage | JN | steel sheet metal |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | L138 | Grease (L138/customer specific) |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
