Main Dimensions & Performance Data
| d | 120 mm | Shaft diameter |
| a | 500 mm | Length base |
| h1 | 320 mm | Height |
| g2 | 705 mm | Total width with cover |
| ≈m | 277 kg | Weight |

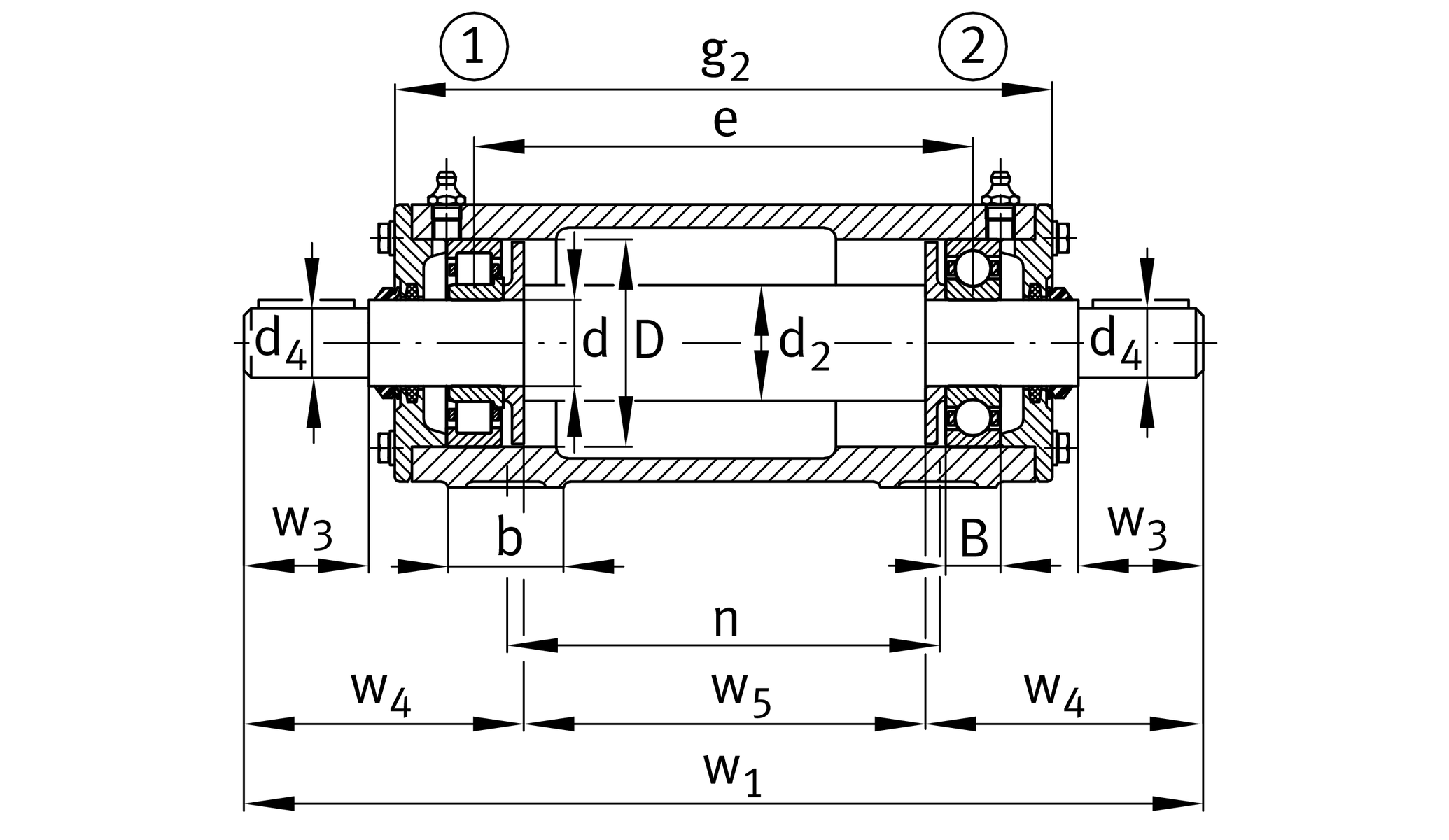

Dimensions
| B | 55 mm | width |
| b | 100 mm | width base |
| c | 40 mm | heigth base |
| D | 260 mm | outside diameter bearing |
| d2 | 140 mm | shaft diameter shoulder |
| d4 | 110 mm | Shaft dieameter outside |
| e | 603 mm | locking collar width |
| h | 160 mm | center heigth |
| m | 410 mm | distance fixing bore |
| n | 540 mm | bore distance width |
| s | M30 | size of fixing screws |
| w1 | 1,160 mm | length shaft total |
| w3 | 210 mm | length shaft tap |
| w4 | 318 mm | lenght shaft end |
| w5 | 524 mm | length shaft shoulder |
Additional information
NJ324-E-TVP2 | bearing designation | |
6324-C3 | reference bearing designation | |
VR324-A | housing |
