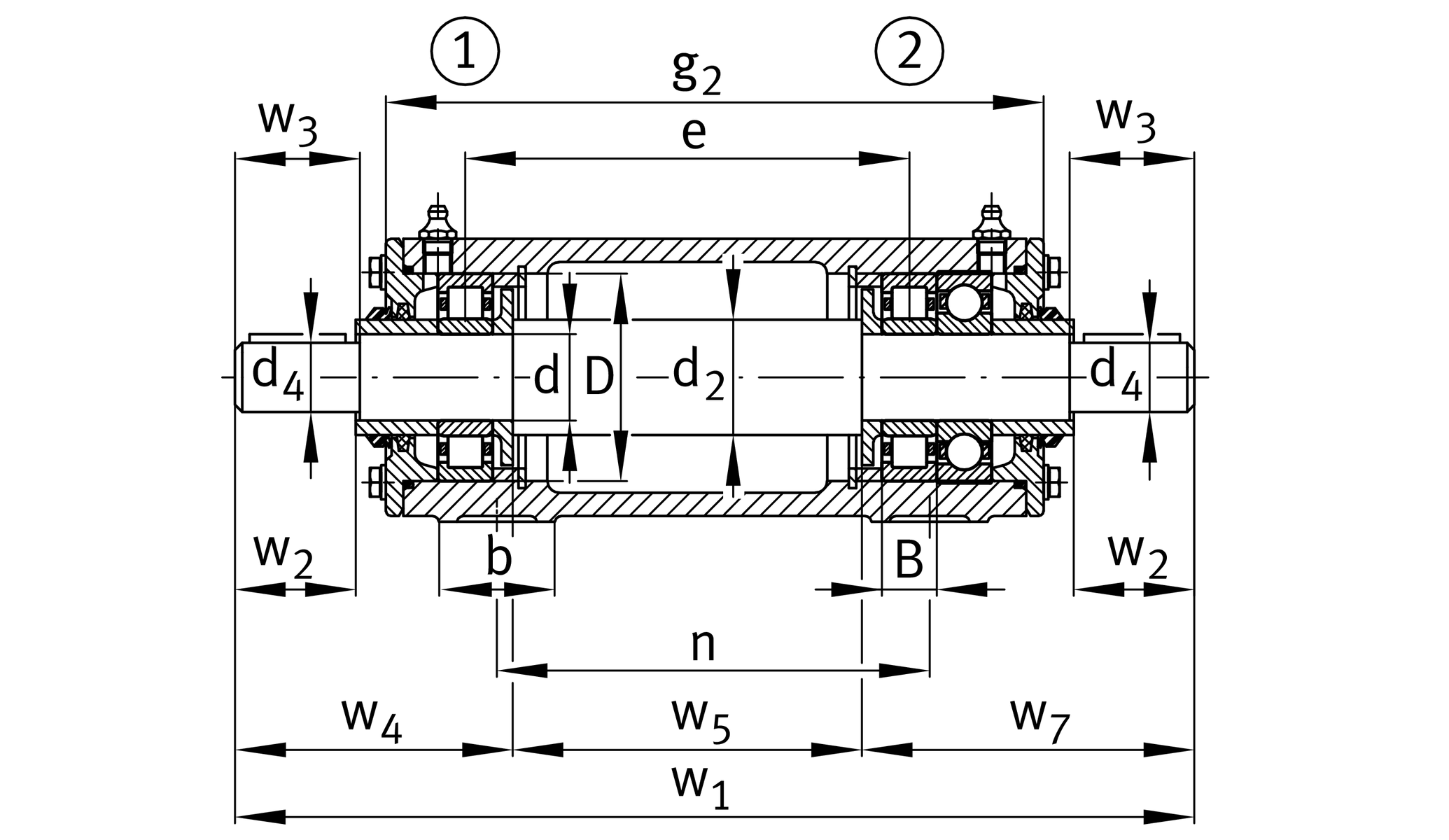

Main Dimensions & Performance Data
| d | 110 mm | Shaft diameter |
| a | 450 mm | Length base |
| h1 | 295 mm | Height |
| g2 | 678 mm | Total width with cover |
| ≈m | 238 kg | Weight |
Dimensions
| B | 50 mm | width |
| b | 95 mm | width base |
| c | 40 mm | heigth base |
| D | 240 mm | outside diameter bearing |
| d2 | 130 mm | shaft diameter shoulder |
| d4 | 100 mm | Shaft dieameter outside |
| e | 531 mm | locking collar width |
| h | 150 mm | center heigth |
| m | 380 mm | distance fixing bore |
| n | 520 mm | bore distance width |
| s | M24 | size of fixing screws |
| w1 | 1,133 mm | length shaft total |
| w2 | 210 mm | distance shaft end |
| w3 | 213 mm | length shaft tap |
| w4 | 312.5 mm | lenght shaft end |
| w5 | 458 mm | length shaft shoulder |
| w7 | 362.5 mm | Lenght shaft end |
Additional information
NU322-E-TVP2-C3 | bearing designation | |
NU322-E-TVP2-C3 + 6322-C3 | reference bearing designation | |
VR322-E | housing |
