Main Dimensions & Performance Data
| H | 60 mm | height system |
| B | 120 mm | width carriage |
| L | 145.9 mm | overall length carriage 1 |
| C | 92,000 N | dynamic load rating 2 |
| C0 | 215,000 N | dynamic load rating 2 |
| M0x | 1,899 Nm | static moment rating about X axis |
| M0y | 4,255 Nm | static moment rating about Y axis |
| M0Z | 3,821 Nm | static moment rating about Z axis |
| ≈m | 3.07 kg | Weight |

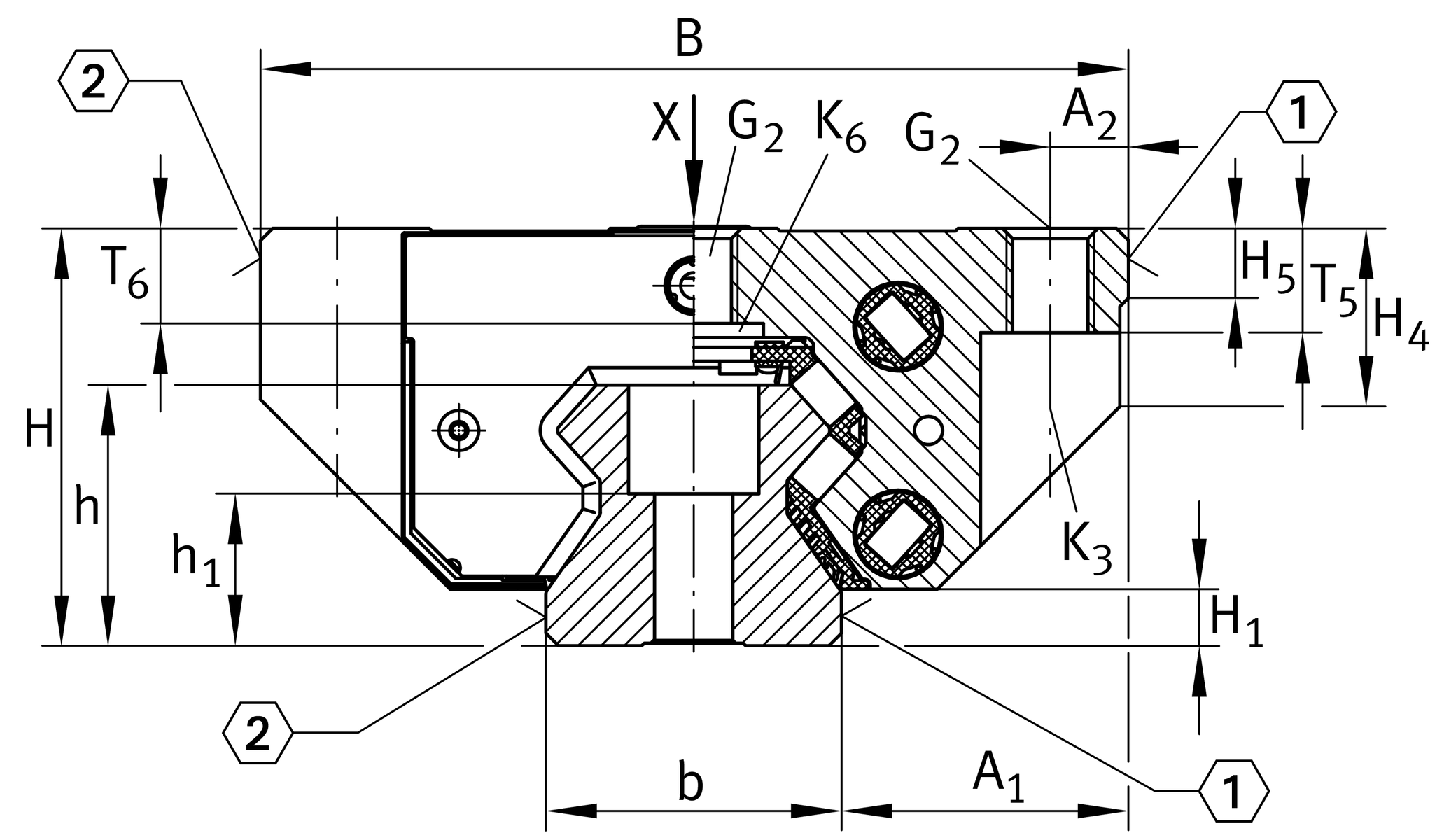

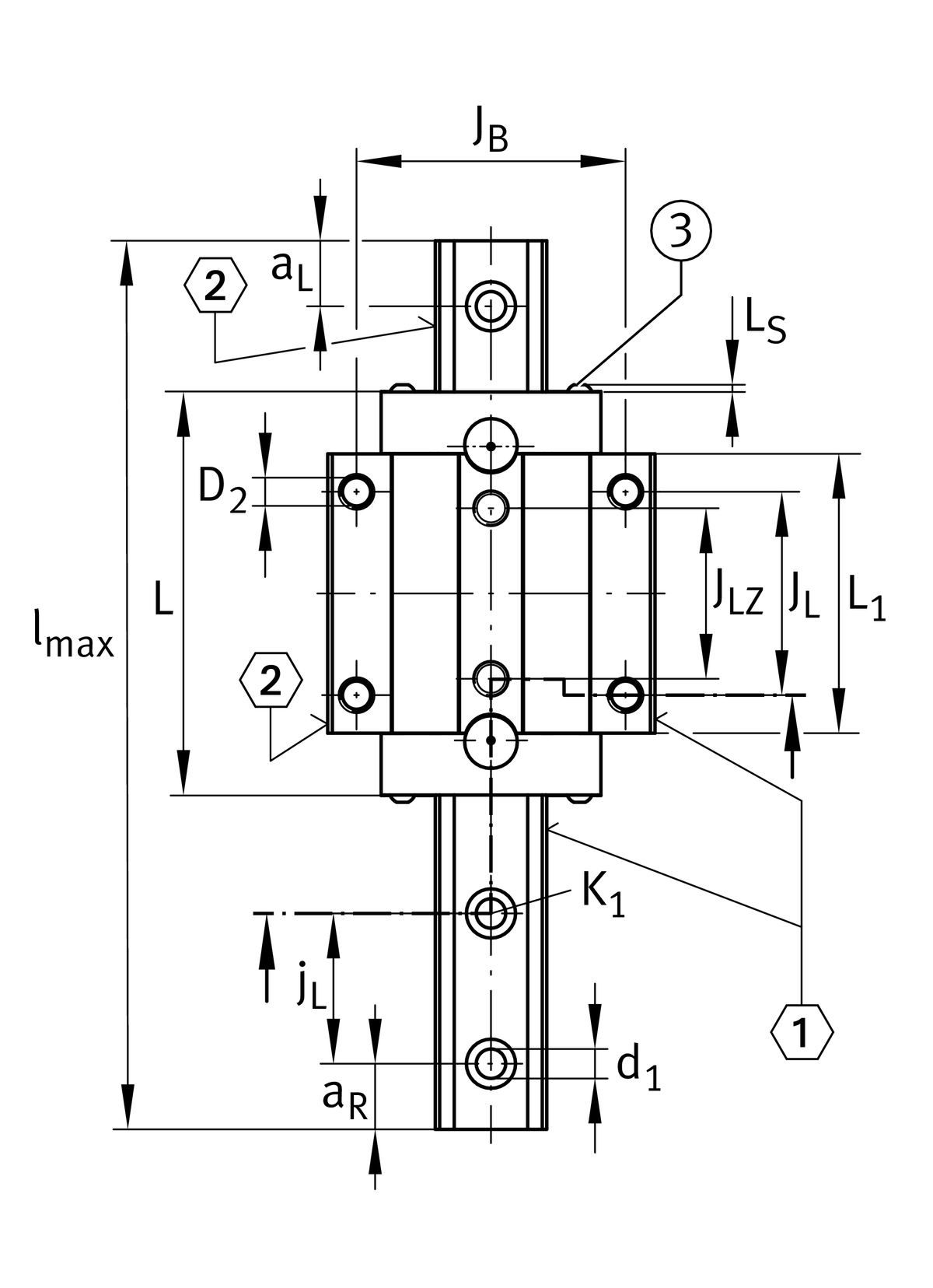

Mounting dimensions
| A1 | 37.5 mm | |
| JB | 100 mm | |
| b | 45 mm | width rail |
| A2 | 10 mm | |
| L1 | 104.2 mm | |
| LS | 2.2 mm | |
| JL | 80 mm | |
| JLZ | 60 mm | |
| H1 | 8.5 mm | |
| H4 | 26 mm | |
| H5 | 8 mm | |
| T5 | 15 mm | |
| T6 | 13.2 mm | |
| G2 | M12 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 83 Nm | maximum tightening torque 3 |
| K3 | M10 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 83 Nm | maximum tightening torque 3 |
| K6 | M10 | fixing screws below (DIN 7984-8.8) |
| K6 MA | 48 Nm | maximum tightening torque 3 |
| D2 | 10.6 mm | bore diameter |

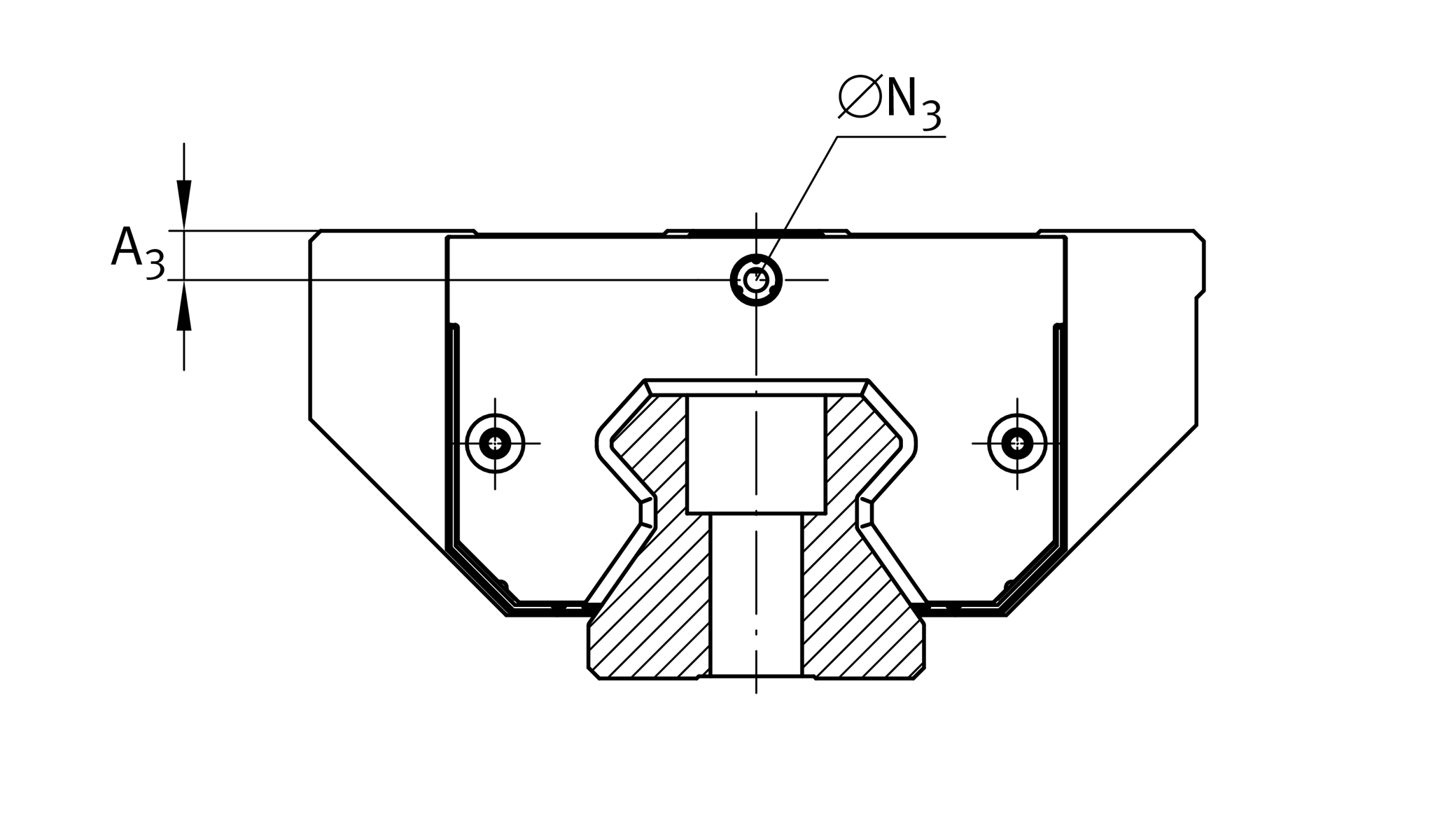

| A3 | 6.6 mm | position lubrication connector |
| N3 | M6 | lubrication connector |
| t N3 | 6 mm | maximum permissible screw depth for lubrication connectors |

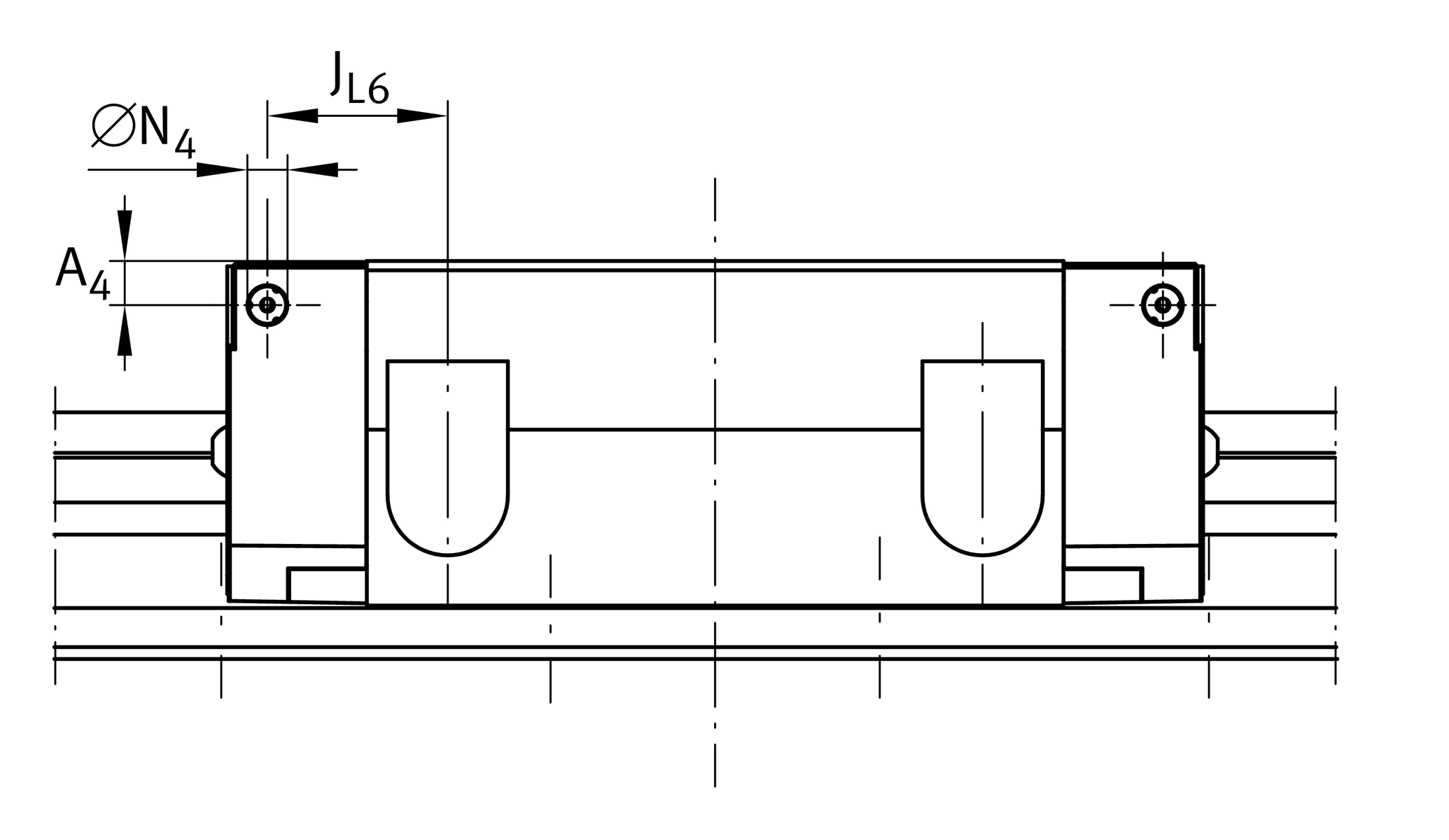

| A4 | 6.6 mm | position lubrication connector |
| N4 | 6 mm | lubrication connector |
| t N4 | 6 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 27 mm | position lubrication connector |

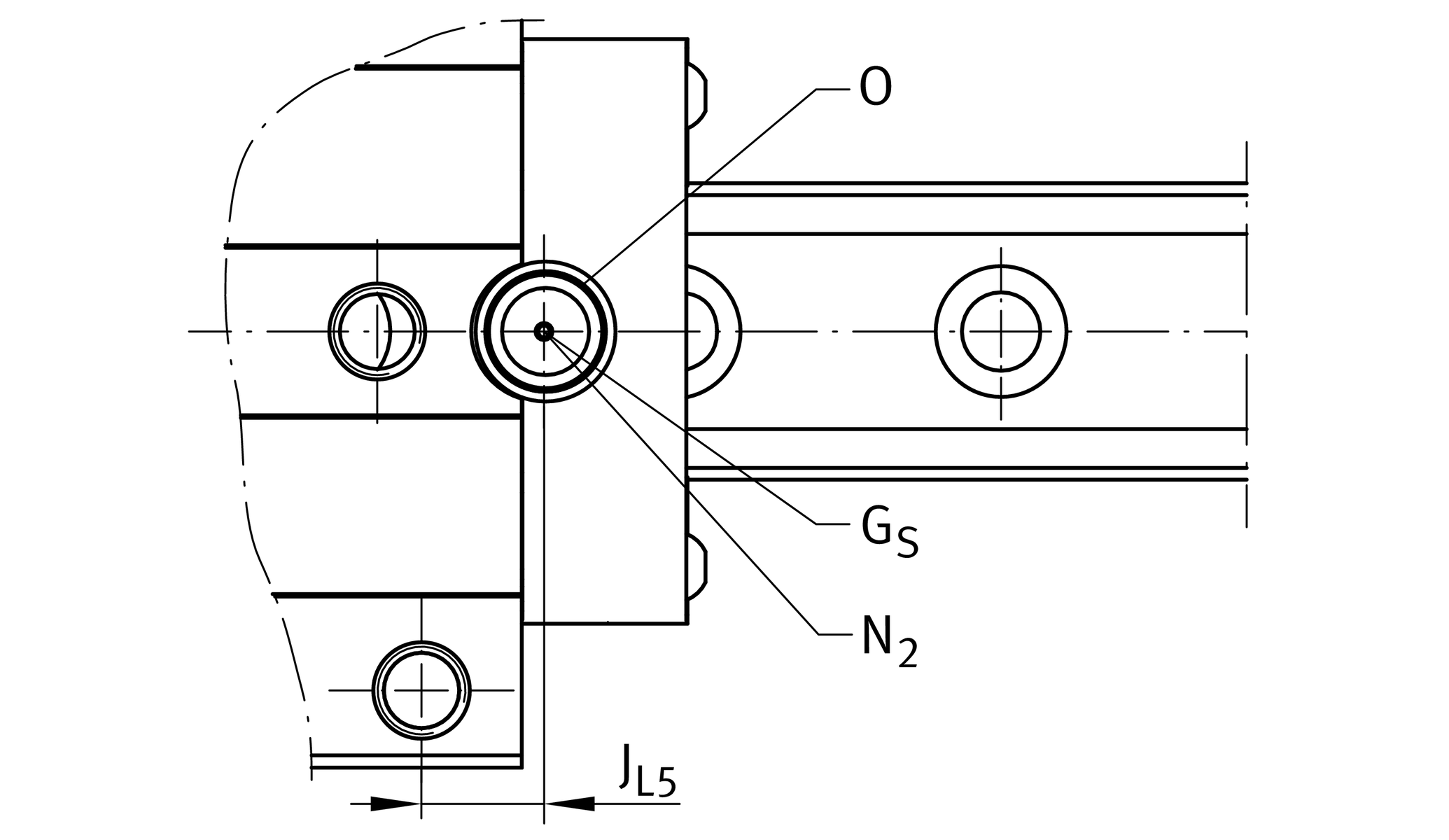

| N2 | 6 mm | max. diameter of lubrication hole in adjacent construction 4 |
| JL5 | 15.7 mm | position lubrication connector 5 |
| GS | M4x4 | |
| O | 10x1,5 | O-Ring DIN 3771 |
Your current product variant
| Size code | 45 | |
| Version | F | version |
| Carriage design | / | Standard carriage |
