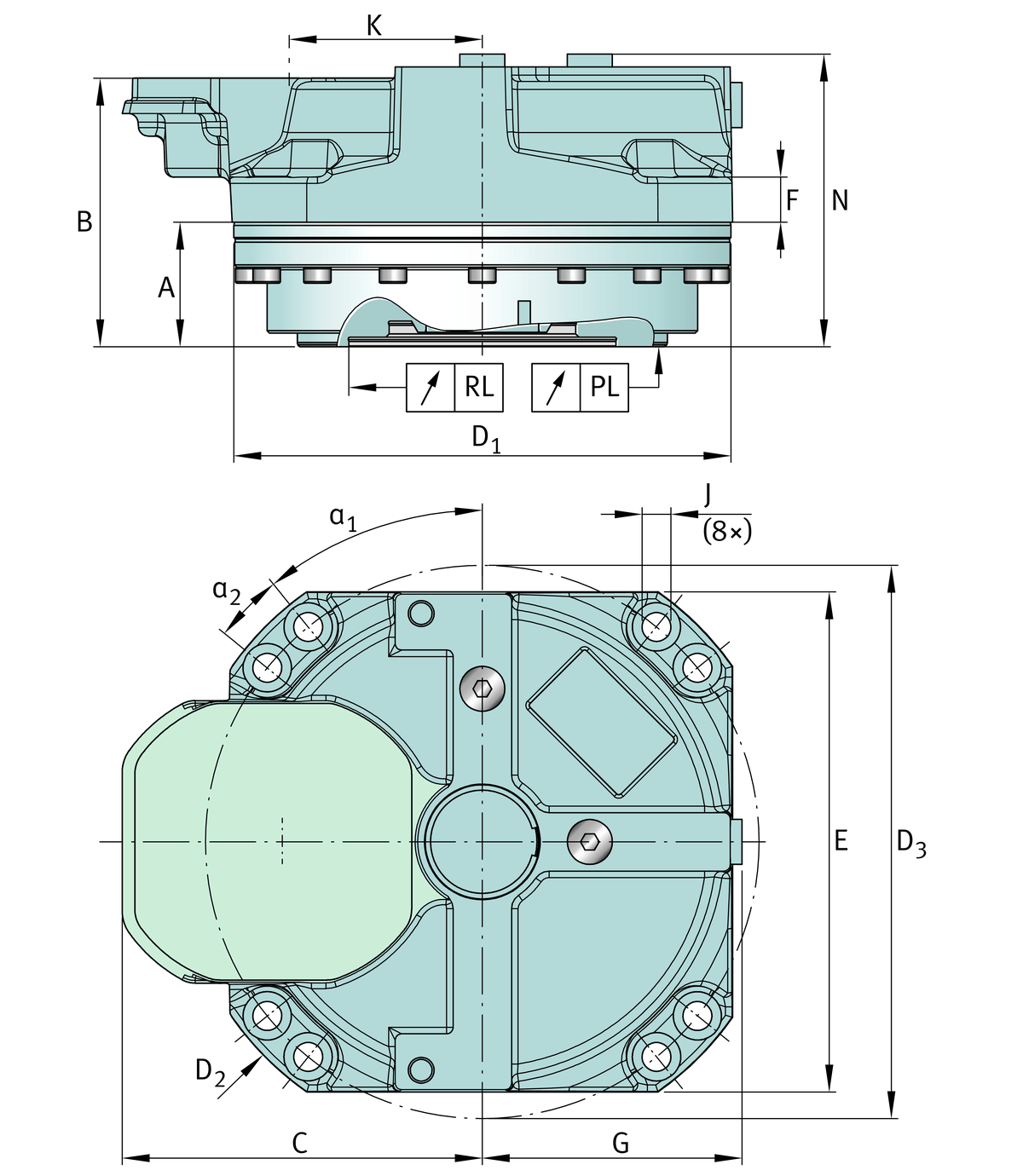

Main Dimensions & Performance Data
| i | 125 | Gear reduction ratio |
| JJ | 0.15 kg*cm2 | Mass moment of interia at input |
| nmax out | 49 1/min | Max. output speed |
| nmax per In | 6,000 1/min | Maximum input drive speed |
| nper In | 4,000 1/min | |
| Ck | 580 Nm/arcmin | Tilting rigidity |
| Cr | 85 Nm/arcmin | Torsional rigidity |
| MOut | 300 Nm | Maximum torque |
| Mnom Out | 235 Nm | Rated torque |
| Macc | 327 Nm | Acceleration moment |
| Mestopp | 800 Nm | E-stop moment |
| MTilt | 720 Nm | Continuous tilting moment |
| MTilt estop | 2,650 Nm | Max. e-stop tilting moment |
| Fa max dyn | 16.5 kN | Max. dynamic axial force |
| Fa max stat | 80 kN | Max. static axial force |
| Fr max stat | 10.3 kN | Max. dynamic radial force |
| Fr max stat | 26.5 kN | Max. static radial force |
| Pρ | 57 Nm/kg | Power density |
| φα back | 0.1 arcmin | Torsional backlash at output |
| φα lost | 1.5 arcmin | Lost Motion at output |
| Ups | 90 arcsec | Synchronous running accuracy |
| ≈m | 5.2 kg | Weight |
Your current product variant
| Size code | 030 | 030 |
| Design variant | B | Gear unit with flange |
| Product type | PSC | Precision Planetary Gearboxes Series PSC |
| Engine construction variant | 1 | Clamping hub |
| Design | V | Solid shaft |
