INA
VU360680
Slewing Ring, Four Point contact bearing, without gear teeth VU360680
Thêm vào yêu cầu báo giá

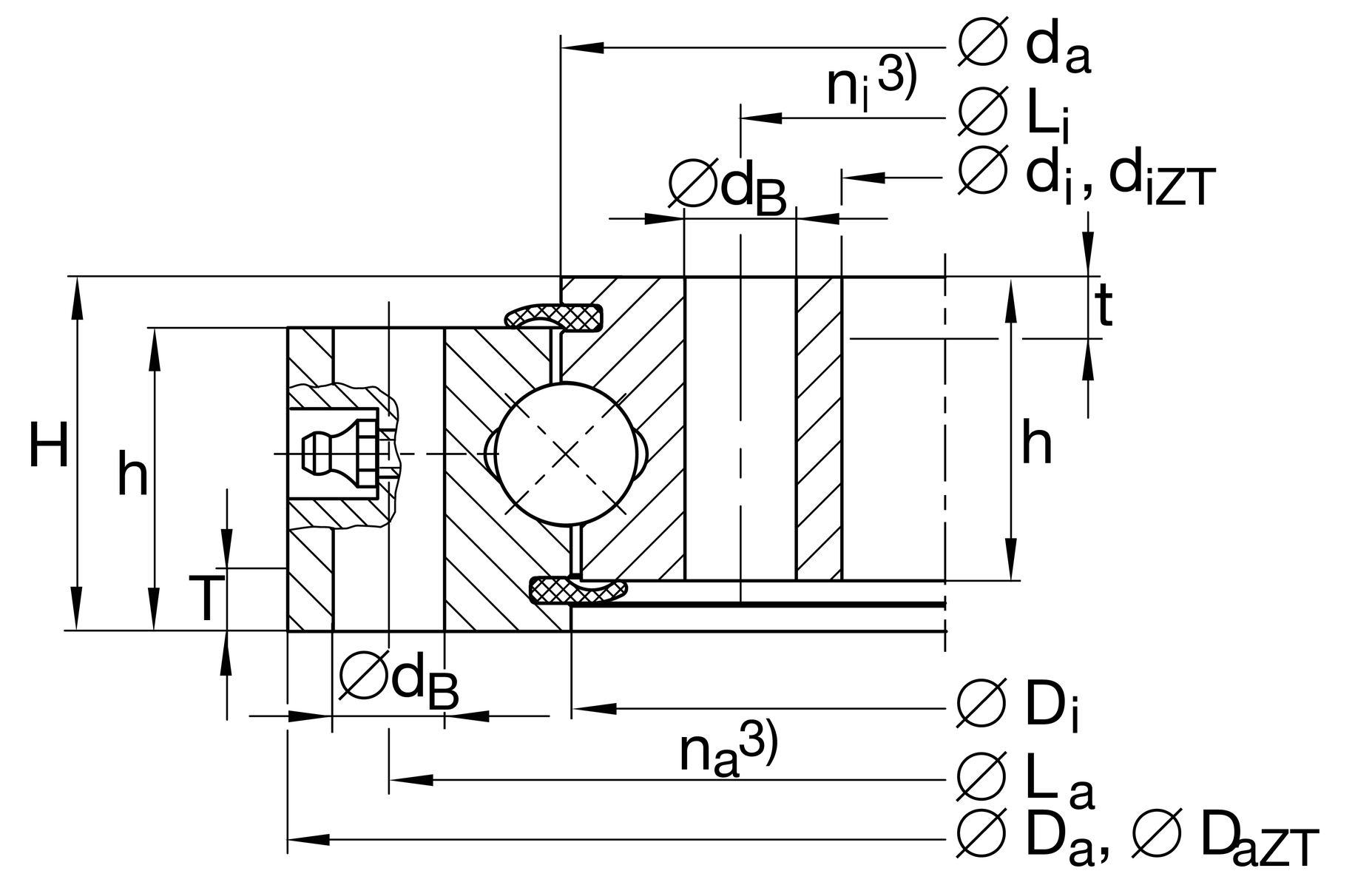

Main Dimensions & Performance Data
di
565 mm
Inner diameter inner ring
0.8 mm
Inner diameter inner ring lower tolerance
0.8 mm
Inner diameter inner ring upper tolerance
H
79 mm
Height
Da
795 mm
Outside Diameter
0.8 mm
Outside diameter lower tolerance
0.8 mm
Outside diameter upper tolerance
ha
72 mm
Width outer ring
hi
72 mm
Width inner ring
0.09 mm
Normal radial clearance min.
0.36 mm
Normal radial clearance max.
0.15 mm
Normal axial clearance min.
0.59 mm
Normal axial clearance max.
≈m
120 kg
Weight

Dimensions
Di
678 mm
Inner diameter outer ring
da
682 mm
Outside diameter inner ring
dB
22 mm
Fixing bore
La
755 mm
Pitchcircle diameter fixing holes outer ring
na
30
Number of fixing holes in outer ring
Li
605 mm
Pitchcircle diameter fixing holes inner ring
ni
30
Number of fixing holes in inner ring
Fr zul
363,000 N
Max. radial load fixing screws (friction locking)

Temperature range
Tmin
-25 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.

Calculation factors
Ca
550,000 N
Basic dynamic load rating, axial
C0a
2,070,000 N
Basic static load rating, axial
Cr
495,000 N
Basic dynamic load rating, radial (for radial load only)
C0r
950,000 N
Basic static load rating, radial (for radial load only)
