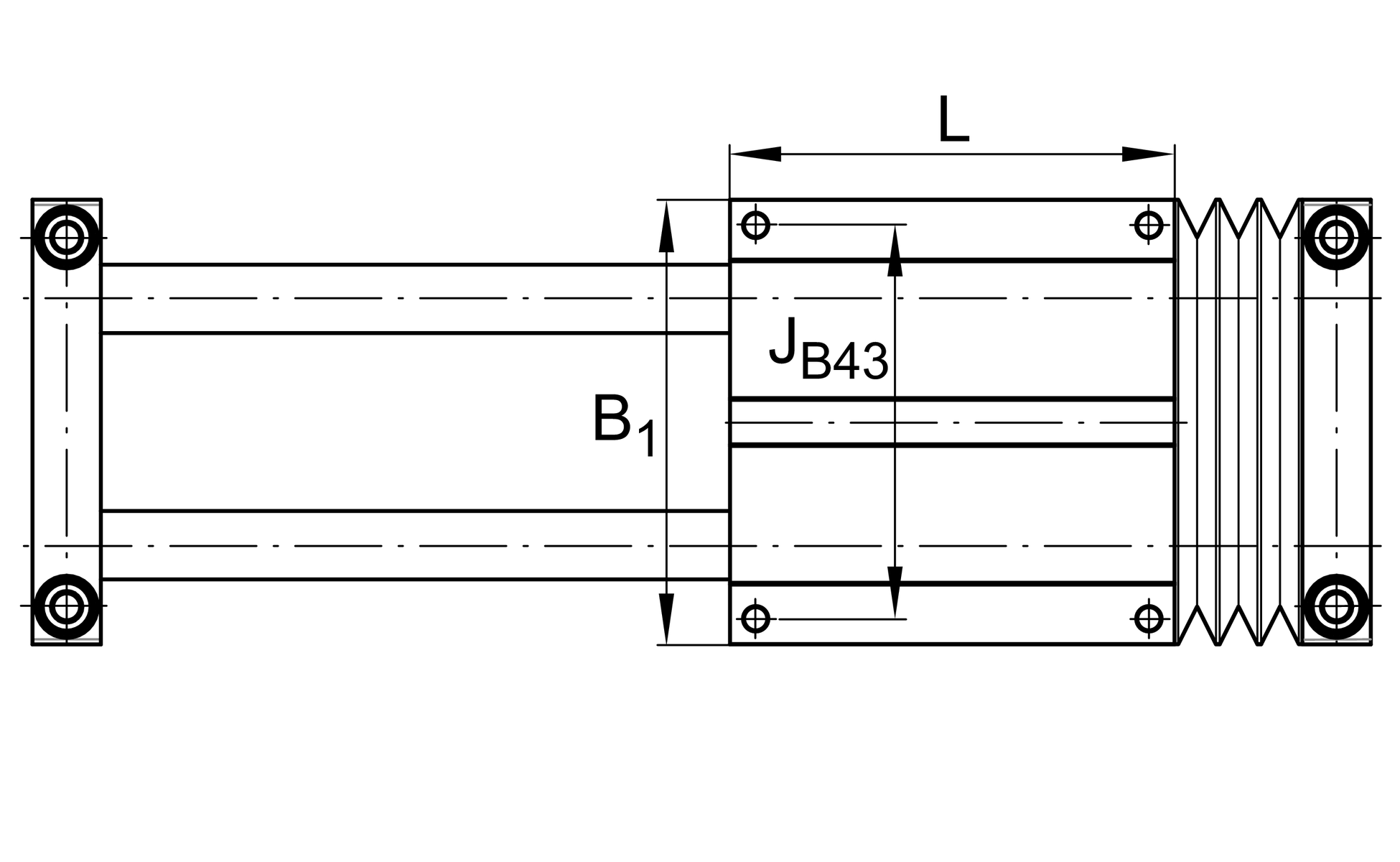

Main Dimensions & Performance Data
| B1 | 160 mm | Total Width |
| L | 160 mm | Length of Carriage |

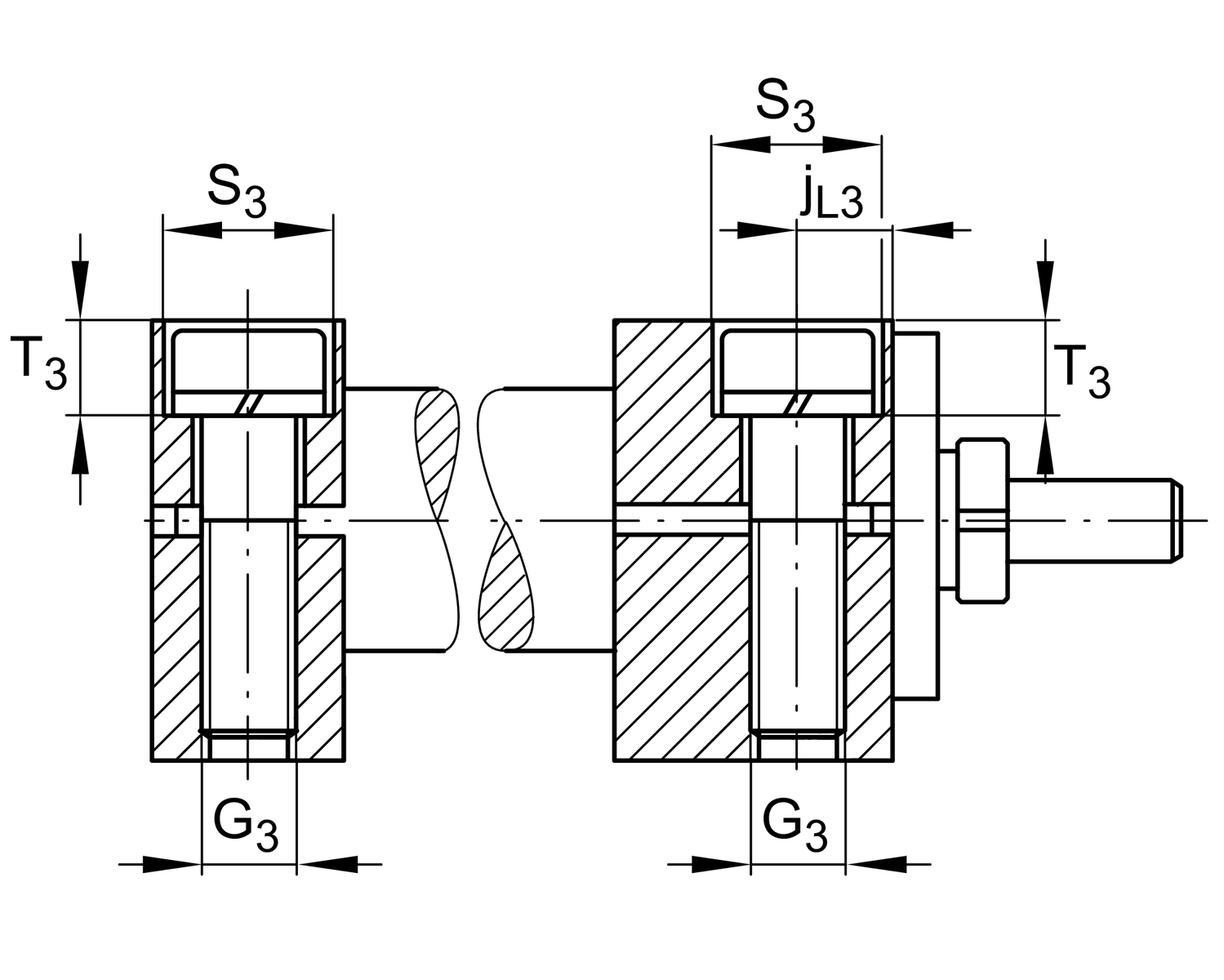

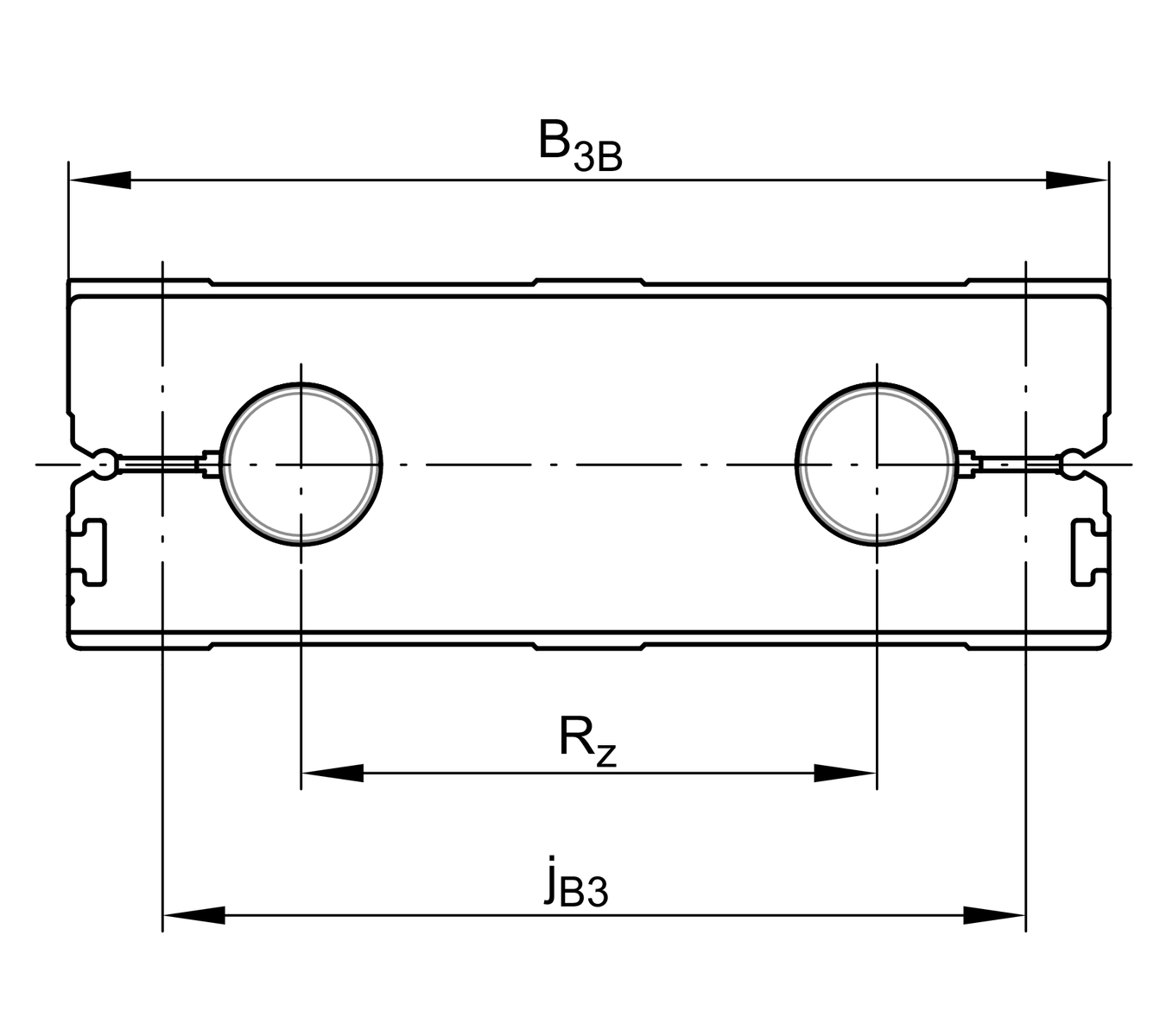

Mounting dimensions
| B3B | 160 mm | Width of Shaft Support Blocks |
| G3 | M12 | Thread |
| G43 | M10 | Thread |
| JB43 | 140 mm | |
| JL43 | 140 mm | |
| jB3 | 132 mm | |
| jL3 | 12.5 mm | |
| K43 | M8 | Thread |
| S3 | 20 mm | |
| T3 | 15.5 mm | |
| t43 | 22 mm | Depth of Thread |

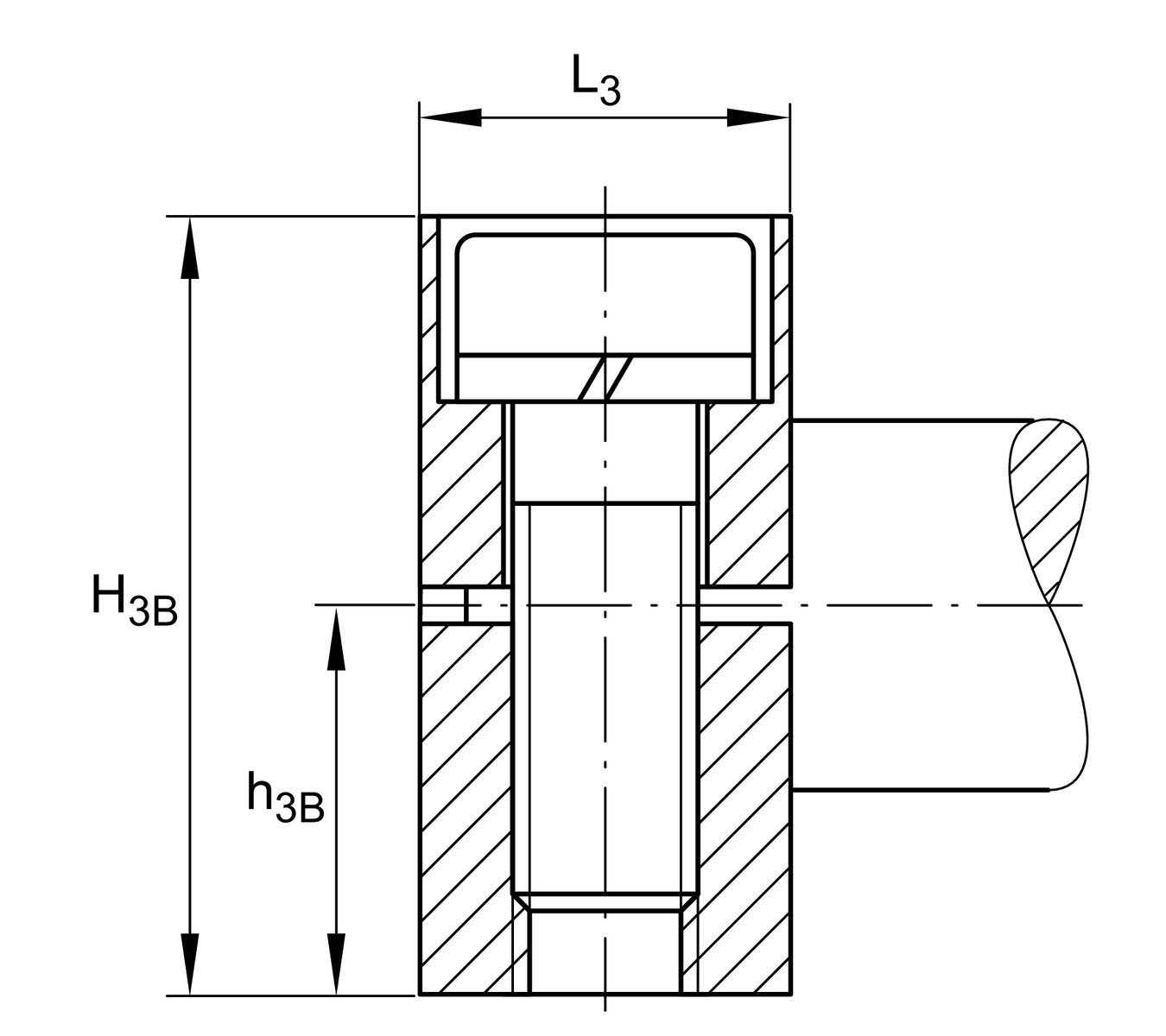

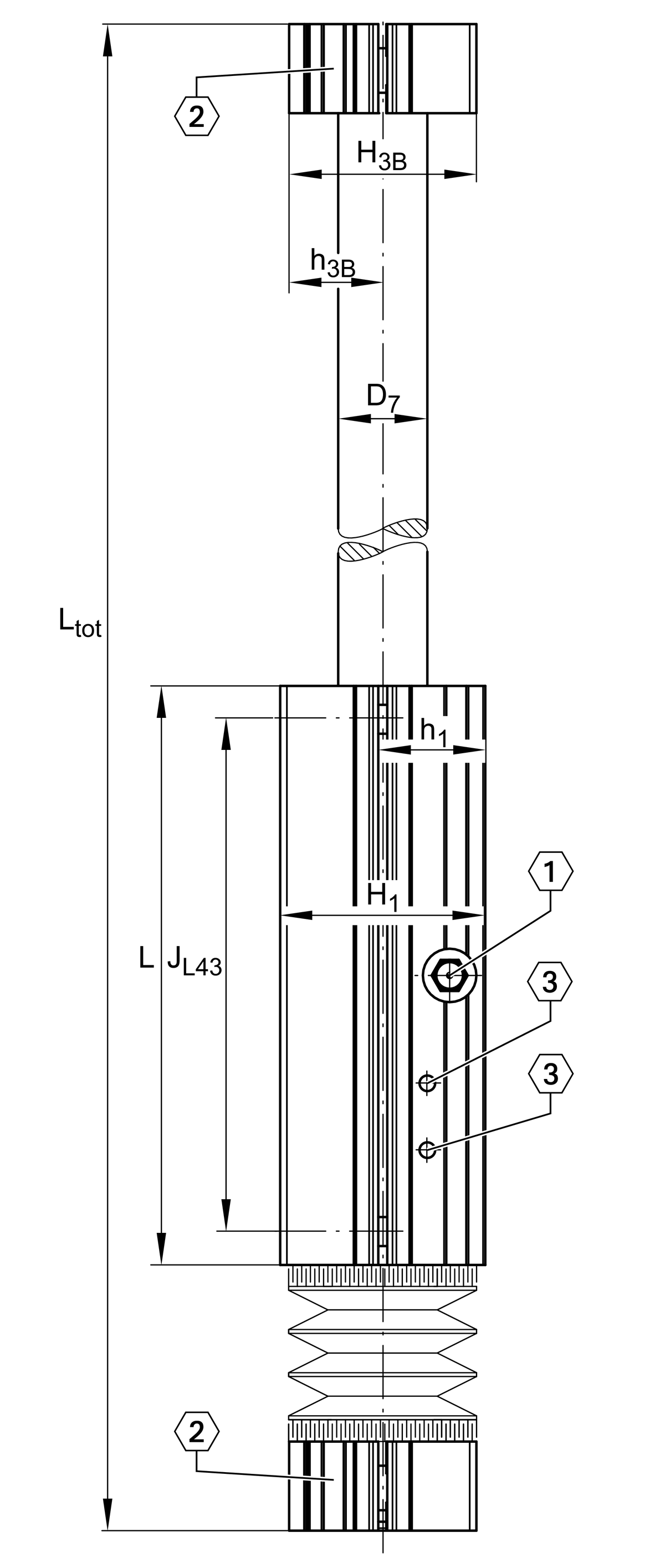

Dimensions
| BB | 21 mm | Length of Bellows Fastener |
| FBL | 1.34 | Effective length factor of bellow |
| H1 | 56 mm | Height of Carriage |
| H3B | 52 mm | Height of Shaft Support Blocks |
| h1 | 28 mm | |
| h3B | 26 mm | |
| L3 | 25 mm | Length of Shaft Support Blocks |
| D7 | 25 mm | ø Shaft, Tolerance h7 |
Technical data
| RX | 88.6 mm | |
| RZ | 88 mm | |
| mLAW | 3.5 kg | Mass of Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 50 m/s2 | Maximum Acceleration |
| CI | 7,390 N | Load direction I: compressive load |
| C0I | 8,880 N | Load direction I: compressive load |
| CII | 7,390 N | Load direction II: tensile load |
| C0II | 8,880 N | Load direction II: tensile load |
| CIII | 7,390 N | Load direction III: lateral load |
| C0III | 8,880 N | Load direction III: lateral load |
| M0x per | 390 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 340 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 280 Nm | Max. permissible static moment per Carriage 1 |
Additional information
KB25-P | Linear Ball Bearings 2 |
Temperature range
0 °C | Minimum operating Temperatur | |
80 °C | Maximum operating Temperatur |
Your current product variant
| Size code | 25 | |
| Length of carriage | 160 | 160 mm |
| Version | B | |
| Drive type | OA | Without drive |
| Bellow | 1 | Yes |
