VU200405-RR-VSP-ZT

Slewing Ring, Four Point contact bearing, without gear teeth VU200405-RR-VSP-ZT

Thêm vào yêu cầu báo giá

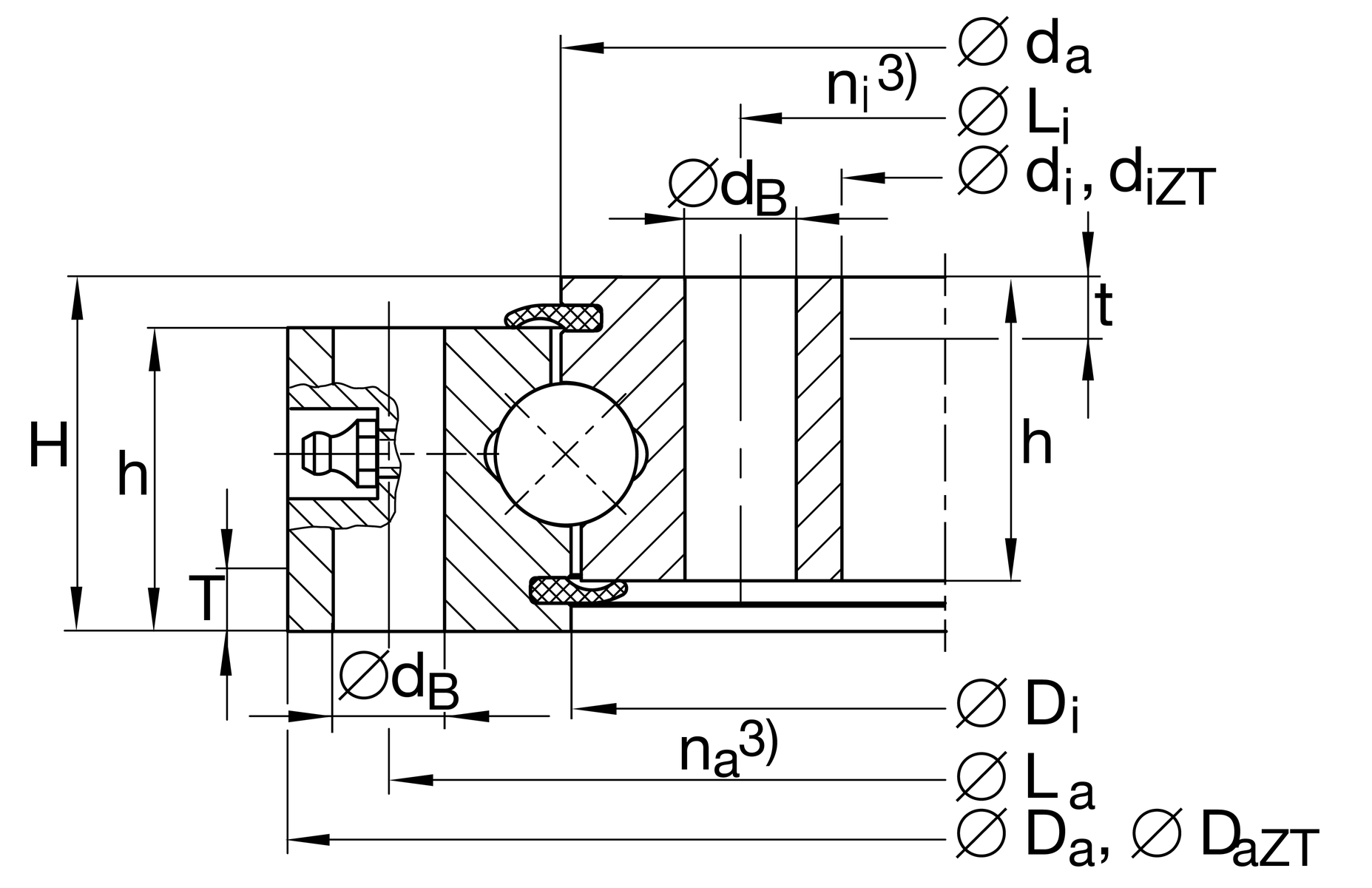

Main Dimensions & Performance Data

d_i	336 mm	Inner diameter inner ring
	0.5 mm	Inner diameter inner ring lower tolerance
	0.5 mm	Inner diameter inner ring upper tolerance
d_iZT	338 mm	Diameter centring inner ring
	IT8	Diameter centring inner ring tolerance
H	46 mm	Height
D_a	474 mm	Outside Diameter
	0.8 mm	Outside diameter lower tolerance
	0.8 mm	Outside diameter upper tolerance
D_{a ZT}	472 mm	Centring diameter outer ring
	-IT8	Diameter centring outer ring tolerance
T	7 mm	Length centering outer ring
t	7 mm	Length centering inner ring
h_a	41 mm	Width outer ring
h_i	41 mm	Width inner ring
	0.05 mm	Normal radial clearance min.
	0.2 mm	Normal radial clearance max.
	0.08 mm	Normal axial clearance min.
	0.33 mm	Normal axial clearance max.
≈m	25 kg	Weight

Dimensions

D_i	404 mm	Inner diameter outer ring
d_a	406 mm	Outside diameter inner ring
d_B	14 mm	Fixing bore
L_a	450 mm	Pitchcircle diameter fixing holes outer ring
n_a	30	Number of fixing holes in outer ring
L_i	360 mm	Pitchcircle diameter fixing holes inner ring
n_i	30	Number of fixing holes in inner ring
F_{r zul}	89,000 N	Max. radial load fixing screws (friction locking)

Temperature range

T_min	-25 °C	Operating temperature min.
T_max	80 °C	Operating temperature max.

Calculation factors

C_a	204,000 N	Basic dynamic load rating, axial
C_0a	860,000 N	Basic static load rating, axial
C_r	185,000 N	Basic dynamic load rating, radial (for radial load only)
C_0r	390,000 N	Basic static load rating, radial (for radial load only)

Your current product variant

Centering	ZT	Centering on inner and outer ring
Coating	RR	Protected against corrosion by Corrotect special coating
Preload	VSP	Bearing with preload
