Main Dimensions & Performance Data

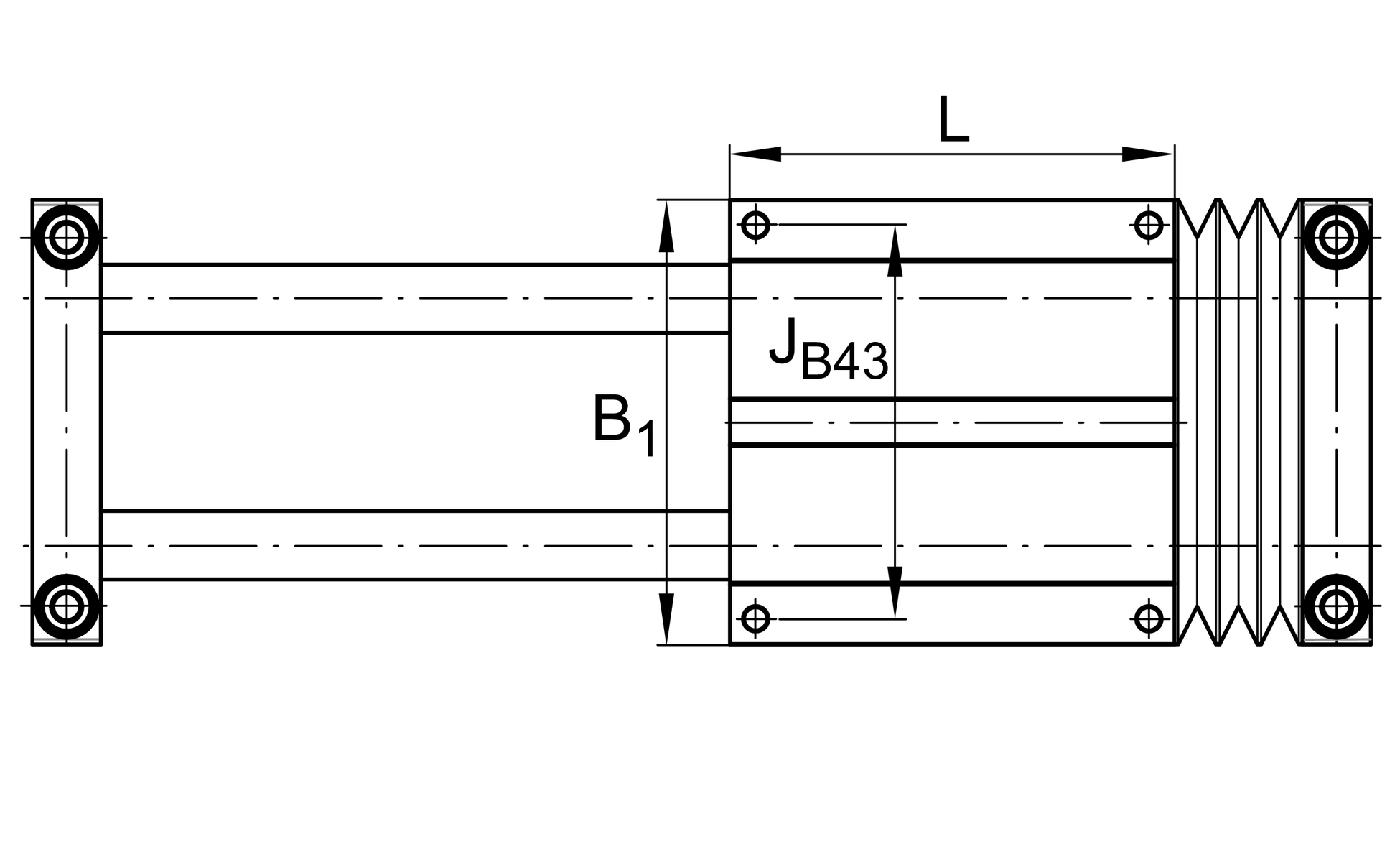

| B1 | 85 mm | Total Width |
| L | 85 mm | Length of Carriage |
Mounting dimensions

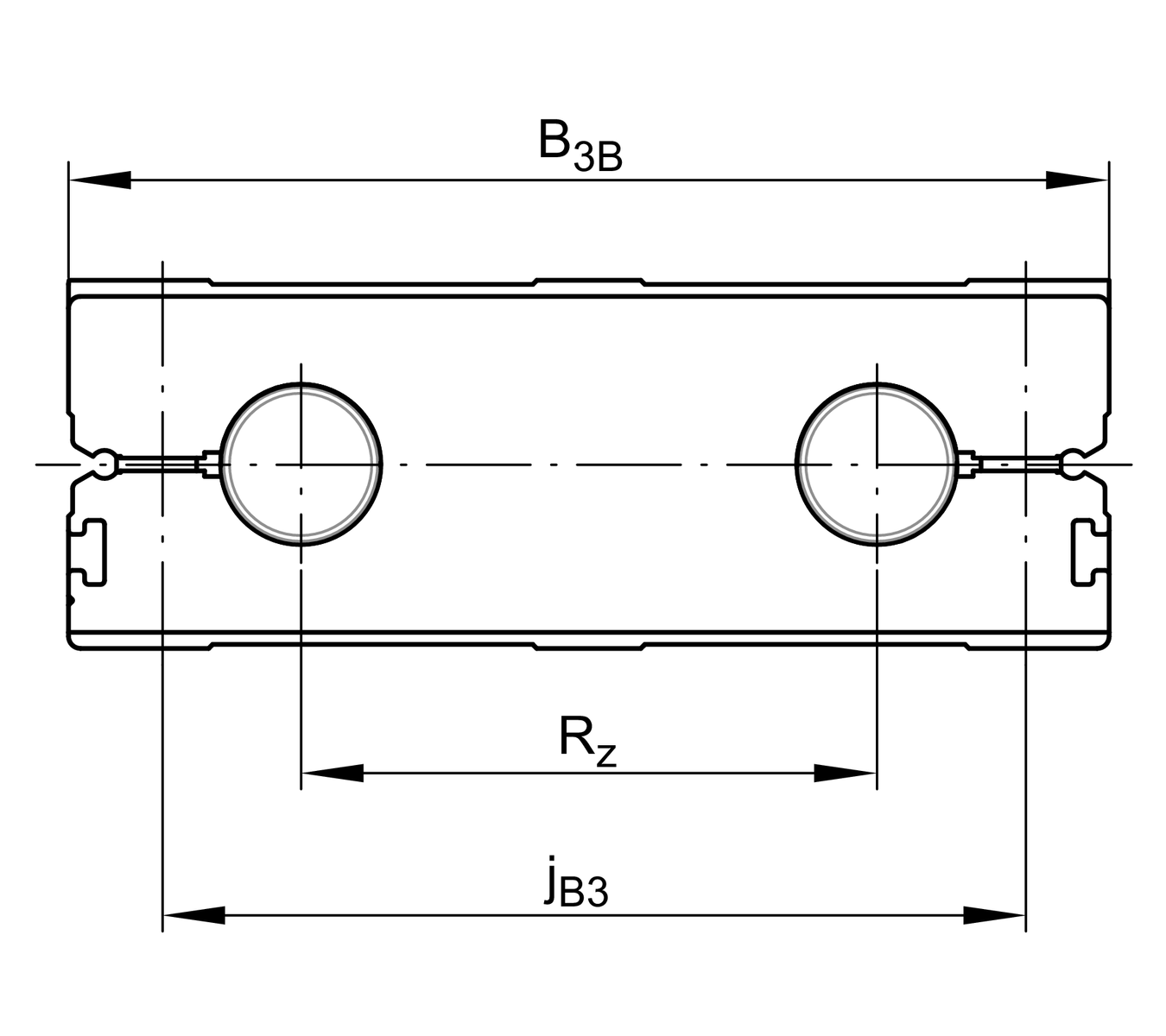

| B3B | 85 mm | Width of Shaft Support Blocks |
| G3 | M6 | Thread |
| G43 | M6 | Thread |
| JB43 | 73 mm | |
| JL43 | 73 mm | |
| jB3 | 70 mm | |
| K43 | M5 | Thread |

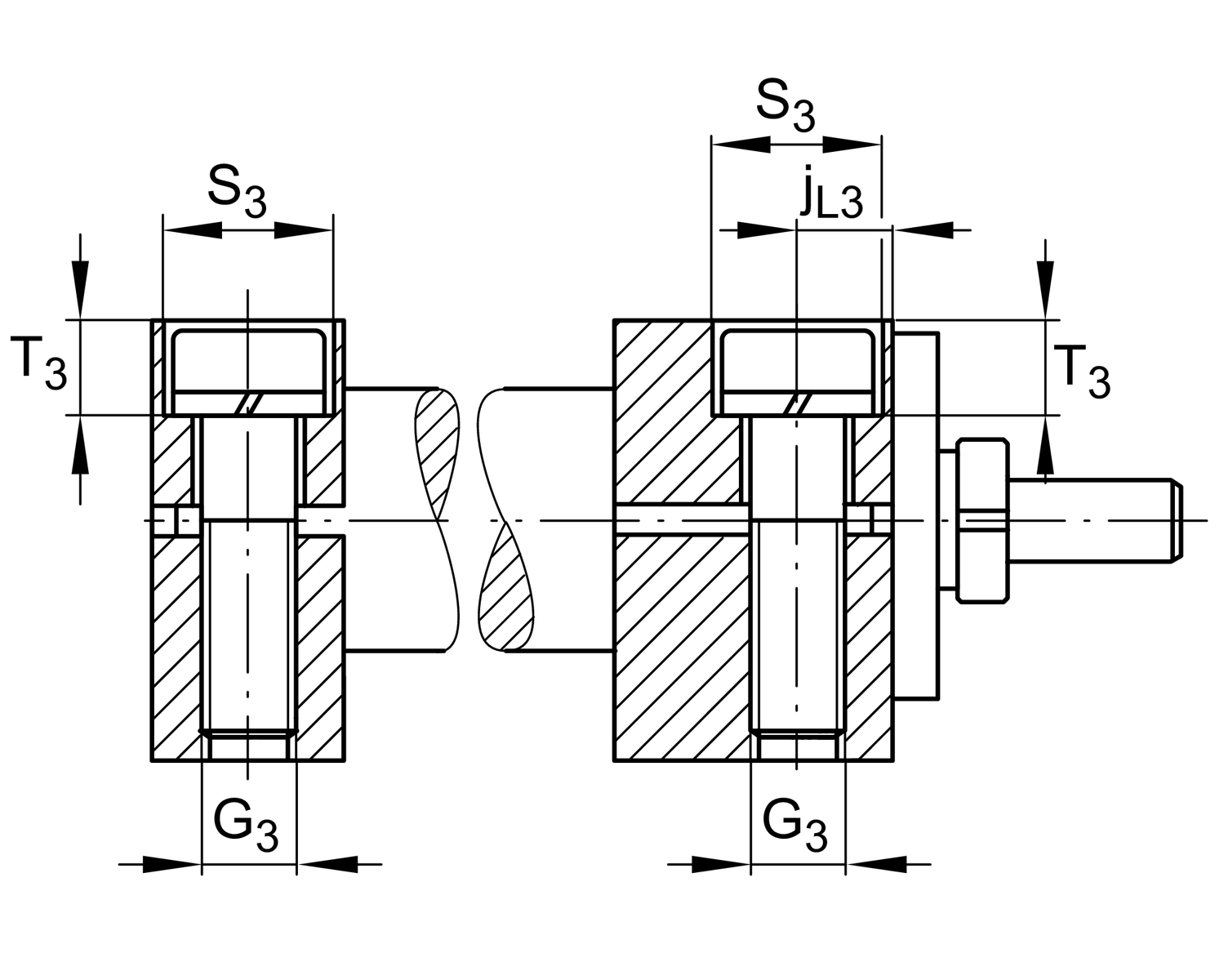

| S3 | 11 mm | |
| T3 | 8.4 mm | |
| t43 | 13 mm | Depth of Thread |
Dimensions

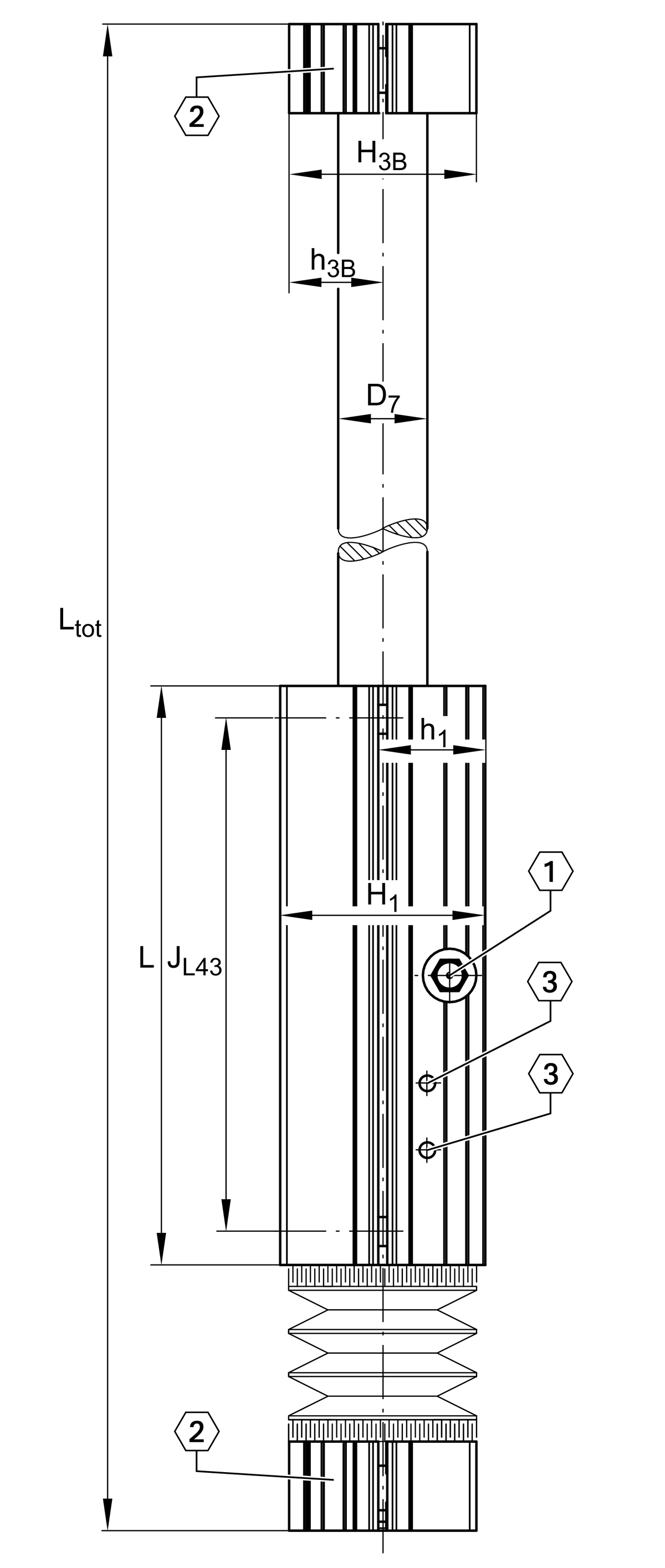

| H1 | 32 mm | Height of Carriage |

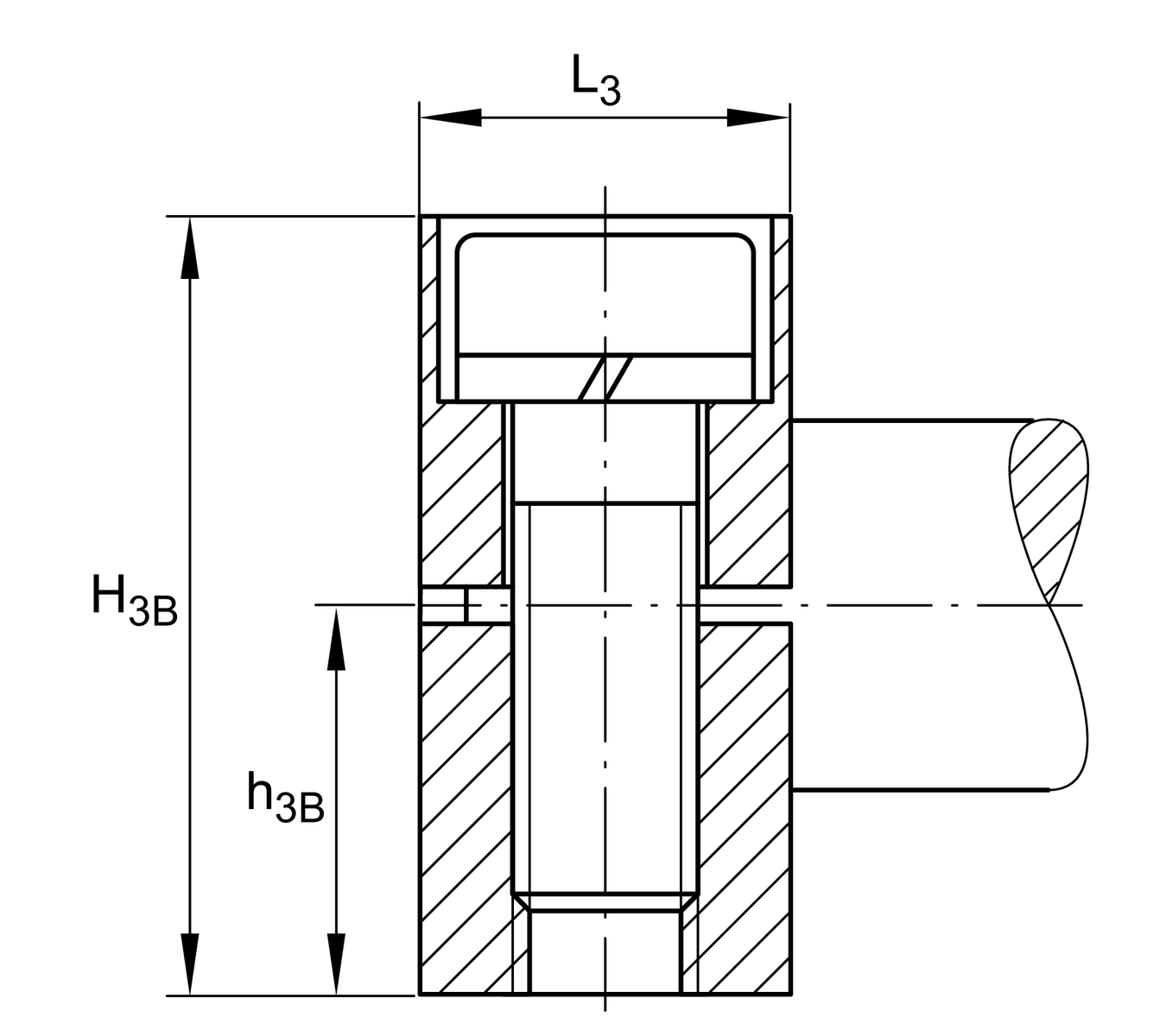

| H3B | 28 mm | Height of Shaft Support Blocks |
| h1 | 16 mm | |
| h3B | 14 mm | |
| L3 | 14 mm | Length of Shaft Support Blocks |
| D7 | 12 mm | ø Shaft, Tolerance h7 |
Technical data
| RX | 46 mm | |
| RZ | 42 mm | |
| mLAW | 0.63 kg | Mass of Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 50 m/s2 | Maximum Acceleration |
| CI | 1,420 N | Load direction I: compressive load |
| C0I | 1,540 N | Load direction I: compressive load |
| CII | 1,420 N | Load direction II: tensile load |
| C0II | 1,540 N | Load direction II: tensile load |
| CIII | 1,420 N | Load direction III: lateral load |
| C0III | 1,540 N | Load direction III: lateral load |
| M0x per | 41 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 37.5 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 35 Nm | Max. permissible static moment per Carriage 1 |
Additional information
KB12-P | Linear Ball Bearings 2 |
Temperature range
0 °C | Minimum operating Temperatur | |
80 °C | Maximum operating Temperatur |
Your current product variant
| Size code | 12 | |
| Length of carriage | 85 | 85 mm |
| Version | B | |
| Drive type | OA | Without drive |
| Bellow | 0 | No |
