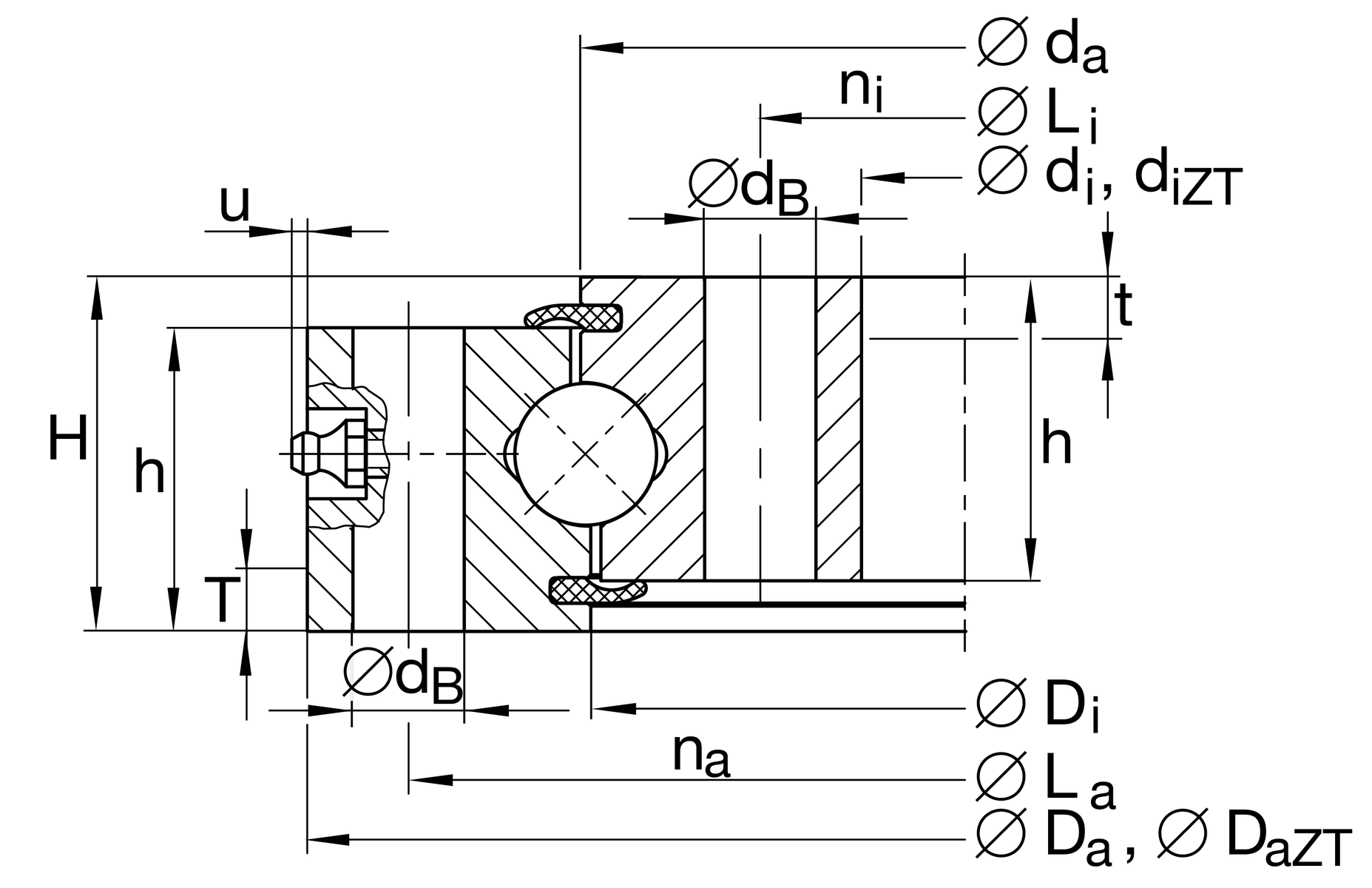

Main Dimensions & Performance Data
| di | 191 mm | Inner diameter inner ring |
0.5 mm | Inner diameter inner ring lower tolerance | |
0.5 mm | Inner diameter inner ring upper tolerance | |
| H | 46 mm | Height |
| Da | 329 mm | Outside Diameter |
0.8 mm | Outside diameter lower tolerance | |
0.8 mm | Outside diameter upper tolerance | |
| ha | 41 mm | Width outer ring |
| hi | 41 mm | Width inner ring |
| ≈m | 14.936 kg | Weight |
Dimensions
| Di | 259 mm | Inner diameter outer ring |
| da | 261 mm | Outside diameter inner ring |
| dB | 14 mm | Fixing bore |
| La | 305 mm | Pitchcircle diameter fixing holes outer ring |
| na | 20 | Number of fixing holes in outer ring |
| Li | 215 mm | Pitchcircle diameter fixing holes inner ring |
| ni | 20 | Number of fixing holes in inner ring |
| Fr zul | 82,600 N | Max. radial load fixing screws (friction locking) |
| umax | 2 mm | Max. protrusion lubrication nipple |
Temperature range
| Tmin | -25 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Calculation factors
| Ca | 174,000 N | Basic dynamic load rating, axial |
| C0a | 620,000 N | Basic static load rating, axial |
| Cr | 159,000 N | Basic dynamic load rating, radial (for radial load only) |
| C0r | 280,000 N | Basic static load rating, radial (for radial load only) |
Your current product variant
| Radial internal clearance | RL0 | Radial clearance 0 to 0,05; axial tilting clearance 0 to 0,08 |
