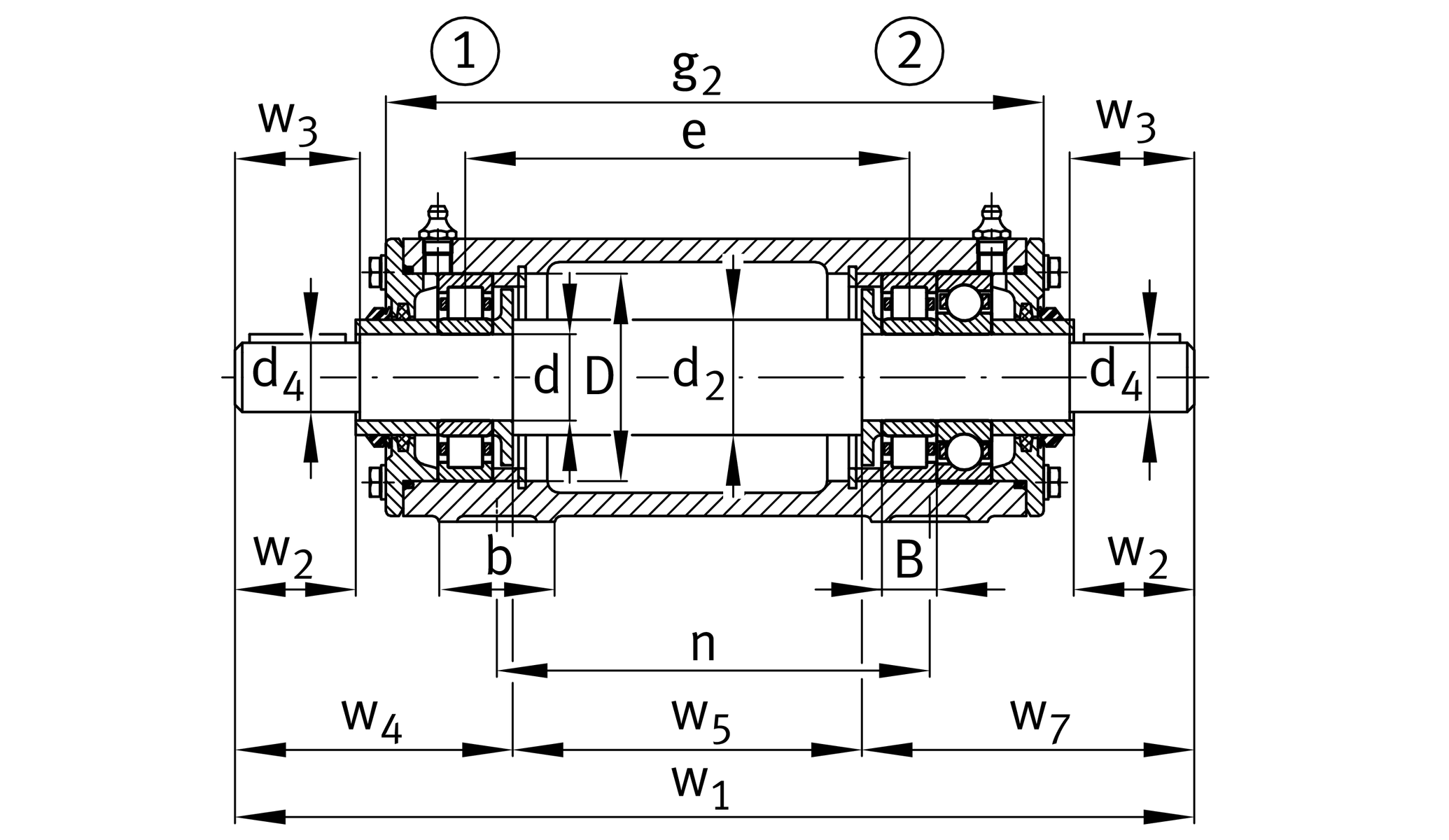

Main Dimensions & Performance Data
| d | 80 mm | Shaft diameter |
| a | 320 mm | Length base |
| h1 | 217 mm | Height |
| g2 | 550 mm | Total width with cover |
| ≈m | 106.8 kg | Weight |
Dimensions
| B | 39 mm | width |
| b | 80 mm | width base |
| c | 30 mm | heigth base |
| D | 170 mm | outside diameter bearing |
| d2 | 95 mm | shaft diameter shoulder |
| d4 | 70 mm | Shaft dieameter outside |
| e | 430 mm | locking collar width |
| h | 112 mm | center heigth |
| m | 260 mm | distance fixing bore |
| n | 420 mm | bore distance width |
| s | M16 | size of fixing screws |
| w1 | 861 mm | length shaft total |
| w2 | 140 mm | distance shaft end |
| w3 | 143 mm | length shaft tap |
| w4 | 227.5 mm | lenght shaft end |
| w5 | 367 mm | length shaft shoulder |
| w7 | 266.5 mm | Lenght shaft end |
Additional information
NU316-E-TVP2-C3 | bearing designation | |
NU316-E-TVP2-C3 + 6316-C3 | reference bearing designation | |
VR316-E | housing |
