FAG INA Schaeffler
INA
K40X45X13
Needle roller cage assembly K40X45X13
Thêm vào yêu cầu báo giá

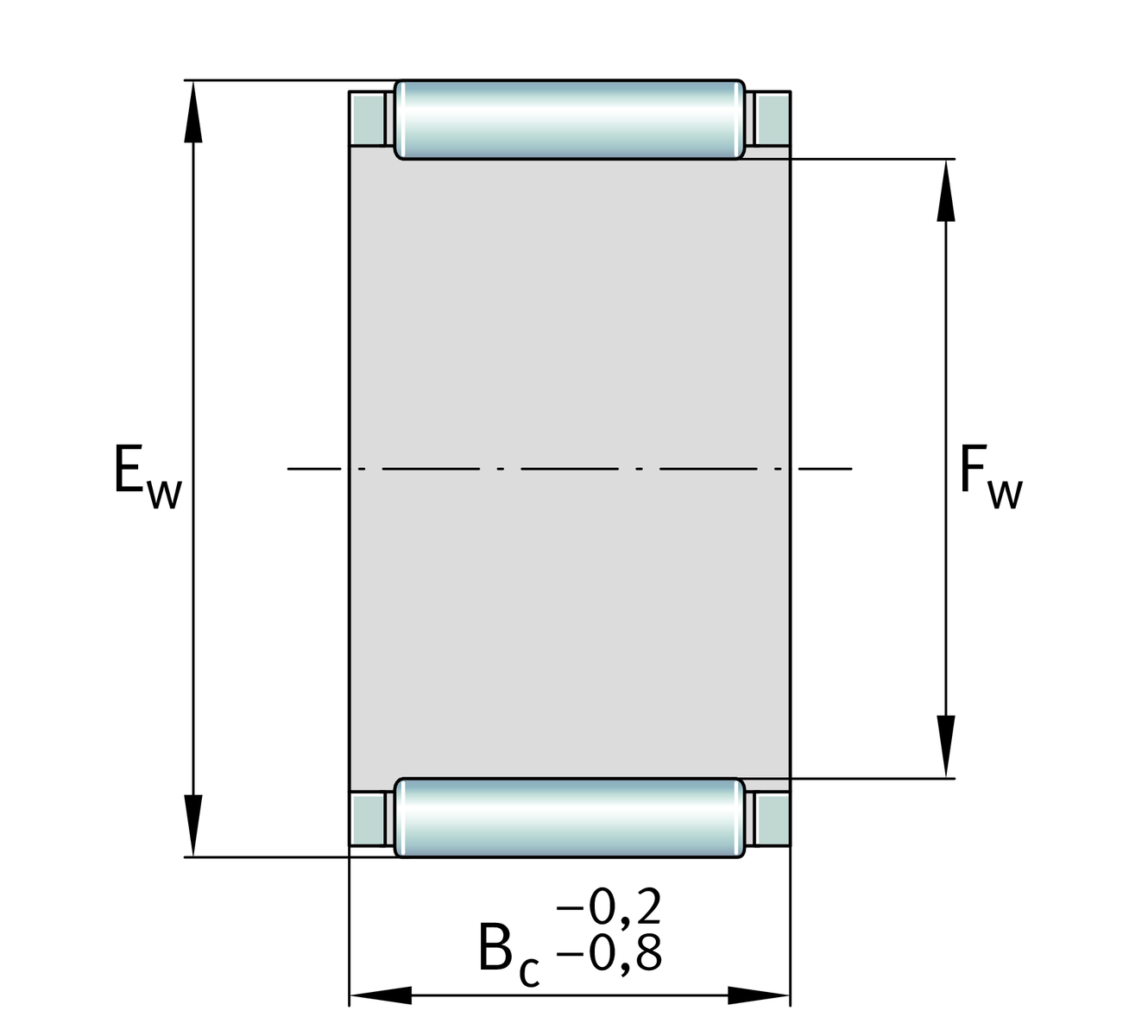

Main Dimensions & Performance Data
Fw
40 mm
Inner diameter of needle roller complement
Ew
45 mm
Outside diameter of needle roller complement
Bc
13 mm
Width
Cr
17,600 N
Basic dynamic load rating, radial
C0r
32,500 N
Basic static load rating, radial
Cur
4,250 N
Fatigue load limit, radial
nG
11,500 1/min
Limiting speed
nϑr
6,600 1/min
Reference speed
≈m
17.8 g
Weight

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
140 °C
Operating temperature max.

Your current product variant
CageJNsteel sheet metal
