VU200220-ZT

Slewing Ring, Four Point contact bearing, without gear teeth VU200220-ZT

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d_i	138 mm	Inner diameter inner ring
	0.5 mm	Inner diameter inner ring lower tolerance
	0.5 mm	Inner diameter inner ring upper tolerance
d_iZT	140 mm	Diameter centring inner ring
	IT8	Diameter centring inner ring tolerance
H	46 mm	Height
D_a	302 mm	Outside Diameter
	0.5 mm	Outside diameter lower tolerance
	0.5 mm	Outside diameter upper tolerance
D_{a ZT}	300 mm	Centring diameter outer ring
	-IT8	Diameter centring outer ring tolerance
T	6 mm	Length centering outer ring
t	6 mm	Length centering inner ring
h_a	41 mm	Width outer ring
h_i	41 mm	Width inner ring
	0.05 mm	Normal radial clearance min.
	0.2 mm	Normal radial clearance max.
	0.08 mm	Normal axial clearance min.
	0.33 mm	Normal axial clearance max.
≈m	15.601 kg	Weight

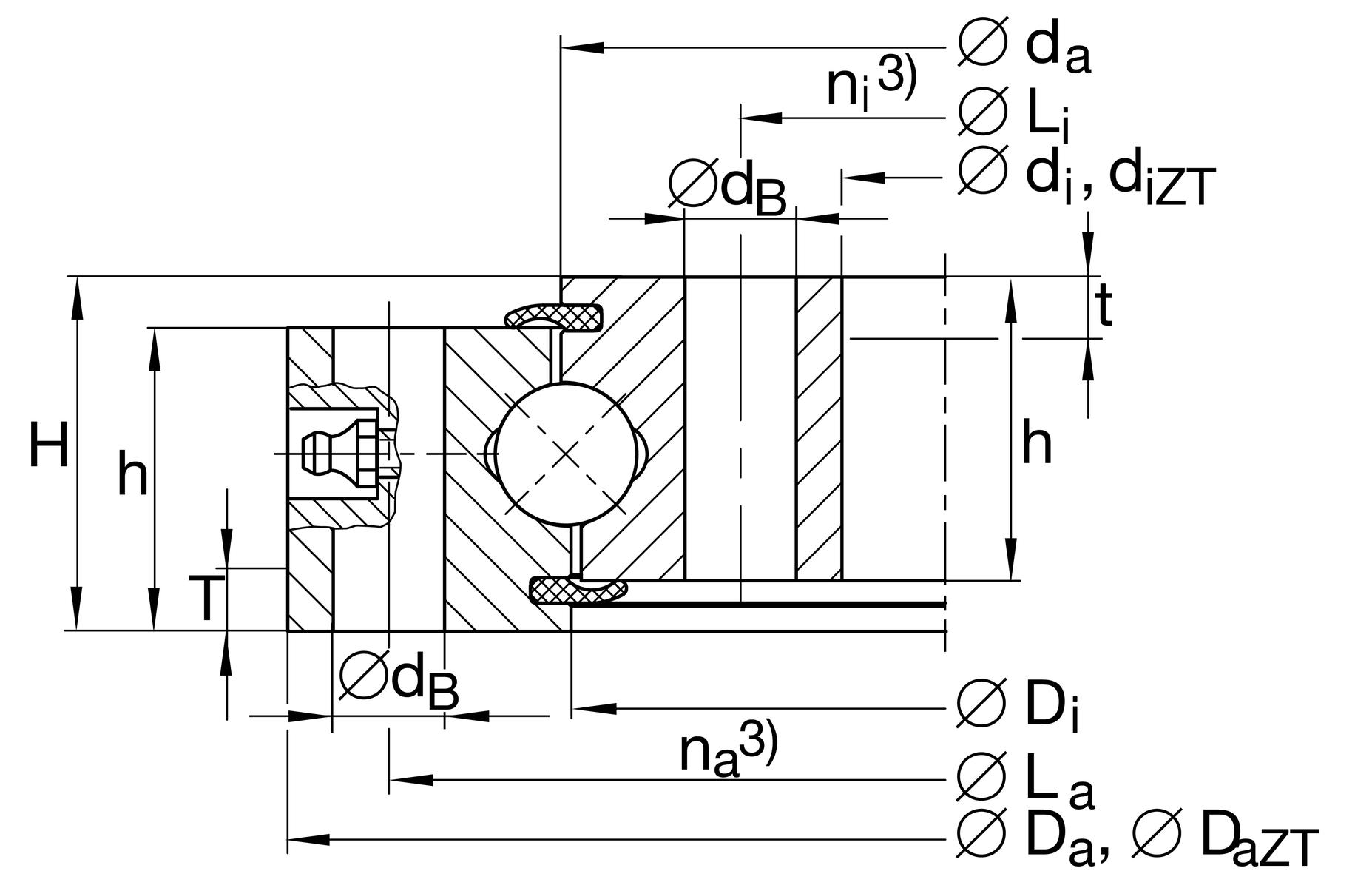

Dimensions

D_i	219 mm	Inner diameter outer ring
d_a	221 mm	Outside diameter inner ring
d_B	18 mm	Fixing bore
L_a	270 mm	Pitchcircle diameter fixing holes outer ring
n_a	10	Number of fixing holes in outer ring
L_i	170 mm	Pitchcircle diameter fixing holes inner ring
n_i	10	Number of fixing holes in inner ring
F_{r zul}	71,000 N	Max. radial load fixing screws (friction locking)

Temperature range

T_min	-25 °C	Operating temperature min.
T_max	80 °C	Operating temperature max.

Calculation factors

C_a	162,000 N	Basic dynamic load rating, axial
C_0a	530,000 N	Basic static load rating, axial
C_r	148,000 N	Basic dynamic load rating, radial (for radial load only)
C_0r	243,000 N	Basic static load rating, radial (for radial load only)

Your current product variant

Centering	ZT	Centering on inner and outer ring
