LSHE30-XL-N
Plummer block housing unit LSHE30-XL-N
Thêm vào yêu cầu báo giá

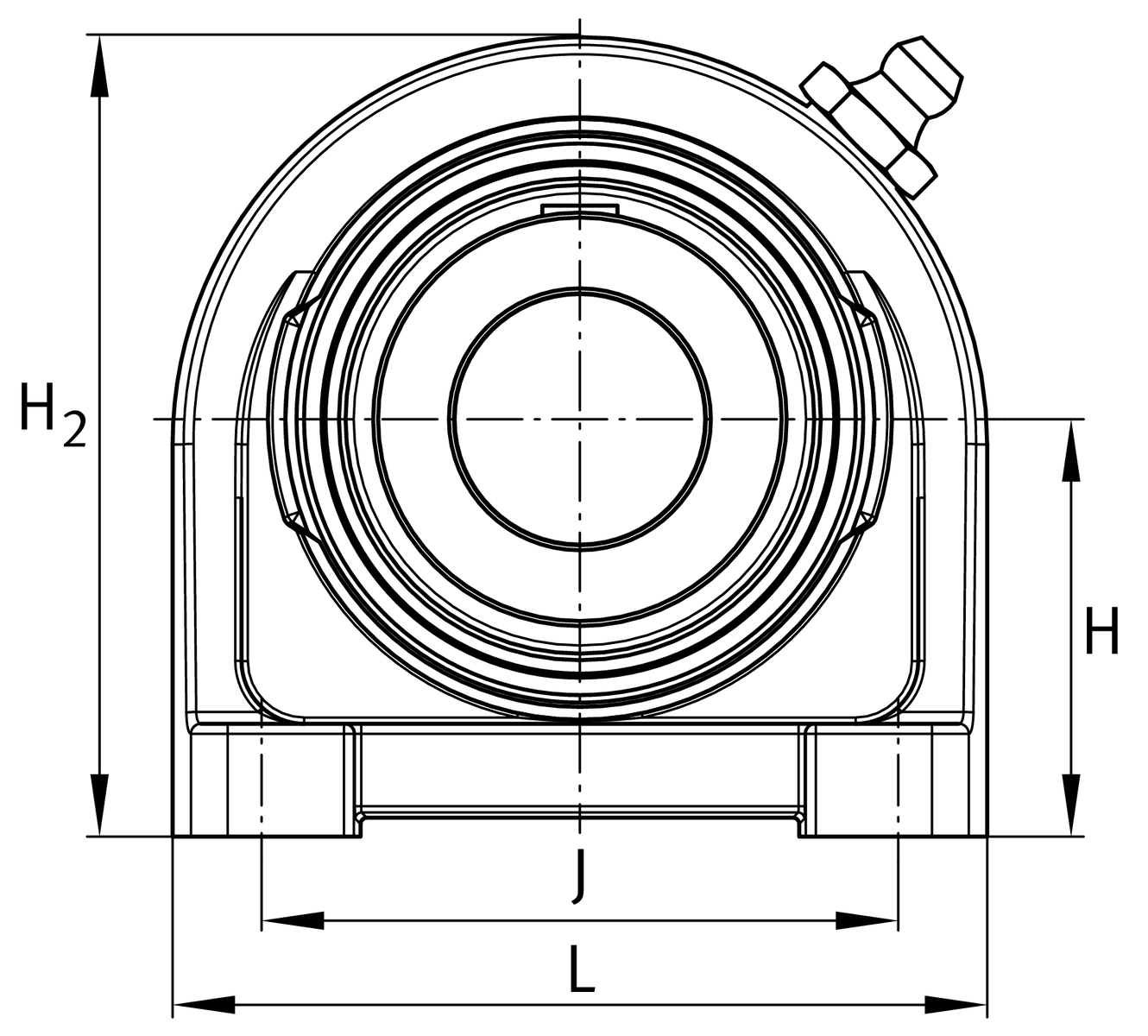

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
98 mm
Length total
H2
82 mm
Height
≈m
1.014 kg
Weight

Mounting dimensions
J
76.2 mm
Distance fixing bore
K
M10
Thread fixing bore

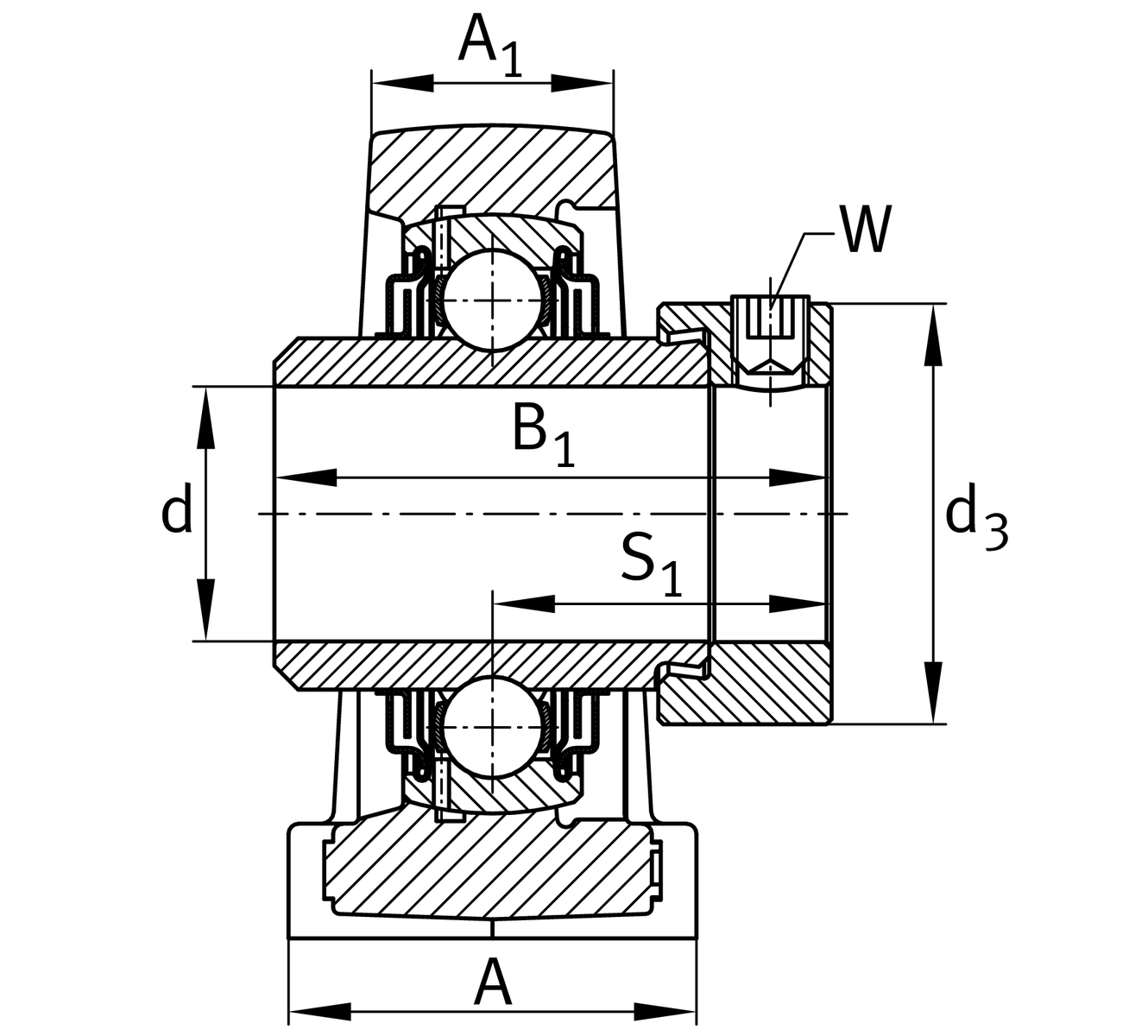

Dimensions
H
42.9 mm
Distance shaft axis
A
40 mm
Width (base)
A1
25 mm
Width (head)
Q
M6
Connection thread for lubrication
B1
48.5 mm
Locking collar total width
S1
30.2 mm
Distance of raceway to locking collar

Additional information
SHE06-N-FA125
Housing
GE30-XL-KLL-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
