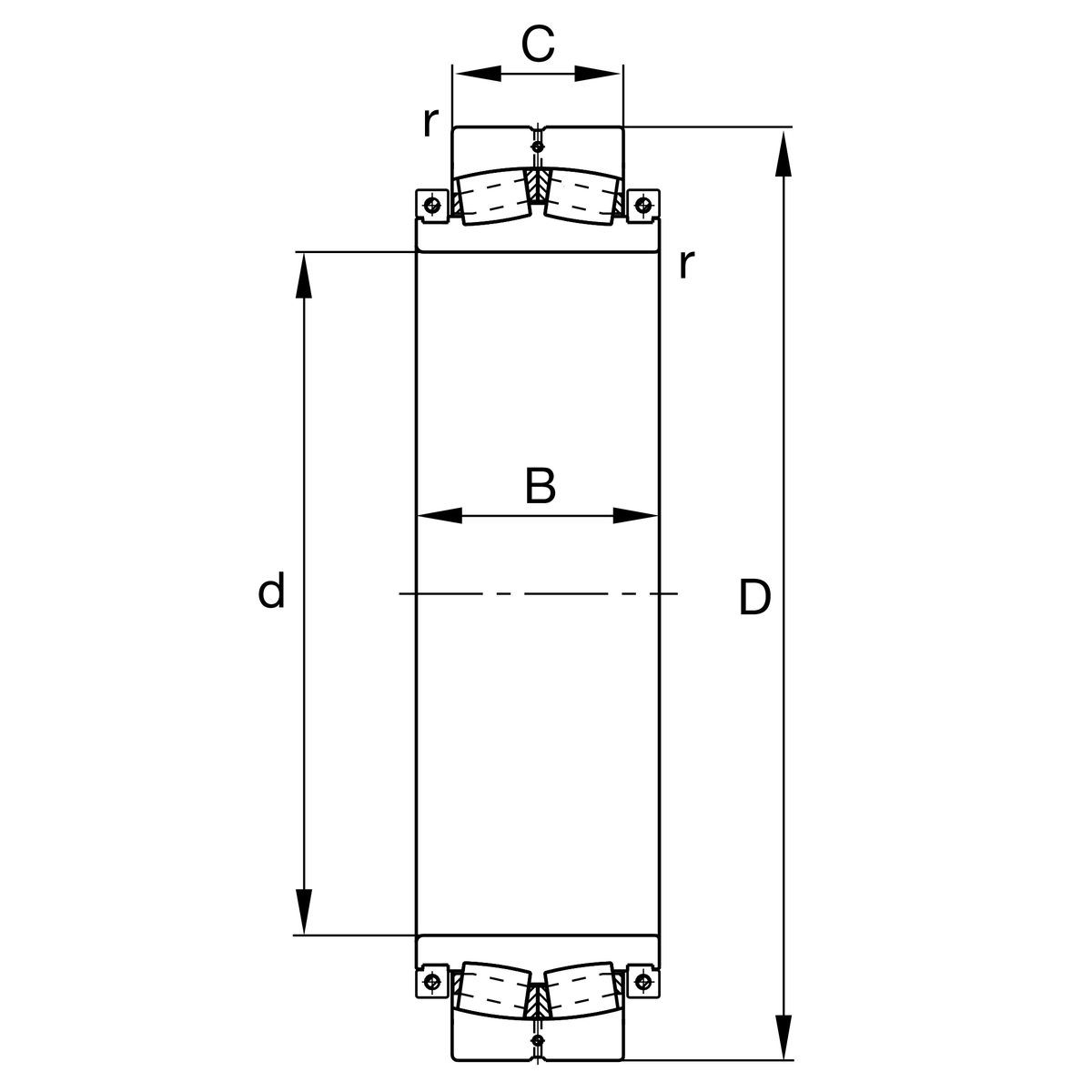

Main Dimensions & Performance Data
| d | 560 mm | Bore diameter |
| D | 800 mm | Outside diameter |
| C | 150 mm | Width, outer ring |
| Cr | 2,950,000 N | Basic dynamic load rating, radial |
| C0r | 7,000,000 N | Basic static load rating, radial |
| Cur | 540,000 N | Fatigue load limit, radial |
| nG | 305 1/min | Limiting speed |
| Fa max | 60,500 N | Maximum axial load |
| ≈m | 347 kg | Weight |
Mounting dimensions
| Mi | 295 Nm | Tightening torque clamping screw |
| Ma | 69 Nm | Tightening torque clamping screw |
Dimensions
| rmin | 5 mm | Minimum chamfer dimension |
| B | 235 mm | Width, inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.17 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 3.95 | Dynamic axial load factor |
| Y2 | 5.88 | Dynamic axial load factor |
| Y0 | 3.86 | Static axial load factor |
Additional information
239/600K | Bearing designation | |
H39/600-HG | Adapter sleeve |
Your current product variant
| Bore type | Z | Cylindrical |
| Cage | MA | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard | |
| Splitted | SM | Split bearing metric |
