RWU25-E-L
Recirculating roller bearing carriage RWU25-E-L
Thêm vào yêu cầu báo giá

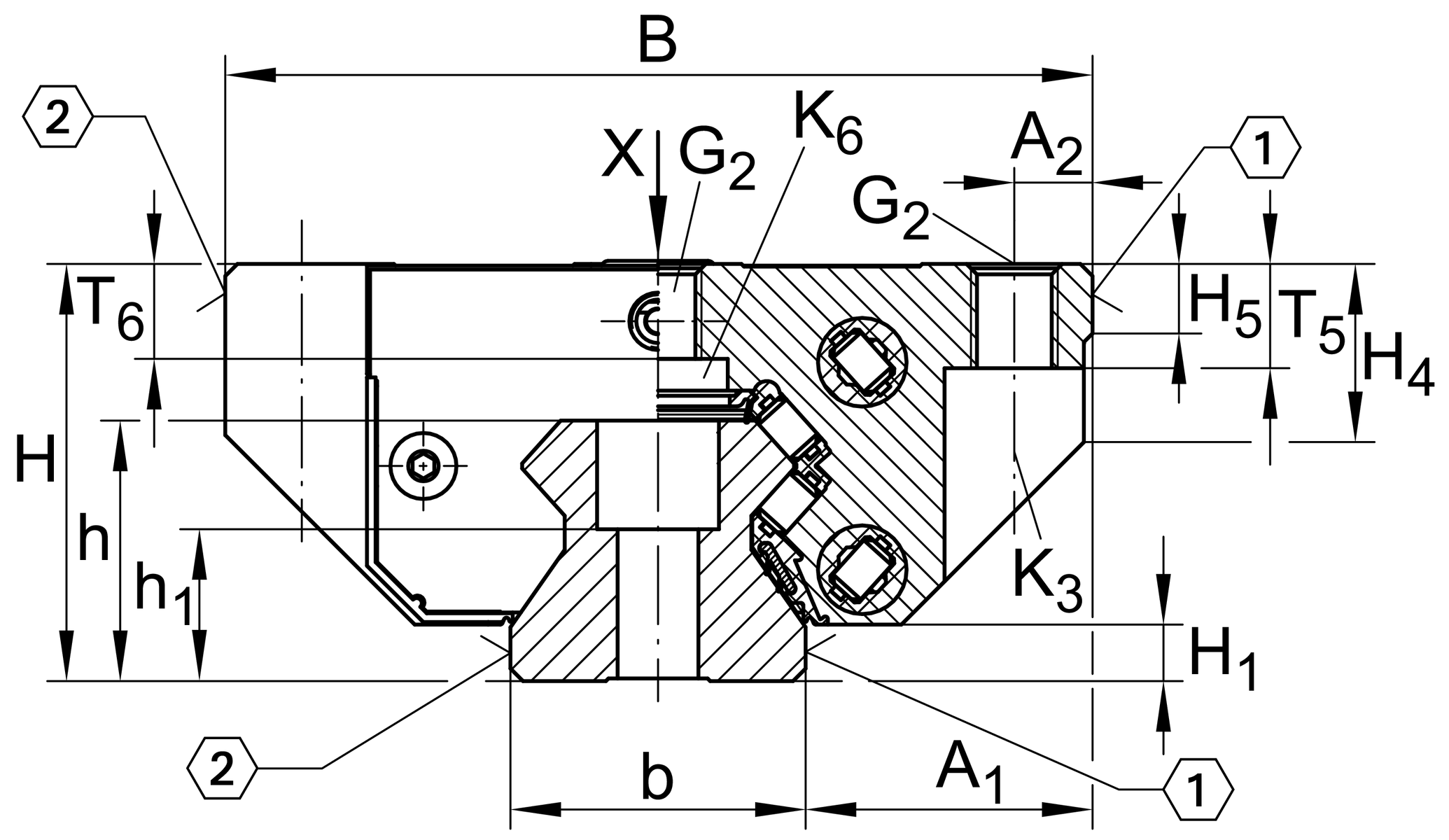

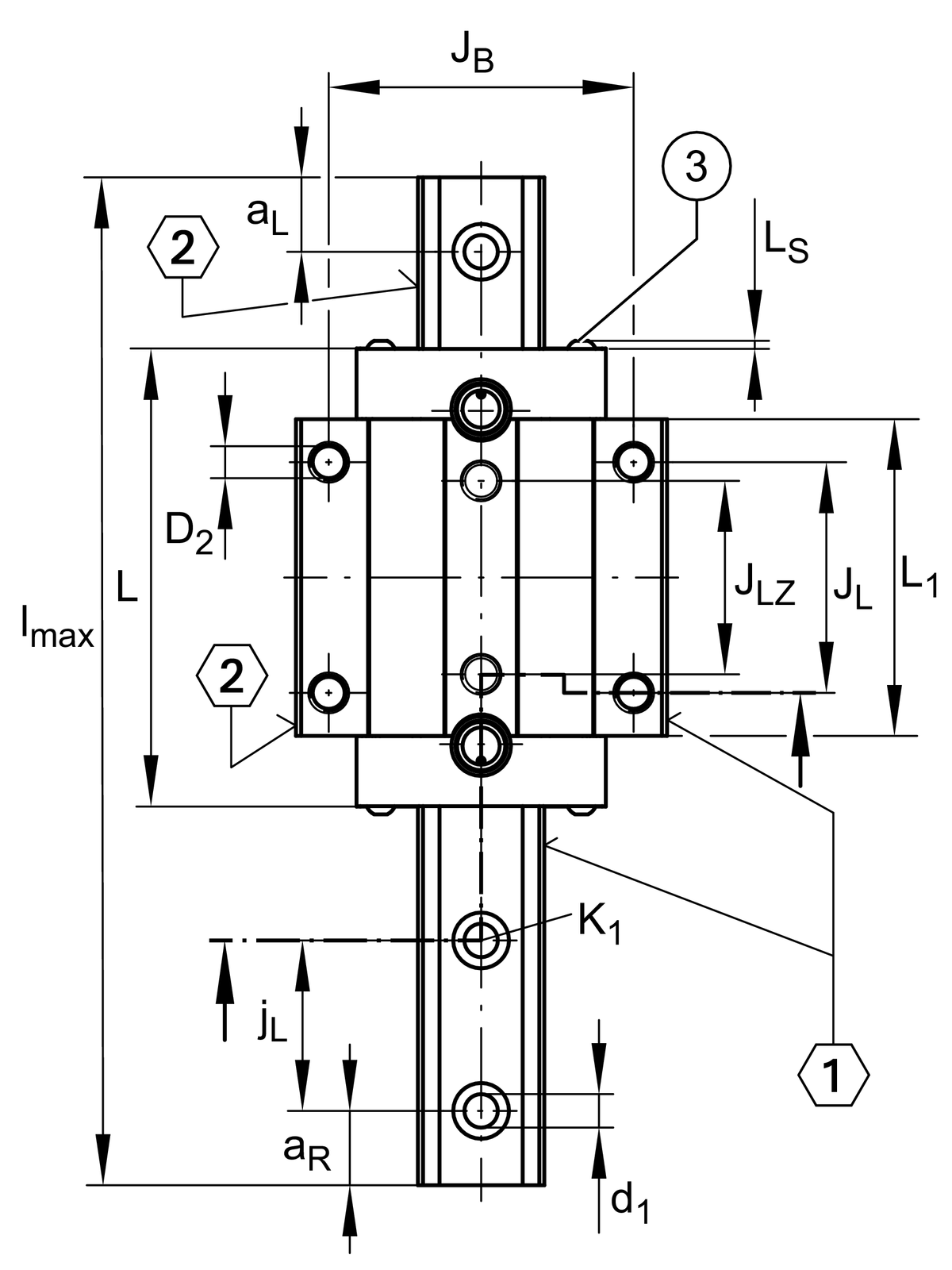

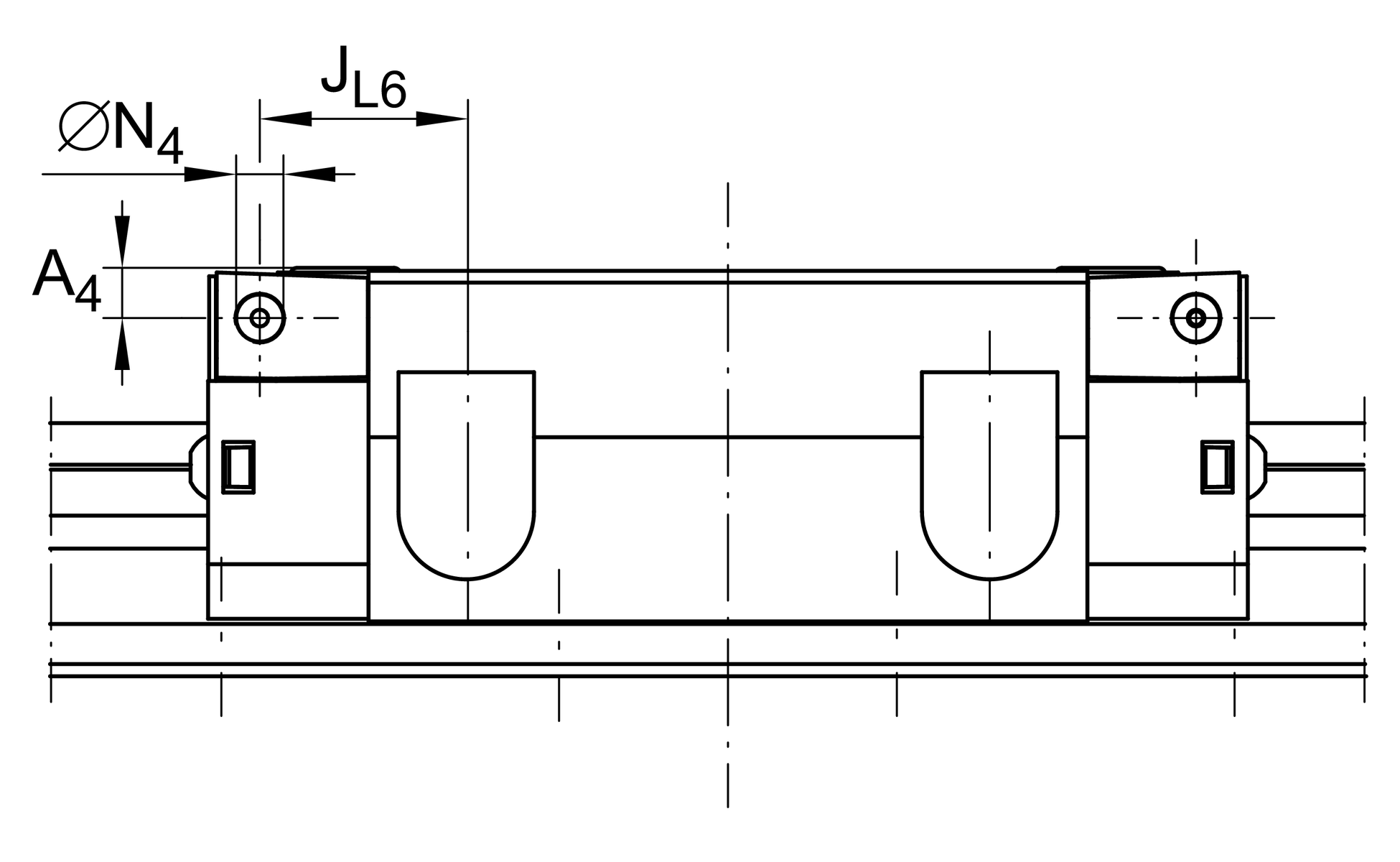

Main Dimensions & Performance Data
H
36 mm
height system
B
70 mm
width carriage
L
107 mm
overall length carriage 1
C
33,500 N
dynamic load rating 2
C0
82,000 N
dynamic load rating 2
M0x
440 Nm
static moment rating about X axis
M0y
1,200 Nm
static moment rating about Y axis
M0Z
1,080 Nm
static moment rating about Z axis
≈m
0.86 kg
Weight

Mounting dimensions
A1
23.5 mm
JB
57 mm
b
23 mm
width rail
A2
6.5 mm
L1
82.2 mm
LS
2.2 mm
JL
45 mm
JLZ
40 mm
H1
6.5 mm
H4
17.8 mm
H5
5.25 mm
T5
10 mm
T6
8.5 mm
G2
M8
fixing screws below (DIN ISO 4762-12.9)
G2 MA
24 Nm
maximum tightening torque 3
K3
M6
fixing screws below (DIN ISO 4762-12.9)
K3 MA
17 Nm
maximum tightening torque 3
K6
M6
fixing screws below (DIN 7984-8.8)
K6 MA
10 Nm
maximum tightening torque 3
D2
6.7 mm
bore diameter

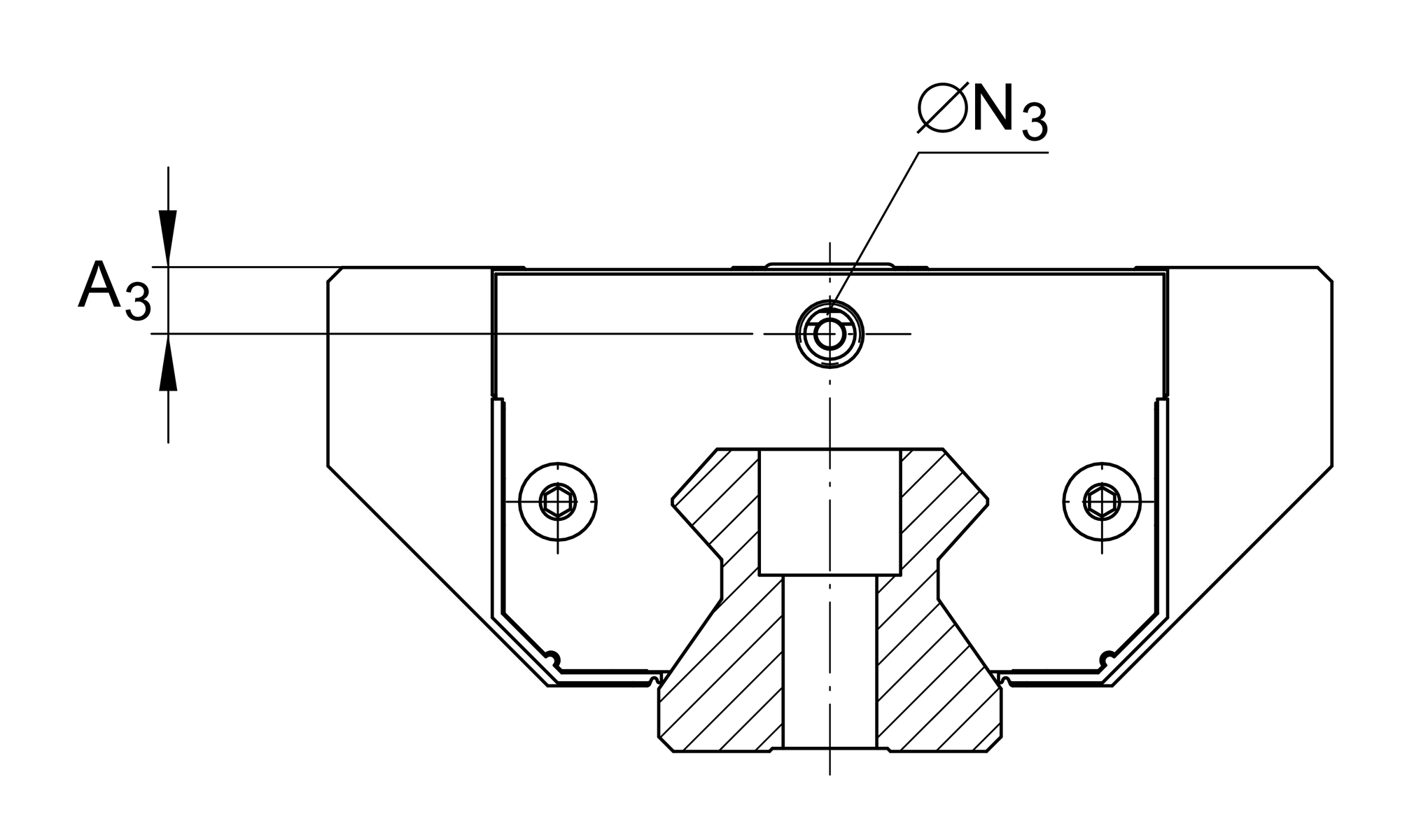

A3
7.5 mm
position lubrication connector
N3
M6
lubrication connector
t N3
6 mm
maximum permissible screw depth for lubrication connectors
N2
3 mm
max. diameter of lubrication hole in adjacent construction 4

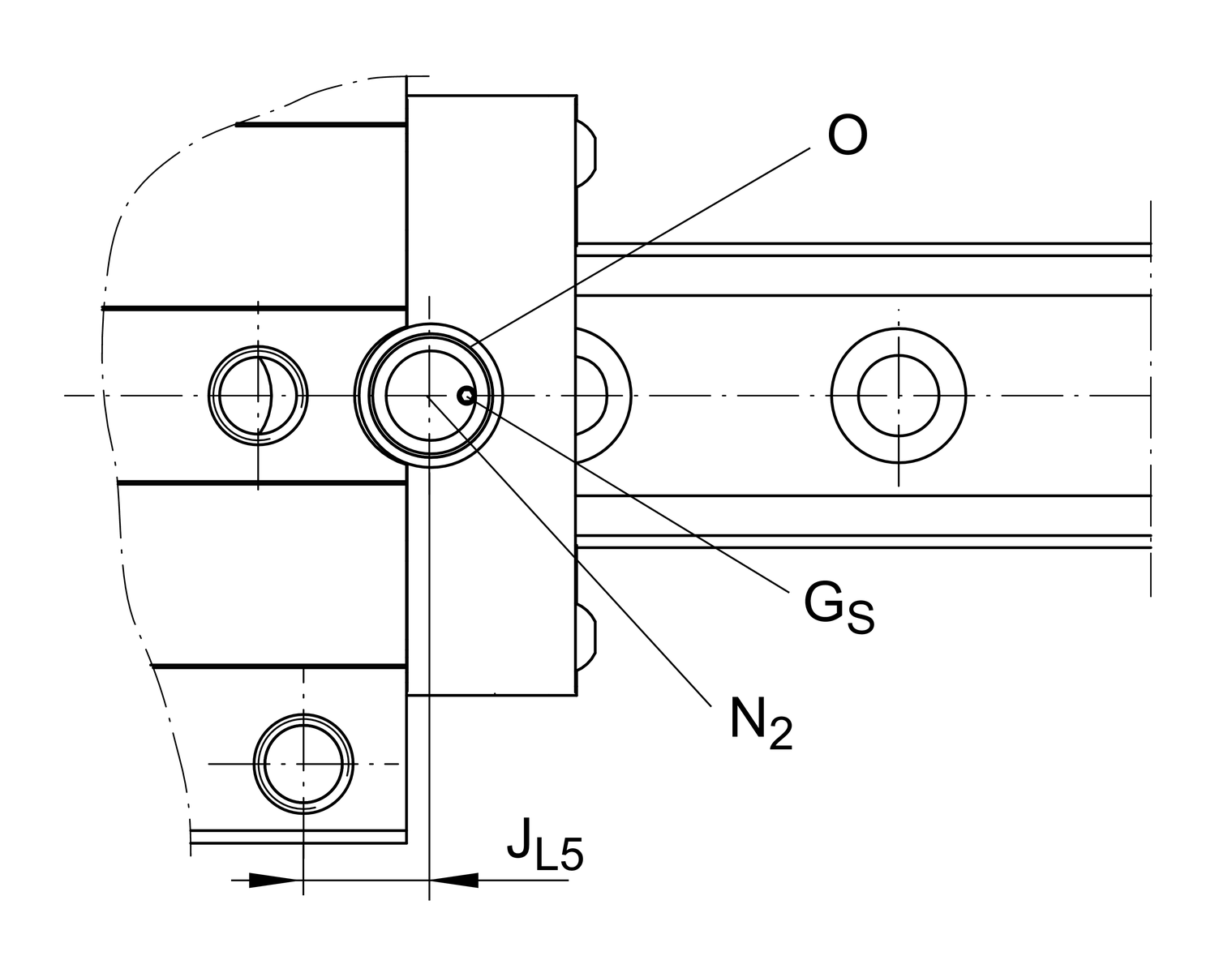

JL5
22.8 mm
position lubrication connector 5
GS
M4x4
O
10x1,5
O-Ring DIN 3771

Additional information
VMKB_065
RWU
Material name

Your current product variant
Size code25
VersionEversion
Carriage designLLong carriage
