RWU25-E-H
Recirculating roller bearing carriage RWU25-E-H
Thêm vào yêu cầu báo giá

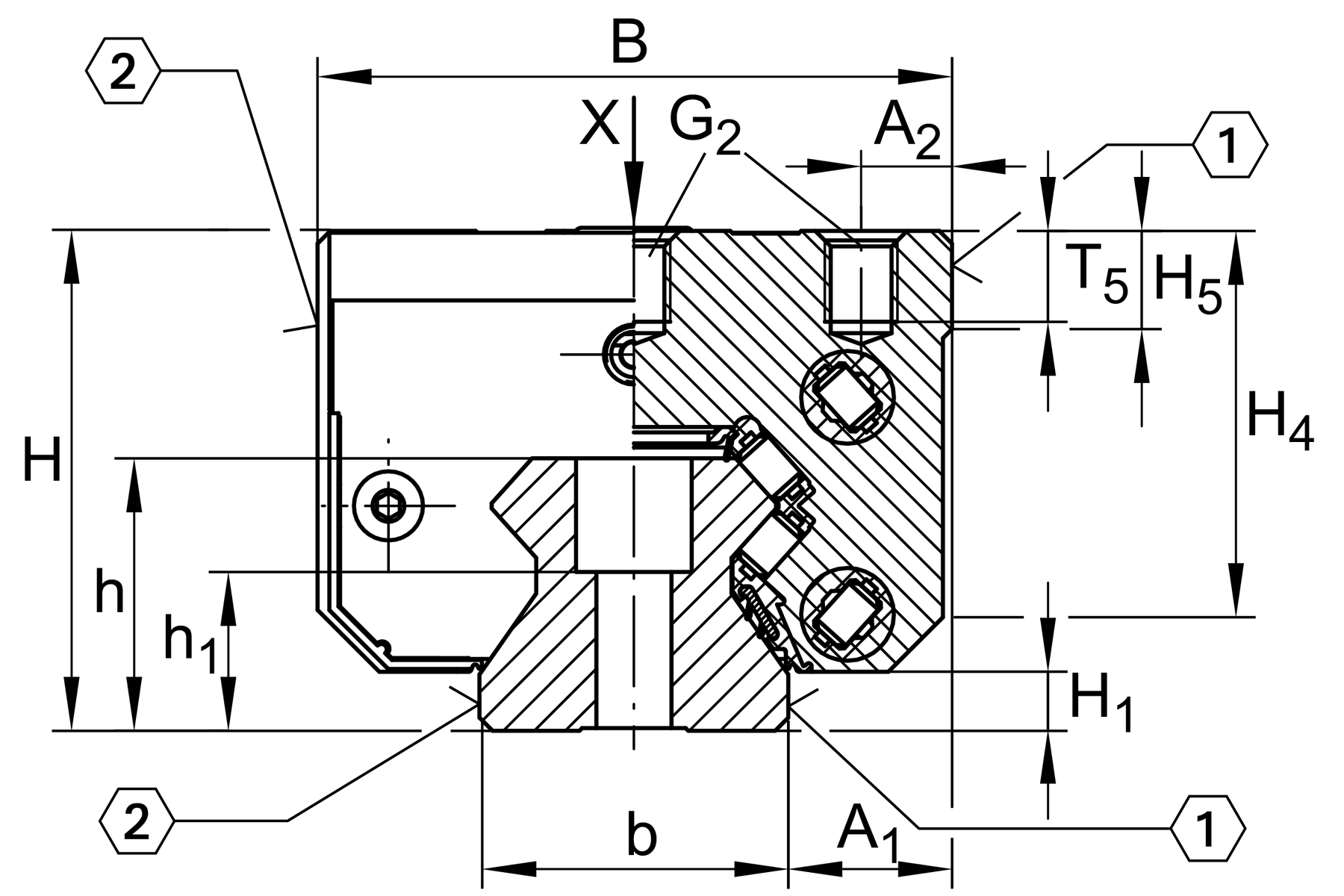

Main Dimensions & Performance Data
H
40 mm
height system
B
48 mm
width carriage
L
91 mm
overall length carriage 1

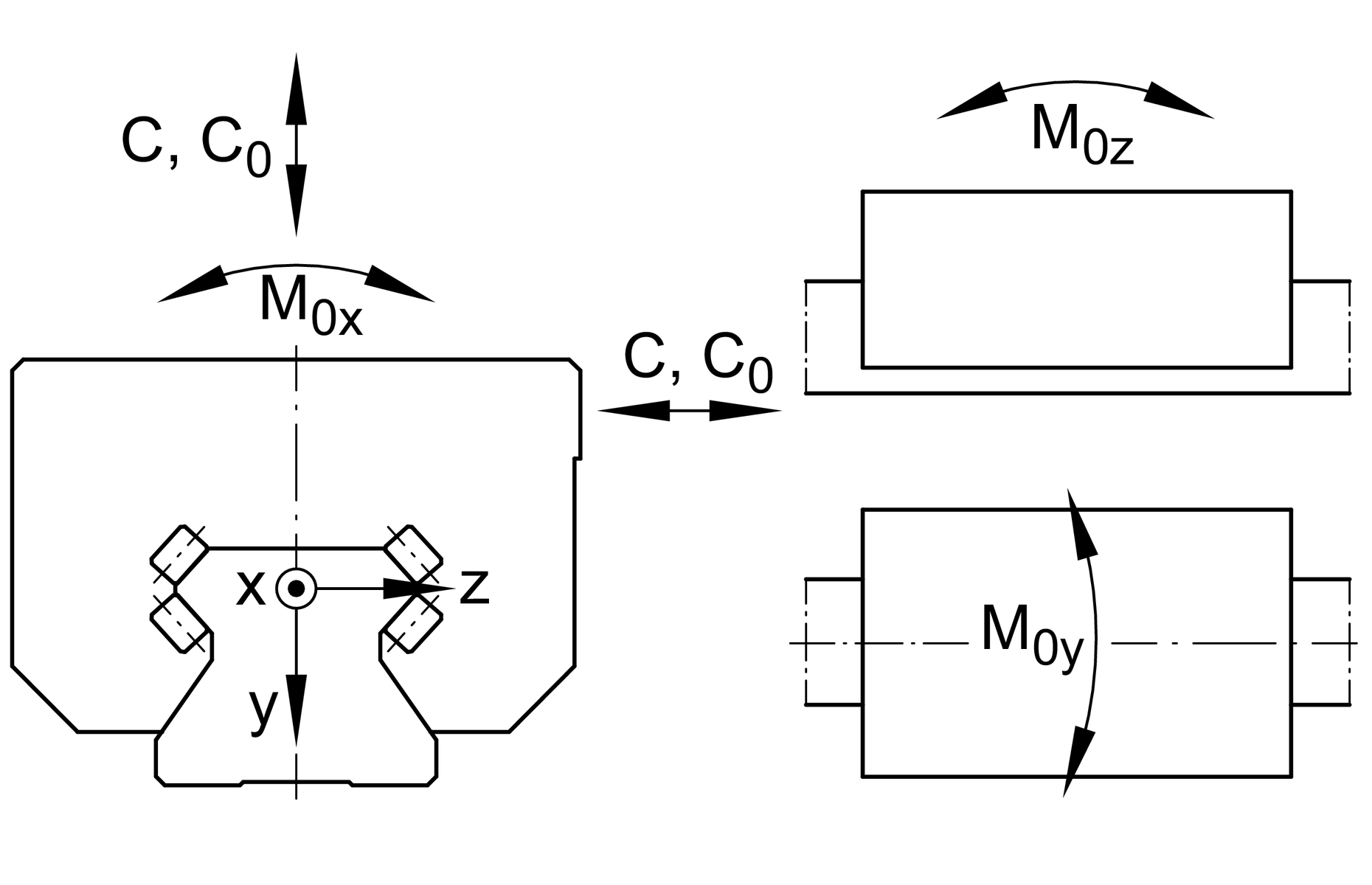

C
28,000 N
dynamic load rating 2
C0
65,000 N
dynamic load rating 2
M0x
350 Nm
static moment rating about X axis
M0y
760 Nm
static moment rating about Y axis
M0Z
680 Nm
static moment rating about Z axis
≈m
0.58 kg
Weight

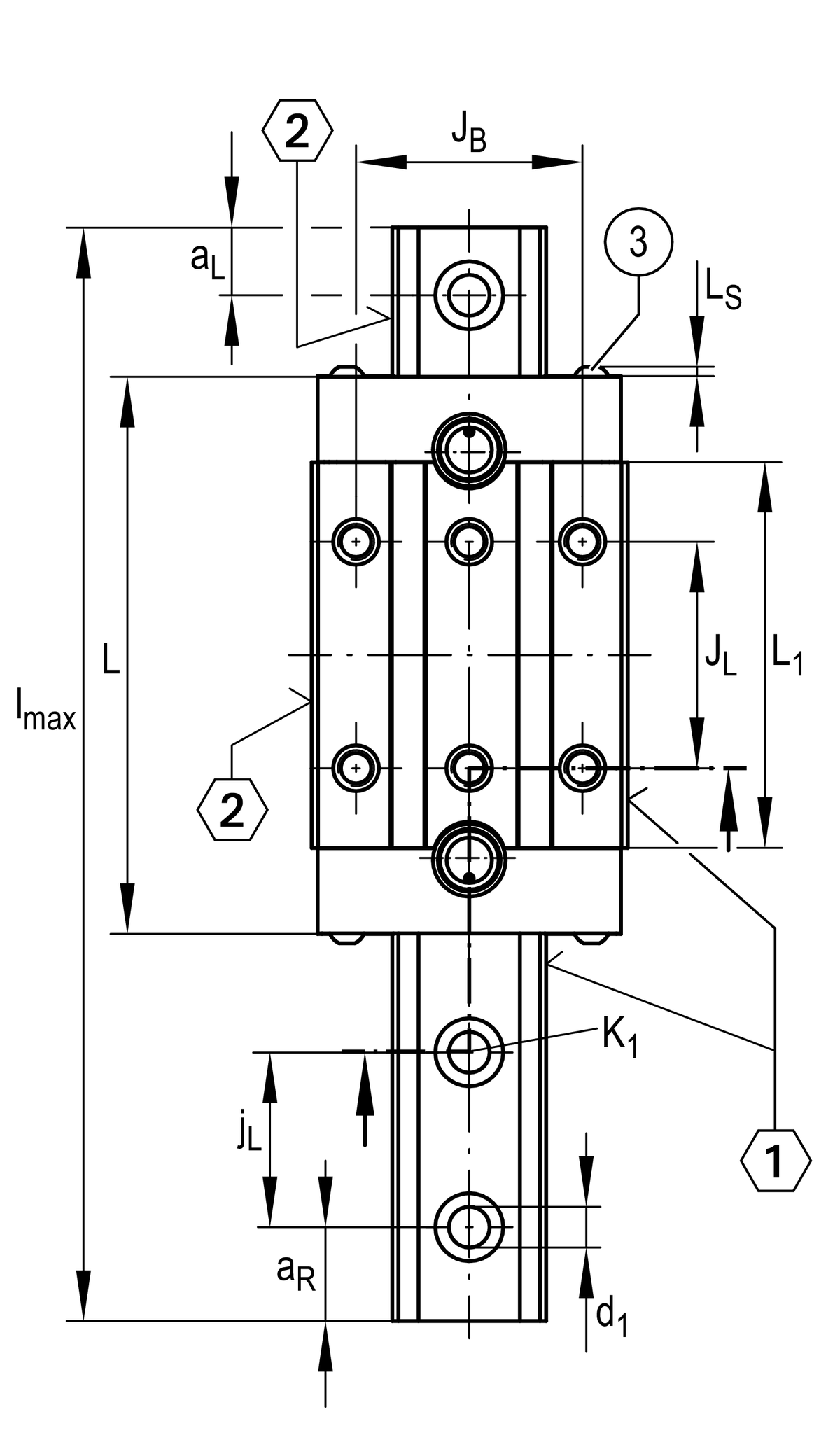

Mounting dimensions
A1
12.5 mm
JB
35 mm
b
23 mm
width rail
A2
6.5 mm
L1
65.6 mm
LS
2.2 mm
JL
35 mm
H1
6.5 mm
H4
32.5 mm
H5
5.25 mm
T5
7.5 mm
G2
M6
fixing screws below (DIN ISO 4762-12.9)
G2 MA
17 Nm
maximum tightening torque 3

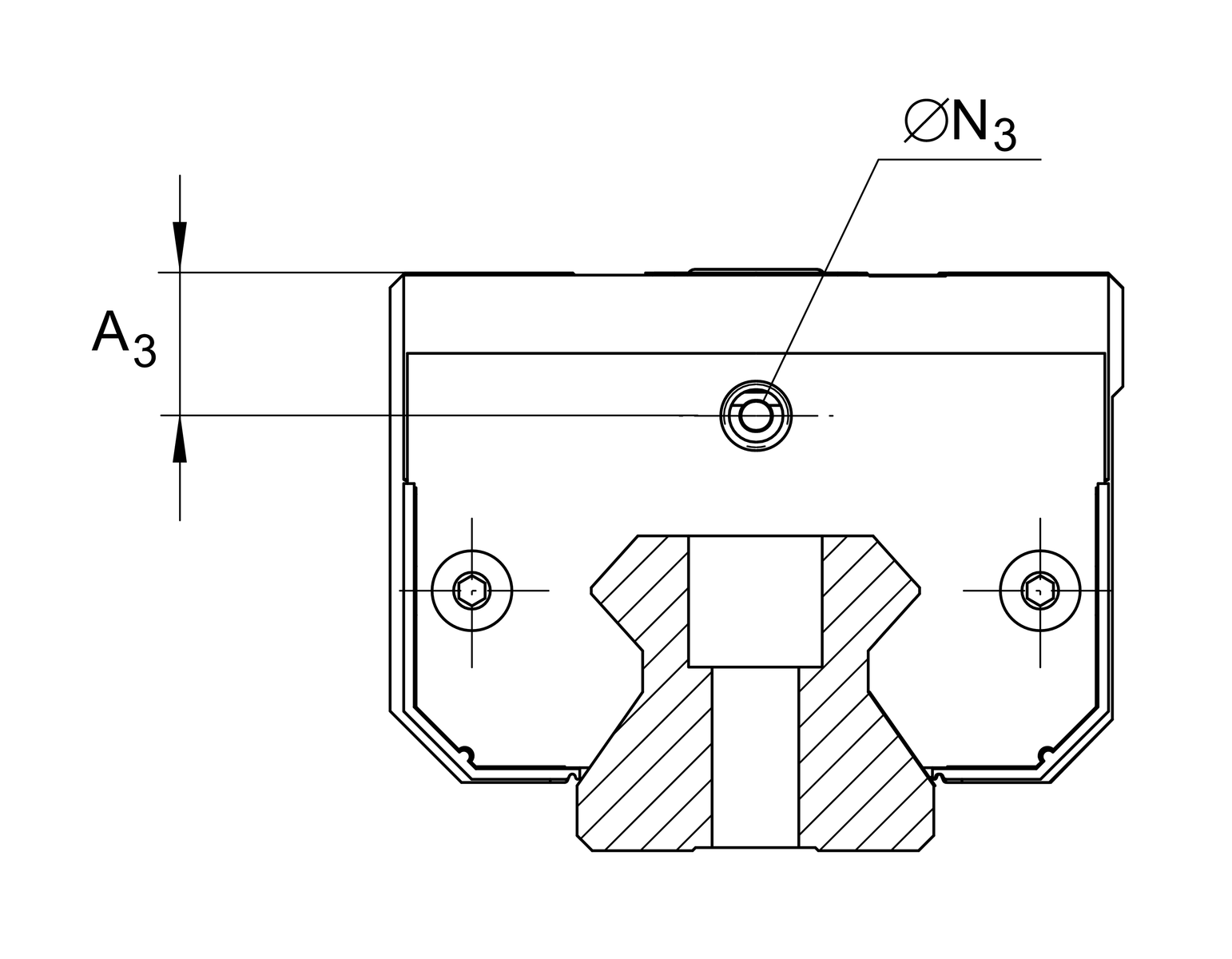

A3
11.5 mm
position lubrication connector

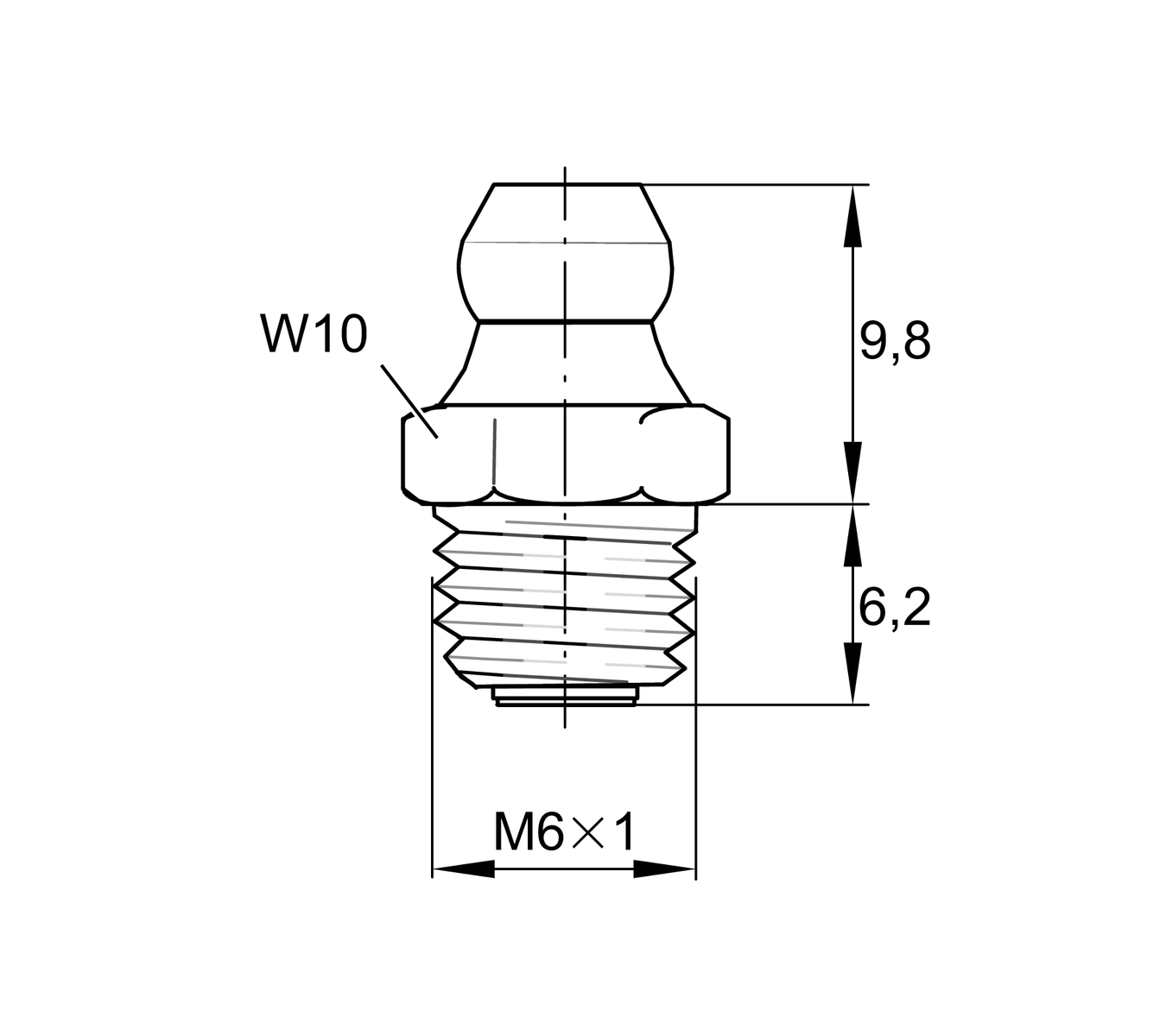

N3
M6
lubrication connector
t N3
6 mm
maximum permissible screw depth for lubrication connectors

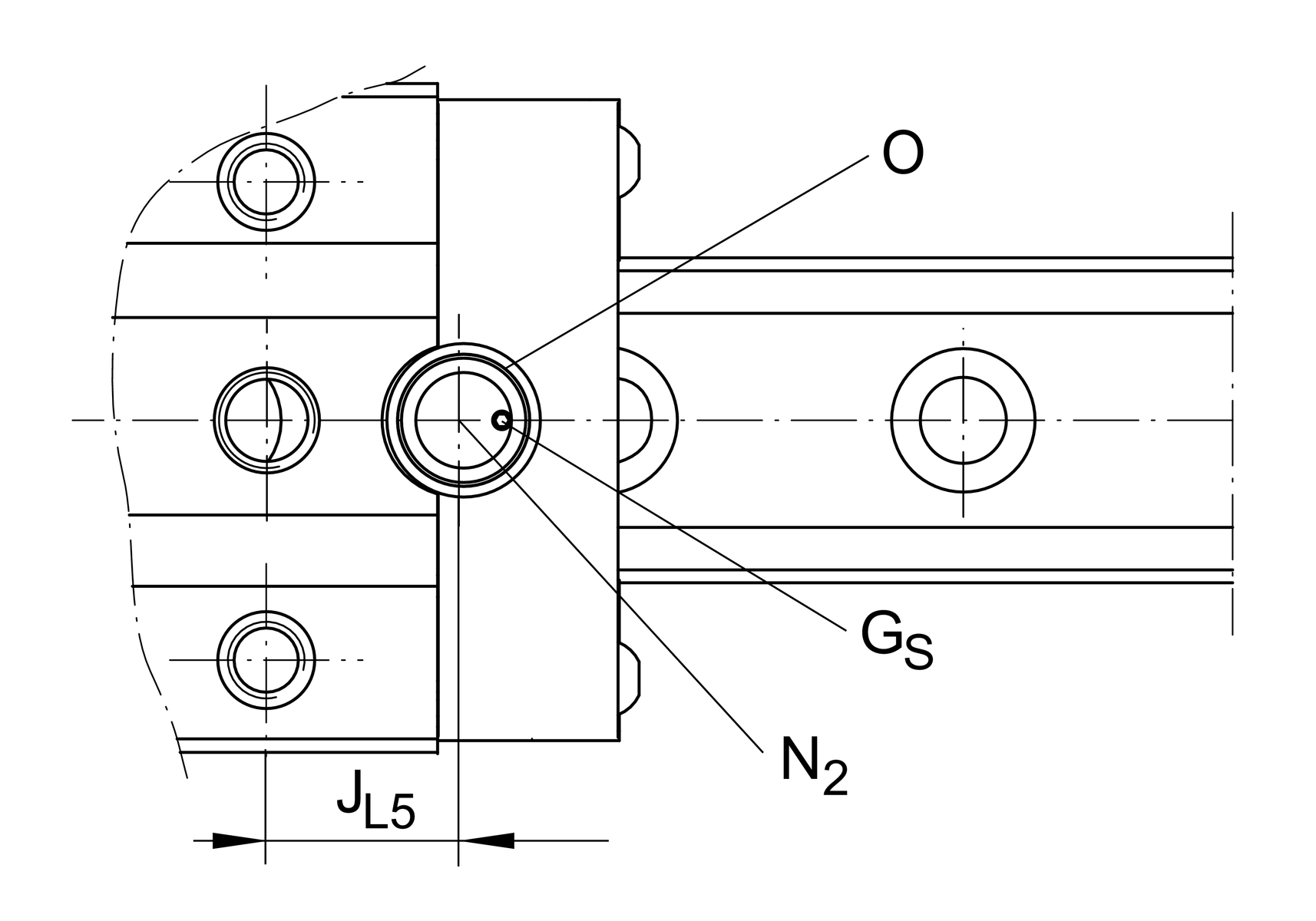

N2
3 mm
max. diameter of lubrication hole in adjacent construction 4
JL5
19.5 mm
position lubrication connector 5
GS
M4x4
O
10x1,5
O-Ring DIN 3771

Additional information
VMKB_065
RWU
Material name

Your current product variant
Size code25
VersionEversion
Carriage designHHigh carriage
