n.r.
200 | Length of carriage | |
FM | Spindle nut design |
主要尺寸與性能資料

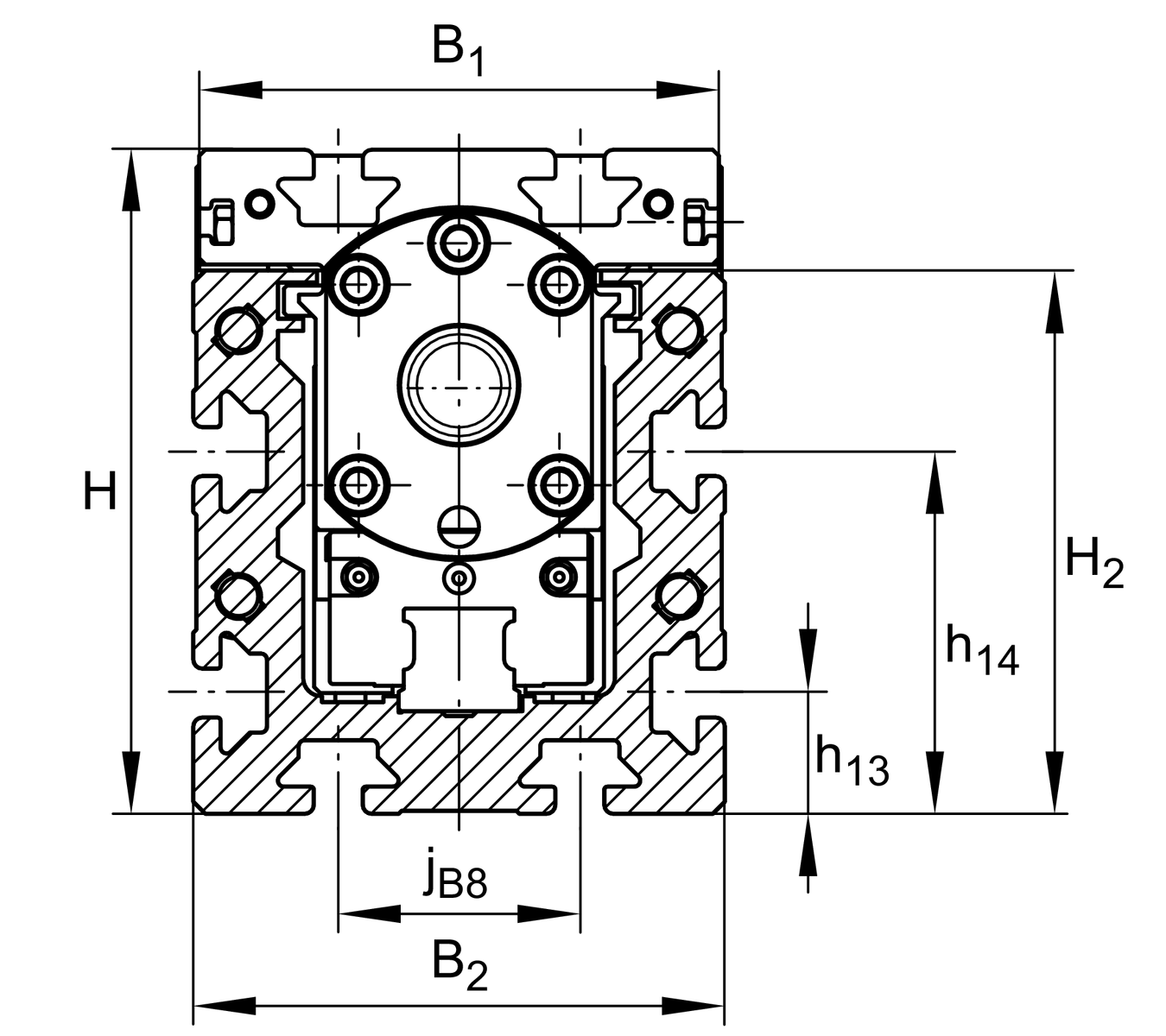

| L | 200 mm | Length of Carriage |
| H | 110 mm | Total Height |
| B2 | 88 mm | Total Width |
安裝尺寸
| B1 | 86 mm | Width of Carriage |

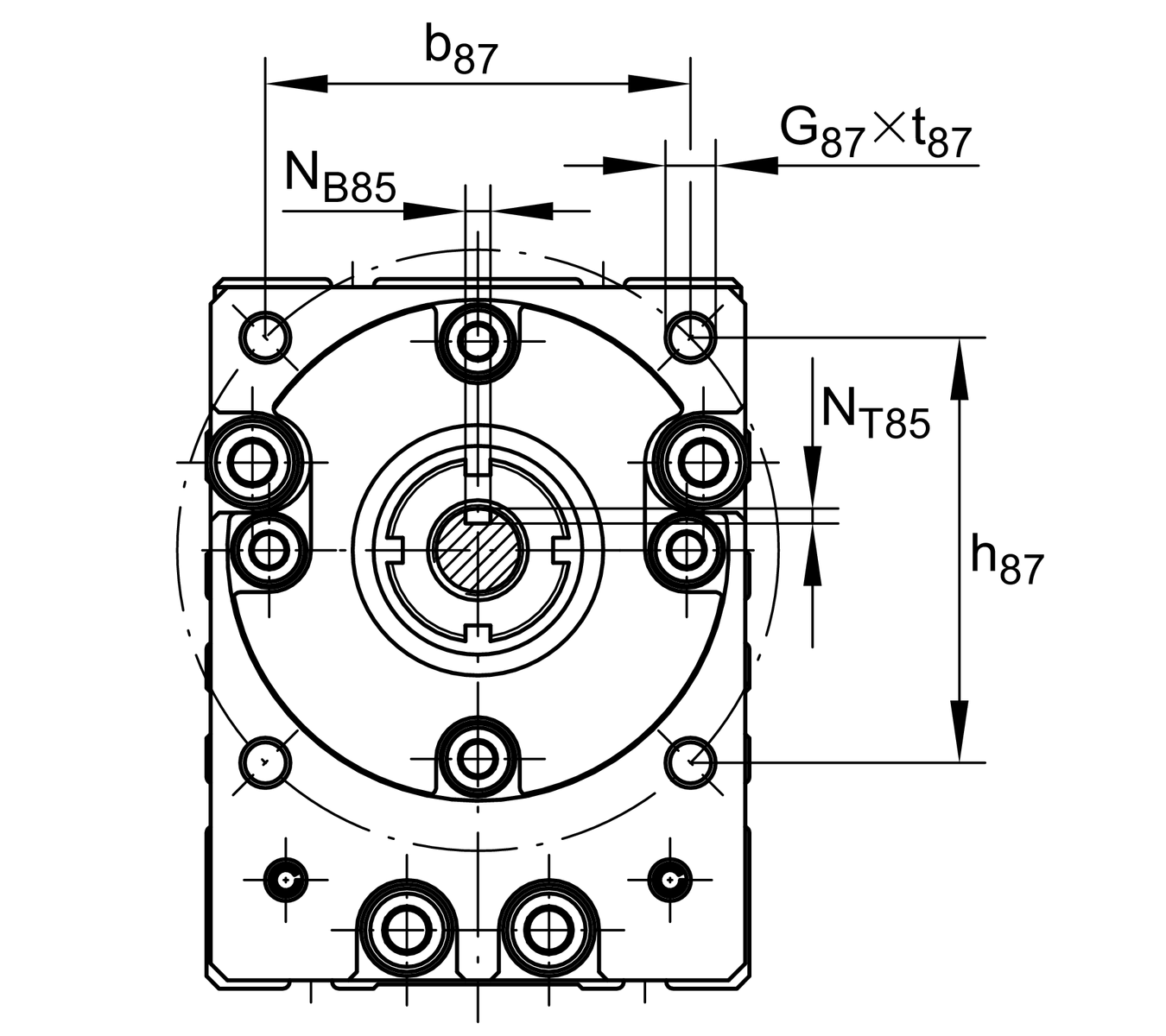

| b87 | 68 mm | |

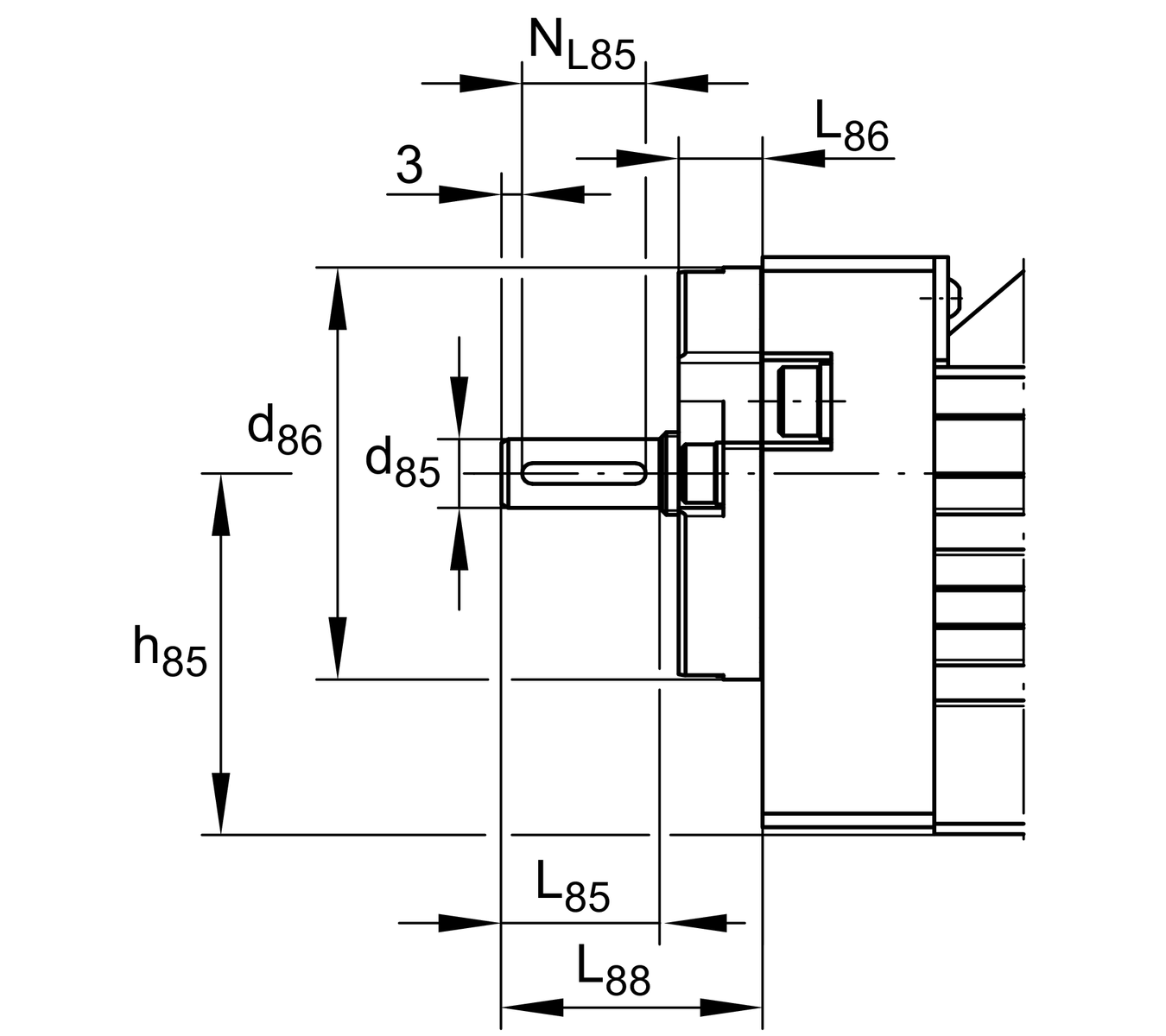

| d85 | 13 mm | Tolerance h6 |
| d86 | 60 mm | Tolerance h7 |
| G87 | M6 | 線 |
| h13 | 20 mm | |
| h14 | 60 mm | |
| h85 | 71 mm | |
| h87 | 46 mm | |
| JB43 | 40 mm | |
| jB8 | 40 mm | |

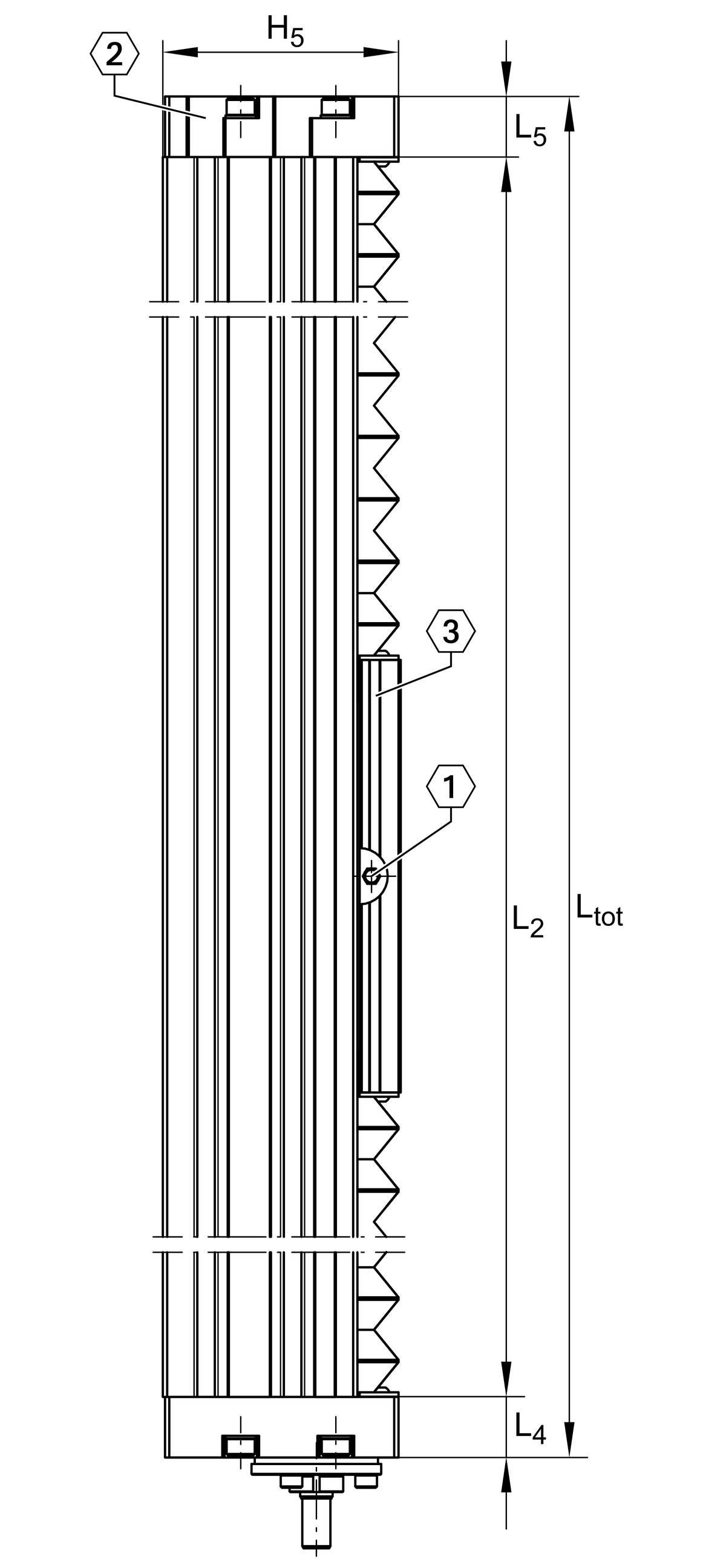

| L2 max | 5,850 mm | Maximum length of Support Rail |
| L85 | 23 mm | |
| L86 | 8 mm | |
| L88 | 42 mm | |
| NB43 | 14 mm | |
| NB85 | 5 mm | Tolerance P9 |
| NL43 | 20 mm | |
| NL85 | 18 mm | Length of Keyway |
| NT85 | 3.5 mm | Depth of Keyway |
| t87 | 15 mm | Depth of Thread |
尺寸

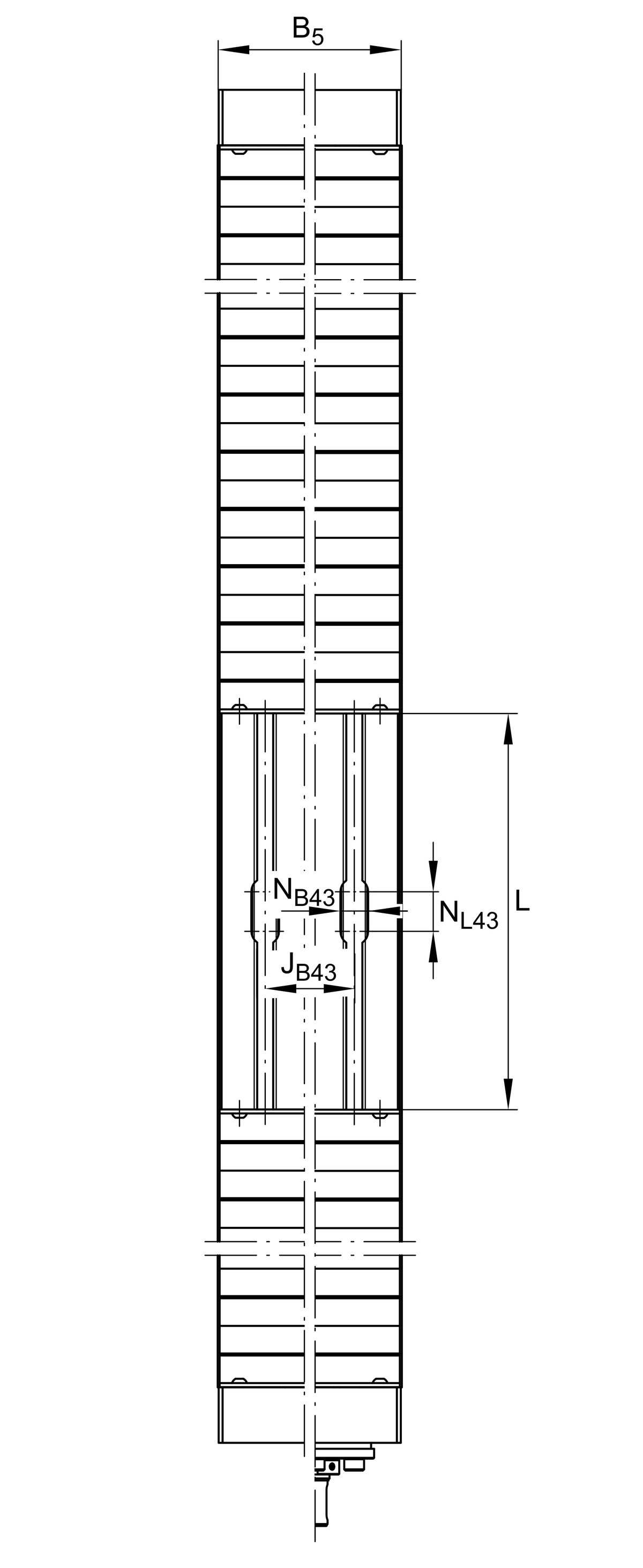

| B5 | 87 mm | Width of End Plates |
| FBL | 1.17 | Effective length factor of bellow |
| H2 | 90 mm | Width of Support Rail |
| H5 | 109 mm | |
| L4 | 28 mm | |
| L5 | 28 mm |
科技數據

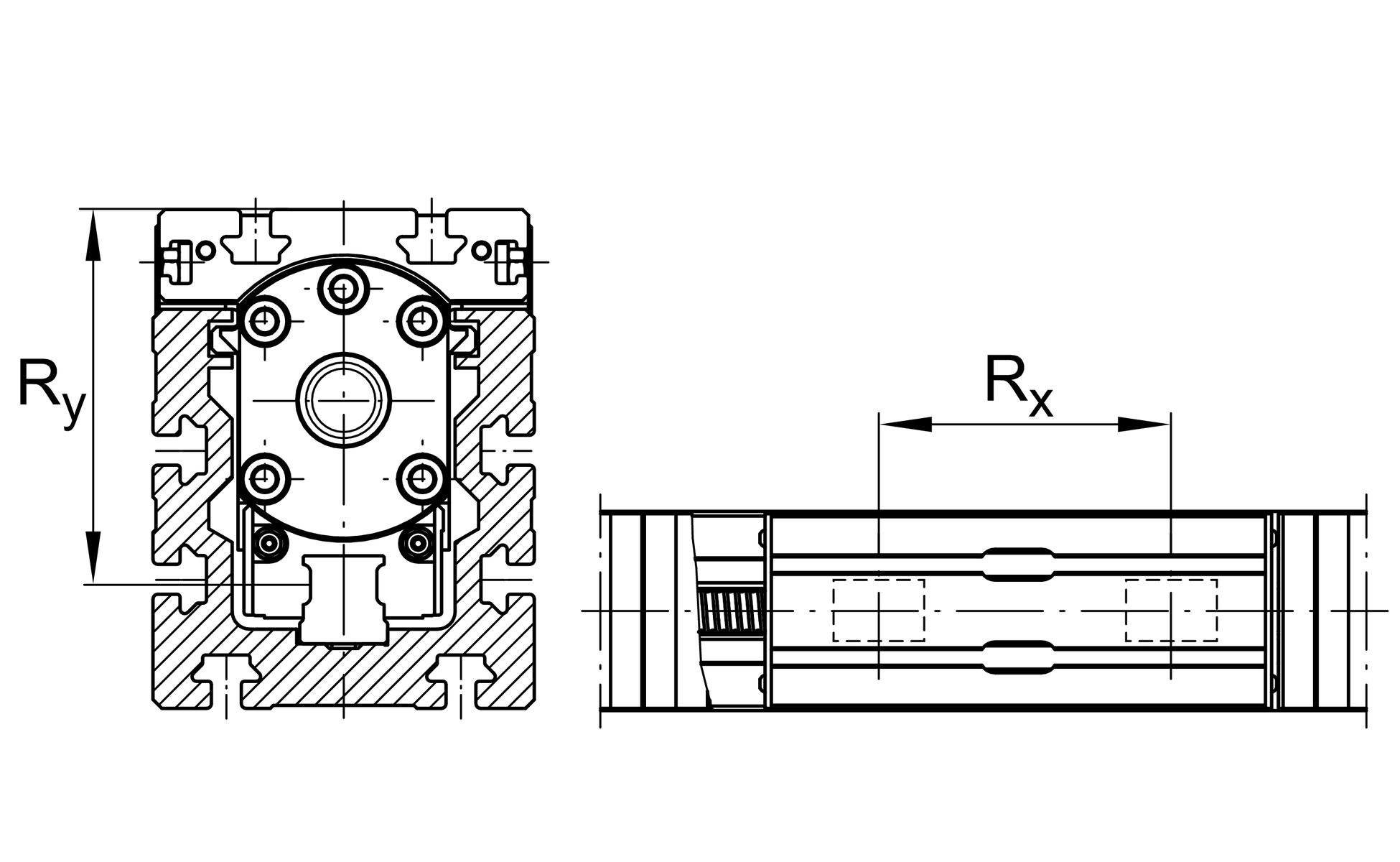

| Rx | 85 mm | |
| Ry | 52.1 mm | |
| S | 5 mm | Safety Distance |
| mLAW | 2.1 kg | Mass of Carriage |
| vmax | 0.29 m/s | Maximum Speed |
| amax | 10 m/s2 | Maximum Acceleration |

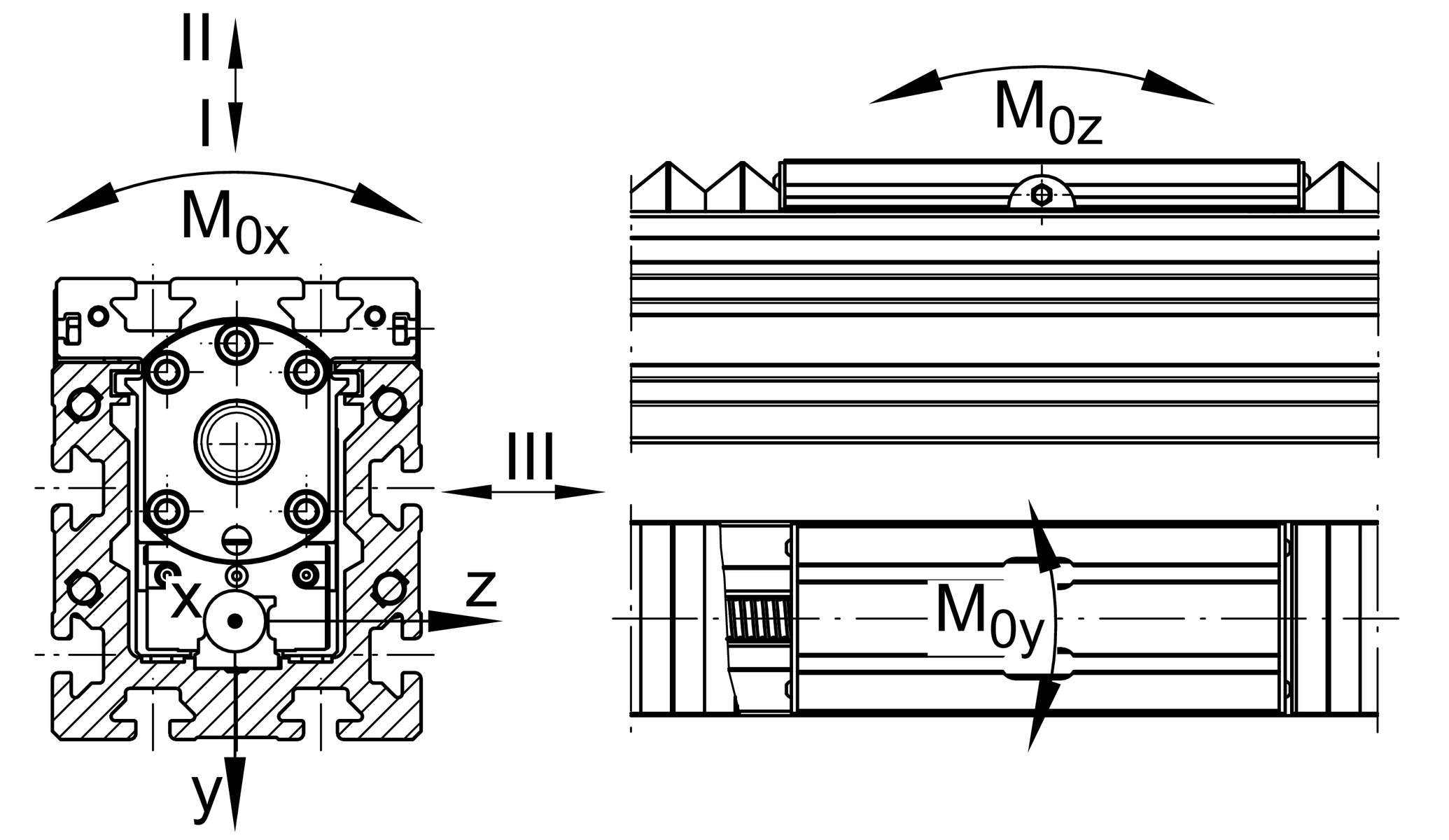

| IC | 21,300 N | Load direction I: compressive load |
| I C0 | 54,000 N | Load direction I: compressive load |
| II C | 21,300 N | Load direction II: tensile load |
| II C0 | 54,000 N | Load direction II: tensile load |
| III C | 21,300 N | Load direction III: lateral load |
| III C0 | 54,000 N | Load direction III: lateral load |
| M0x per | 580 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 1,000 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 1,200 Nm | Max. permissible static moment per Carriage 1 |
| ly | 281 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 219 cm4 | Geometrical moments of inertia of Support Rail |
| Ca MU | 10,500 N | Load capacity spindle nut dyn 2 |
| C0a MU | 16,600 N | Load capacity spindle nut stat 2 |
| Ca L | 17,900 N | Load capacity fixed Spindle bearing dyn |
| C0a L | 28,000 N | Load capacity fixed Spindle bearing stat |
| d0 | 20 mm | Spindle Diameter |
| P | 5 mm | Spindle Pitch |
| ls | 0.846 kg*cm2 | 質量慣性矩 of threaded Spindle |
| SPU | Ja | Spindle Support |
附加資訊
ZKLF1560-2RS-PE | Rolling Bearings | |
FM | Drive System | |
2 x KWVE20-B-S | Carriage |
您目前的產品型號
| Size code | 20 | |
| Drive type | KGT | Ball screw drive |
| Spindle pitch | 5 | 5 mm |
| Spindle support | SPU | Yes |
| Additional carriage | / | No additional carriage |
| Attachment to the carriage | N | T-Slots |
